8.4 Rear Integrated Frame Device
8.4 Rear Integrated Frame Device
8.4.1 Specifications
8.4.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
Fixed bolts connecting the integrated
88.5 +/- 6 (ft lbs)
M12
framework and frame assembly
Fixed bolts connecting the fixed support
155 +/- 14.75 (ft lbs)
M14
to the frame
Fixed bolts connecting the integrated
88.5 +/- 6 (ft lbs)
M12
framework and fixed bracket

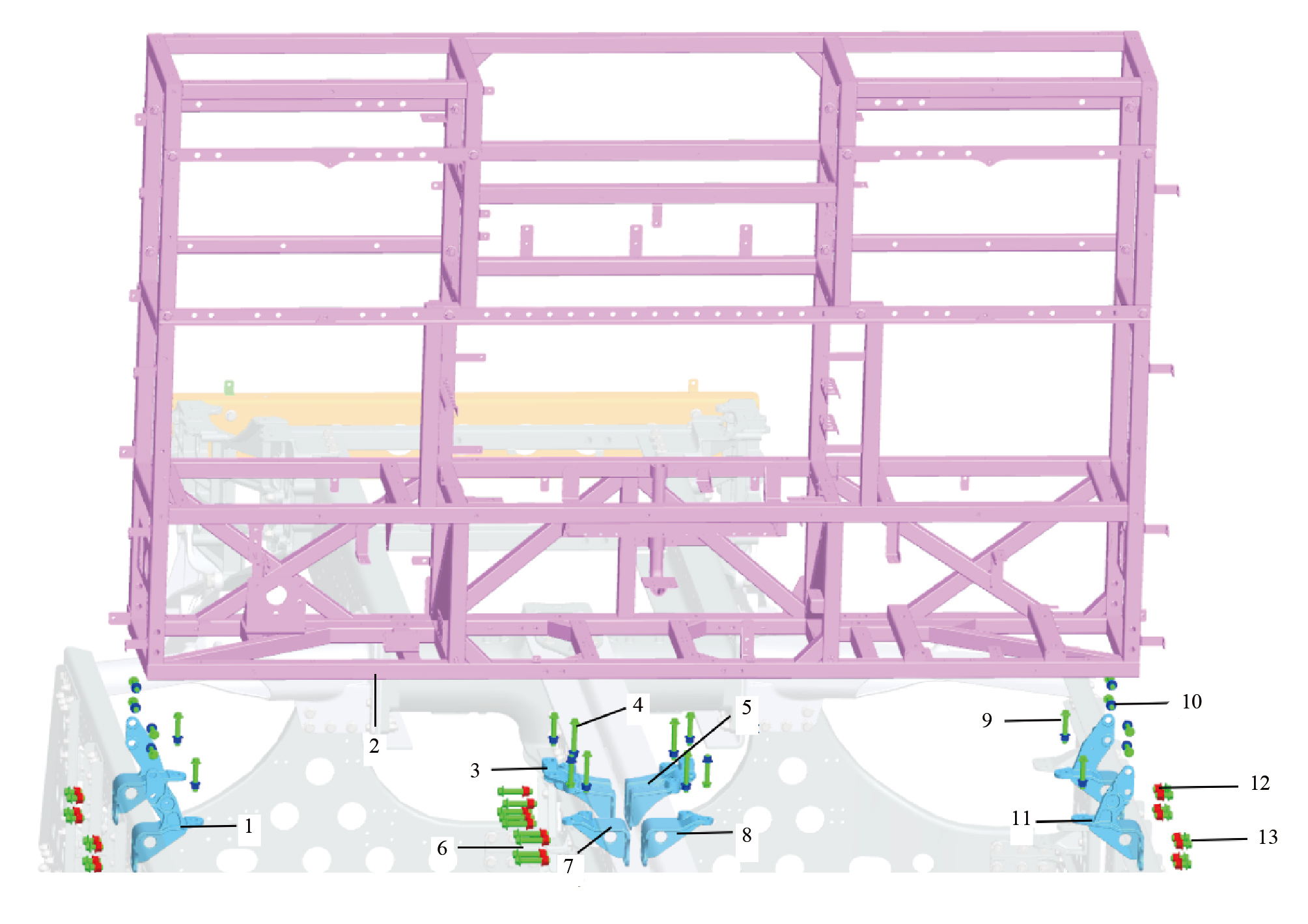

8.4.2 Decomposition Diagram
8.4.2.1 Decomposition Diagram
1.
8.
Outer Overiap Casting 2
Intermediate Overiap Casting 2
2.
Integrated Framework
9.
Hexagon Flange Bolt
3.
10.
Hexagon Flange Lock Nut_All Metal
Intermediate Overiap Casting 3
4.
11.
Hexagon Flange Bolt
Outer Overiap Casting 1
5.
12.
Hexagon Flange Lock Nut_All Metal
Intermediate Overiap Casting 4
6.
13.
Hexagon Flange Bolt
Hexagon Flange Bolt
7.
Intermediate Overiap Casting 1
