8.3 Subframe Device
8.3 Subframe Device
8.3.1 Specifications
8.3.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the upper
skeleton of the subframe to the lower
155 +/- 14.75 (ft lbs)
M14
connecting bracket of the subframe
The fixing nut connecting the upper
skeleton of the subframe to the lower
155 +/- 14.75 (ft lbs)
M14
connecting bracket of the subframe

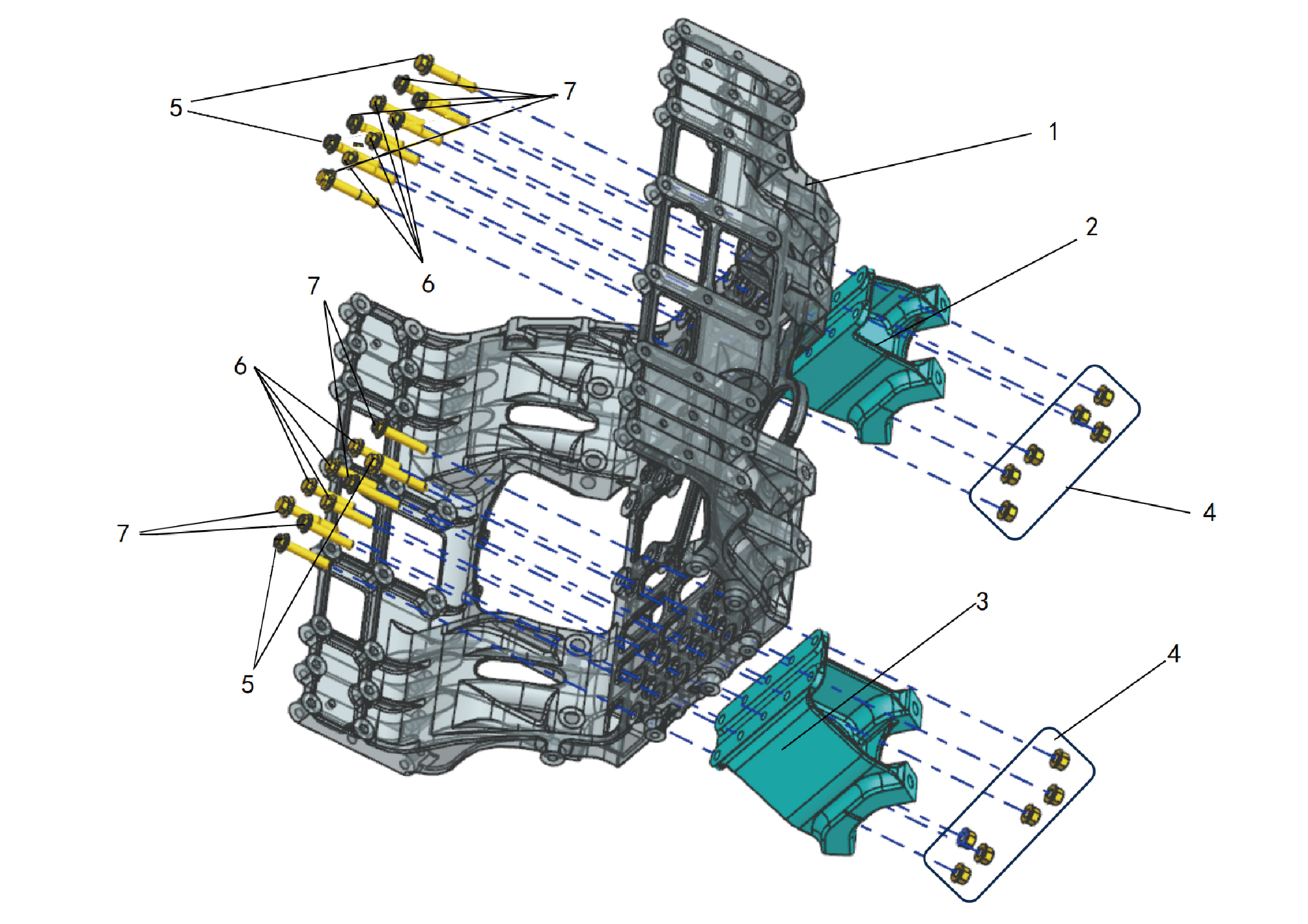

8.3.2 Decomposition Diagram
8.3.2.1 Decomposition Diagram
5.
1.
Middle Skeleton_Sub Frame
Sub-frame positioning bolt 14×78 in new energy
vehicles
2.
6.
Hexagon Flange Bolt
Brkt-Connection Subframe Lor Frt
7.
3.
Hexagon Flange Bolt
Brkt-Connection Subframe Lor Rr
4.
Hexagon Flange Nut

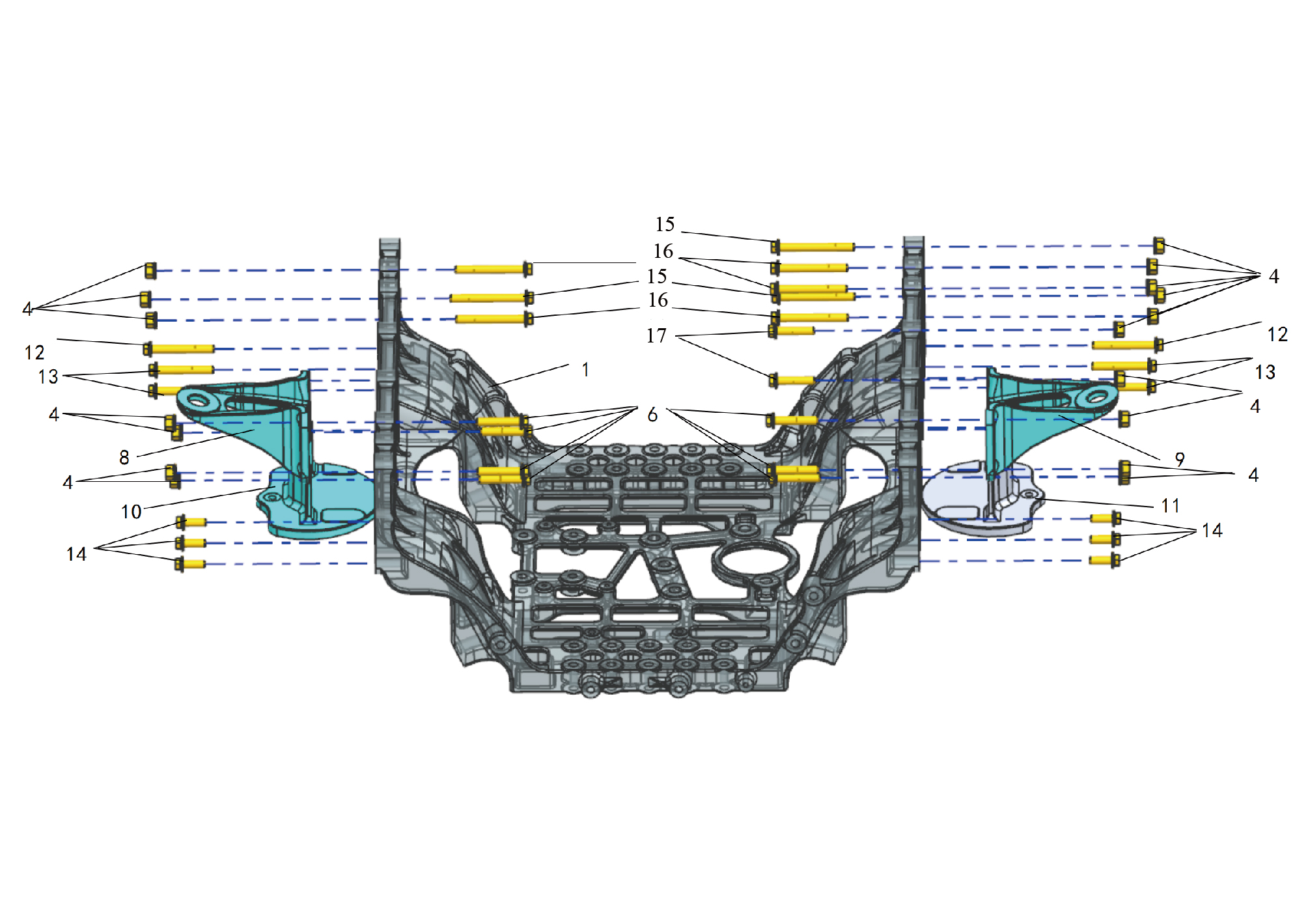

1.
12.
Hexagon Flange Bolt
Middle Skeleton_Sub Frame
4.
Hexagon Flange Nut
13.
Hexagon Flange Bolt
6.
Hexagon Flange Bolt
14.
Hexagon Flange Bolt
8.
Upr Mounting Bracket-Frt Damper Lh
15.
Hexagon Flange Bolt
9.
Upr Mounting Bracket-Frt Damper Rh
16.
Hexagon Flange Bolt
10.
17.
Hexagon Flange Bolt
Mounting Plate-Front Spring Upr Lh
11.
Mounting Plate-Front Spring Upr Rh
