8.1 Fifth Wheel Device
8.1 Fifth Wheel Device
8.1.1 Specifications
8.1.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the traction
240 +/- 18.5 (ft lbs)
M16
seat assembly and the corrugated plate
The fixing nut connecting the traction
240 +/- 18.5 (ft lbs)
M16
seat assembly and the corrugated plate
The fixing bolts connecting the
corrugated plate and the frame
240 +/- 18.5 (ft lbs)
M16
assembly
The fixing nut connecting the corrugated
240 +/- 18.5 (ft lbs)
M16
plate to the frame assembly
8.1.2 Dismantling and Installation
8.1.2.1 Replacement of Fifth Wheel Assembly
Removal Procedures
1

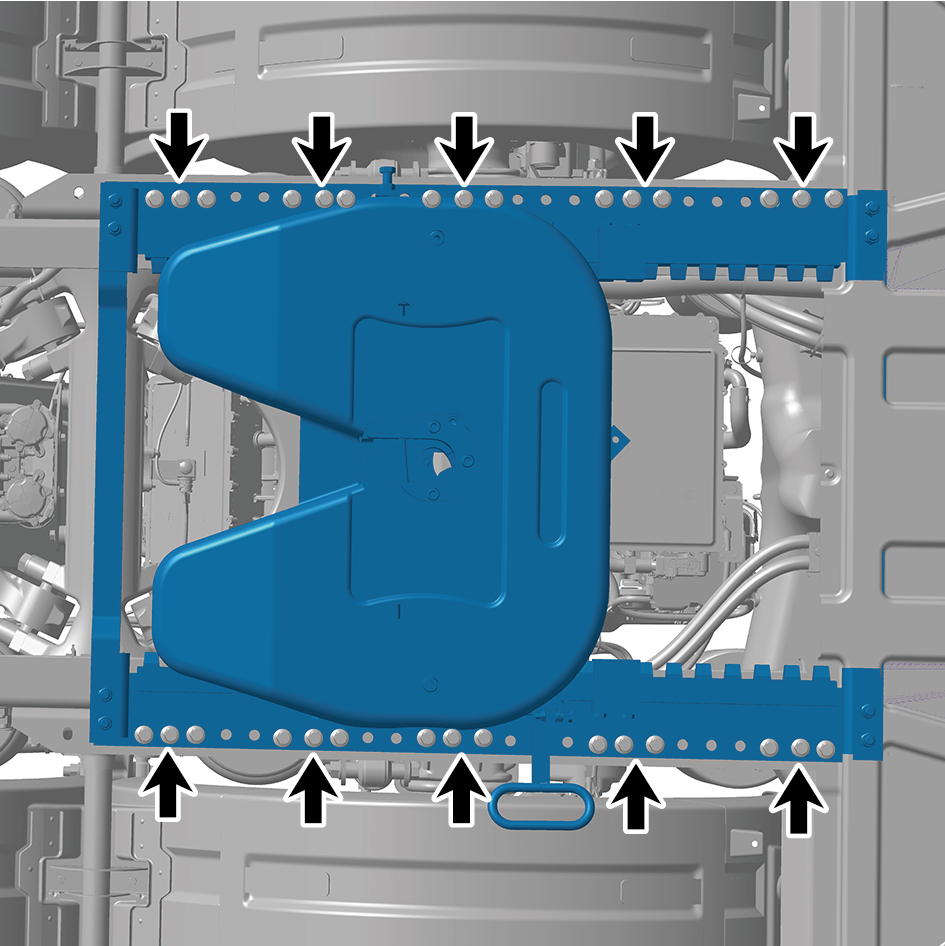

Remove 30 fixing nuts of the fifth wheel assembly front
bracket.
2
Remove the fifth wheel assembly.
Installation Procedures
1
Move the fifth wheel assembly to the mounting position.
2
Install 30 fixing nuts of the fifth wheel assembly.
