7.16 Physical Exterior Rearview Mirror Device
7.16 Physical Exterior Rearview Mirror Device
7.16 Physical Exterior Rearview Mirror
Device
7.16.1 Specifications
7.16.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing nut connecting the left
physical exterior rearview mirror
(18.5 +/- 2) ft lbs
M8
assembly and the white body assembly
The fixing nut connecting the right
physical exterior rearview mirror
(18.5 +/- 2) ft lbs
M8
assembly and the white body assembly

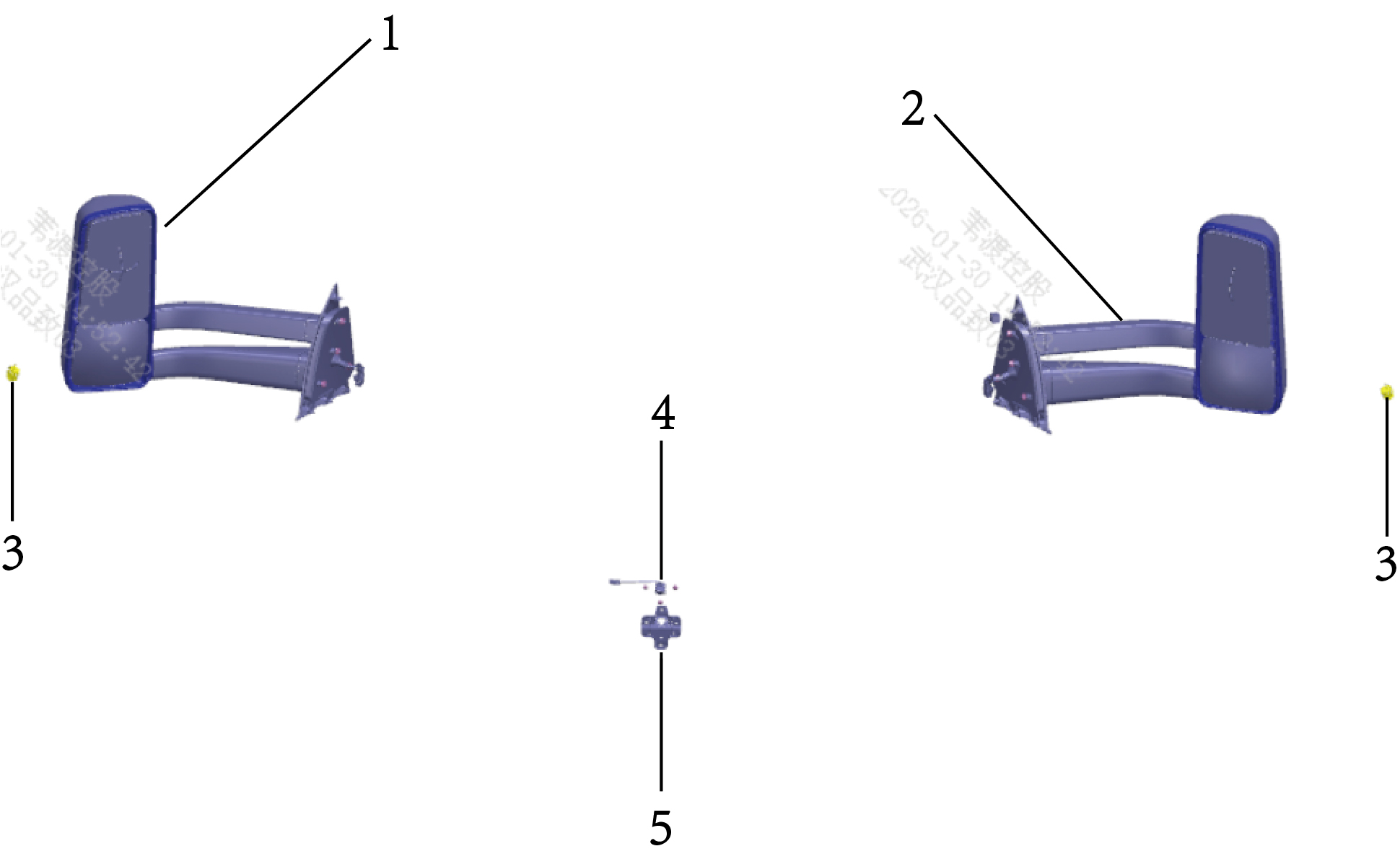

7.16.2 Decomposition Diagram
7.16.2.1 Decomposition Diagram
1.
4.
Left Physical Exterior Rearview Mirror Assembly
Blinding Camera (front view)
5.
2.
Right Physical Exterior Rearview Mirror Assembly
Reverse Buzzer Bracket
3.
The Blind Spot Filling Camera
7.16.3 Dismantling and Installation
7.16.3.1 Replacement of Left Physical Exterior Rearview Mirror Assembly
Rearview Mirror Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the left A-pillar protective plate assembly.
5

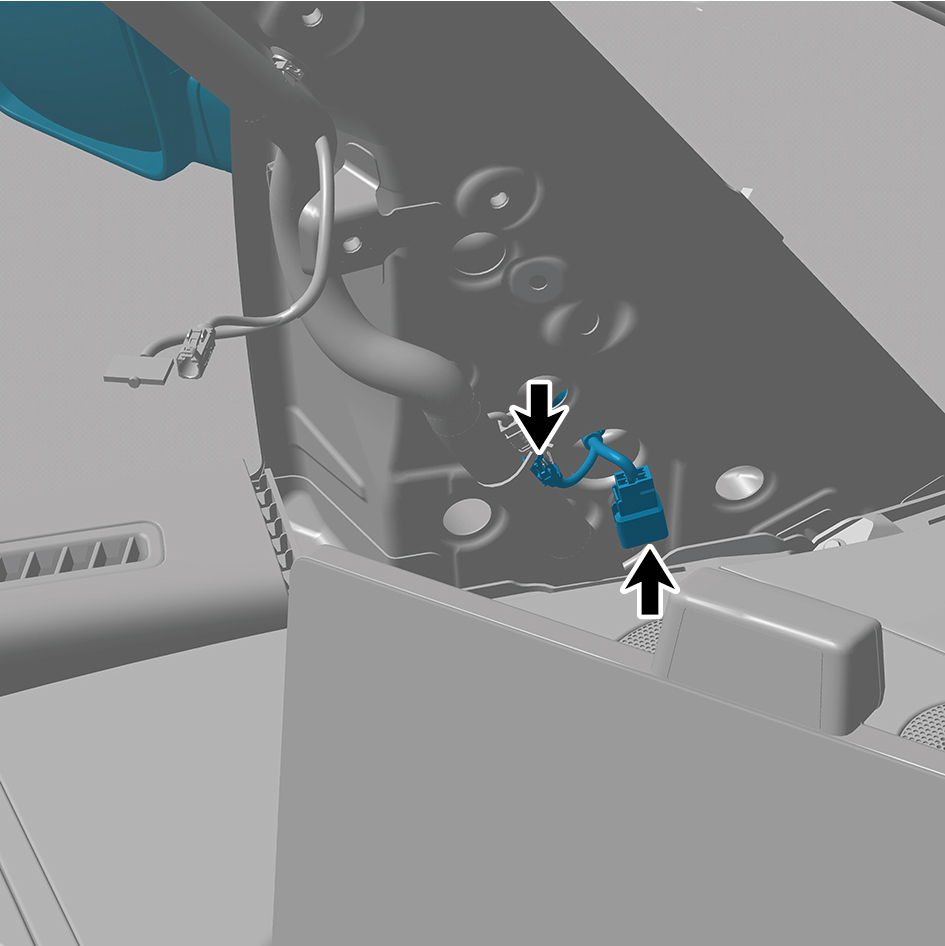

Disconnect 2 harness connectors of the left physical
exterior rearview mirror assembly.
6

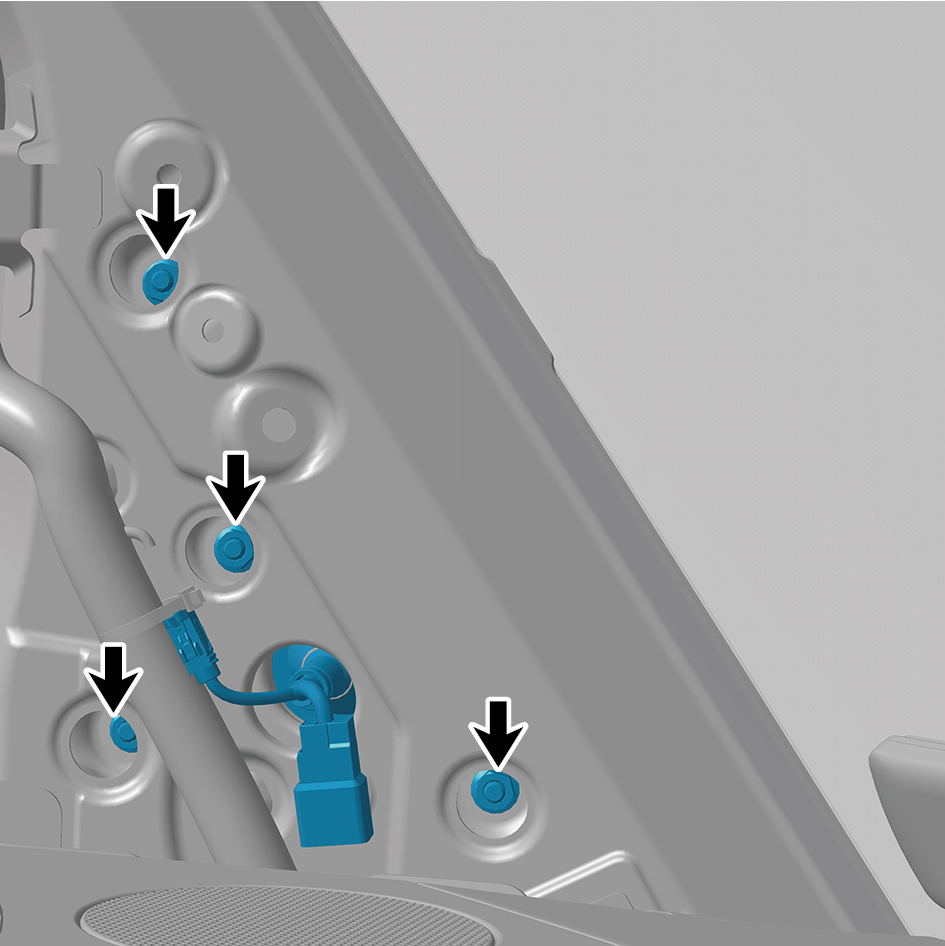

Remove 4 fixing nuts of the left physical exterior rearview
mirror assembly.
7
Remove the left physical exterior rearview mirror
assembly.
Installation Procedures
1
Move the left physical exterior rearview mirror assembly to
the mounting position.
2
Install 4 fixing nuts of the left physical exterior rearview
mirror assembly.
Torque: (18.5 +/- 2) ft lbs
3
Connect 2 harness connectors of the left physical exterior
rearview mirror assembly.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Install the left A-pillar protective plate assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
7.16.3.2 Replacement of Right Physical Exterior Rearview Mirror Assembly
Exterior Rearview Mirror Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the right A-pillar protective plate assembly.
5

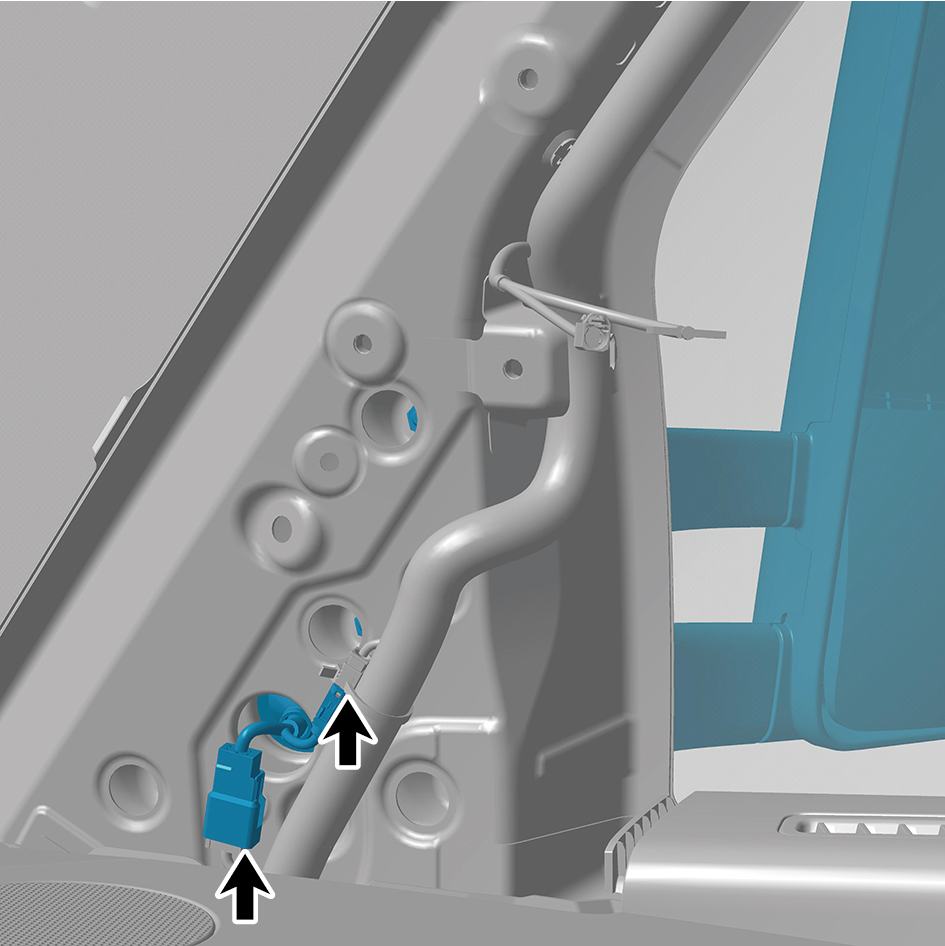

Disconnect 2 harness connectors of the right physical
exterior rearview mirror assembly.
6

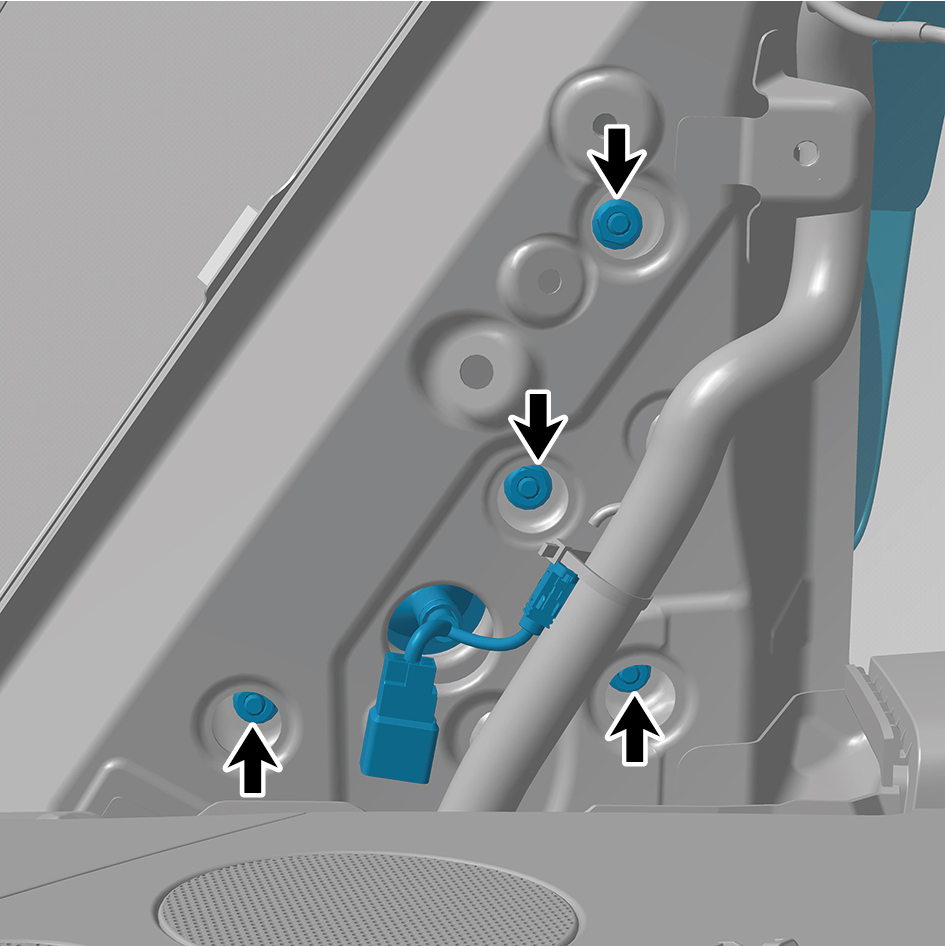

Remove 4 fixing nuts of the right physical exterior
rearview mirror assembly.
7
Remove the right physical exterior rearview mirror
assembly.
Installation Procedures
1
Move the right physical exterior rearview mirror assembly
to the mounting position.
2
Install 4 fixing nuts of the right physical exterior rearview
mirror assembly.
Torque:(18.5 +/- 2) ft lbs
3
Connect 2 harness connectors of the right physical
exterior rearview mirror assembly.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Install the right A-pillar protective plate assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
7.16.3.3 Replacement Of The Blind Spot Filling Camera
Camera
Removal Procedures
1
Open the car door.
2
Open the front flip cover.
3
Disconnect the negative cable of the storage battery.
caution
power off the high-voltage system before
disconnecting the negative pole of the battery.
4
Remove the a-pillar guard assy-lh.
5
Remove the left physical exterior rearview mirror
assembly.
6
Remove the lower lens of the physical exterior rearview
mirror.
7
Remove the upper lens of the physical exterior rearview
mirror.
8
Remove the inner mounting plate of the lens.
9
Remove the rear cover assembly of the physical exterior
rearview mirror.
10

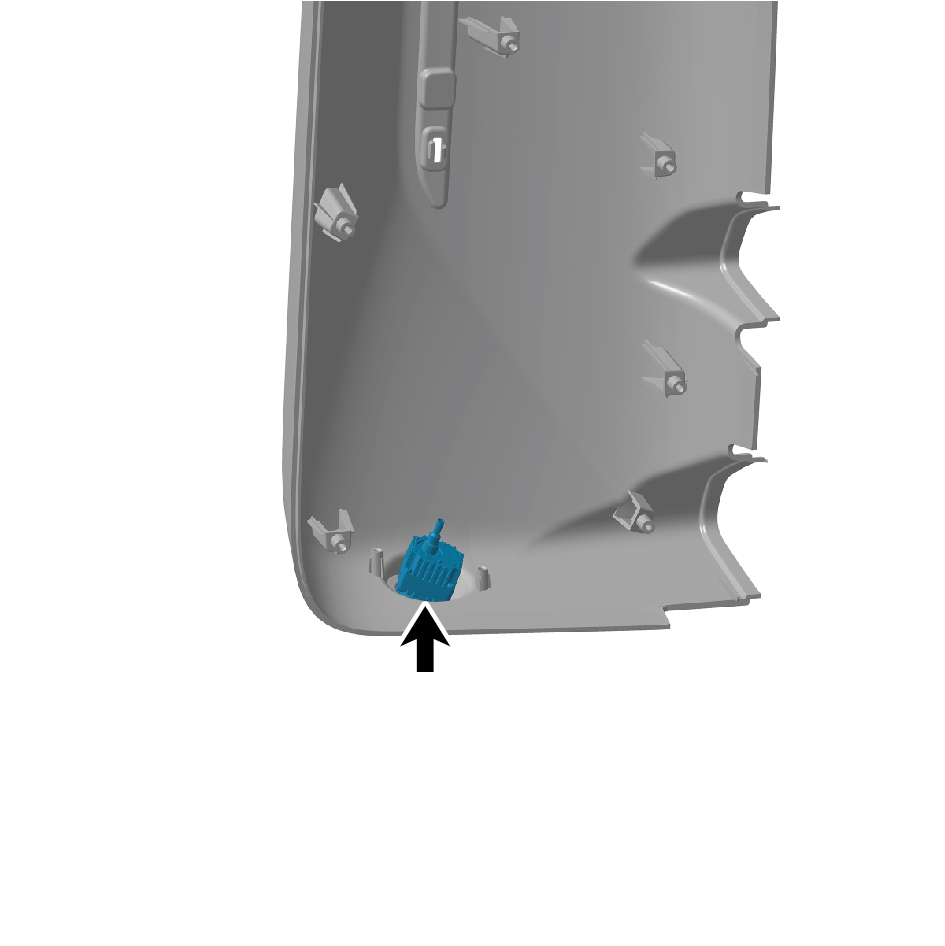

Remove the blind spot filling camera bracket.
11
Remove the blind spot filling camera.
Installation Procedures
1
Fit the Blind spot filling camera.
2
Install the blind spot filling camera bracket.
3
Install the rear cover assembly of the physical exterior
rearview mirror.
4
Install the inner mounting plate of the lens.
5
Install the upper lens of the physical exterior rearview
mirror.
6
Install the lower lens of the physical exterior rearview
mirror.
7
Install the left physical exterior rearview mirror assembly.
8
Install the a-pillar guard assy-lh.
9
Connect the negative cable of the storage battery.
10
Close the front flip cover.
11
Close the car door.
7.16.3.4 Replacement of Blinding Camera (front view)
(front view)
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the engine compartment trim panel body.
5
Remove the through-type lamp.
6
Remove the front MMW radar shield.
7
Remove the forward MMW radar.
8
Remove the front MMW radar adapter bracket.
9
Remove the left cover plate of the corner radar.
10
Remove the right cover plate of the corner radar.
11
Remove the front bumper assembly.
12

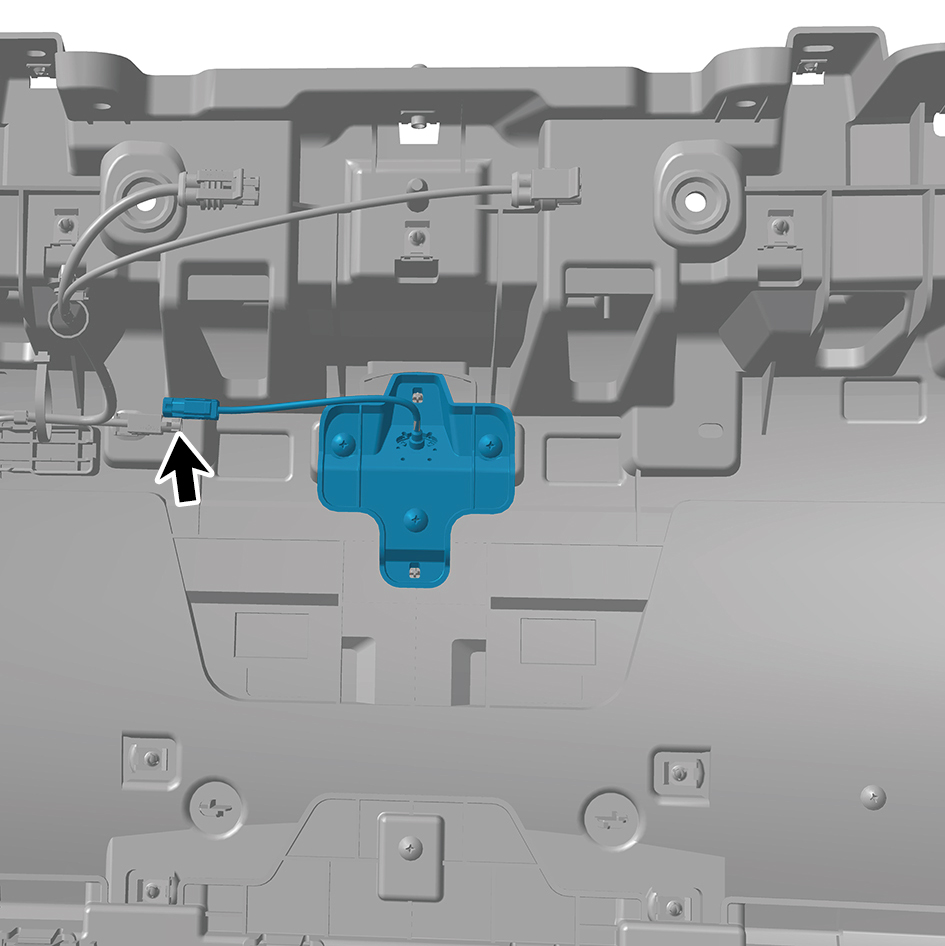

Disconnect 1 harness connector of the blinding camera
(front view).
13

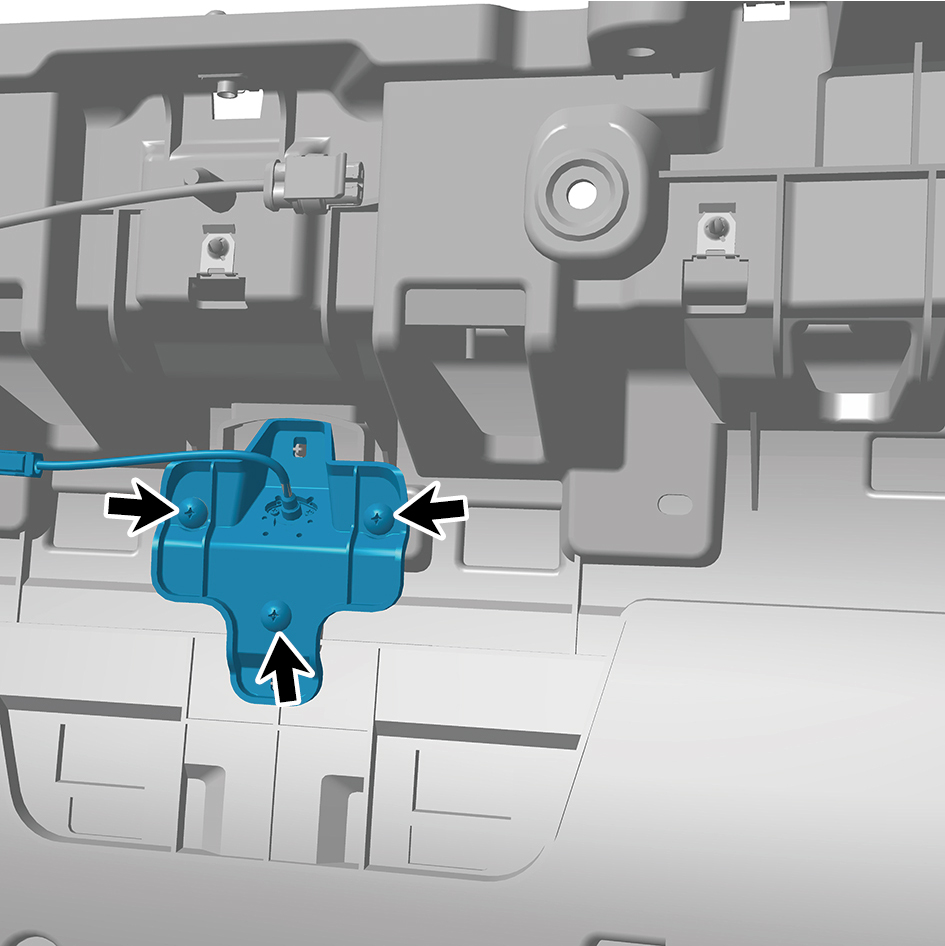

Remove 3 fixing screws of the blinding camera (front
view).
14
Remove the blinding camera (front view).
Installation Procedures
1
Move the blinding camera (front view) to the mounting
position.
2
Install 3 fixing screws of the blinding camera (front view).
3
Connect 1 harness connector of the blinding camera (front
view).
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Install the front bumper assembly.
5
Install the right cover plate of the corner radar.
6
Install the left cover plate of the corner radar.
7
Install the front MMW radar adapter bracket.
8
Install the forward MMW radar.
9
Install the front MMW radar shield.
10
Install the through-type lamp.
11
Install the engine compartment trim panel body.
12
Connect the battery negative cable.
13
Close the front flip cover plate.
14
Close the door.
