7.14 Windshield Washer Device
7.14 Windshield Washer Device
7.14.1 specifications
7.14.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the inner
panel of the right enclosure plate to the
(6.5 +/- .75) ft lbs
M6
washing pot assembly
The fixing bolt connecting the front outer
crossbeam assembly of the floor to the
(6.5 +/- .75) ft lbs
M6
washing pot assembly

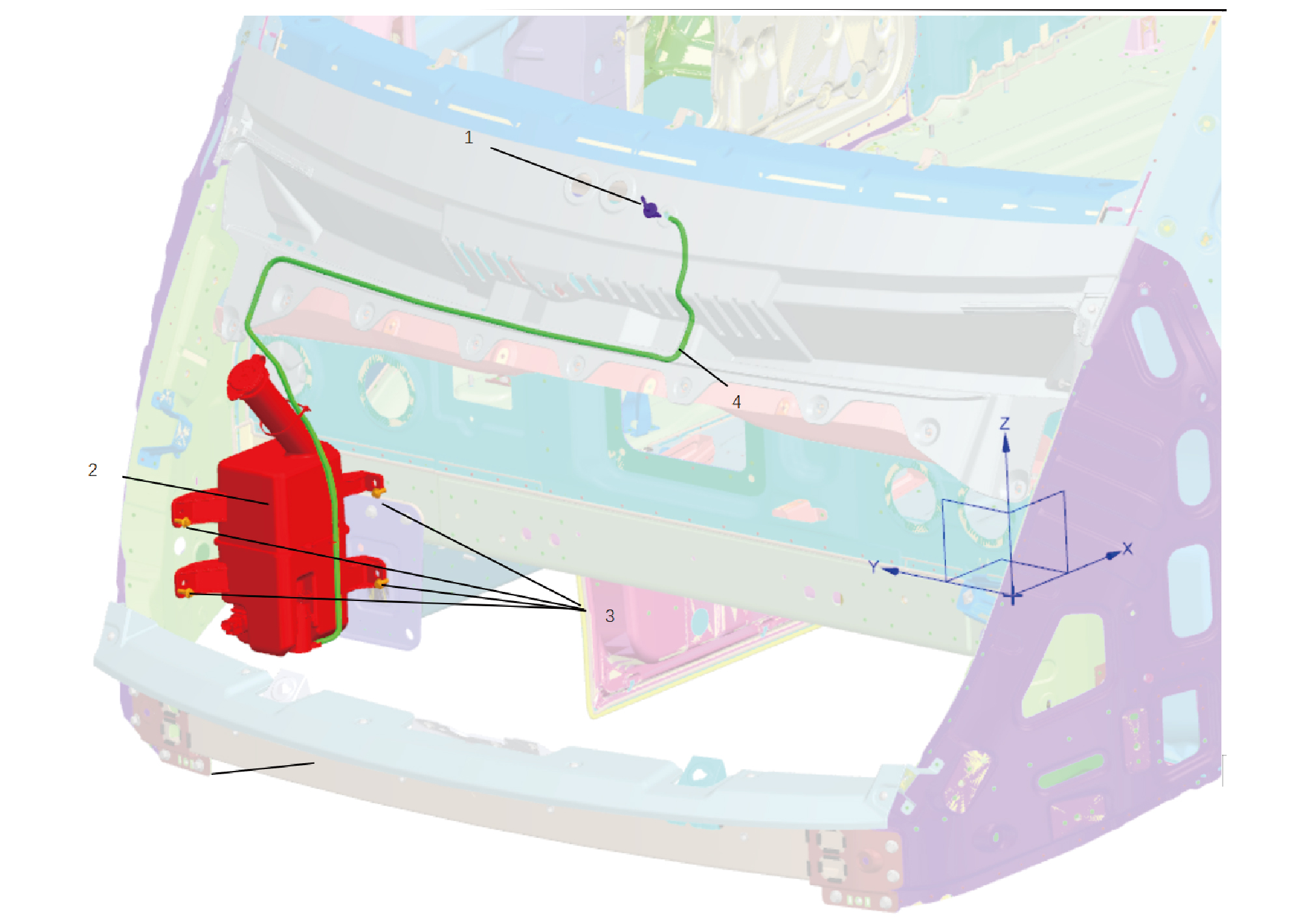

7.14.2 Decomposition Diagram
7.14.2.1 Decomposition Diagram
1.
3.
Hexagon Flange Bolt
Two-Way Connector for Windshield Wiper Water Pipe
In New Energy Vehicles
2.
4.
Wash reservoir Assy
Windshield Wiper Water Pipe In New Energy Vehicles
7.14.3 Dismantling and Installation
7.14.3.1 Replacement of Washer Fluid Reservoir Assembly
Reservoir Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4

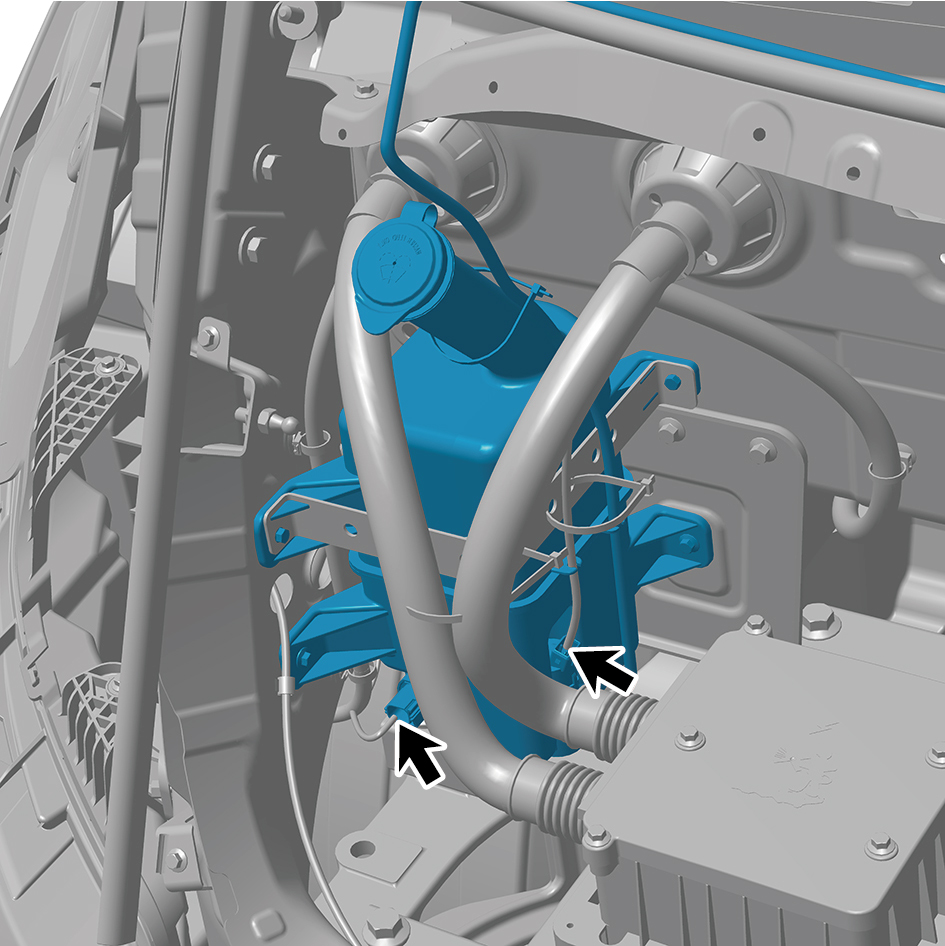

Disconnect 2 harness connectors of the washer fluid
reservoir assembly.
5

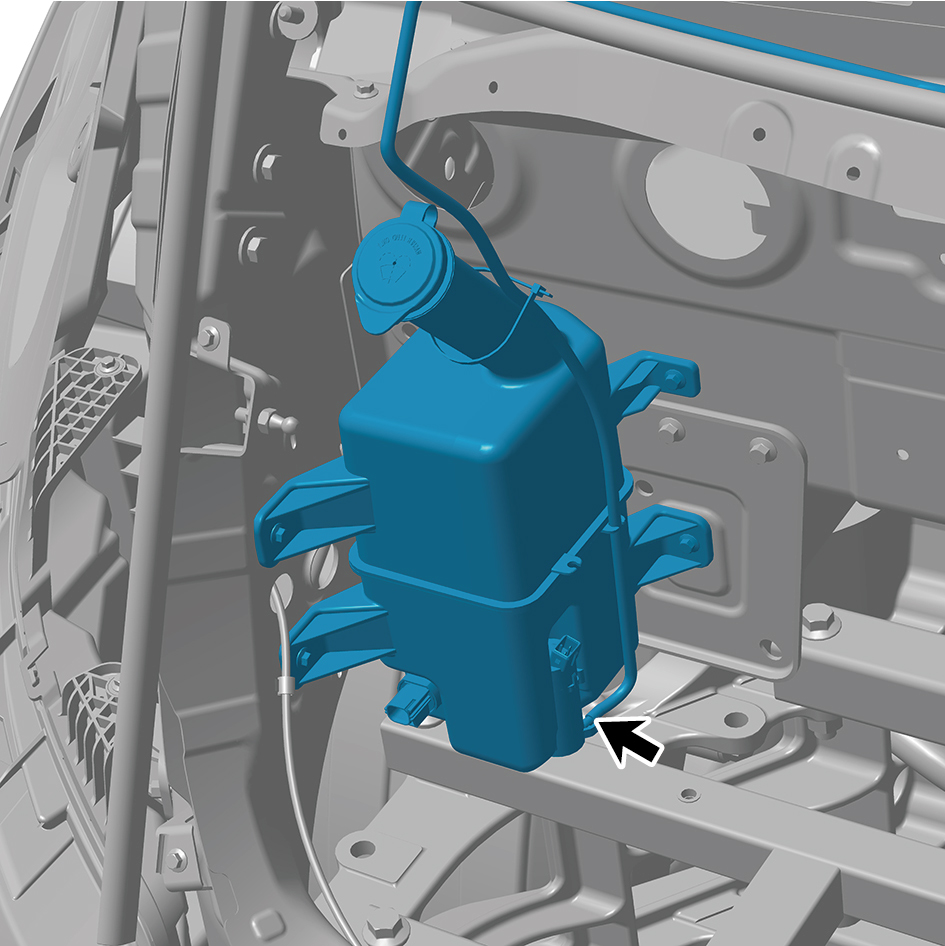

Disconnect the washer fluid reservoir water pipe, and use
a container to catch the overflowing washer fluid.
caution
Use a clean container to receive the discharged
washer fluid.
6

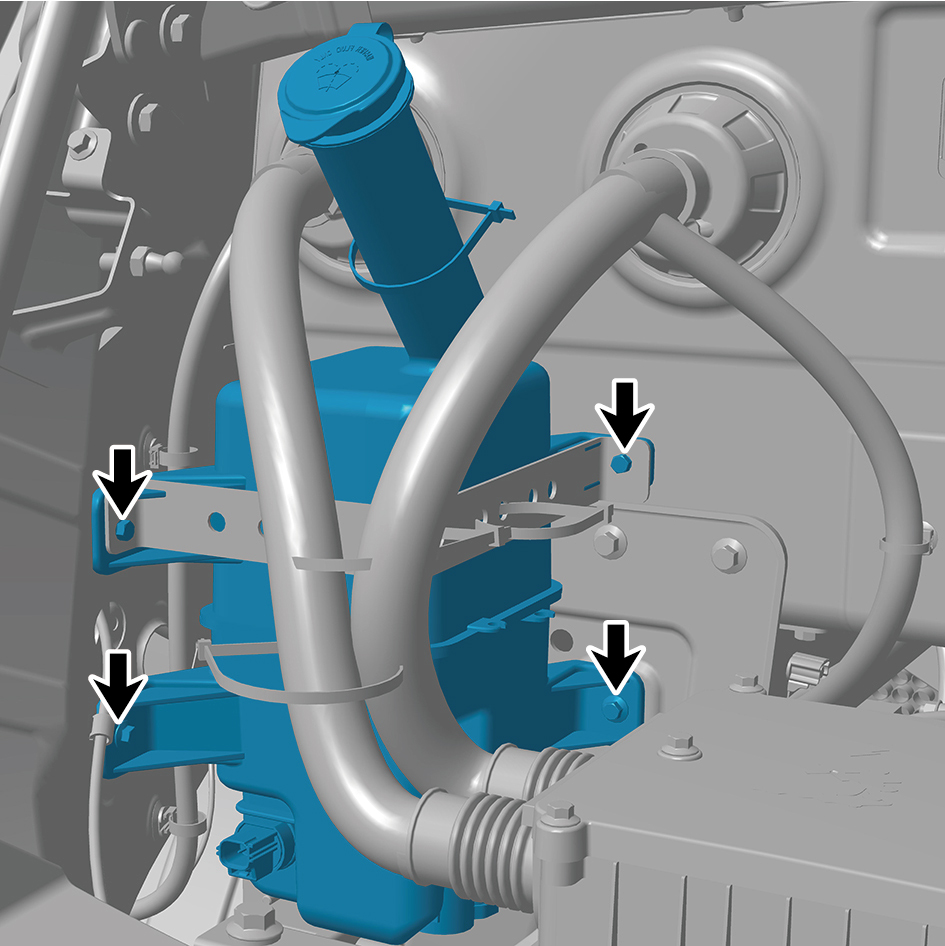

Remove 4 fixing bolts of the washer fluid reservoir
assembly.
7
Remove the washer fluid reservoir assembly.
Installation Procedures
1
Move the washer fluid reservoir assembly to the mounting
position.
2
Install 4 fixing bolts of the washer fluid reservoir assembly.
Torque:(6.5 +/- .75) ft lbs
3
Connect the washer fluid reservoir water pipe.
4
Connect 2 harness connectors of the washer fluid
reservoir assembly.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
7.14.3.2 Replacement of Washer Fluid Reservoir Water Pipe
Reservoir Water Pipe
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Remove the primary wiper arm blade assembly (nozzle
and hose).
4
Remove the front windshield cover plate assembly.
5

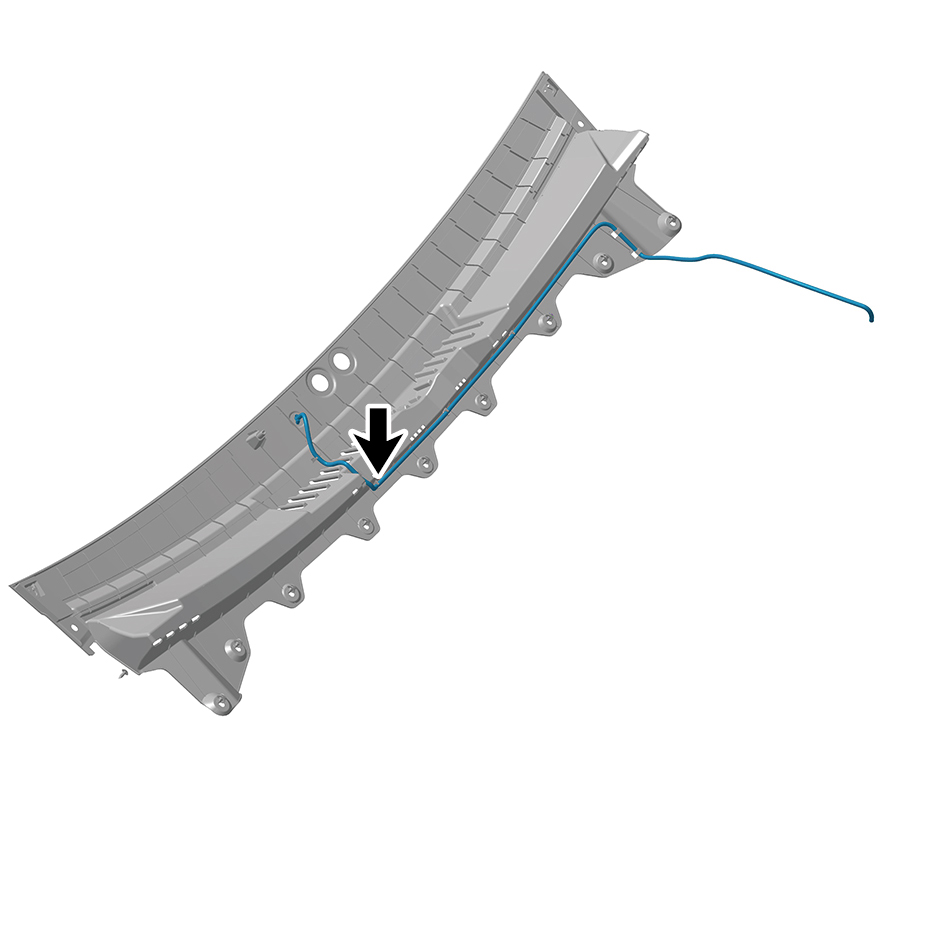

Remove the washer fluid reservoir water pipe.
Installation Procedures
1
Install the washer fluid reservoir water pipe.
2
Install the front windshield cover plate assembly.
3
Install the primary wiper arm blade assembly (nozzle and
hose).
4
Close the front flip cover plate.
5
Close the door.
