7.10 Chassis Harness Device
7.10 Chassis Harness Device
7.10.1 Specifications
7.10.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the chassis
(18.5 +/- 2) ft lbs
M8
harness and the frame assembly
The fixing bolt connecting the negative
terminal harness of the left battery to
(37 +/- 3.5) ft lbs
M10
the frame assembly
The fixing nut connecting the negative
terminal harness of the left battery to
(37 +/- 3.5) ft lbs
M10
the frame assembly
The fixing bolt connecting the L-shaped
bracket and the air conditioning
(18.5 +/- 2) ft lbs
M8
compressor assembly
The fixing bolts connecting the L-
(40.5 +/- 3.5) ft lbs
M12
shaped bracket and the frame assembly
The fixing bolts connecting the L-
(103 +/- 7.5) ft lbs
M14
shaped bracket and the frame assembly
Fixed nut connecting L-shaped bracket
and air conditioning compressor
(18.5 +/- 2) ft lbs
M8
assembly
The fixing nut connecting the L-shaped
(103 +/- 7.5) ft lbs
M14
bracket and the frame assembly
The fixing bolts connecting the flange
(103 +/- 7.5) ft lbs
M14
bracket and the frame assembly
The fixing nut connecting the flange
(103 +/- 7.5) ft lbs
M14
bracket and the frame assembly
The fixing bolts connecting the wire
harness bracket and the frame
(18.5 +/- 2) ft lbs
M8
assembly
The fixing bolts connecting the chassis
(18.5 +/- 2) ft lbs
M8
harness and harness bracket II
7.10.2 Decomposition Diagram
7.10.2.1 Decomposition Diagram

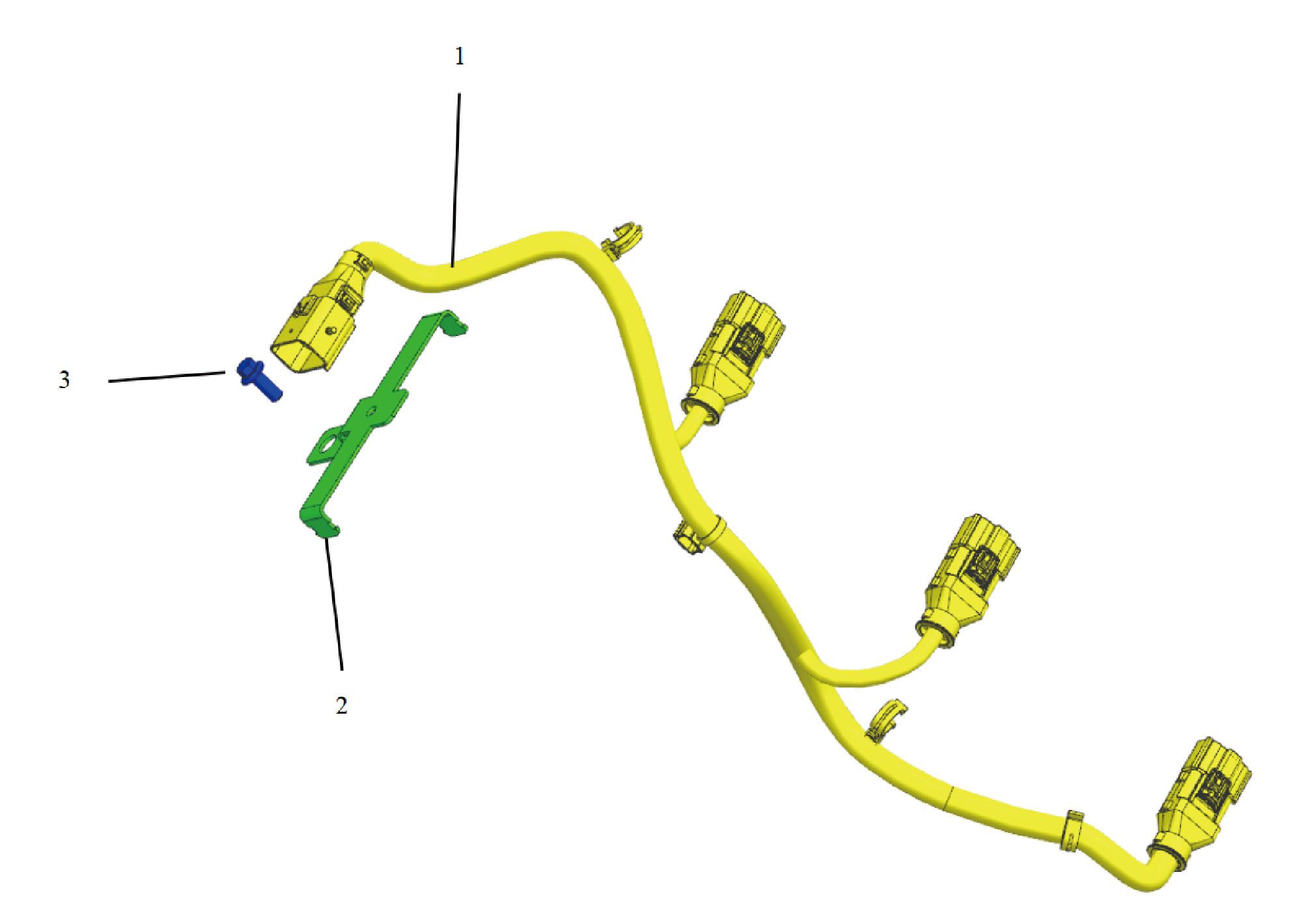

1.
Battery Pack Wiring HarnessLH
3.
Hexagon Flange Bolt
2.
Wire Harness Bracket

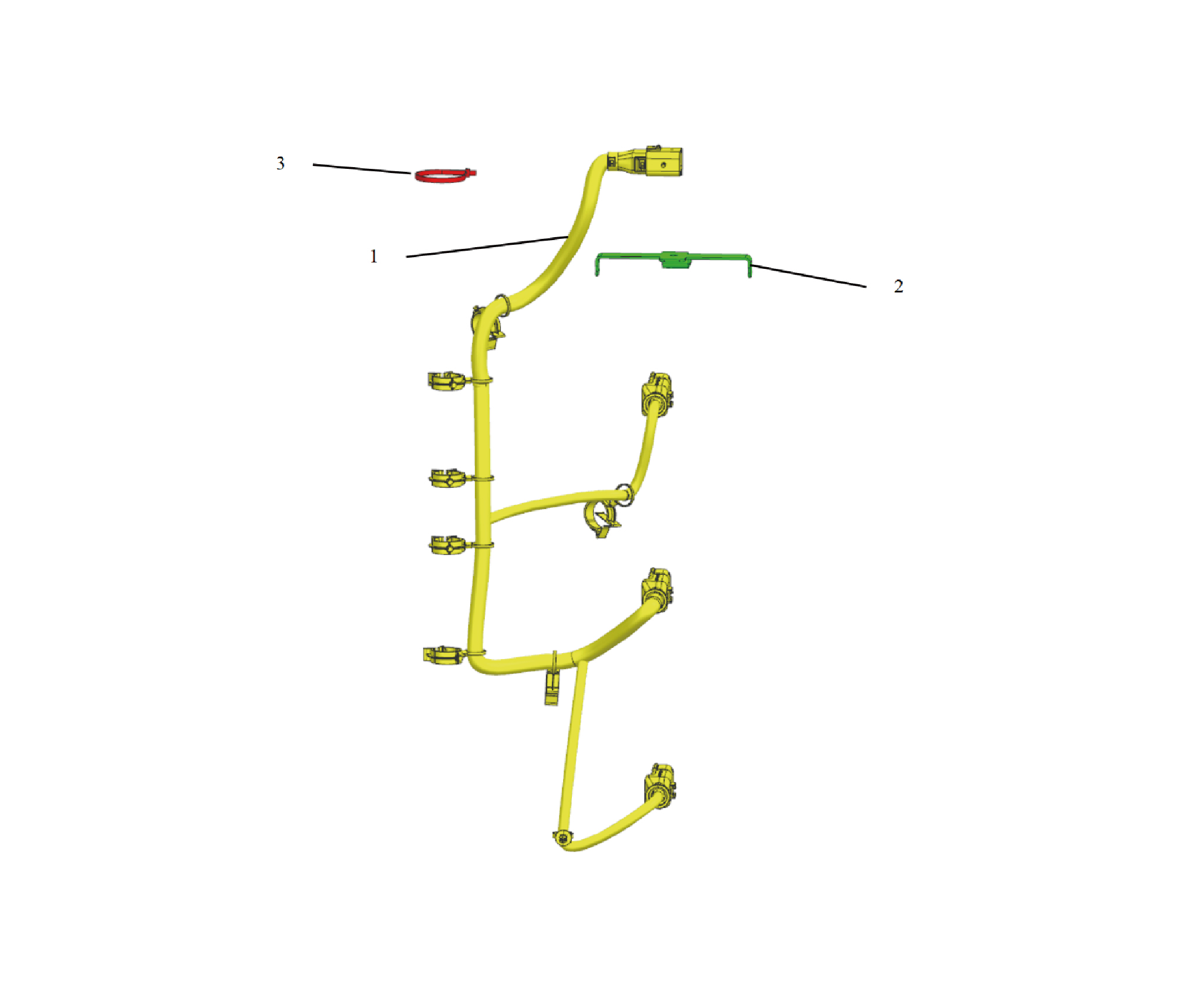

1.
Battery Pack Wiring Harness RH
3.
Cable Ties 2
2.
Wire Harness Bracket

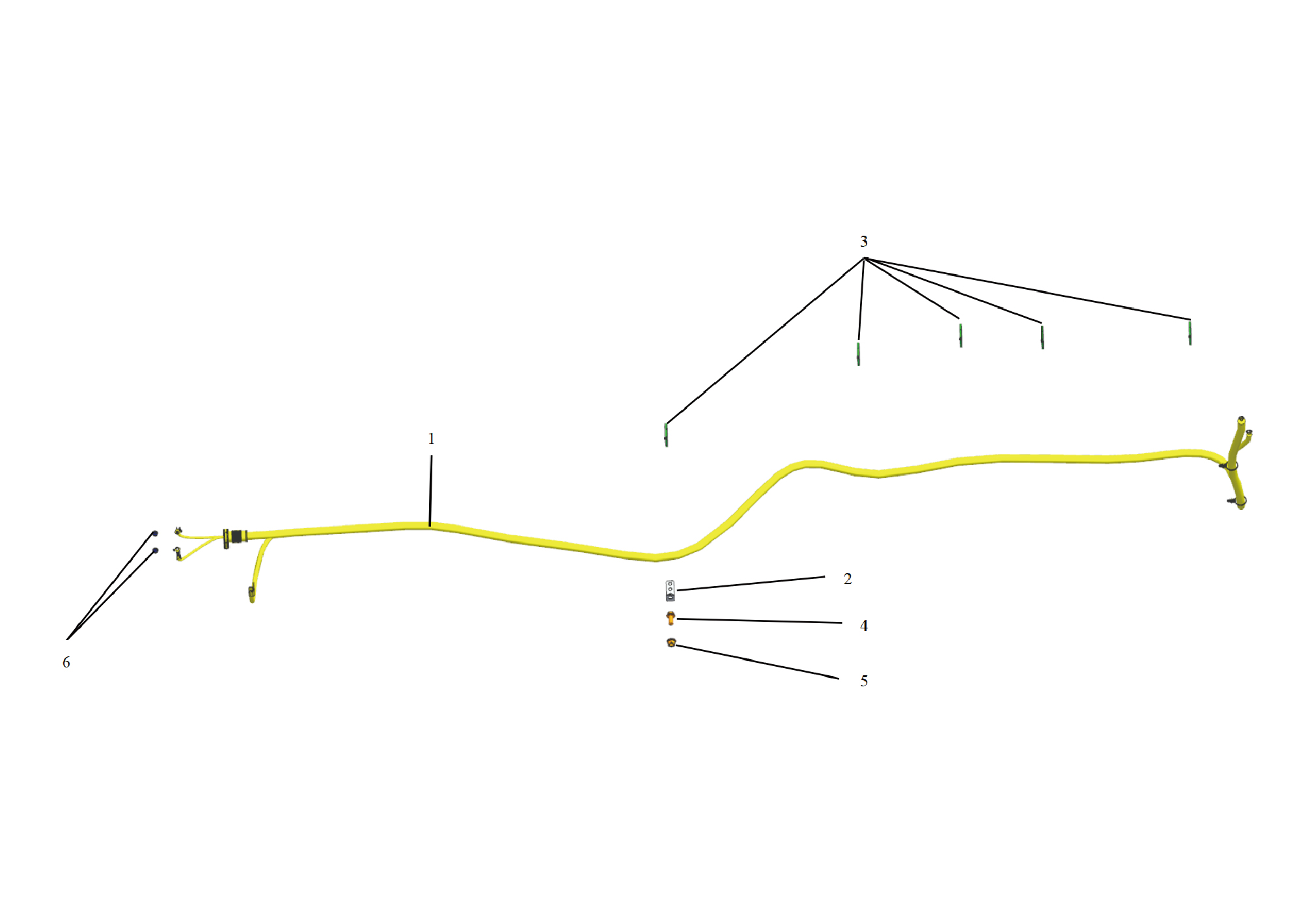

1.
4.
Hexagon Flange Bolt
DC/DC Power Cord 1
5.
2.
Wire Harness Bracket
Hexagon Flange Nut
3.
6.
Hexagon Flange Lock Nut_All Metal
Cable Ties 1

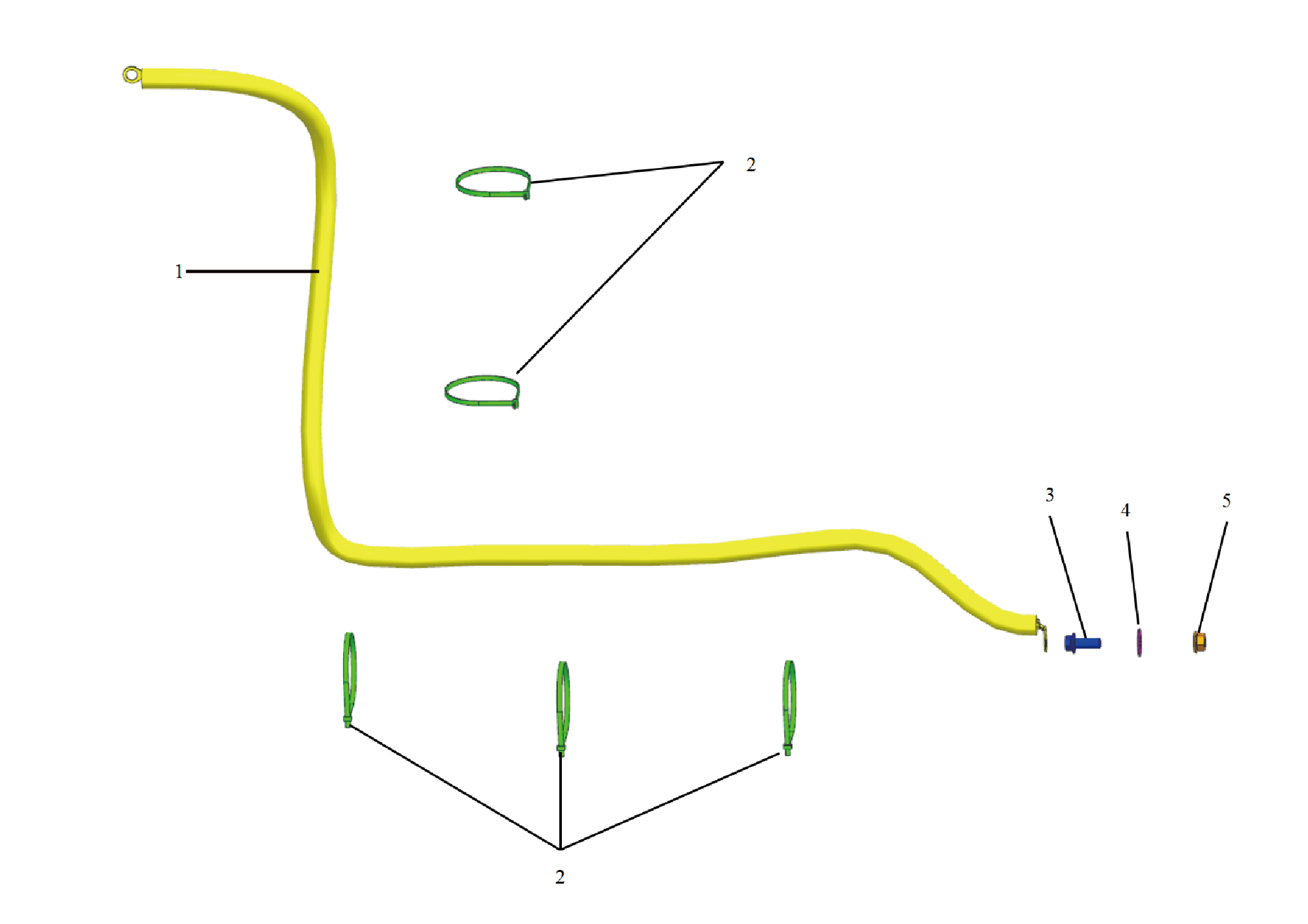

1.
4.
DC/DC Grounding Harness 1
Inside and Out Teeth Serrated Lock Washer
5.
2.
Hexagon Flange Nut
Cable Ties 1
3.
Hexagon Flange Bolt

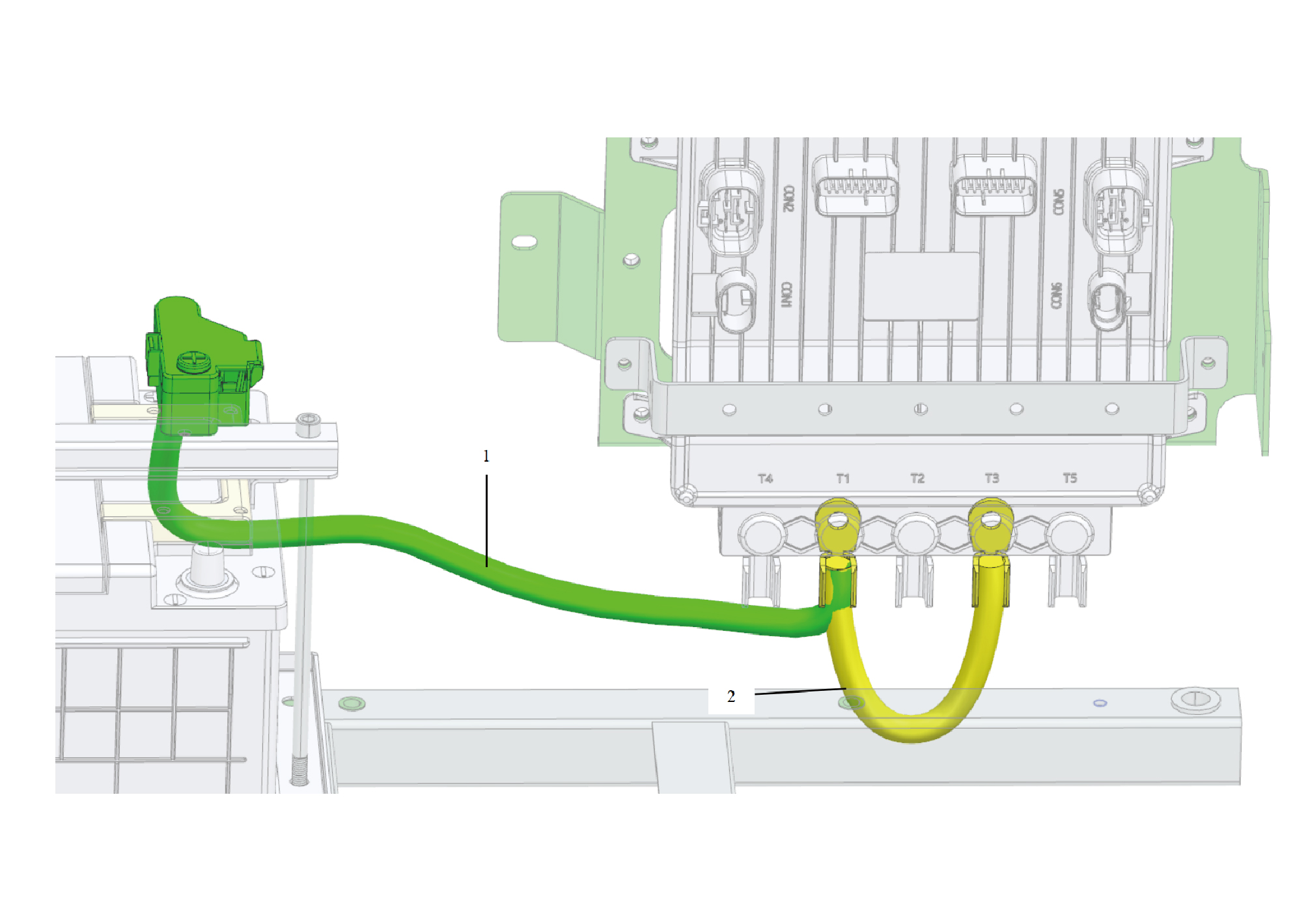

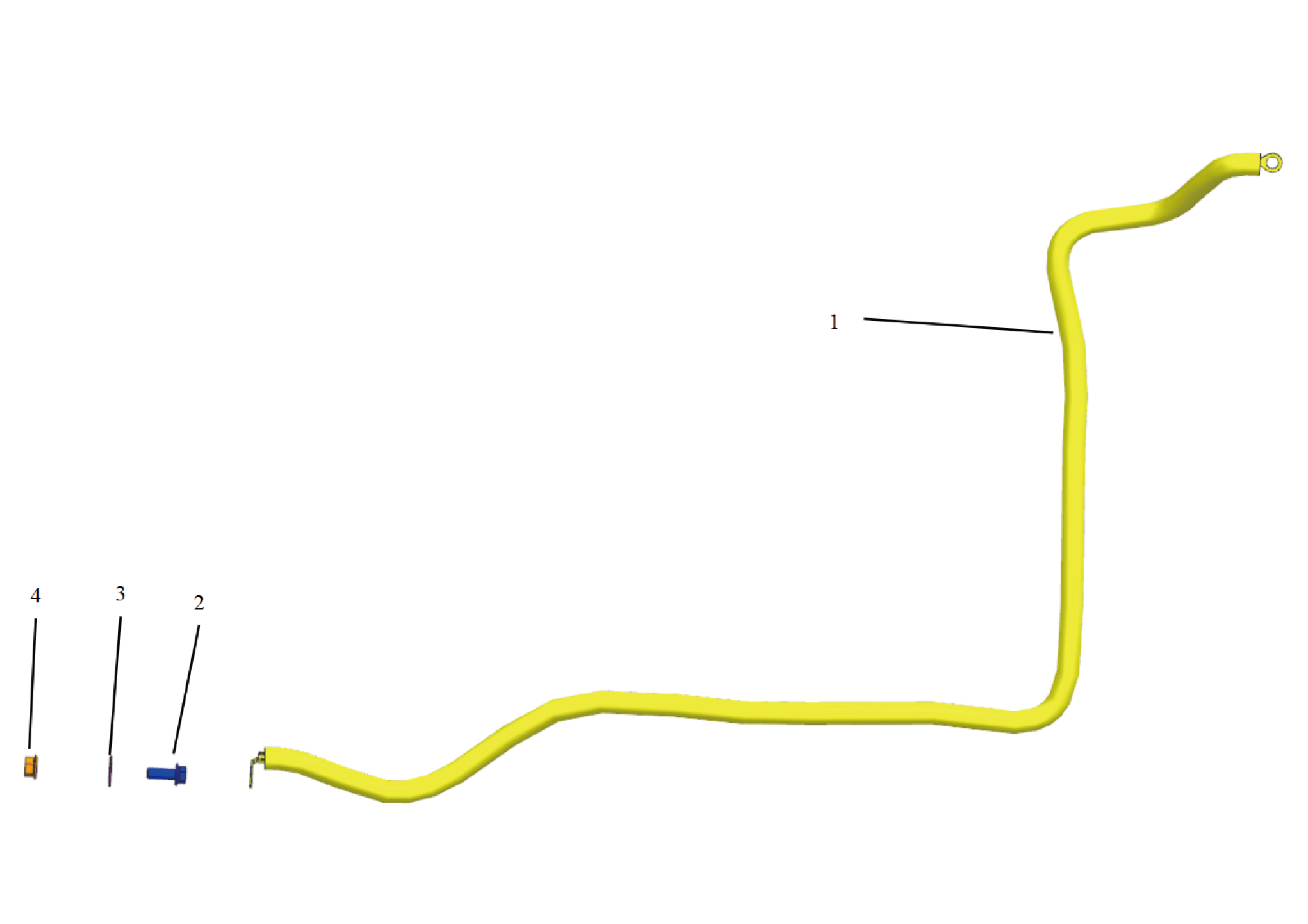

1.
3.
DC/DC Grounding Harness 2
Inside and Out Teeth Serrated Lock Washer
2.
Hexagon Flange Bolt
4.
Hexagon Flange Nut

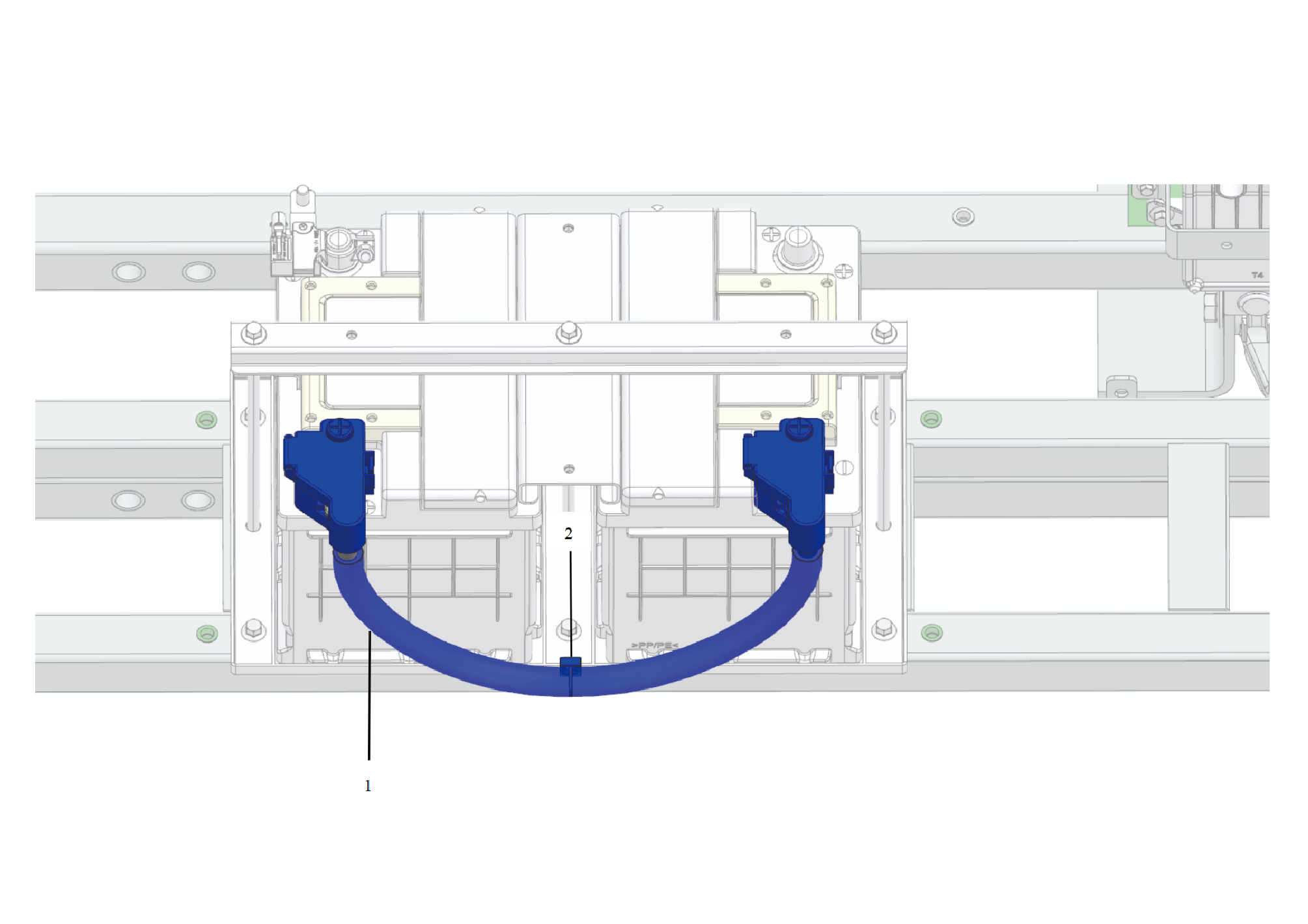

1.
2.
Battery Connecting Cable
Sheet Metal Cable Ties In New Energy Vehicles

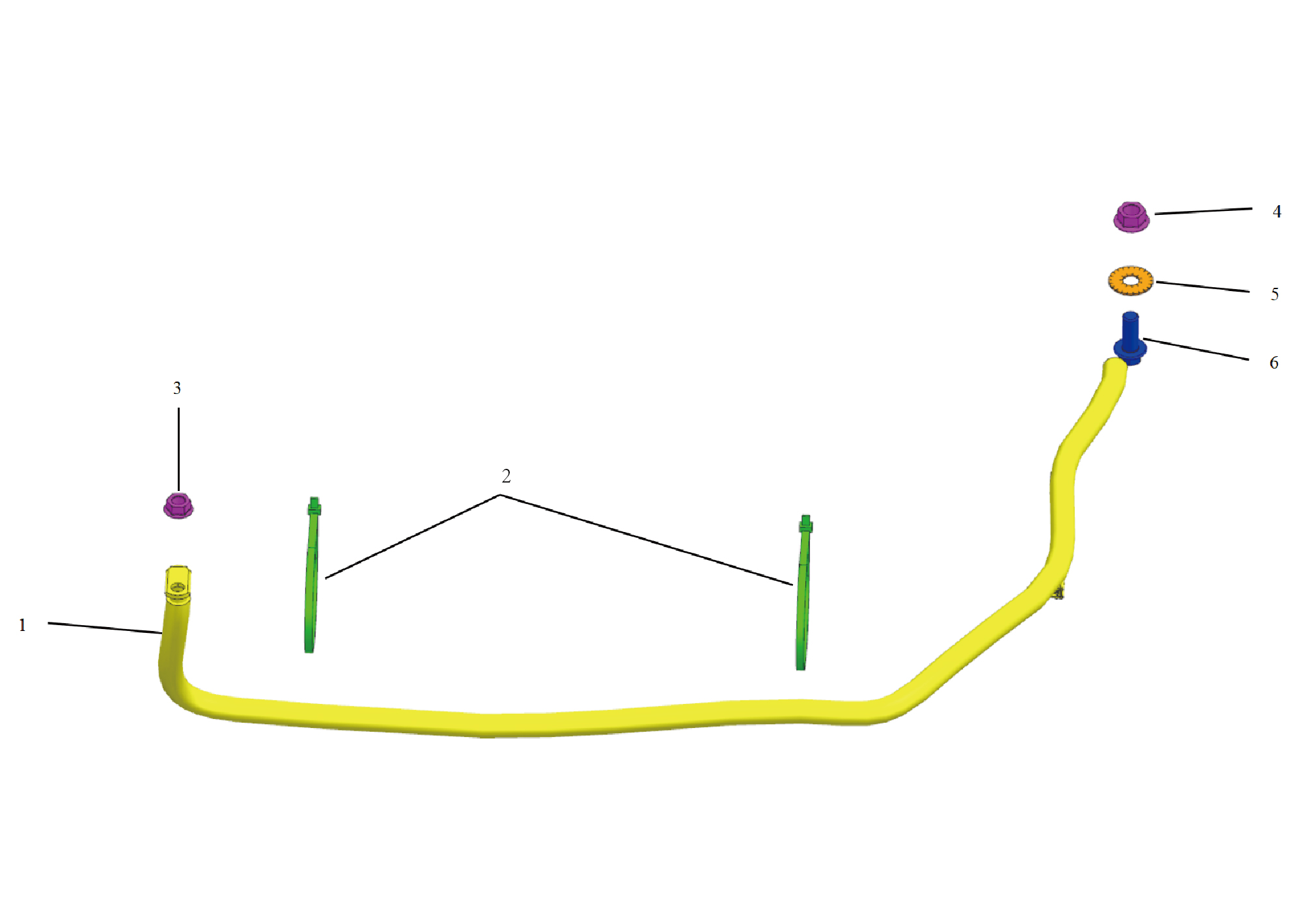

1.
LH Battery Negative Wire Harness
4.
Hexagon Flange Bolt
5.
2.
Cable Ties 1
Inside and Out Teeth Serrated Lock Washer
3.
Hexagon Flange Nut
6.
Hexagon Flange Nut
1.
LH Battery Positive Wire Harness
2.
Smart Appliance Box Harness

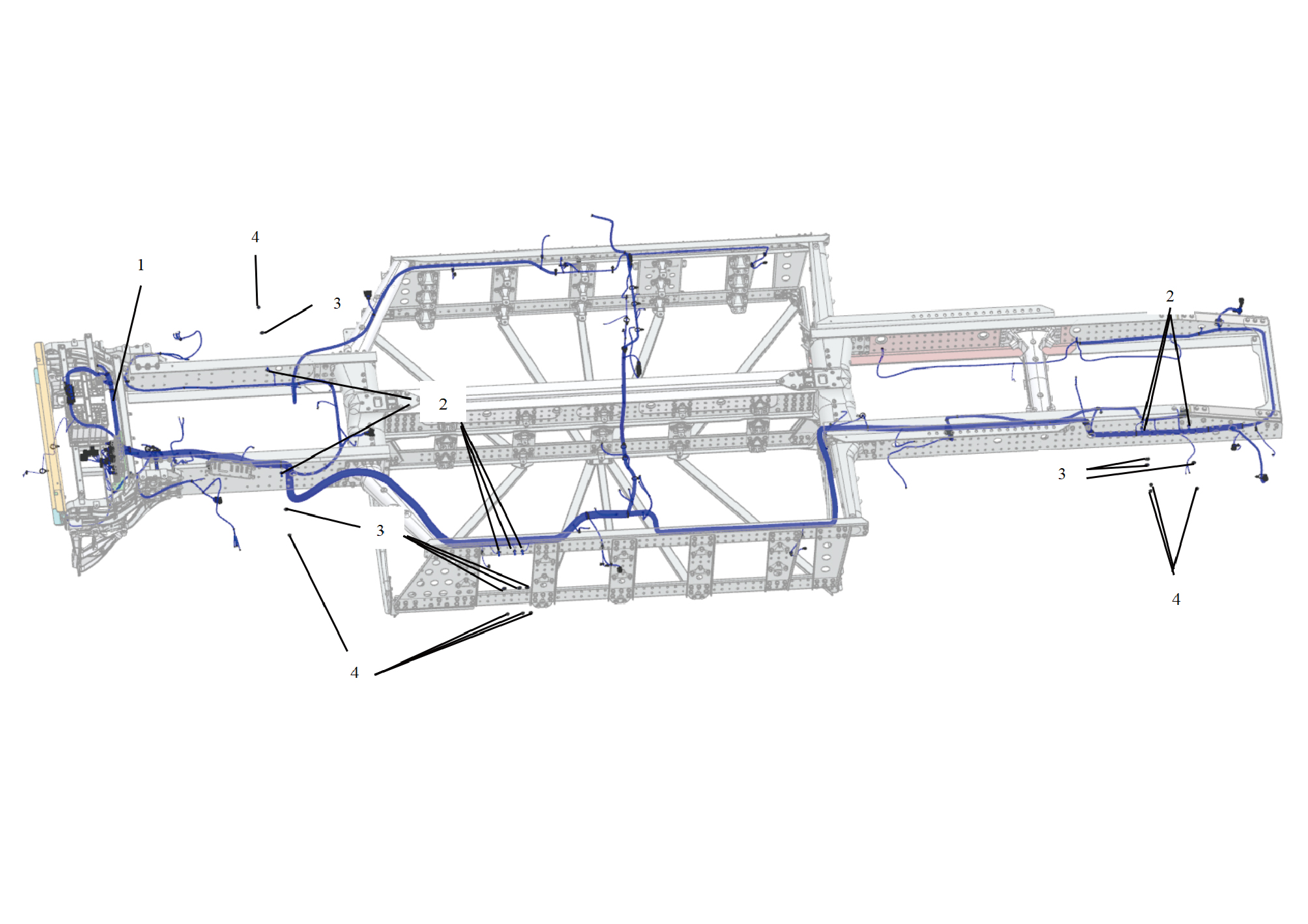

1.
3.
Chassis Harness
Inside and Out Teeth Serrated Lock Washer
2.
Hexagon Flange Bolt
4.
Hexagon Flange Nut

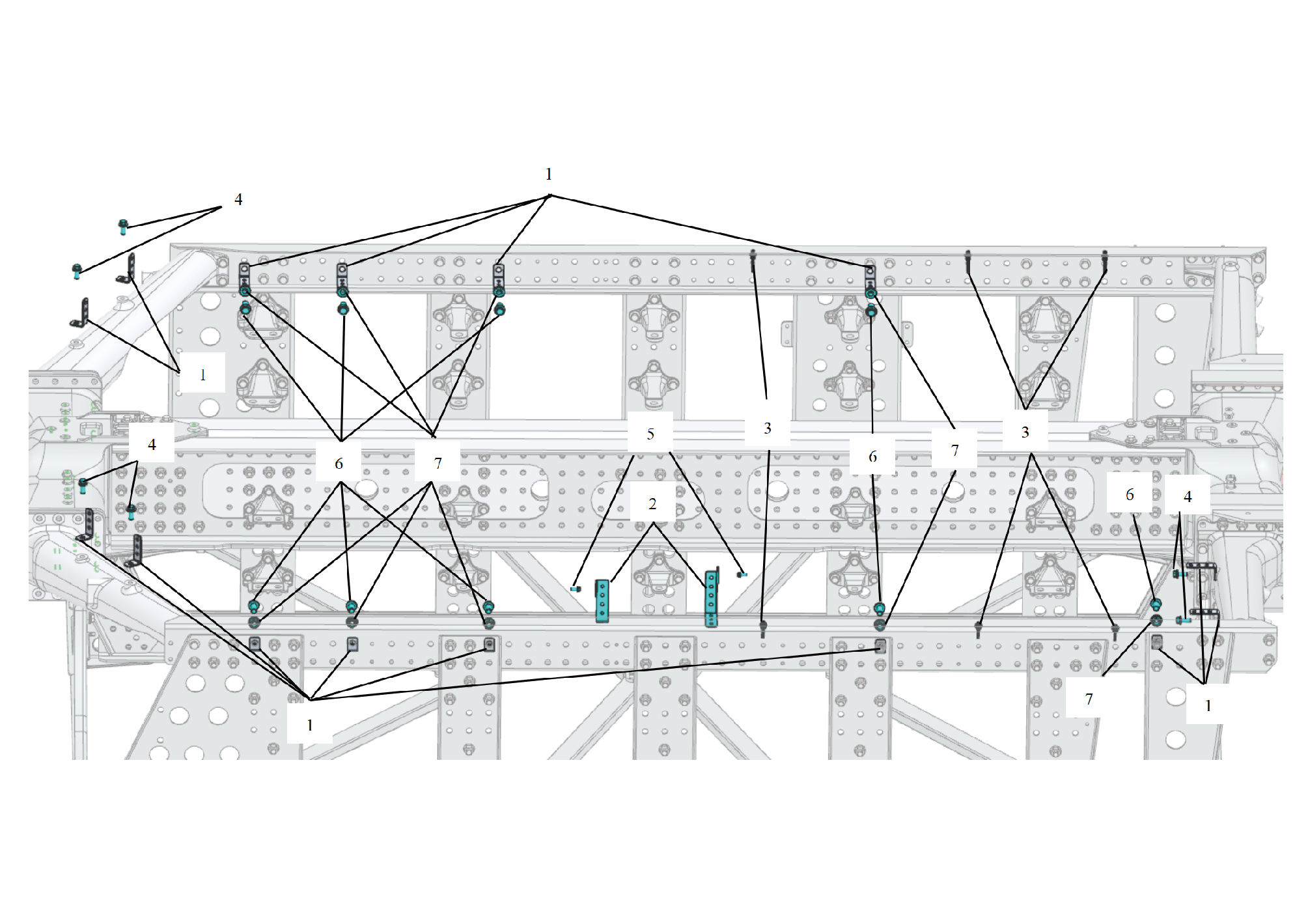

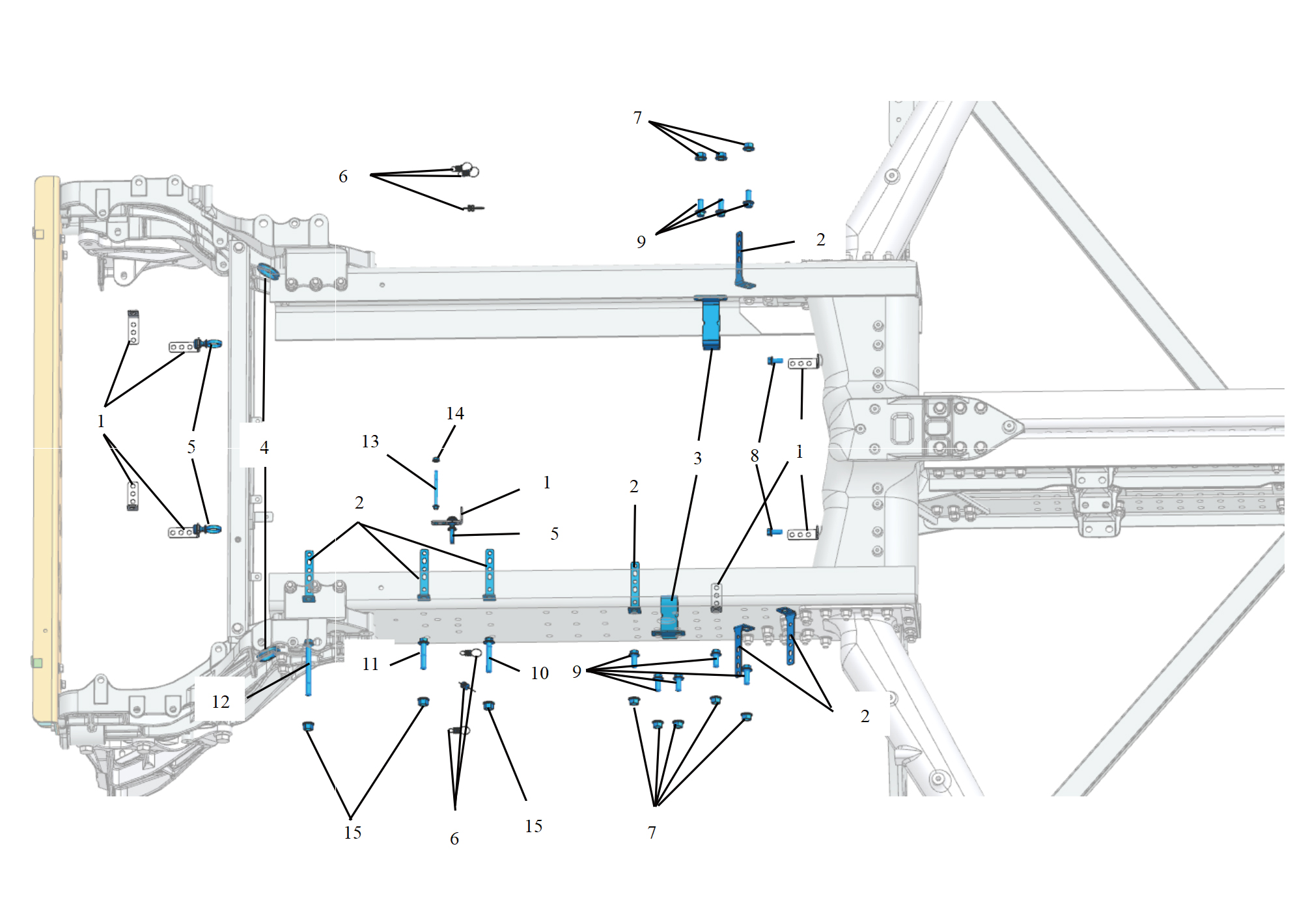

1.
Wire Harness Bracket
9.
Hexagon Flange Bolt
2.
Water Pipe Fixing Bracket 1
10.
Hexagon Flange Bolt
3.
Flanging Bracket
11.
Hexagon Flange Bolt
4.
12.
Hexagon Flange Bolt
Through the Hole Sheath 2
5.
Mountable Head Ties
13.
Hexagon Flange Bolt
6.
Interactive Fixed Ties
14.
Hexagon Flange Nut
7.
Hexagon Flange Nut
15.
Hexagon Flange Lock Nut_All Metal
8.
Hexagon Flange Bolt
5.
1.
Wire Harness Bracket
Hexagon Flange Bolt
2.
Wire Harness Bracketâ…¡
6.
Hexagon Flange Bolt
7.
3.
Tie-Fir Tree
Hexagon Flange Lock Nut_All Metal
4.
Hexagon Flange Bolt

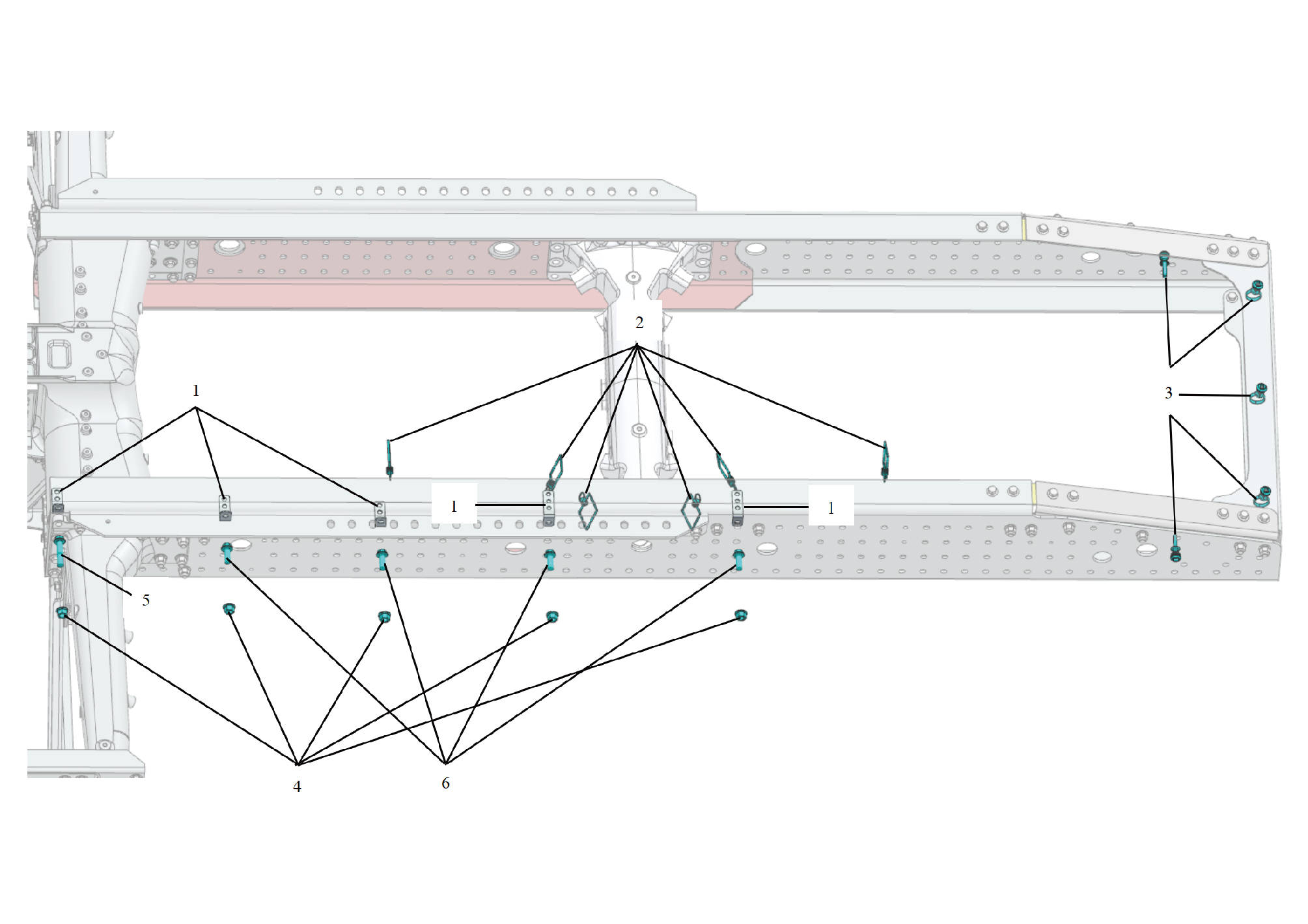

1.
Wire Harness Bracket
4.
Hexagon Flange Lock Nut_All Metal
5.
2.
Interactive Fixed Ties
Hexagon Flange Bolt
3.
Mountable Head Ties
6.
Hexagon Flange Bolt
