7.9 Vehicle Body Harness Device
7.9 Vehicle Body Harness Device
7.9.1 Specifications
7.9.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing nut connecting Left Junction
(18.5 +/- 2) ft lbs
M8
Box and the floor harness
The fixing nut connecting Right Junction
(18.5 +/- 2) ft lbs
M8
Box and the floor harness
The fixing bolt connecting the cab
grounding harness to the frame
(37 +/- 3.5) ft lbs
M10
assembly
The fixing nut connecting the cab
grounding harness and the frame
(37 +/- 3.5) ft lbs
M10
assembly
The fixing bolts connecting the floor
(18.5 +/- 2) ft lbs
M8
harness and the chassis intelligent box

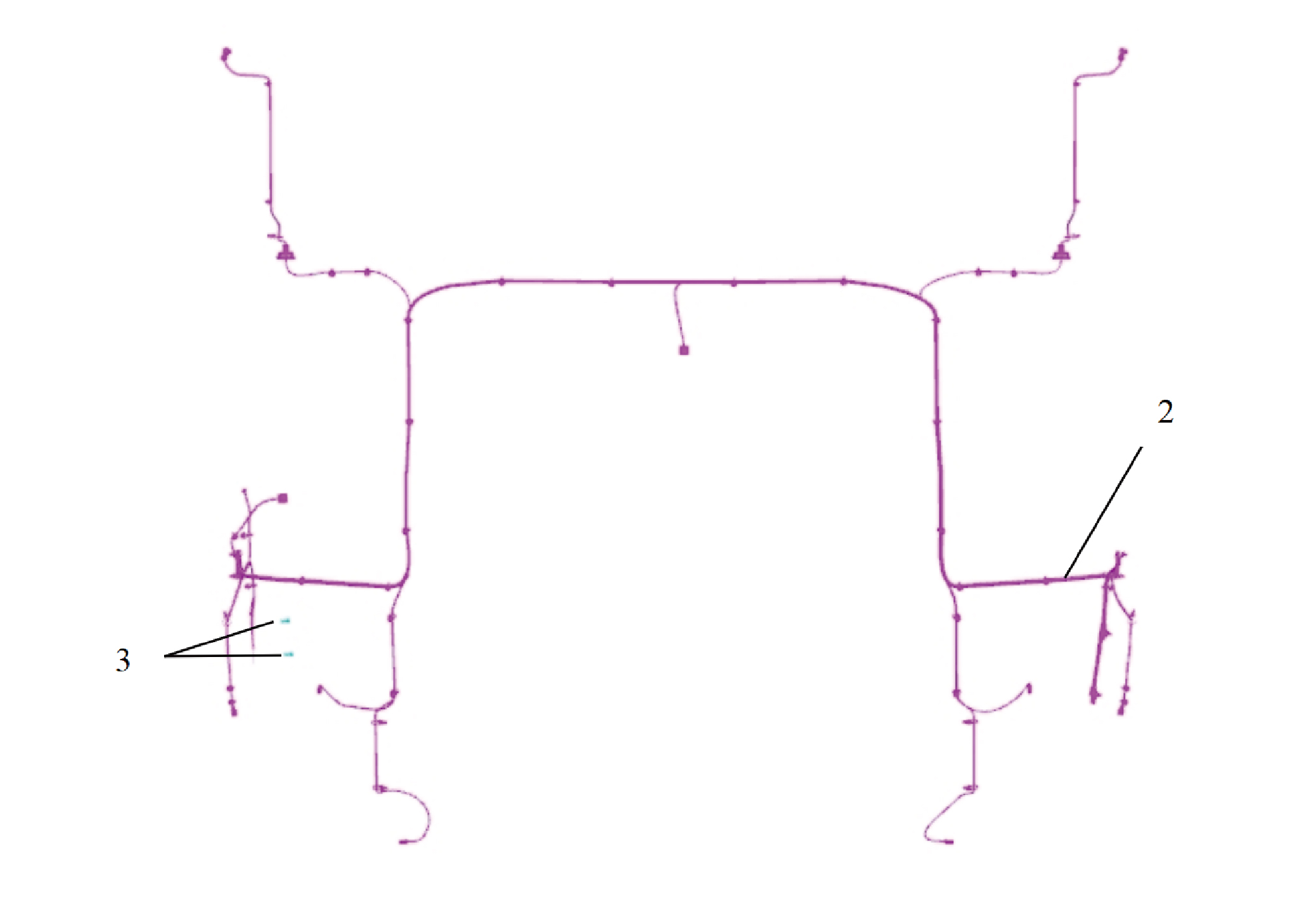

7.9.2 Decomposition Diagram

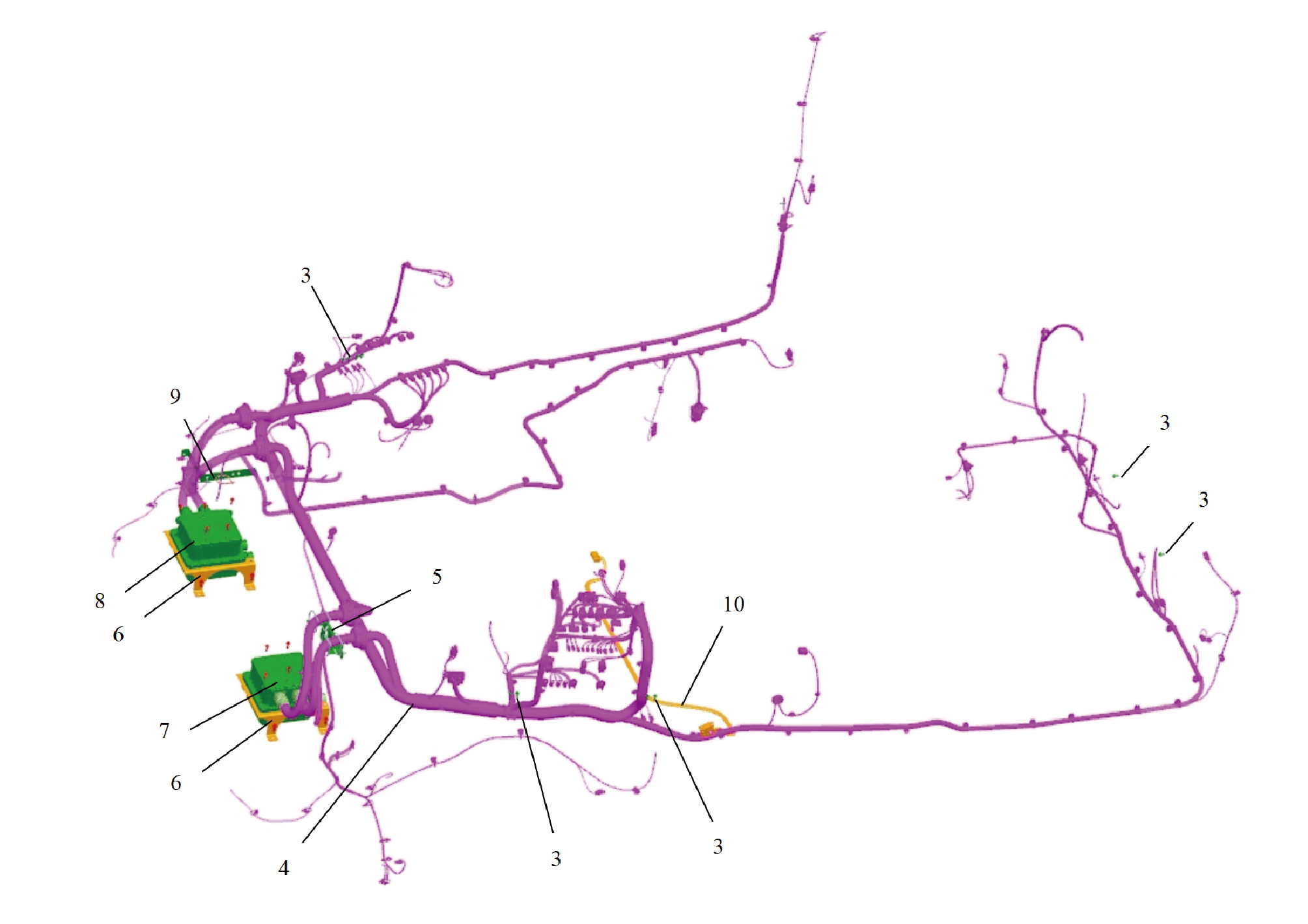

7.9.2.1 Decomposition Diagram

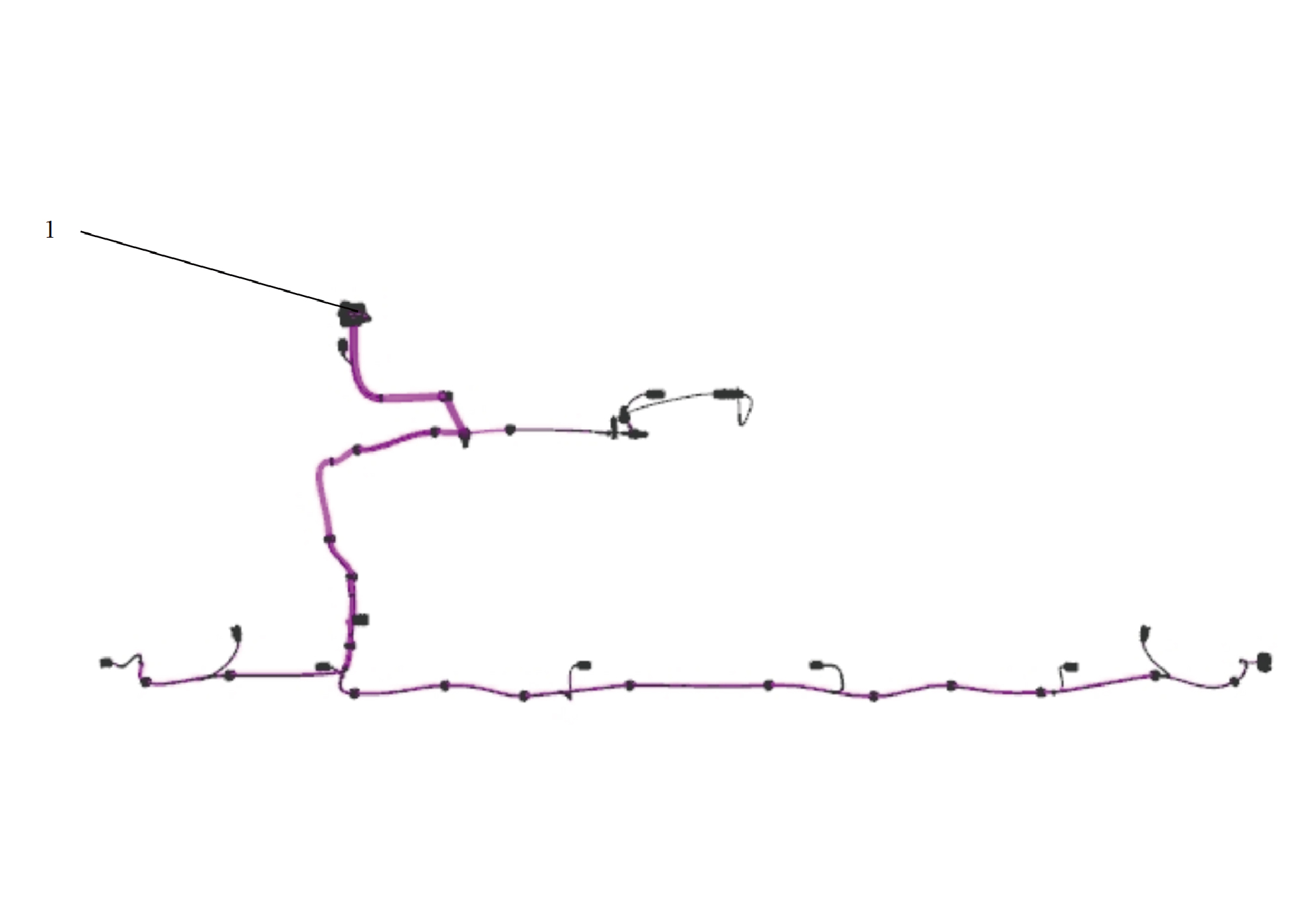

1.
Bumper Wiring Harness
2.
3.
Hexagon Flange Bolt
Top Cover Wiring Harness
7.
3.
Hexagon Flange Bolt

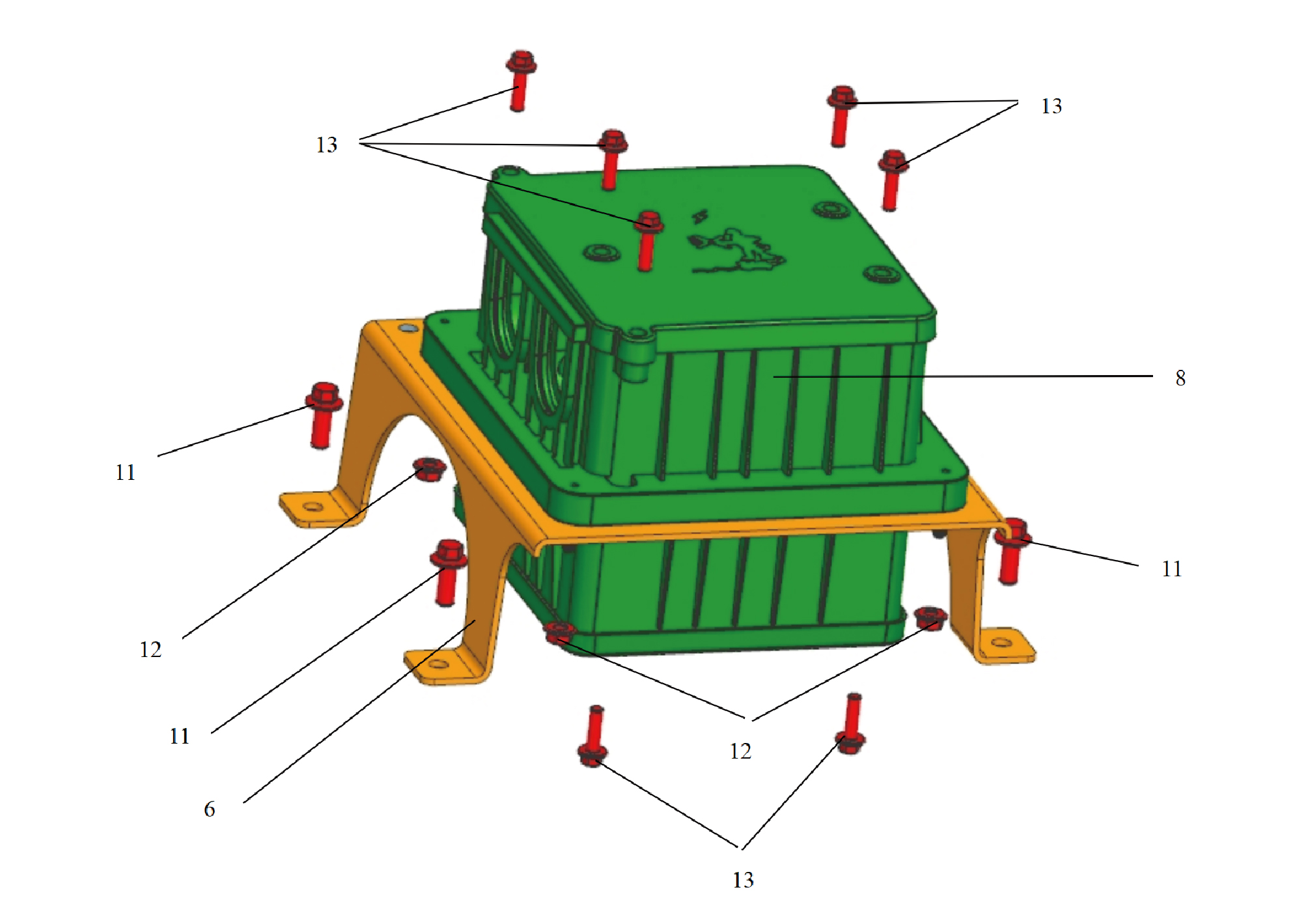

Left Junction Box
4.
Floor Wire Harness
8.
Right Junction Box
5
9.
Floor Harness Fixing Support 2
Floor Harness Fixing Support 1
6.
10.
Left Junction Box Bracket
Seat Harness
6.
12.
Hexagon Flange Nut
Left Junction Box Bracket
8.
Right Junction Box
13.
Hexagon Flange Bolt
11.
Hexagon Flange Bolt
3.
Hexagon Flange Bolt

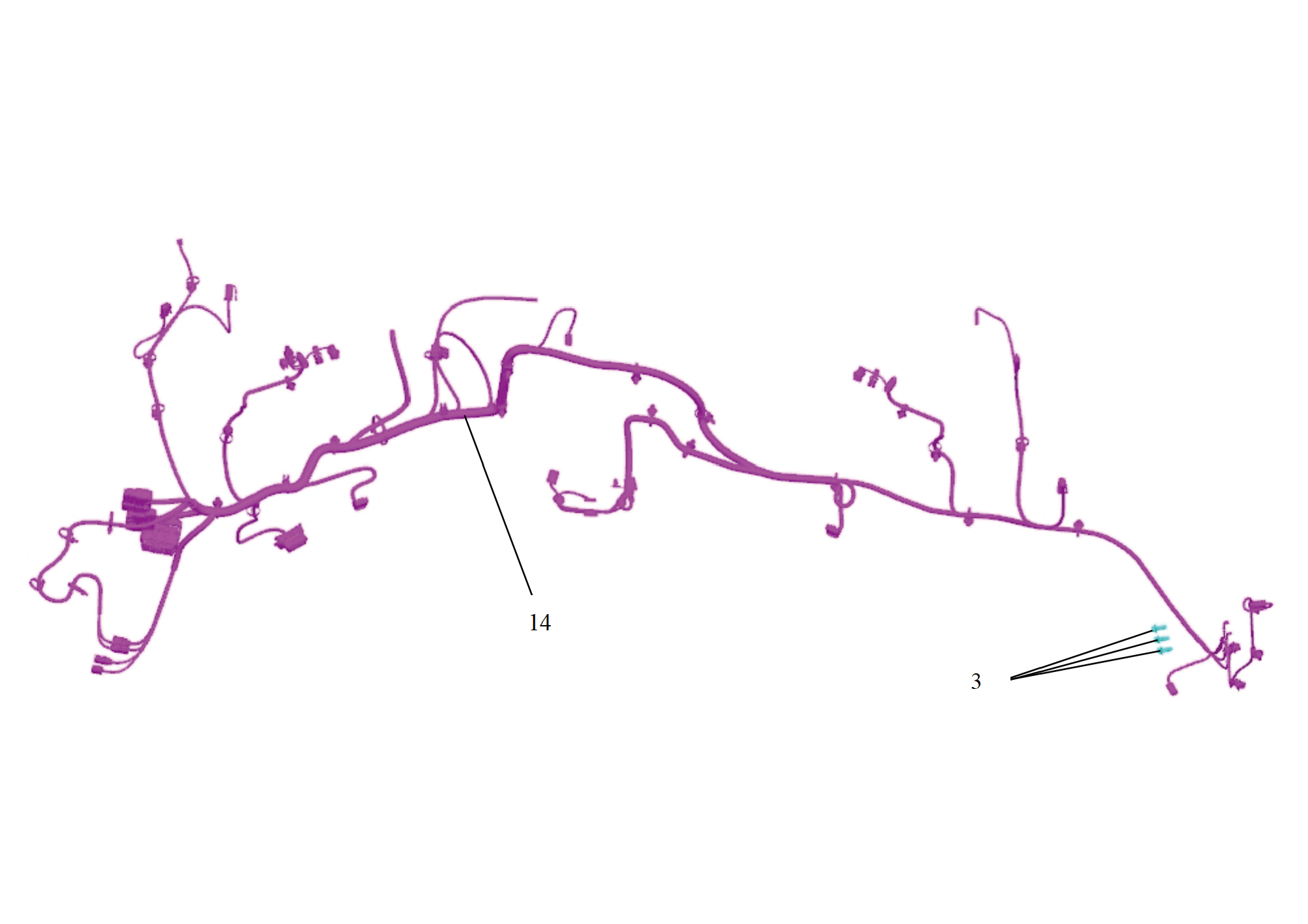

14.
Instrument Harness
3.
Hexagon Flange Bolt

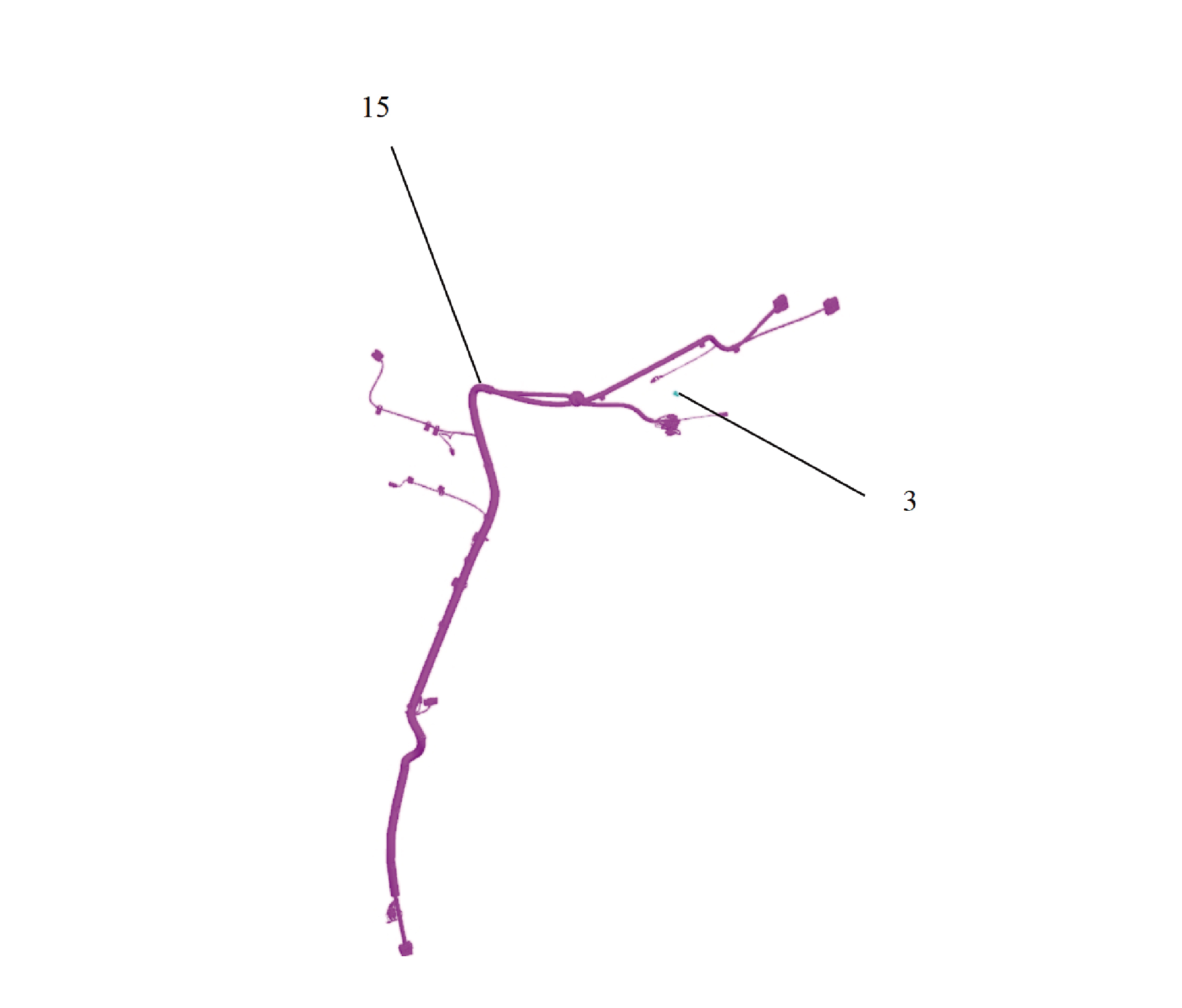

15.
Left Roof Harness
3.
Hexagon Flange Bolt

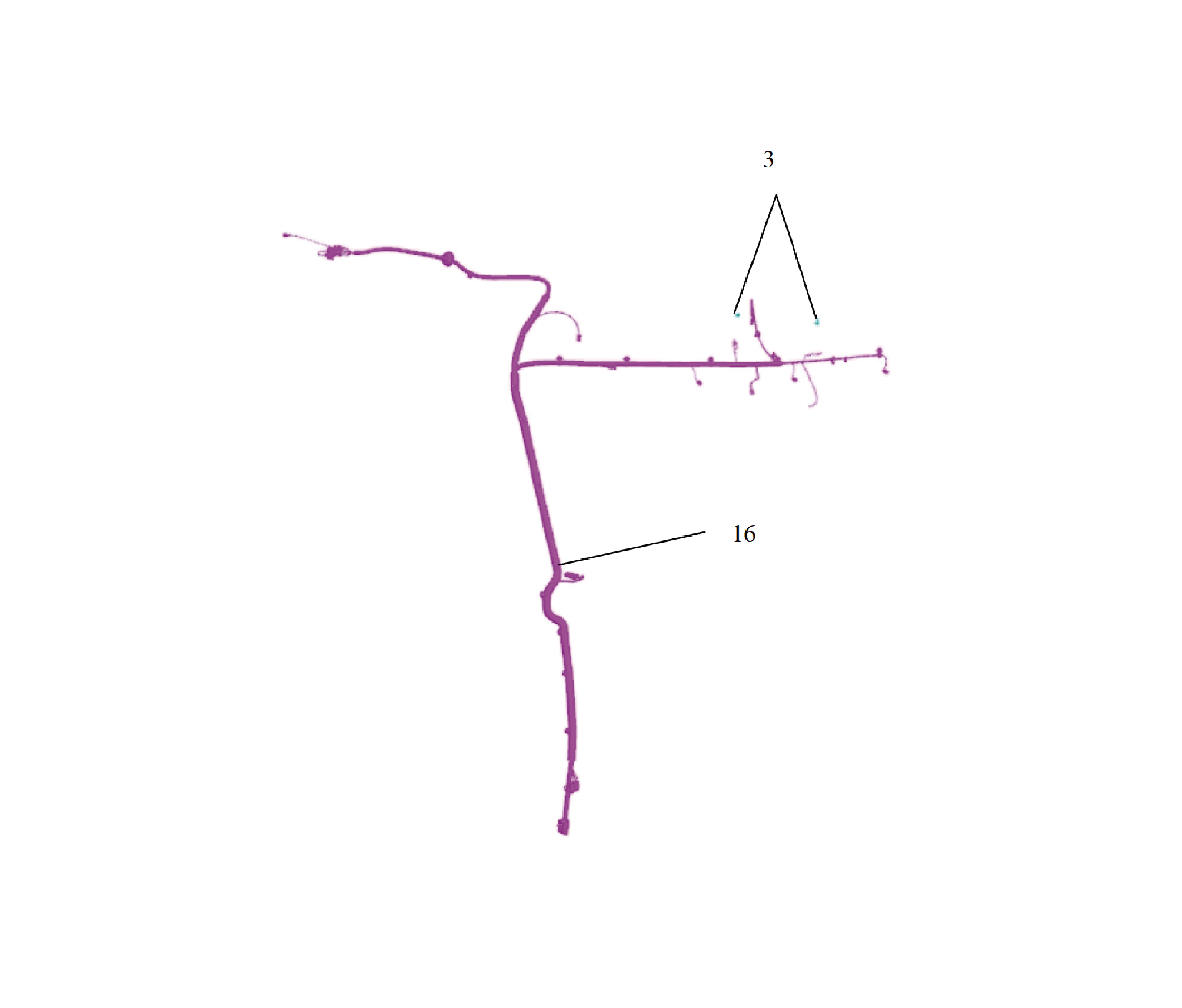

16.
Right Roof Harness

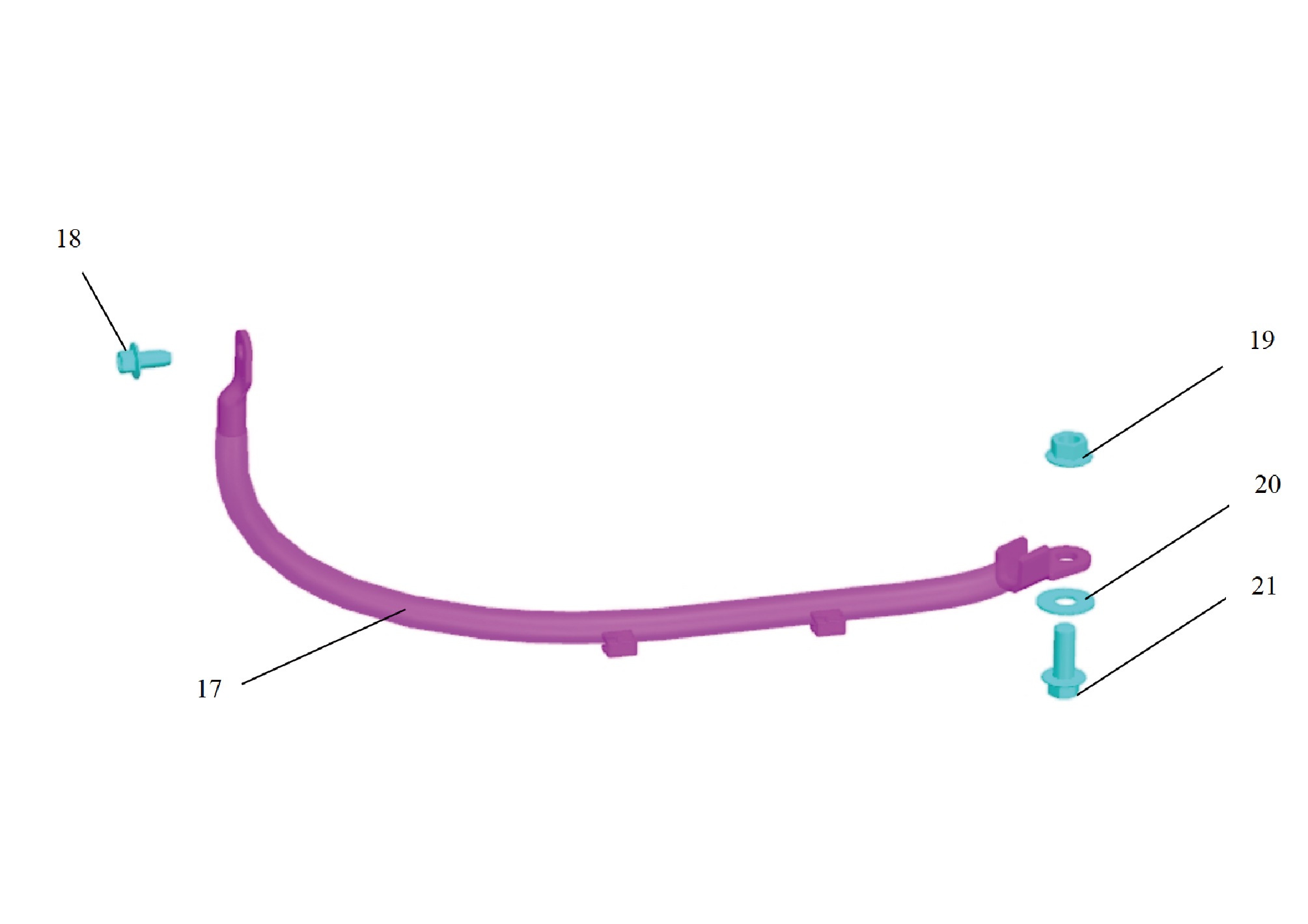

17.
20.
Cab Grounding Harness
Inside and Out Teeth Serrated Lock Washer
18.
Hexagon Flange Bolt
21.
Hexagon Flange Bolt
19.
Hexagon Flange Nut

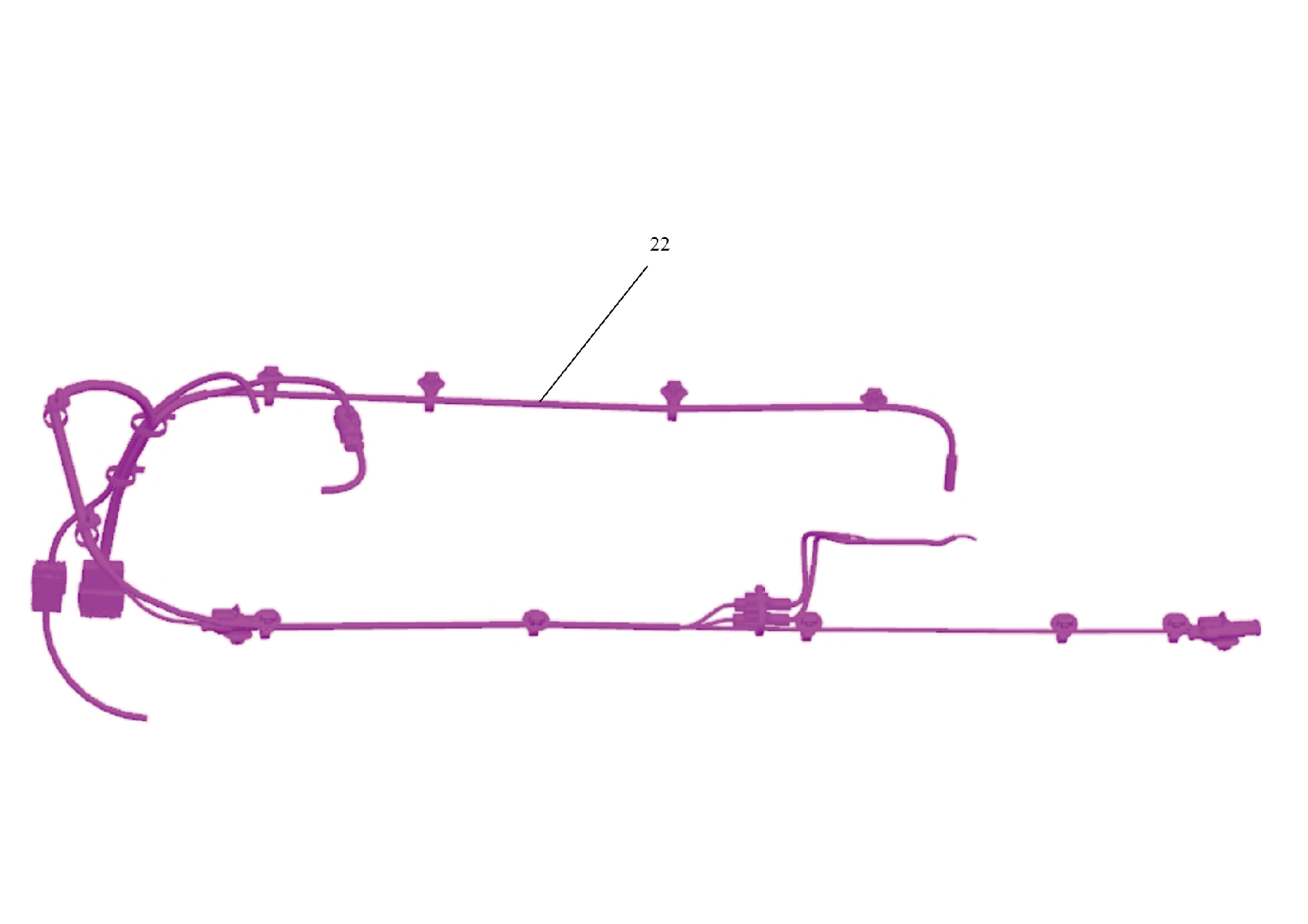

22.
Bar Counter Wiring Harness In New Energy Vehicles
