6.43 Fender Device
6.43 Fender Device
6.43.1 specifications
6.43.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the right
fender cover bracket assembly and the
(6.5 +/- .75) ft lbs
M6
white body assembly assembly

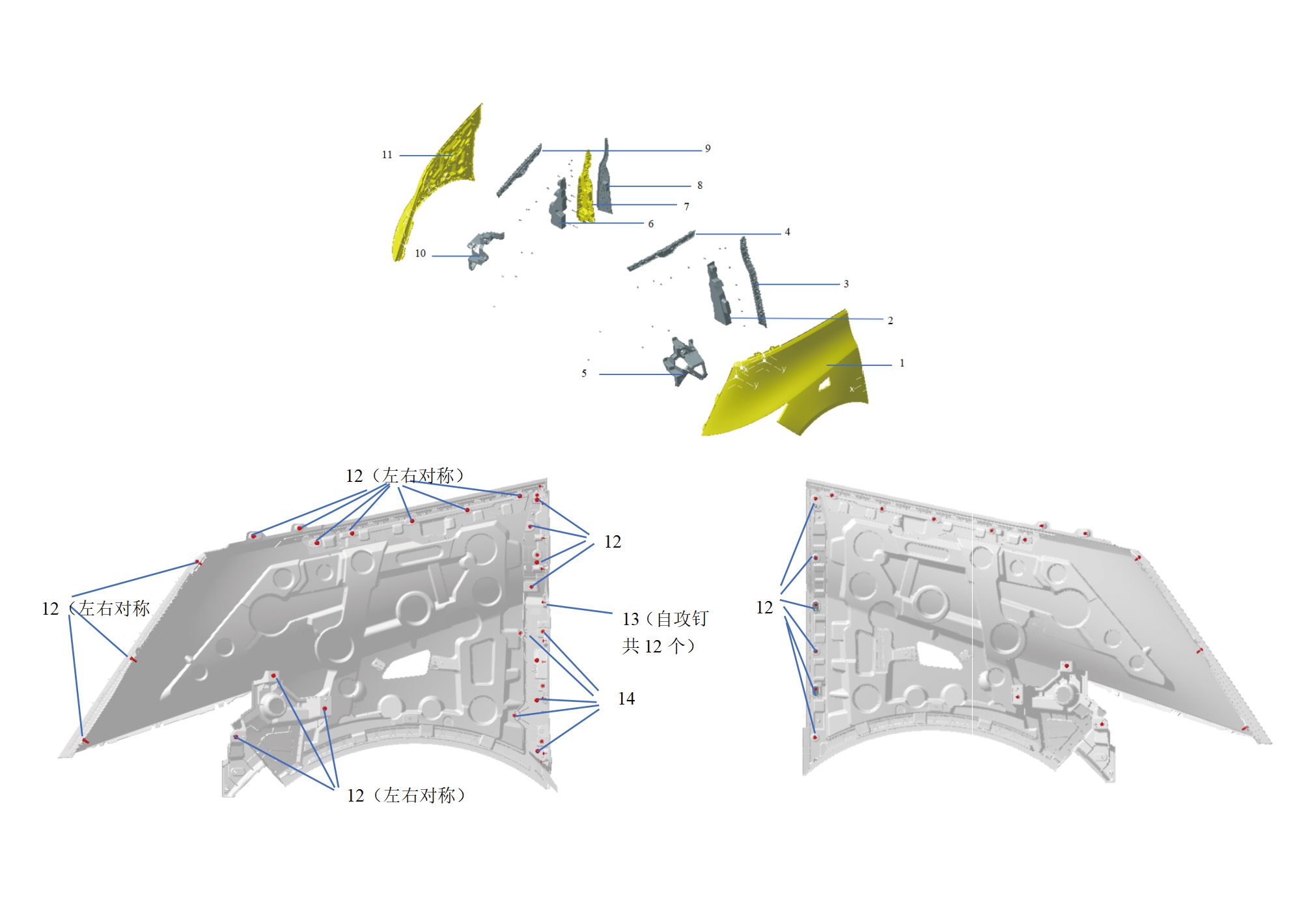

6.43.2 Decomposition Diagram
6.43.2.1 Decomposition Diagram
1.
Fender Assy-Rh
8.
Fender Cover Body
2.
Filling Block-Fender-Lh
9.
Upr Skeleton-Fender-Rh
3.
10.
Brkt Assy-Rh Fender
Connect Skeleton Assy-Lh Fender
4.
11.
Fender Assy-Rh
Upper Bracket on the Left Fender
5.
Brkt Assy-Lh Fender
12.
Hexagon Flange Bolt
6.
Filling Block-Fender-Rh
13.
Self-Tapping Screw Assy
7.
14.
Hexagon Flange Bolt
Brkt Assy-Fender Cover Rh
