6.37 Sleeping Berth Device
6.37 Sleeping Berth Device
6.37.1 Specifications
6.37.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the toolbox
(18.5 +/- 2) ft lbs
M8
assembly to the metal
The fixing bolts connecting the middle
drawer assembly and the sheet metal
(18.5 +/- 2) ft lbs
M8
plate
The fixing bolts connecting the toolbox
decorative panel assembly and the tool
(6.5 +/- .75) ft lbs
M6
box assembly
The fixing bolt connecting the toolbox
(6.5 +/- .75) ft lbs
M6
assembly and toolbox hinge
The fixing bolt connecting the right
(18.5 +/- 2) ft lbs
M8
drawer assembly to the floor sheet
metal
The fixing bolt connecting the right
drawer assembly and the rear seat belt
(37 +/- 3.5) ft lbs
M10
assembly
The fixing bolts connecting the middle
(18.5 +/- 2) ft lbs
M8
drawer assembly and the floor sheet
metal
The fixing bolts connecting the toolbox
decorative panel assembly and the
(6.5 +/- .75) ft lbs
M6
white body assembly assembly

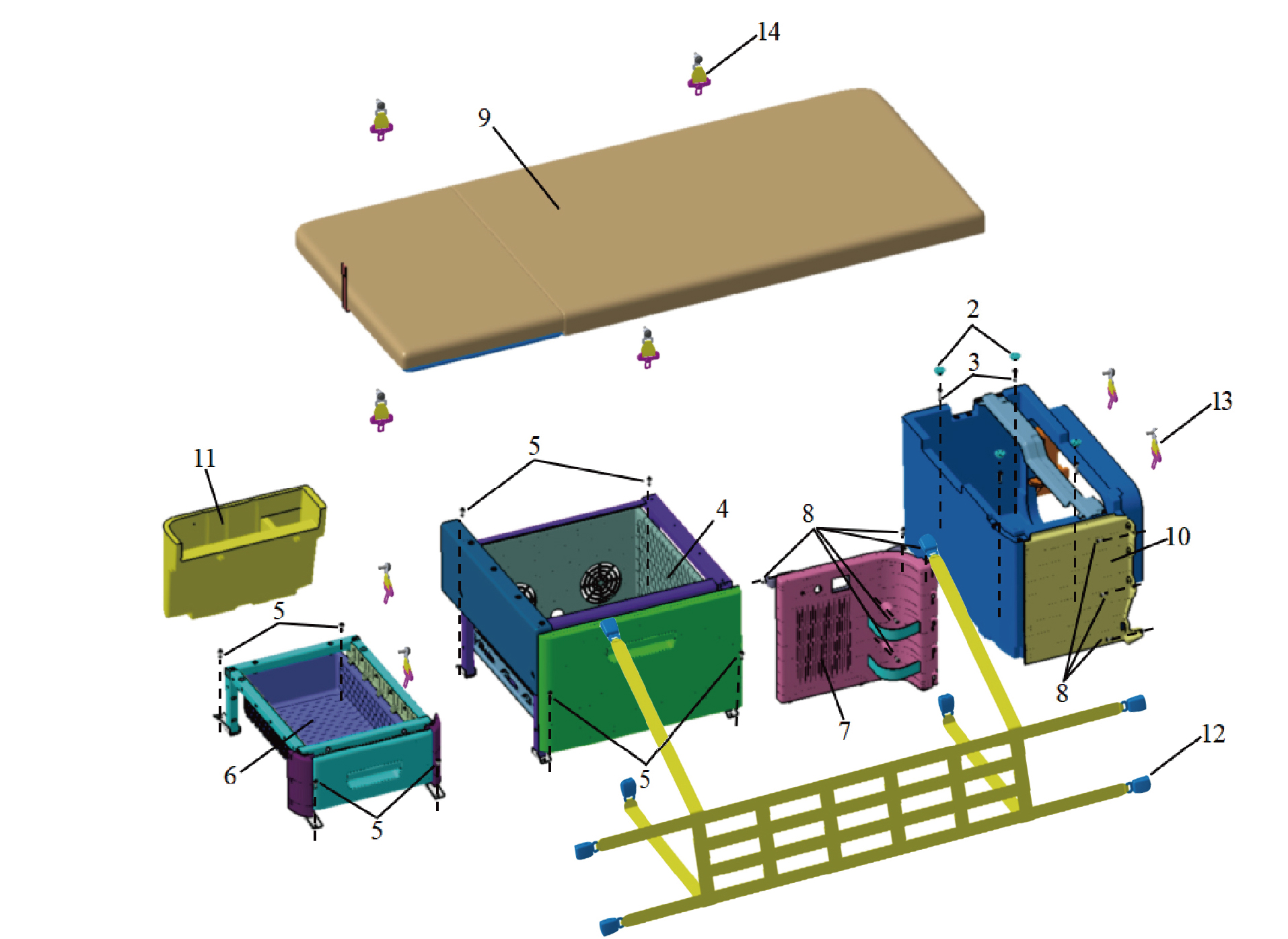

6.37.2 Decomposition Diagram
6.37.2.1 Decomposition Diagram
2.
Plug-Toolbox
9.
Sleeper Mat Assy
3.
Hexagon Flange Bolt
10.
Toolbox Decorative Plate Assy-lh
4.
Drawer Assy-Mid
11.
Rear Seat Storage Box
5.
12.
Hexagon Flange Bolt
Sleeping Berth Protection Net Assembly
6.
13.
Drawer Assy-Rh
Protection Net Lock Catch (with Spacer)
7.
14.
Toolbox Decorative Plate Assy
Protection Net Lock Catch
8.
Hexagon Flange Bolt
6.37.3 Dismantling and Installation
6.37.3.1 Replacement of Sleeper Toolbox
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the sleeper mat assembly.
5
Remove the rear A/C lower air duct.
6
Remove the IP left upper trim panel assembly.
7
Remove the front USB interface.
8
Remove the IP left access cover plate assembly.
9
Remove the left switch panel assembly.
10
Remove the left switch panel lower trim panel assembly.
11
Remove the IP left lower trim panel assembly.
12
Remove the left middle side wall lower trim panel
assembly.
13
Remove the left middle side wall middle trim panel
assembly.
caution
1.First remove the break glass hammer's zipper
cover, carefully take out the break glass hammer's
pull ring and place it inside the trim panel.
2.Be careful to avoid accidentally pulling the break
glass hammer's pull ring.
14
Remove the toolbox left trim panel assembly.
15
Remove the 120V receptacle.
16
Remove the vehicle power supply (12V).
17
Remove the interior temperature sensor (rear).
18
Remove the toolbox trim panel assembly.
19
Remove the toolbox sill molding assembly.
20
Remove the toolbox lamp.
21

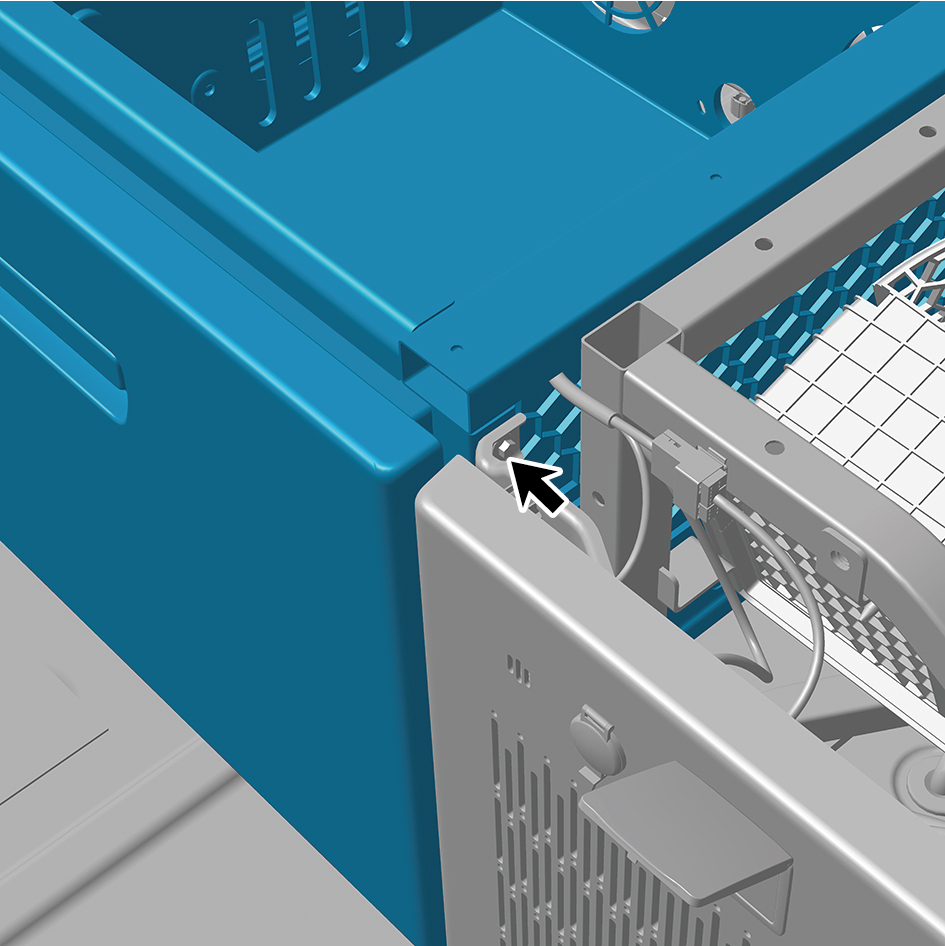

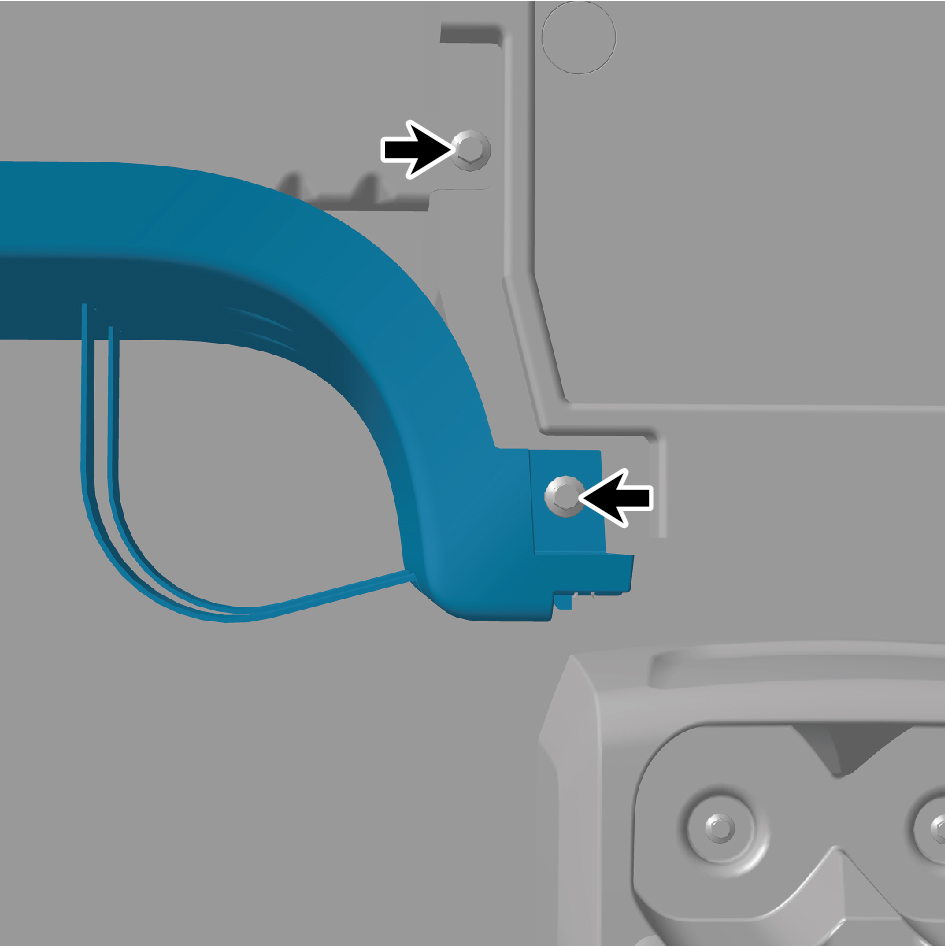

Remove the toolbox lamp bracket.
22
Remove 4 plug caps.
23

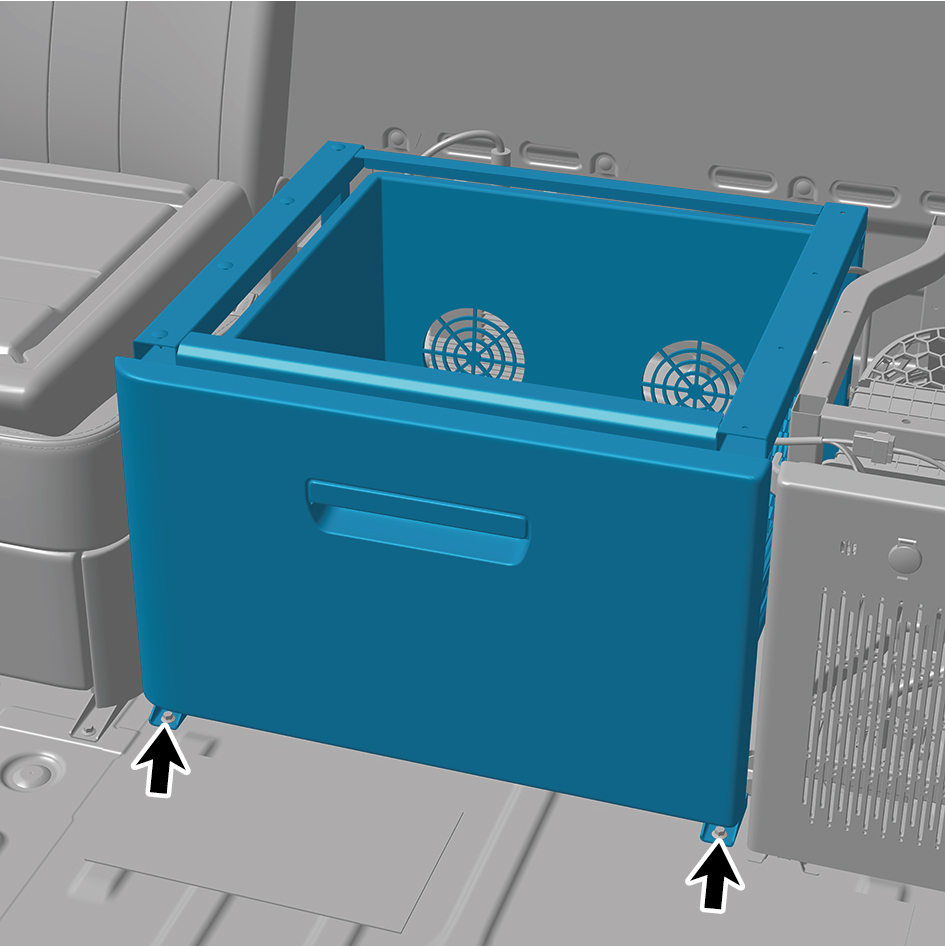

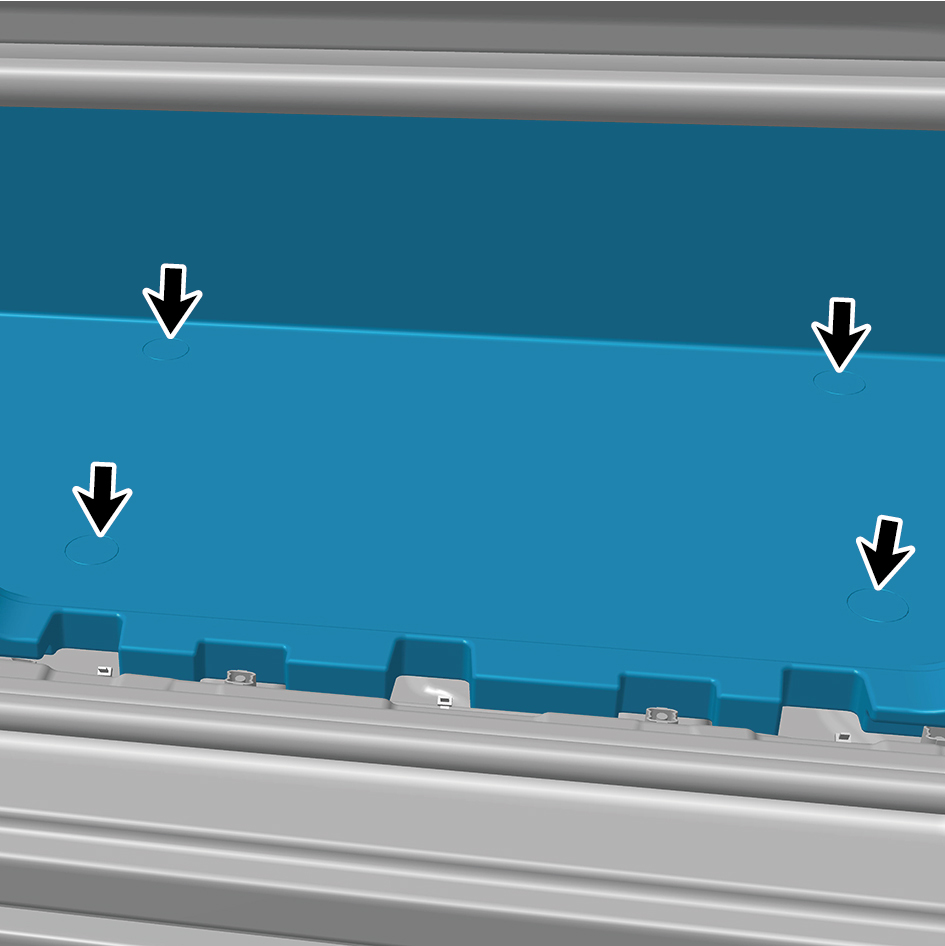

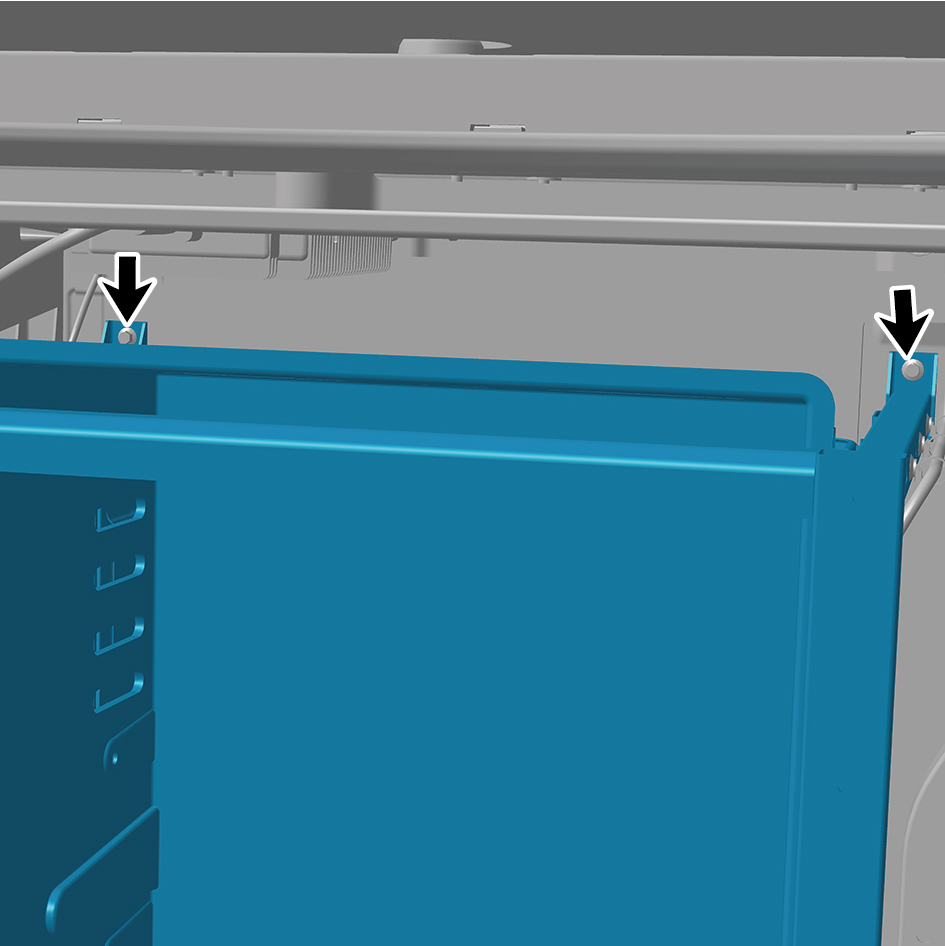

Remove 4 fixing bolts of the sleeper toolbox.
24
Remove the sleeper toolbox.
Installation Procedures
1
Move the sleeper toolbox to the mounting position.
2
Install 4 fixing bolts of the sleeper toolbox.
Torque:(18.5 +/- 2) ft lbs
3
Install 4 plug caps.
4
Install the toolbox lamp bracket.
5
Install the toolbox lamp.
6
Install the toolbox sill molding assembly.
7
Install the toolbox trim panel assembly.
8
Install the interior temperature sensor (rear).
9
Install the vehicle power supply (12V).
10
Install the 120V receptacle.
11
Install the toolbox left trim panel assembly.
12
Install the left middle side wall middle trim panel assembly.
13
Install the left middle side wall lower trim panel assembly.
14
Install the IP left lower trim panel assembly.
15
Install the left switch panel lower trim panel assembly.
16
Install the left switch panel assembly.
17
Install the IP left access cover plate assembly.
18
Install the front USB interface.
19
Install the IP left upper trim panel assembly.
20
Install the rear A/C lower air duct.
21
Install the sleeper mat assembly.
22
Connect the battery negative cable.
23
Close the front flip cover plate.
24
Close the door.
6.37.3.2 Replacement of Middle Drawer Assembly
Assembly
Removal Procedures
1
Open the door.
2
Remove the sleeper mat assembly.
3

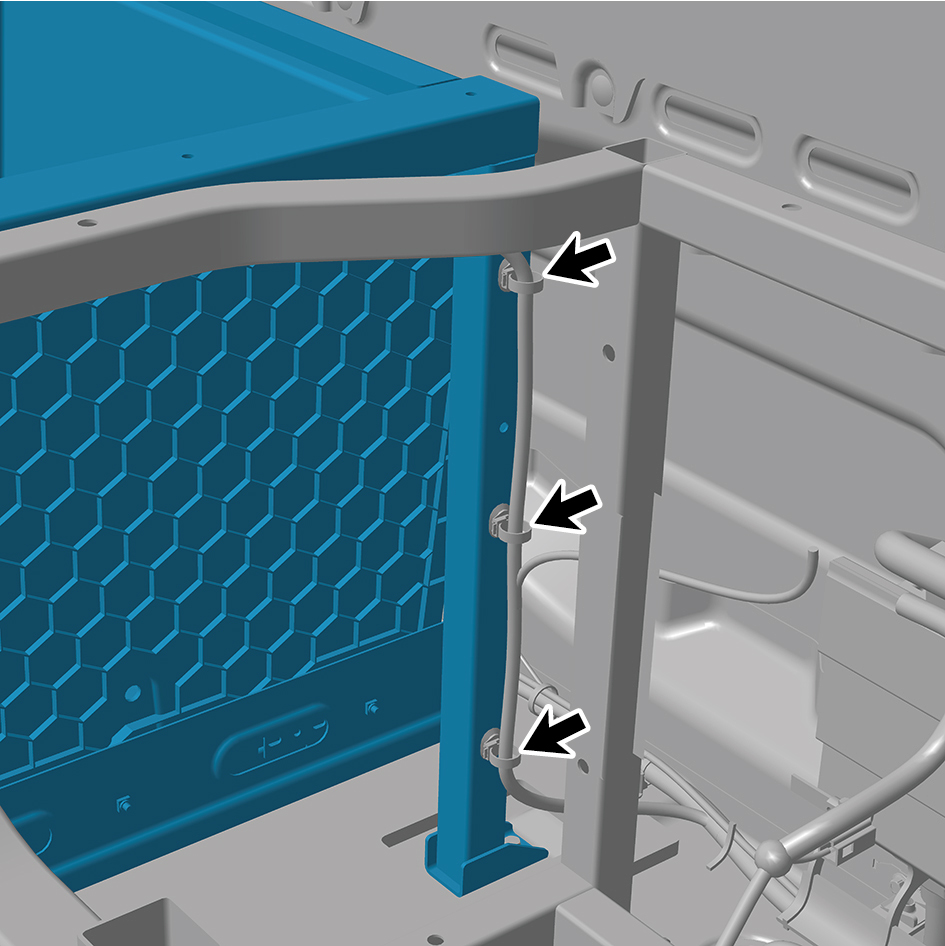

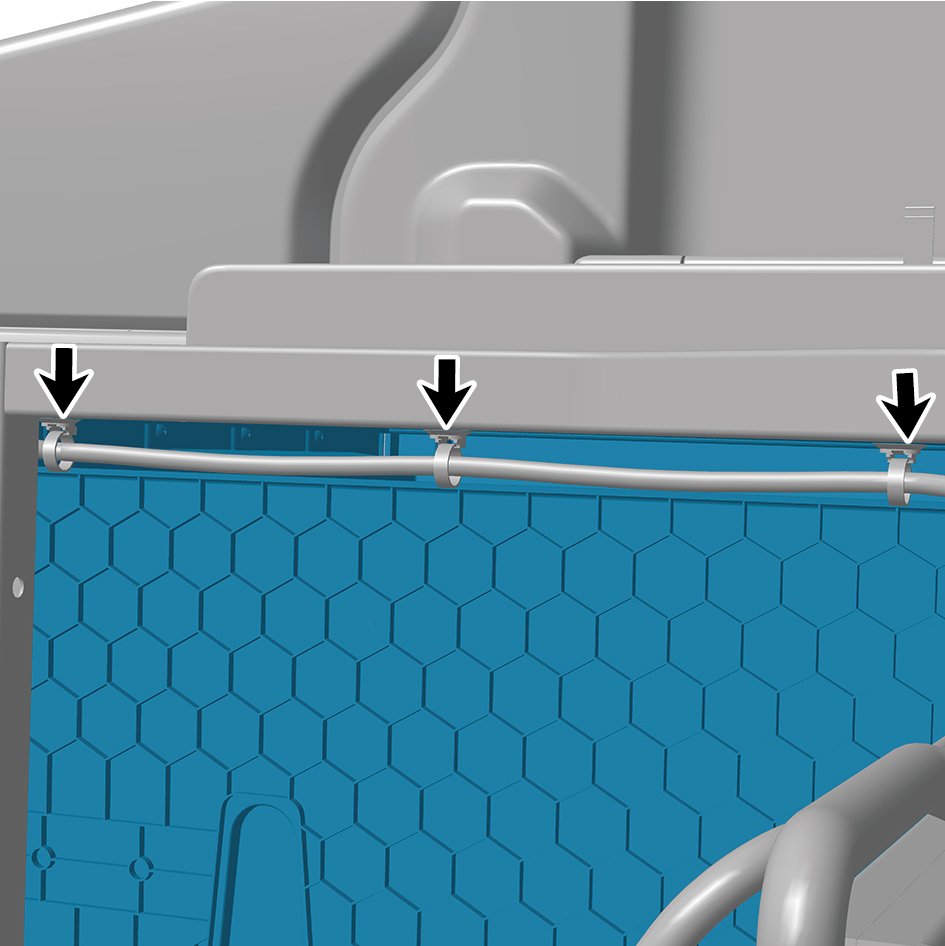

Disengage 6 clips of the middle drawer assembly.
4
Remove 5 fixing bolts of the middle drawer assembly, and
remove the middle drawer assembly.
Installation Procedures
1
Move the middle drawer assembly to the mounting
position.
2
Install 5 fixing bolts of the middle drawer assembly.
Torque:(6.5 +/- .75) ft lbs
3
Install 6 clips of the middle drawer assembly.
4
Install the sleeper mat assembly.
5
Close the door.
6.37.3.3 Replacement of Right Drawer Assembly
Assembly
Removal Procedures
1
Open the door.
2
Remove the rear seat assembly.
3
Remove the seat rear storage box.
4

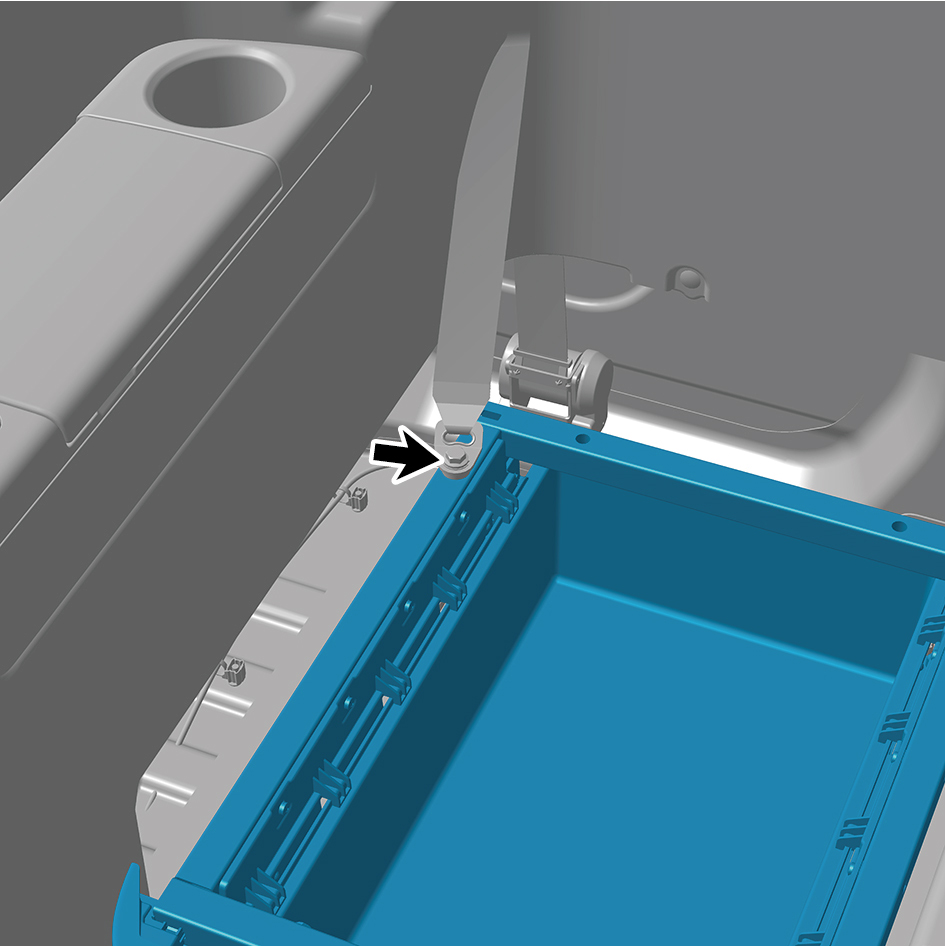

Remove 1 fixing bolt of the rear seat belt assembly.
5

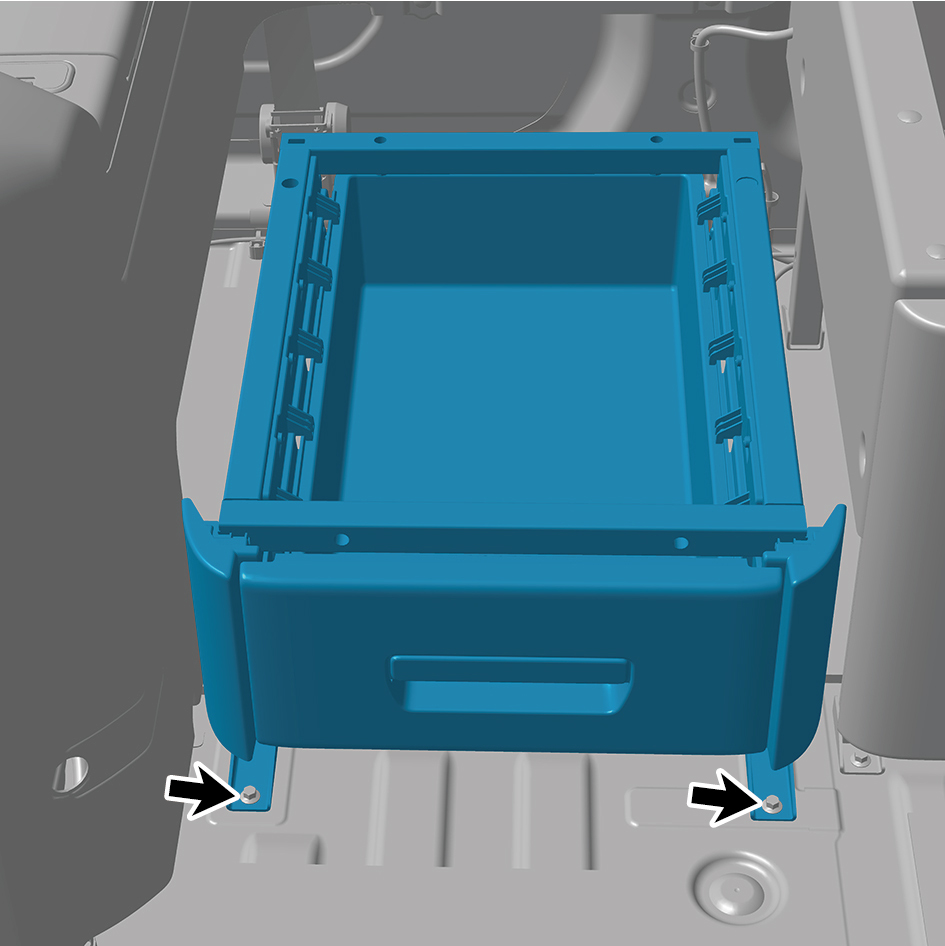

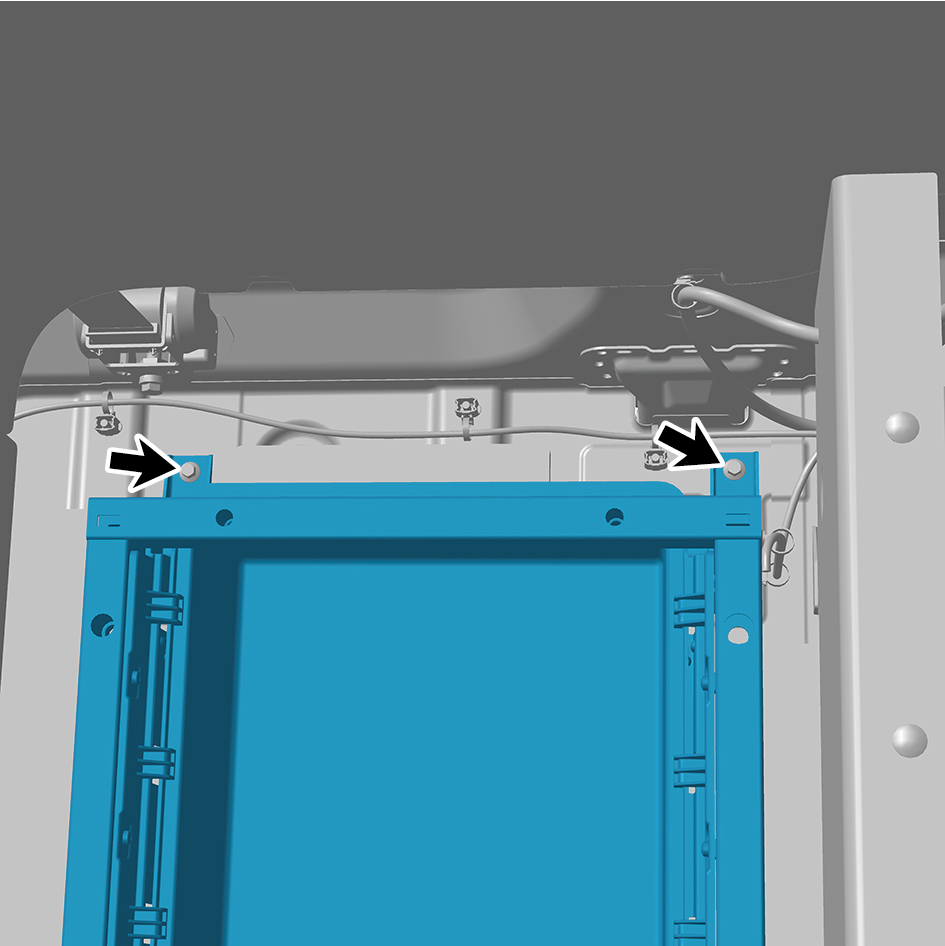

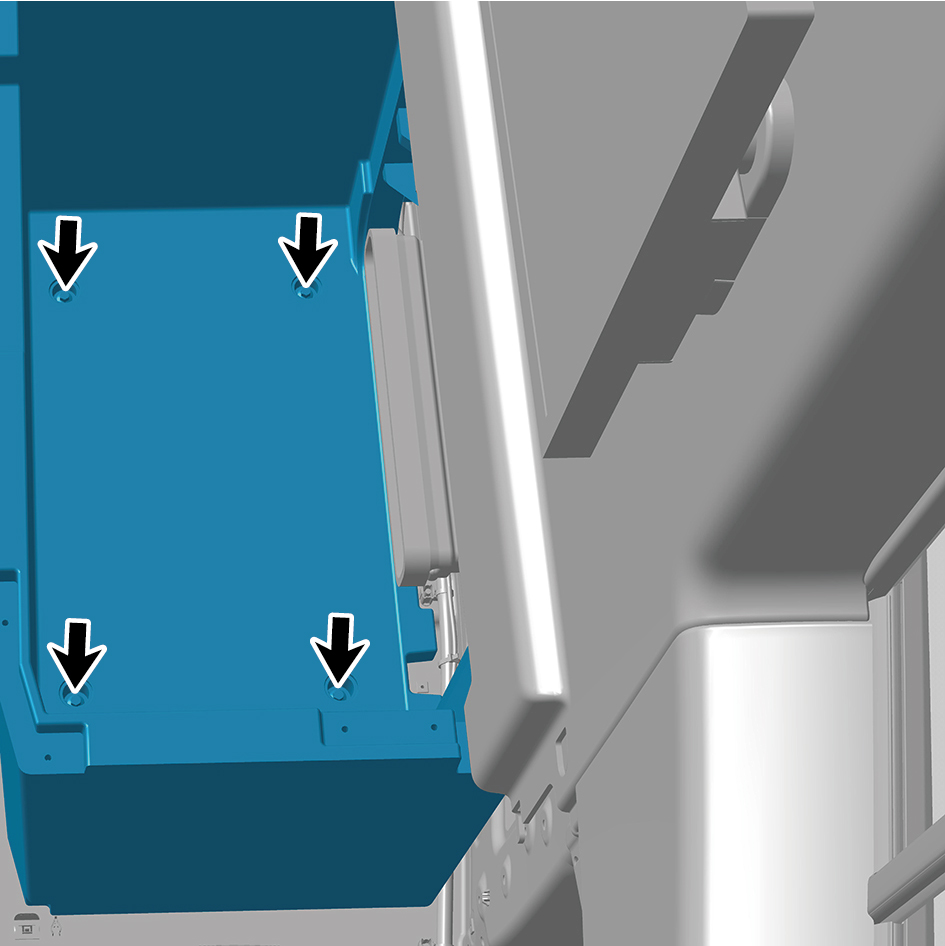

Remove 4 fixing bolts of the right drawer assembly, and
remove the right drawer assembly.
Installation Procedures
1
Move the right drawer assembly to the mounting position.
2
Install 4 fixing bolts of the right drawer assembly.
Torque: (18.5 +/- 2) ft lbs
3
Install 1 fixing bolt of the rear seat belt assembly.
Torque: (37 +/- 3.5) ft lbs
4
Install the seat rear storage box.
5
Install the rear seat assembly.
6
Close the door.
6.37.3.4 Replacement of Toolbox Trim Panel Assembly
Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the fire extinguisher.
5
Remove the IP left upper trim panel assembly.
6
Remove the front USB interface.
7
Remove the IP left access cover plate assembly.
8
Remove the left switch panel assembly.
9
Remove the left switch panel lower trim panel assembly.
10
Remove the IP left lower trim panel assembly.
11
Remove the left middle side wall lower trim panel
assembly.
12
Remove the left middle side wall middle trim panel
assembly.
caution
1.First remove the break glass hammer's zipper
cover, carefully take out the break glass hammer's
pull ring and place it inside the trim panel.
2.Be careful to avoid accidentally pulling the break
glass hammer's pull ring.
13
Remove the toolbox left trim panel assembly.
14
Remove the 120V receptacle.
15
Remove the vehicle power supply (12V).
16
Remove the interior temperature sensor (rear).
17
Open the sleeper mat assembly.
18

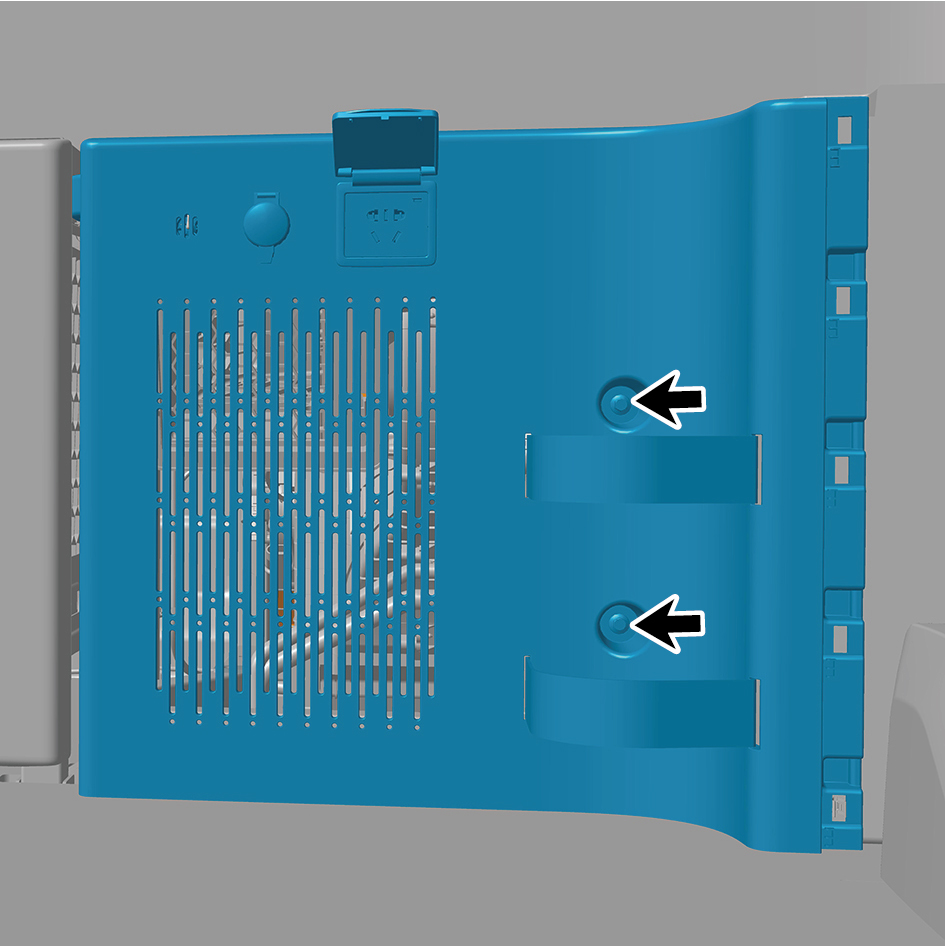

Remove 5 fixing bolts of the toolbox trim panel assembly,
and remove the toolbox trim panel assembly.
Installation Procedures
1
Move the toolbox trim panel assembly to the mounting
position, and install the 5 fixing bolts of the toolbox trim
panel assembly.
Torque: (6.5 +/- .75) ft lbs
2
Close the sleeper mat assembly.
3
Install the interior temperature sensor (rear).
4
Install the vehicle power supply (12V).
5
Install the 120V receptacle.
6
Install the toolbox left trim panel assembly.
7
Install the left middle side wall middle trim panel assembly.
8
Install the left middle side wall lower trim panel assembly.
9
Install the IP left lower trim panel assembly.
10
Install the left switch panel lower trim panel assembly.
11
Install the left switch panel assembly.
12
Install the IP left access cover plate assembly.
13
Install the front USB interface.
14
Install the IP left upper trim panel assembly.
15
Install the fire extinguisher.
16
Connect the battery negative cable.
17
Close the front flip cover plate.
18
Close the door.
6.37.3.5 Replacement of Toolbox Left Trim Panel Assembly
Panel Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP left upper trim panel assembly.
5
Remove the front USB interface.
6
Remove the IP left access cover plate assembly.
7
Remove the left switch panel assembly.
8
Remove the left switch panel lower trim panel assembly.
9
Remove the IP left lower trim panel assembly.
10
Remove the left middle side wall lower trim panel
assembly.
11
Remove the left middle side wall middle trim panel
assembly.
caution
1.First remove the break glass hammer's zipper
cover, carefully take out the break glass hammer's
pull ring and place it inside the trim panel.
2.Be careful to avoid accidentally pulling the break
glass hammer's pull ring.
12
Open the sleeper mat assembly.
13

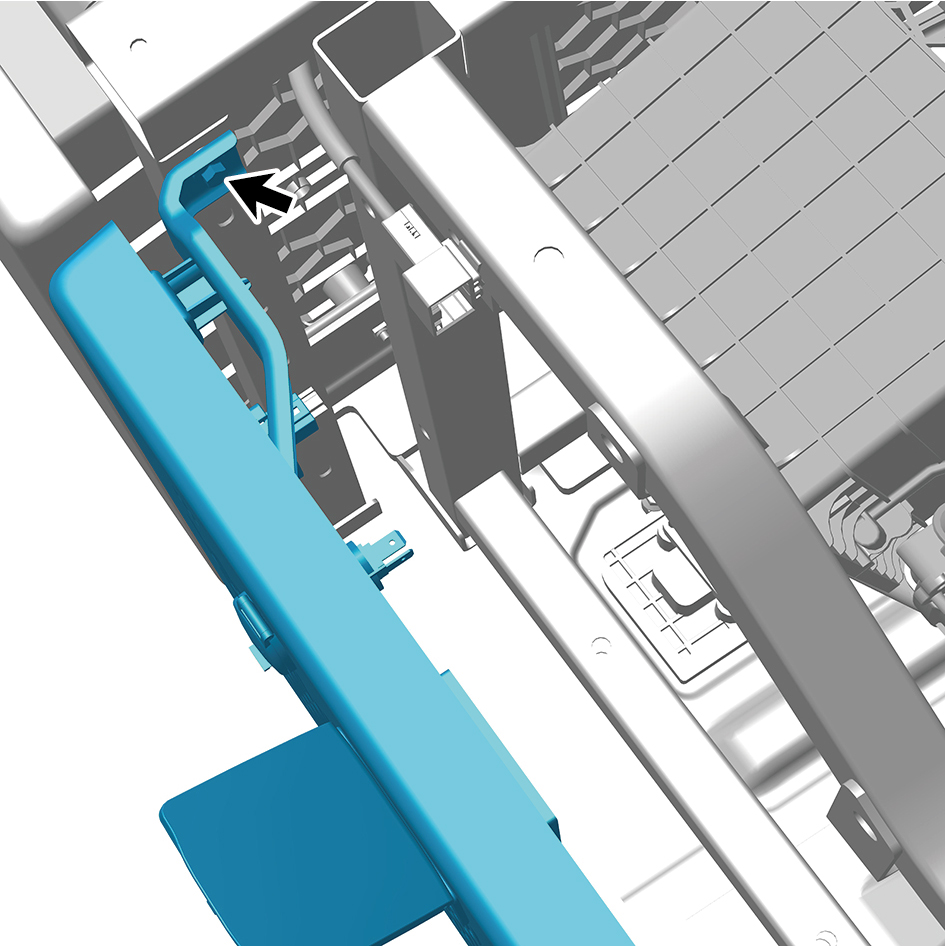

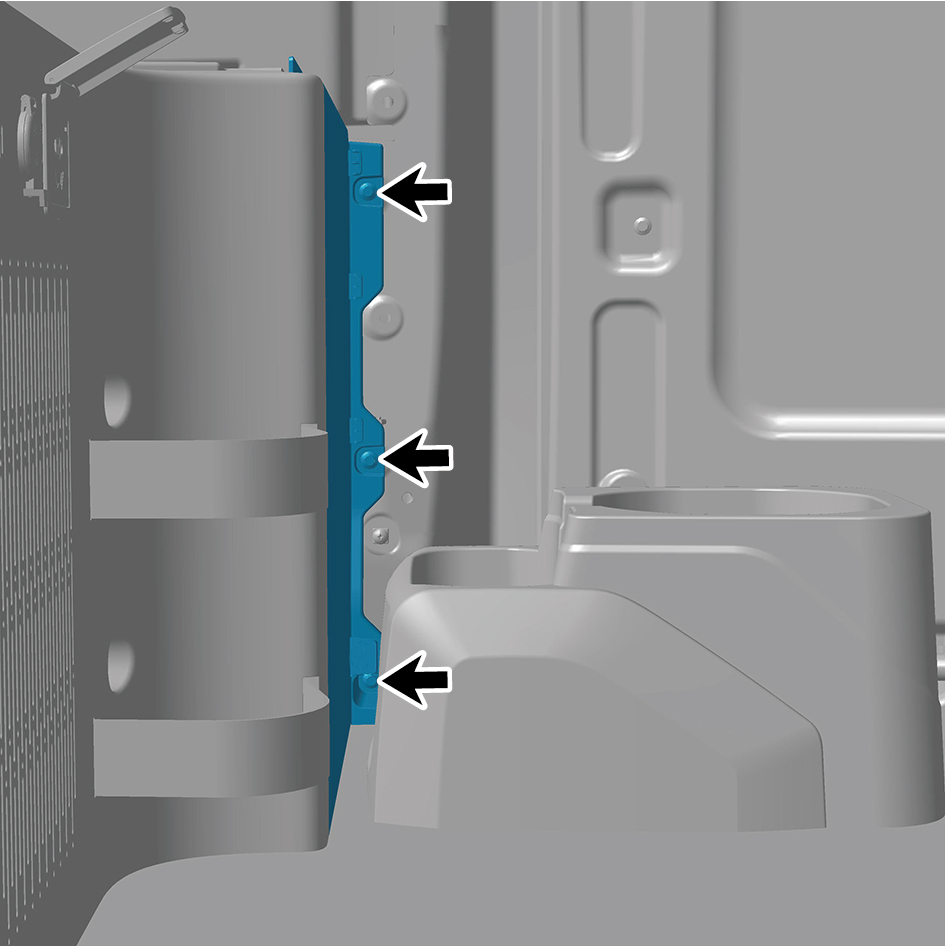

Remove 3 fixing bolts of the toolbox left trim panel
assembly.
14
Remove the toolbox left trim panel assembly.
Installation Procedures
1
Move the toolbox left trim panel assembly to the mounting
position.
2
Install 3 fixing bolts of the toolbox left trim panel assembly.
Torque:(6.5 +/- .75) ft lbs
3
Close the sleeper mat assembly.
4
Install the left middle side wall middle trim panel assembly.
5
Install the left middle side wall lower trim panel assembly.
6
Install the IP left lower trim panel assembly.
7
Install the left switch panel lower trim panel assembly.
8
Install the left switch panel assembly.
9
Install the IP left access cover plate assembly.
10
Install the front USB interface.
11
Install the IP left upper trim panel assembly.
12
Connect the battery negative cable.
13
Close the front flip cover plate.
14
Close the door.
6.37.3.6 Replacement of Sleeper Mat Assembly
Assembly
Removal Procedures
1
Open the door.
2

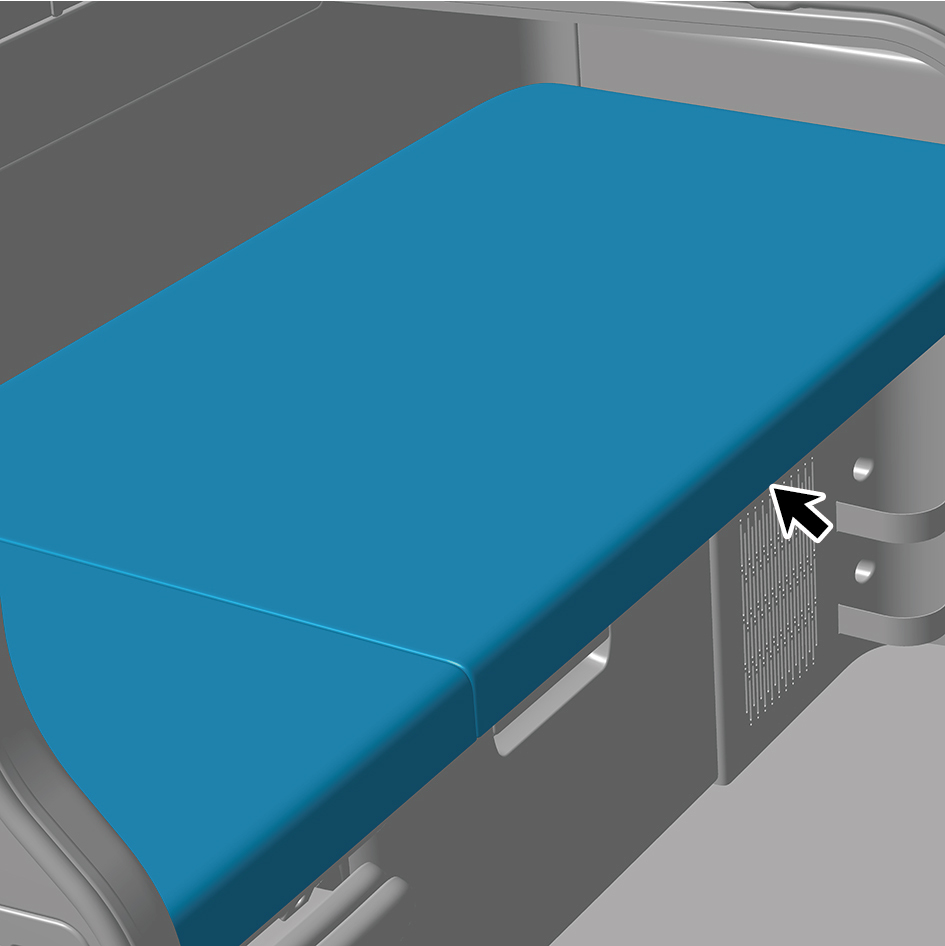

Remove the sleeper mat assembly.
Installation Procedures
1
Install the sleeper mat assembly.
2
Close the door.
6.37.3.7 Replacement of Seat Rear Storage Box
Box
Removal Procedures
1
Open the door.
2
Open the sleeper mat assembly.
3

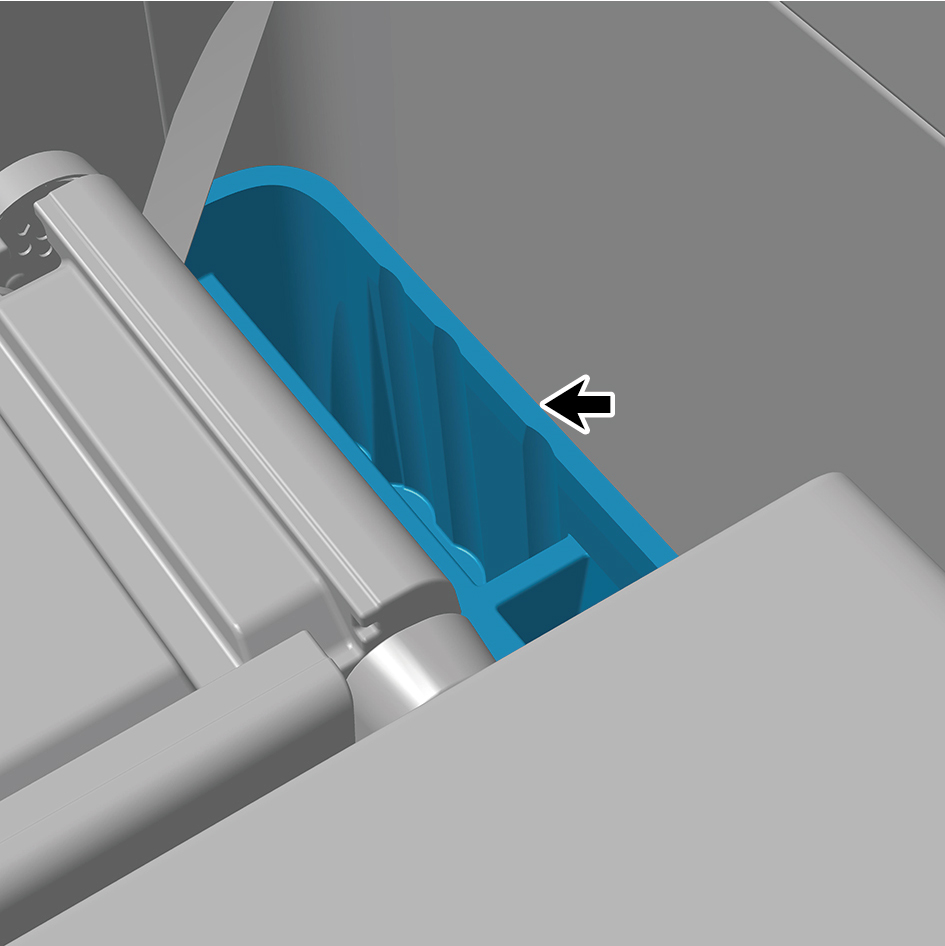

Remove the seat rear storage box.
Installation Procedures
1
Install the seat rear storage box.
2
Close the sleeper mat assembly.
3
Close the door.
