6.36 Rear Seat Device
6.36 Rear Seat Device
6.36.1 Specifications
6.36.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the rear seat
(18.5 +/- 2) ft lbs
M8
assembly and the right drawer assembly
6.36.2 Decomposition Diagram

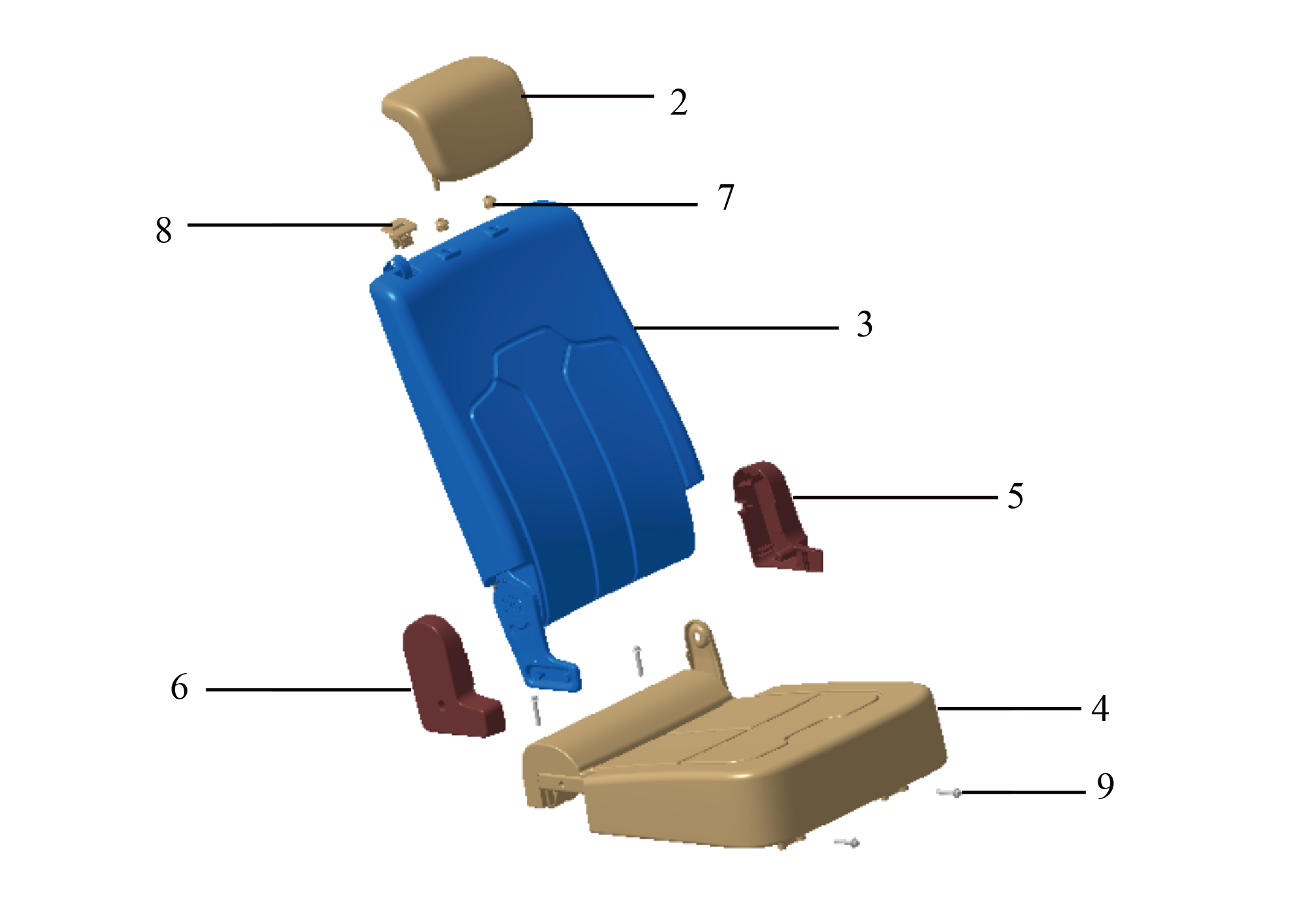

6.36.2.1 Decomposition Diagram
2.
Headrest Assembly
6.
Right Guard Plate
7.
3.
Backrest Assembly
Pull Strap Housing
4.
8.
Seat Cushion Assembly
Headrest Cap
5.
9.
Hexagon Flange Bolt
Left Guard Plate
6.36.3 Dismantling and Installation
6.36.3.1 Replacement of Rear Seat Assembly
Removal Procedures
1
Open the door.
2

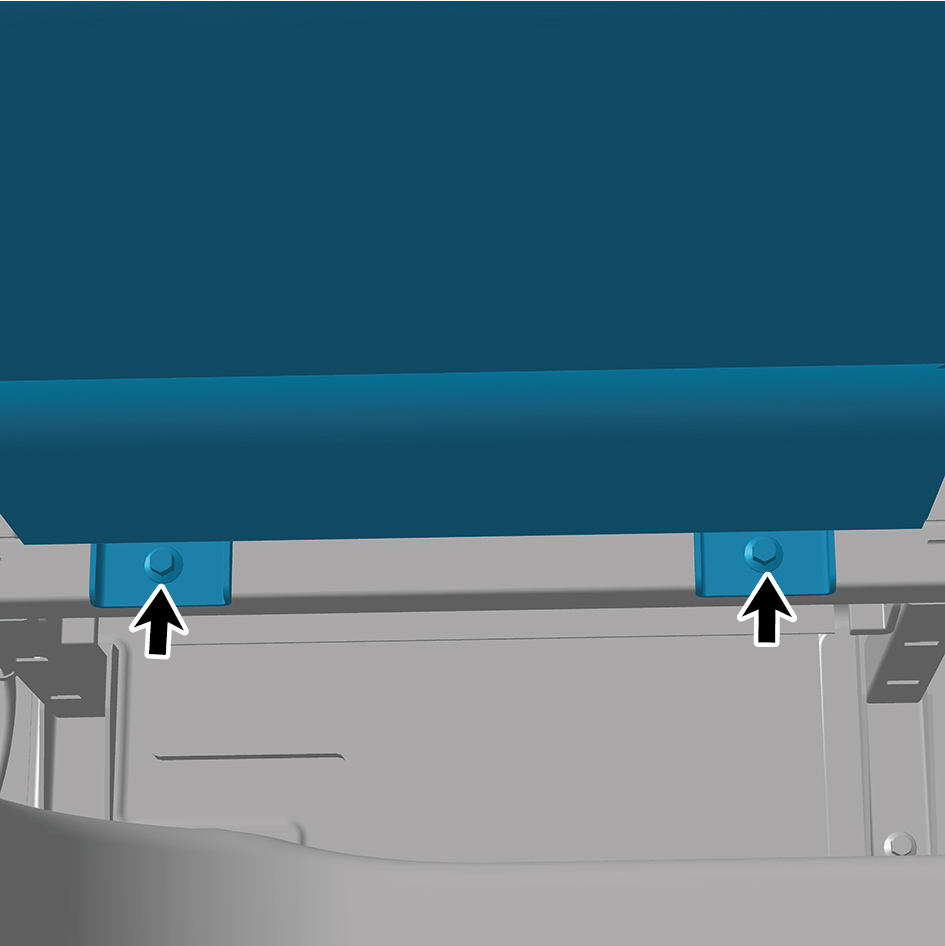

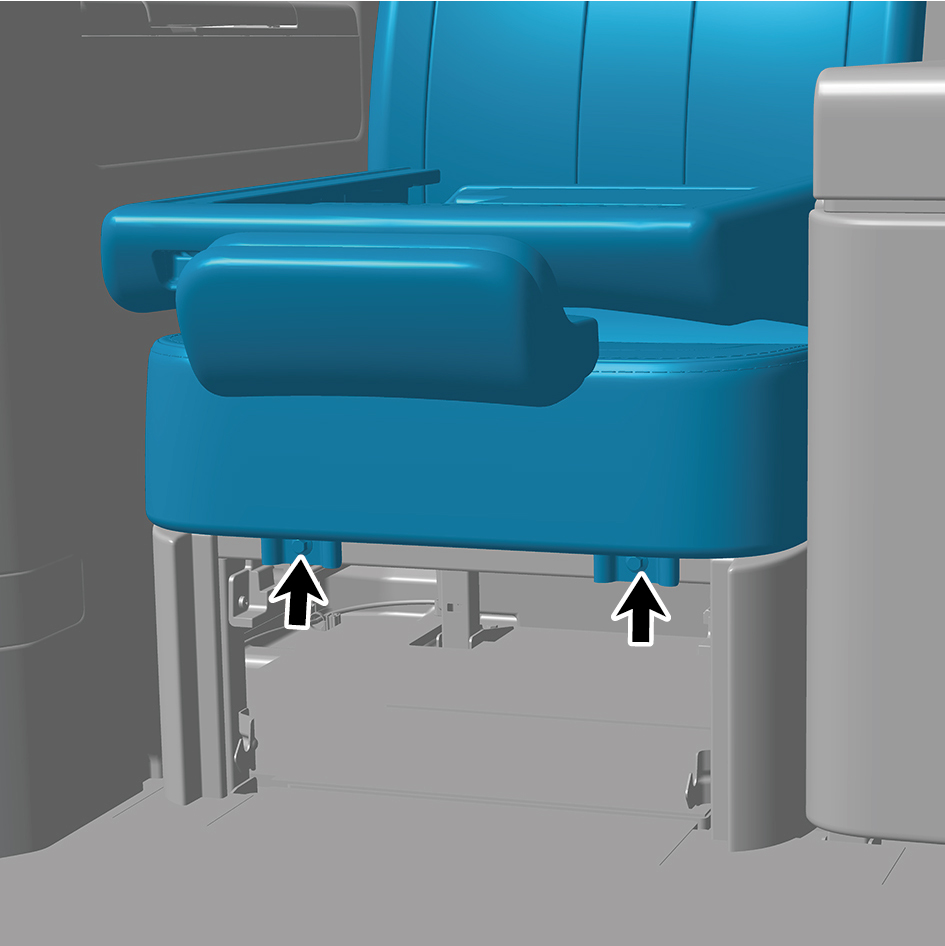

Remove 4 fixing bolts of the rear seat assembly, and
remove the rear seat assembly.
caution
Due to the heavy weight of the rear seat assembly, it
shall be removed with the help of an assistant.
Installation Procedures
1
Move the rear seat assembly to the mounting position.
caution
Due to the heavy weight of the rear seat assembly, it
shall be moved to the mounting position with the
help of an assistant.
2
Install 4 fixing bolts of the rear seat assembly.
Torque: (18.5 +/- 2) ft lbs
3
Close the door.
