6 Vehicle Body / 6.38 Sunshade Curtain Device | PDF pages 1005-1013
6.38 Sunshade Curtain Device
6.38 Sunshade Curtain Device
6.38.1 Specifications
6.38.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the sunshade
assembly and the sunshade cover
(6.5 +/- .75) ft lbs
M6
assembly

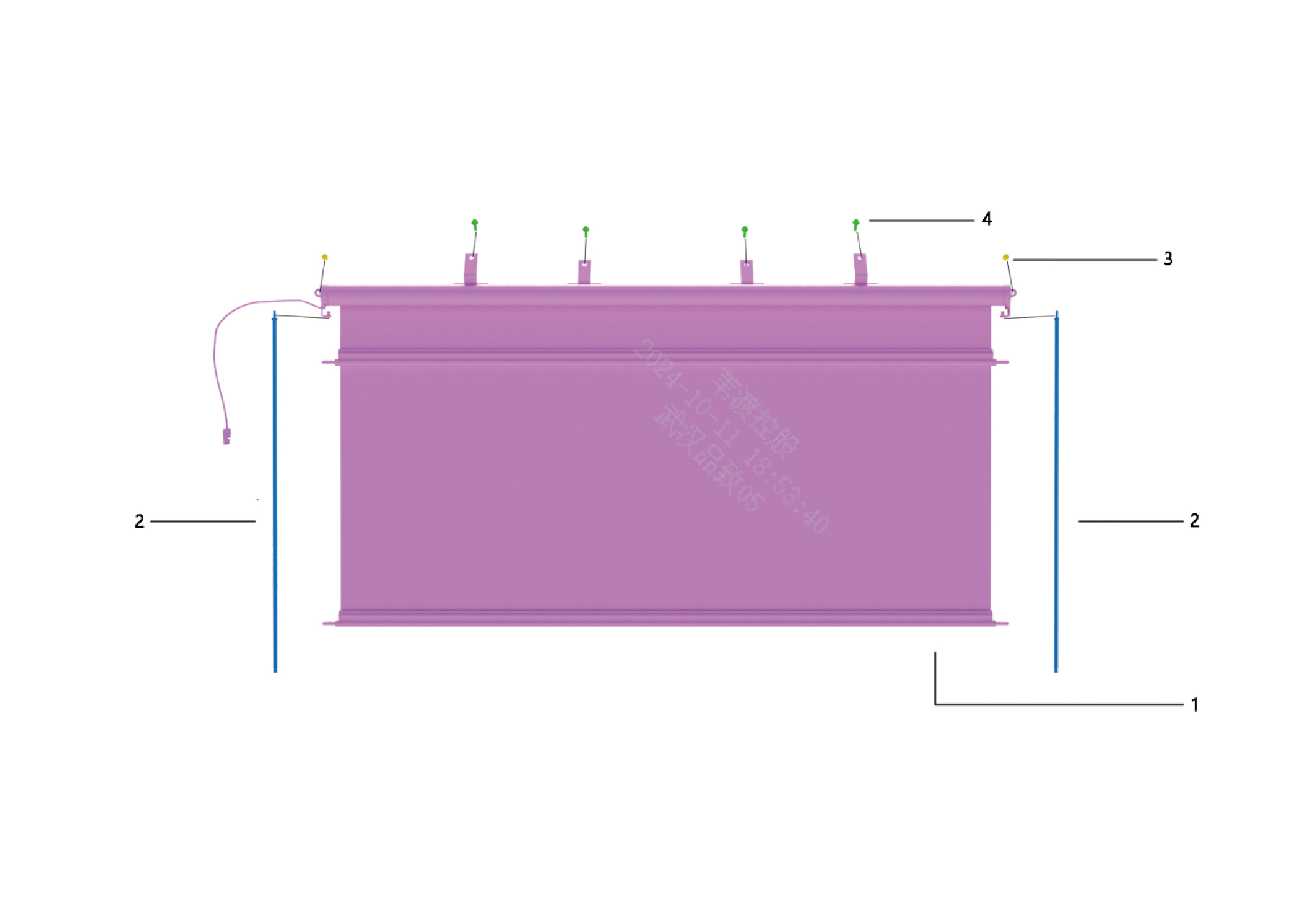

6.38.2 Decomposition Diagram
6.38.2.1 Decomposition Diagram
1.
3.
Assembly of the Sunshade Curtain Body
Cross Recessed Pan Head Screw Assy
2.
4.
Hexagon Flange Bolt
Assembly of the Sunshade Curtain Guide Rod
6.38.3 Dismantling and Installation
6.38.3.1 Replacement of Sunshade Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the left A-pillar protective plate assembly.
5
Remove the right A-pillar protective plate assembly.
6
Remove the sunshade rail assembly.
7
Remove the front camera trim cover assembly.
8
Remove the sunshade cover plate assembly.
9

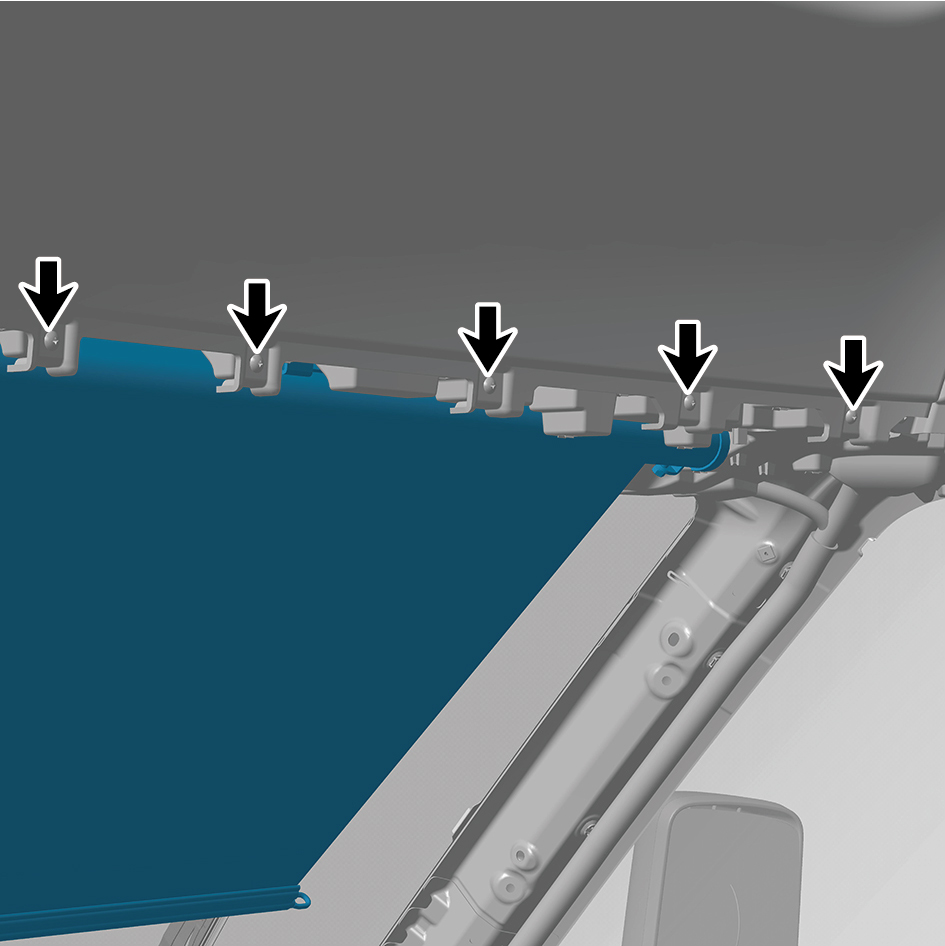

Remove 8 fixing screws of the middle ceiling assembly,
and lift up the middle ceiling assembly.
10

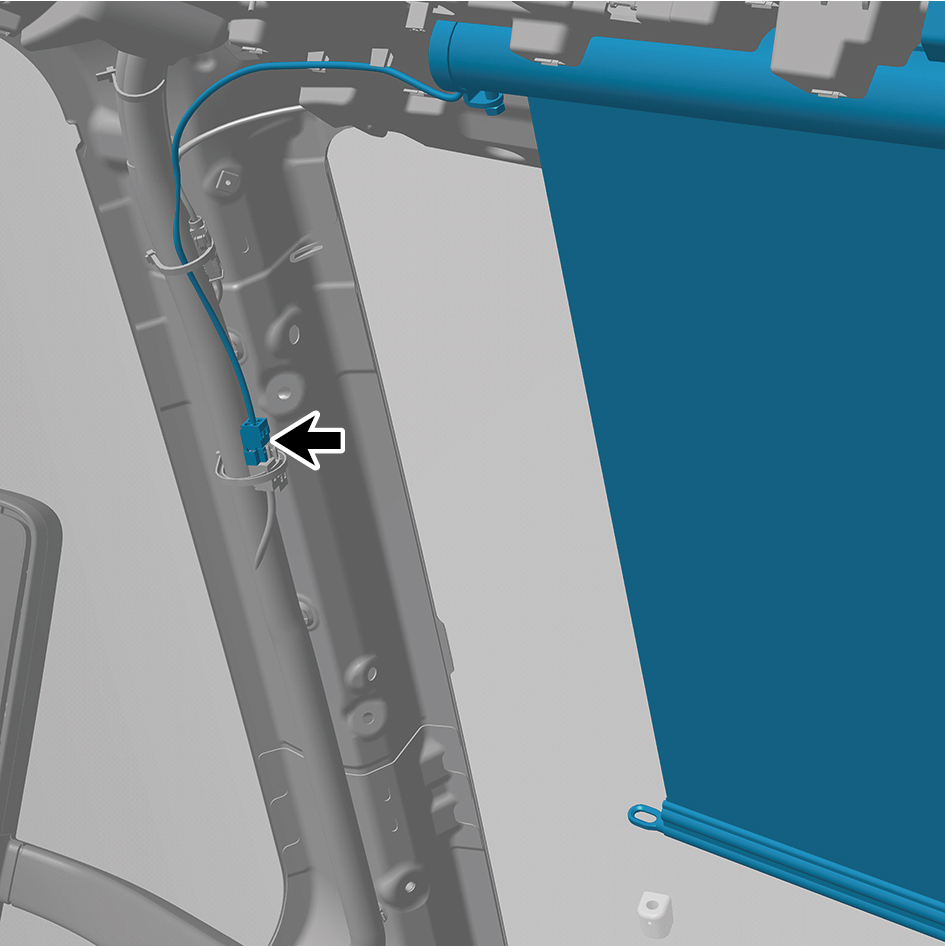

Disconnect 1 harness connector of the sunshade
assembly.
11

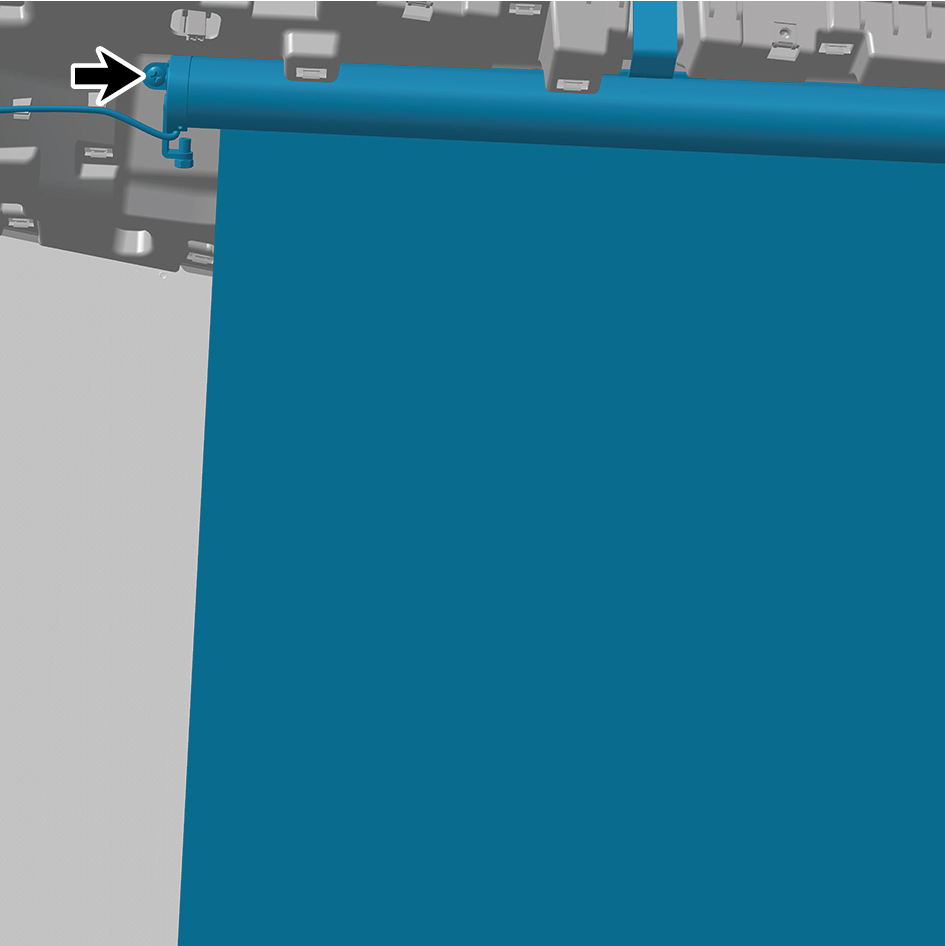

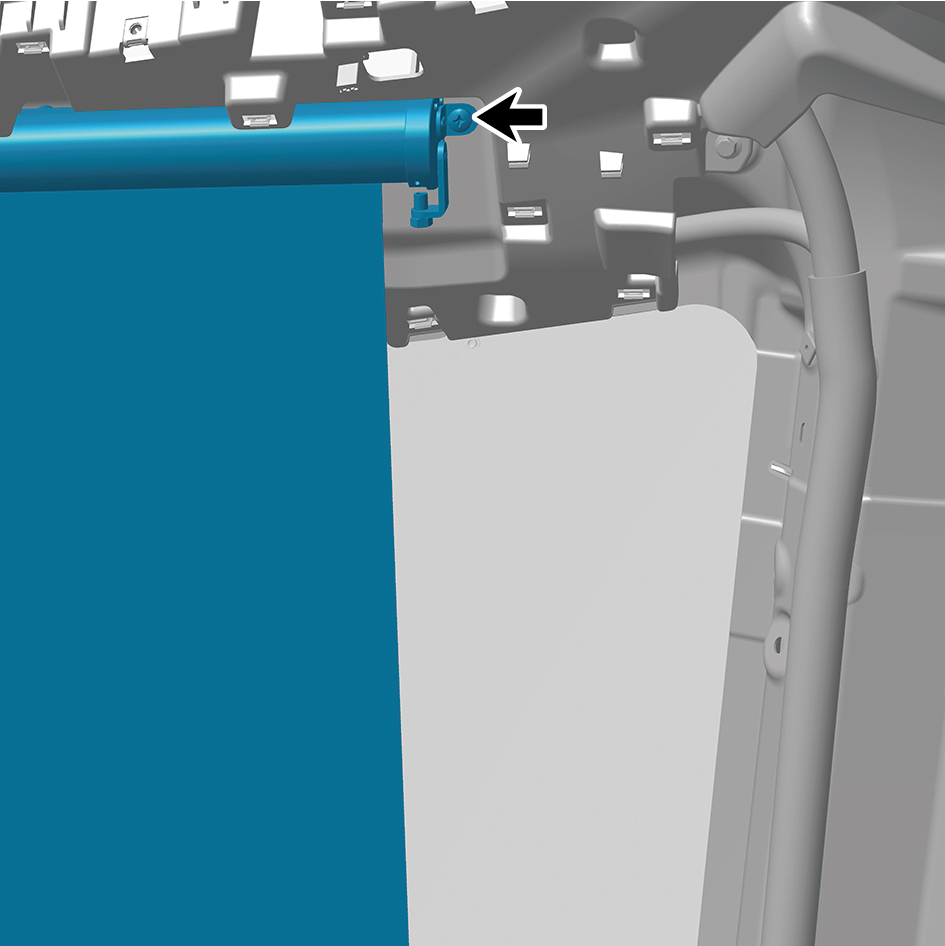

Remove 2 fixing screws of the sunshade assembly.
12

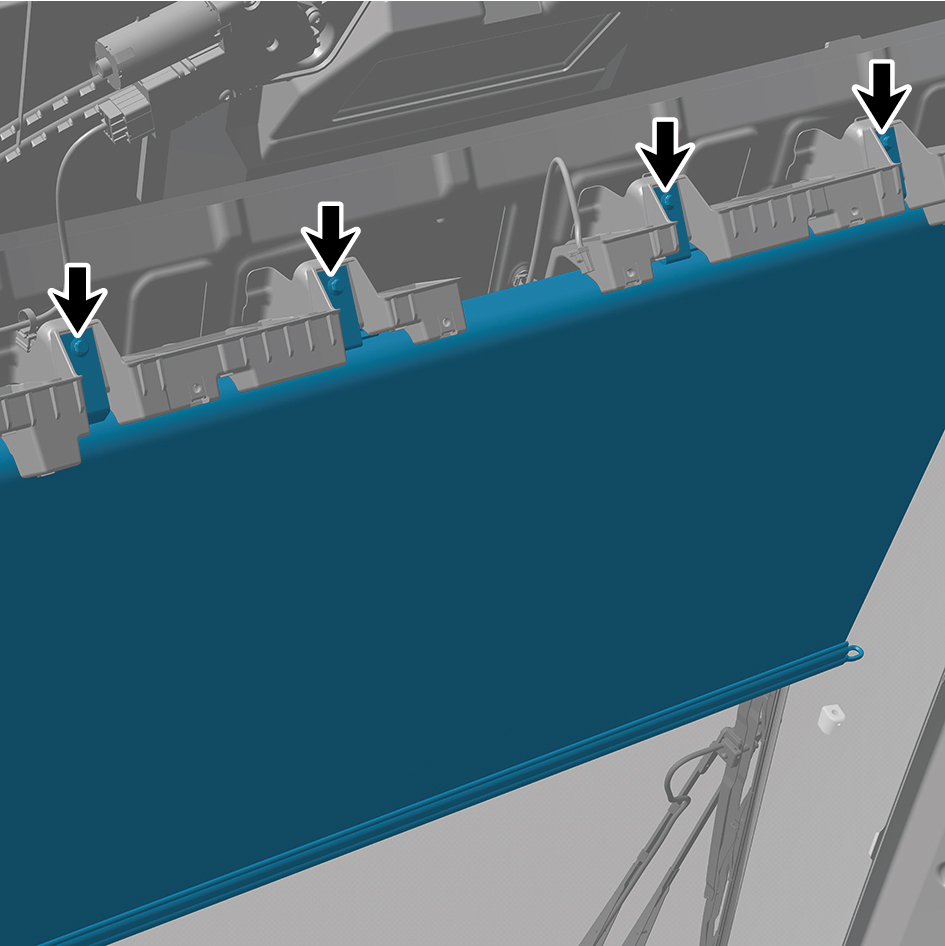

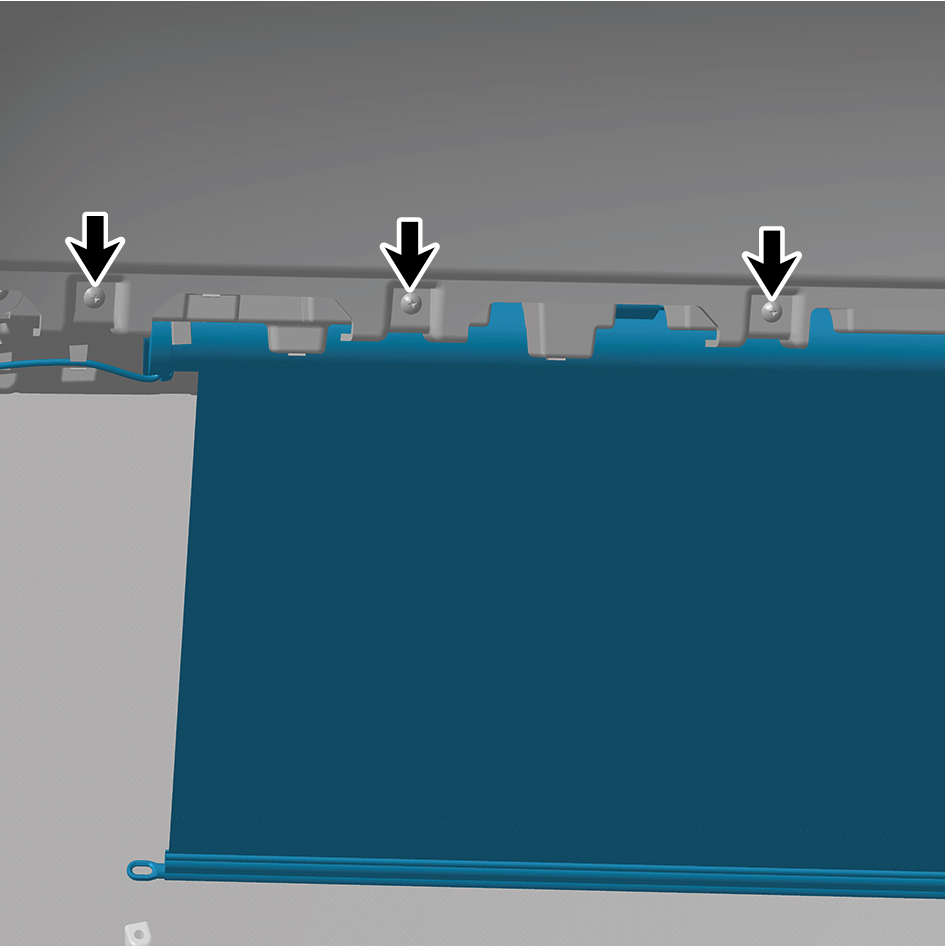

Remove 4 fixing bolts of the sunshade assembly.
13
Remove the sunshade assembly.
Installation Procedures
1
Move the sunshade assembly to the mounting position.
2
Install 4 fixing bolts of the sunshade assembly.
Torque: (6.5 +/- .75) ft lbs
3
Install 2 fixing screws of the sunshade assembly.
4
Connect 1 harness connector of the sunshade assembly.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
5
Install 8 fixing screws of the middle ceiling assembly.
6
Install the sunshade cover plate assembly.
7
Install the front camera trim cover assembly.
8
Install the sunshade rail assembly.
9
Install the right A-pillar protective plate assembly.
10
Install the left A-pillar protective plate assembly.
11
Connect the battery negative cable.
12
Close the front flip cover plate.
13
Close the door.
6.38.3.2 Replacement of Sunshade Rail Assembly
Assembly
Removal Procedures
1
Open the door.
2

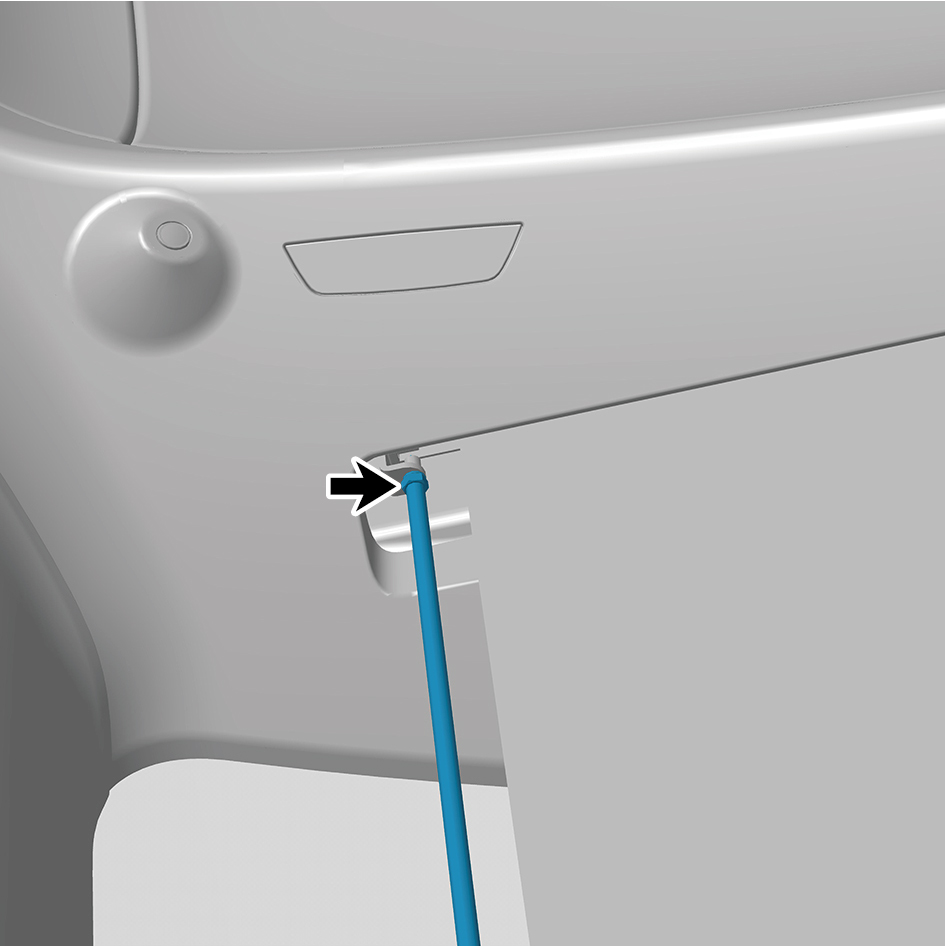

Remove 1 fixing screw of the sunshade rail assembly.
3

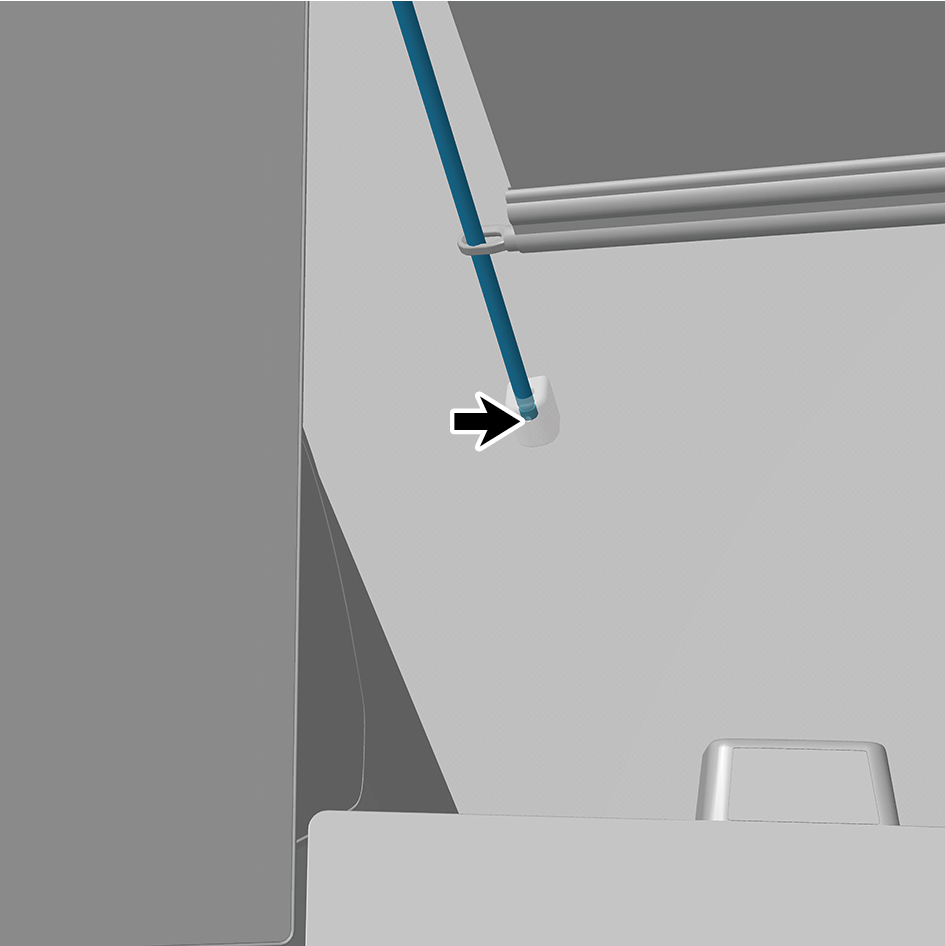

Rotate to remove the sunshade rail assembly.
Installation Procedures
1
Install the sunshade rail assembly.
2
Install 1 fixing screw of the sunshade rail assembly.
3
Close the door.
