6.35 Driver's Seat Device
6.35 Driver's Seat Device
6.35.1 Specifications
6.35.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the driver's
seat assembly and the white body
(18.5 +/- 2) ft lbs
M8
assembly

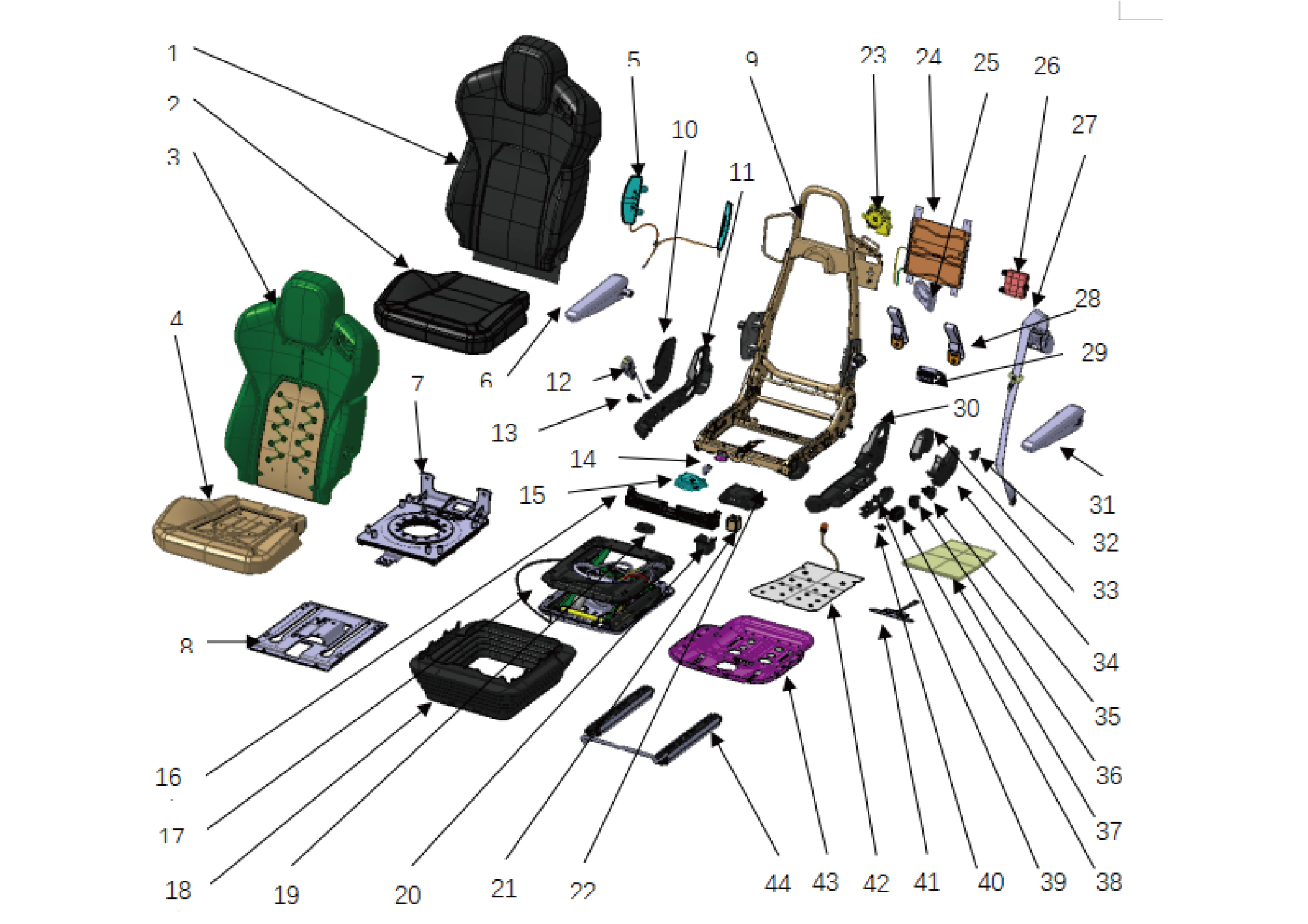

6.35.2 Decomposition Diagram
6.35.2.1 Decomposition Diagram
1.
23.
BACK COVER
BACKREST VENT
2.
24.
SEAT COVER
PNUEMATIC LUMBAR
3.
25.
BACK FOAM ASSY
BELT EXIT BEZELTOP RH
4.
26.
CUSHION FOAM
H&V ECU 12V
5.
27.
PNEUMATIC BACK BOLSTER
SEATBELT
6.
28.
ARMRESTASSEMBLY
TETHER BELT SUSPENSION
7.
29.
SWIVEL
AIR CYLINDER
8.
PLINTH
30.
SIDE SHIELD LH
9.
FRAME KIT
31.
ARMRESTASSEMBLY
10.
32.
REAR QTR SHIELD - RH
RECLINER HANDLE COVER PLATE
11.
33.
SIDE SHIELD – RH
RECLINE CTRL HANDLE - LH
12.
34.
BUCKLE
REAR QTR SHIELD - LH
13.
35.
DUMP VALVE OF SWIVEL
VALVE ASSY- SUSP HEIGHTADJUST (MEM) - RH
14.
36.
ADJ DAMPER KNOB
H&V SWITCH
15.
37.
CUSHION VENT
CUSHION 3D NET
16.
38.
FRONT SHIELD
VALVE ASSY- LUMBAR TRIPLE - RH
17.
39.
SUSPENSION
CONTROL PANEL - LH [HAM+HV3LD]
18.
40.
SUSPENSION COVER
VALVE ASSY- DUMP VALVE - LH
19.
41.
KNOB - CUSHION SLIDE PTD
T-SHAPE OPS
20.
42.
CYLINDER CAP
CUSHION HEATER
21.
43.
AIR CYLINDER
SEAT PAN ASSY
22.
44.
CUSHION VENT COVER
SLIDE RAIL ASSEMBLY
6.35.3 Dismantling and Installation
6.35.3.1 Replacement of Driver Seat Assembly
Removal Procedures
1
Release the brake system air pressure
2
Open the door.
3
Open the front flip cover plate.
4

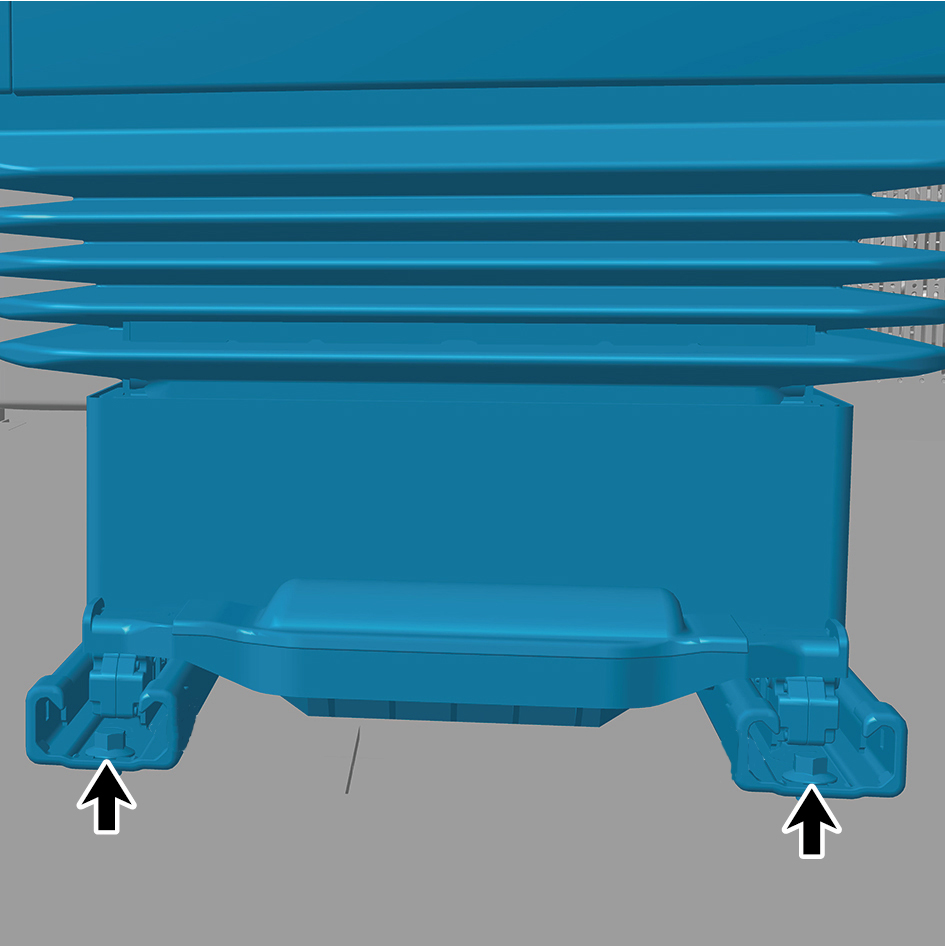

Move the driver seat assembly backward, and remove 2
fixing bolts at the front end of the driver seat assembly.
5

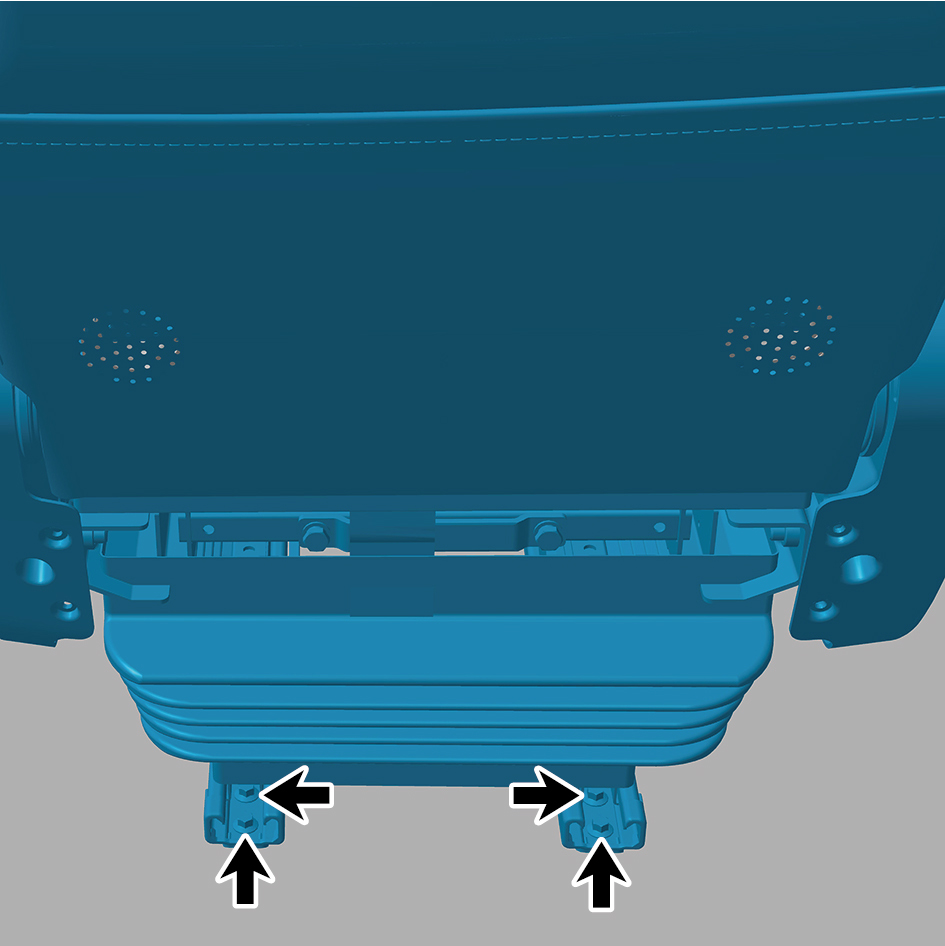

Move the driver seat assembly forward, and remove 4
fixing bolts at the rear end of the driver seat assembly.
6
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
7

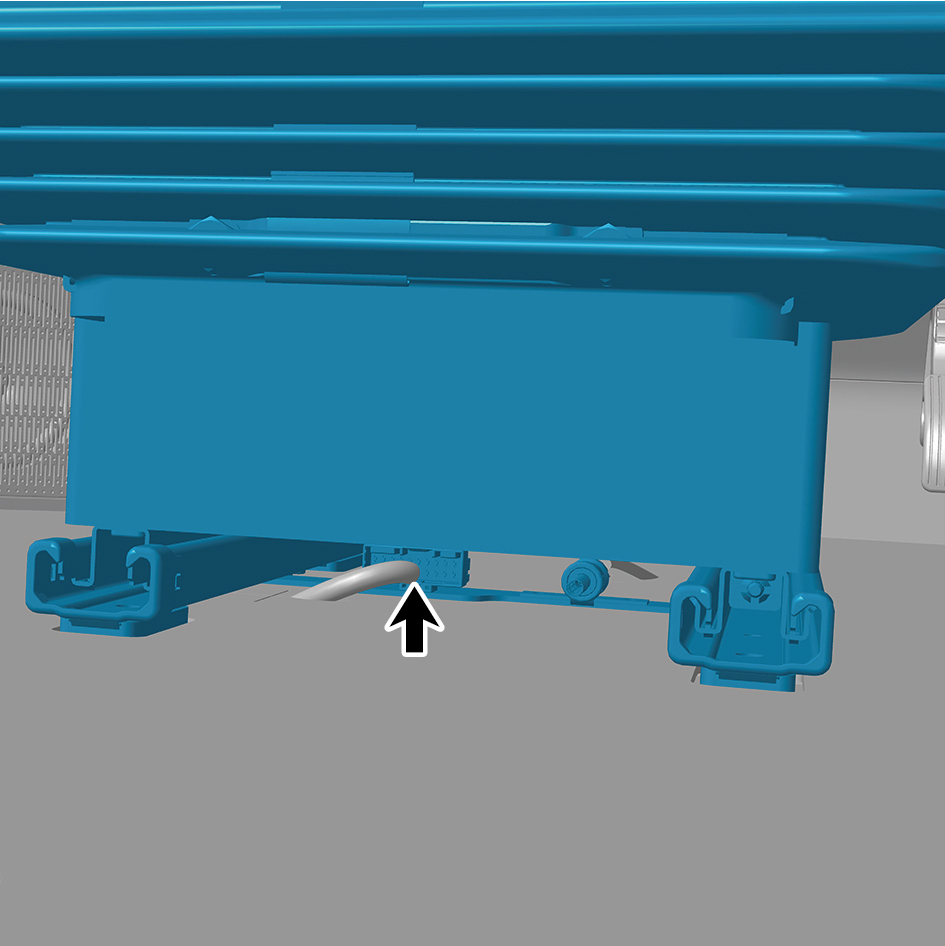

Disconnect 1 harness connector of the driver seat
assembly.
8

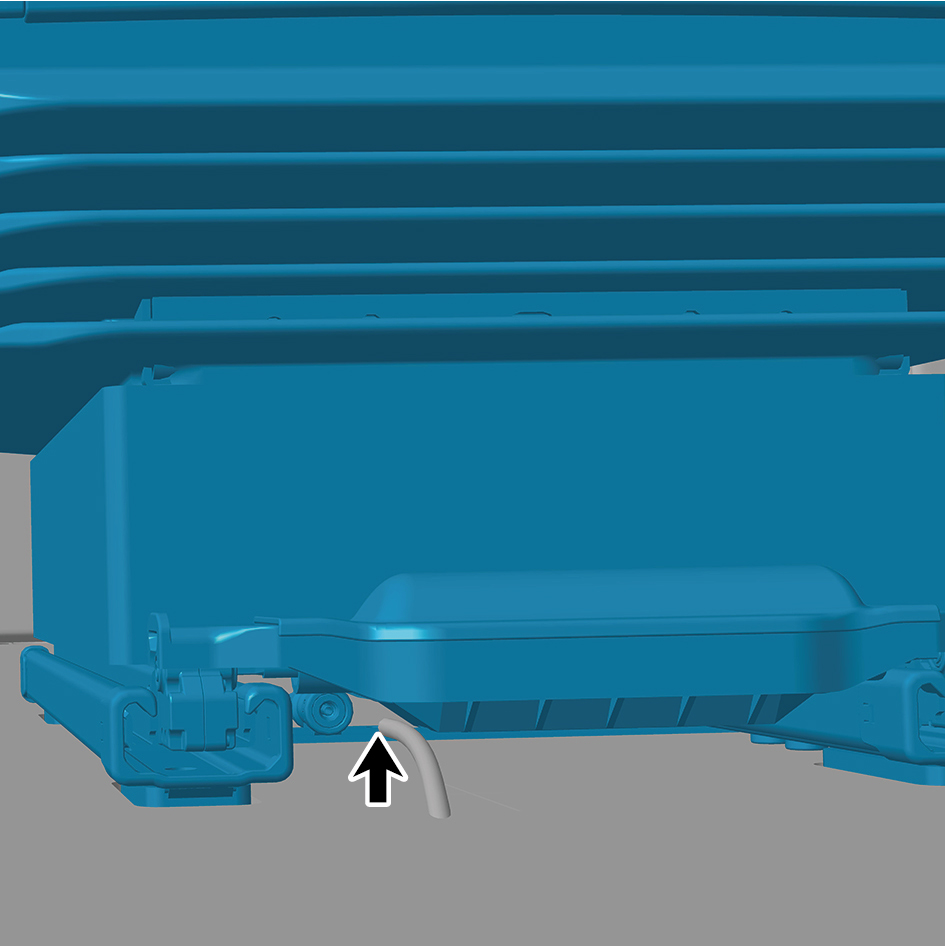

Disconnect 1 air pipe of the driver seat assembly.
9
Remove the driver seat assembly.
caution
Due to the heavy weight of the driver seat assembly,
it shall be removed with the help of an assistant.
Installation Procedures
1
Move the driver seat assembly to the mounting position.
caution
Due to the heavy weight of the driver seat assembly,
it shall be moved to the mounting position with the
help of an assistant.
2
Connect 1 air pipe of the driver seat assembly.
3
Connect 1 harness connector of the driver seat assembly.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Connect the battery negative cable.
5
Move the driver seat assembly forward, and install 4 fixing
bolts at the rear end of the driver seat assembly.
Torque:(18.5 +/- 2) ft lbs
6
Move the driver seat assembly backward, and install 2
fixing bolts at the front end of the driver seat assembly.
Torque:(18.5 +/- 2) ft lbs
7
Close the front flip cover plate.
8
Close the door.
