6.30 Sliding Door Guide Rail Device
6.30 Sliding Door Guide Rail Device
6.30.1 Specifications
6.30.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing nut connecting the upper
guide rail assembly and the right side
(6.5 +/- .75) ft lbs
M6
inner panel assembly
The fixing bolt nut connecting the upper
guide rail assembly and the right side
(6.5 +/- .75) ft lbs
M6
inner panel assembly

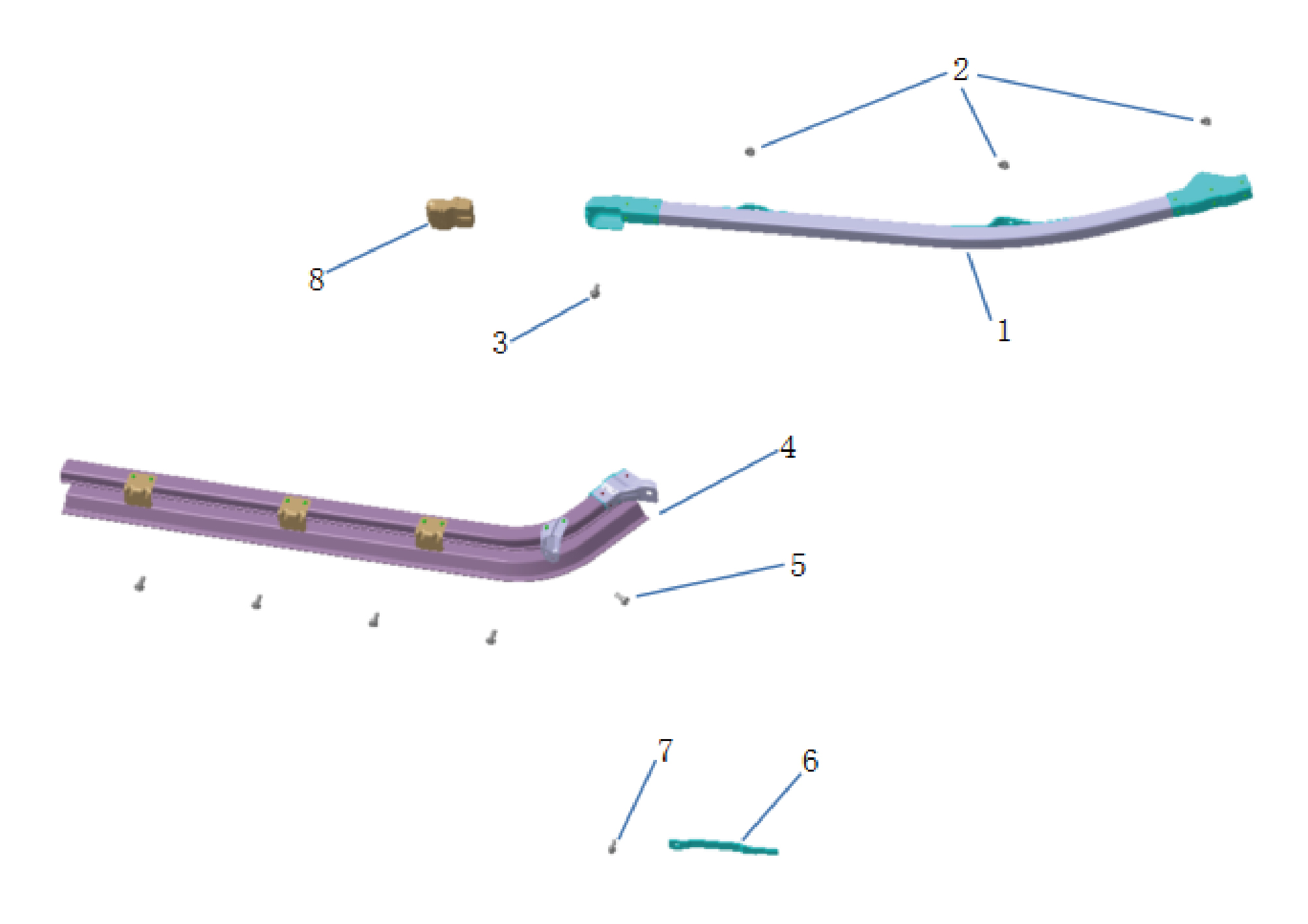

6.30.2 Decomposition Diagram
6.30.2.1 Decomposition Diagram
5.
1.
Guide Assy-Upr
Hex Socket Set Screw
2.
Hexagon Flange Nut
6.
Pulley Limit Shrapnel Lwr
7.
3.
Hexagon Flange Bolt
Hexagon Flange Bolt
4.
8.
Guide Assy-Mid
Bumper Guide-Upr
