6.21 Engine Compartment Covering Device
6.21 Engine Compartment Covering Device
6.21 Engine Compartment Covering
Device
6.21.1 Specifications
6.21.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the front
windshield cover plate to the white body
(6.5 +/- .75) ft lbs
M6
assembly
6.21.2 Decomposition Diagram
6.21.2.1 Decomposition Diagram

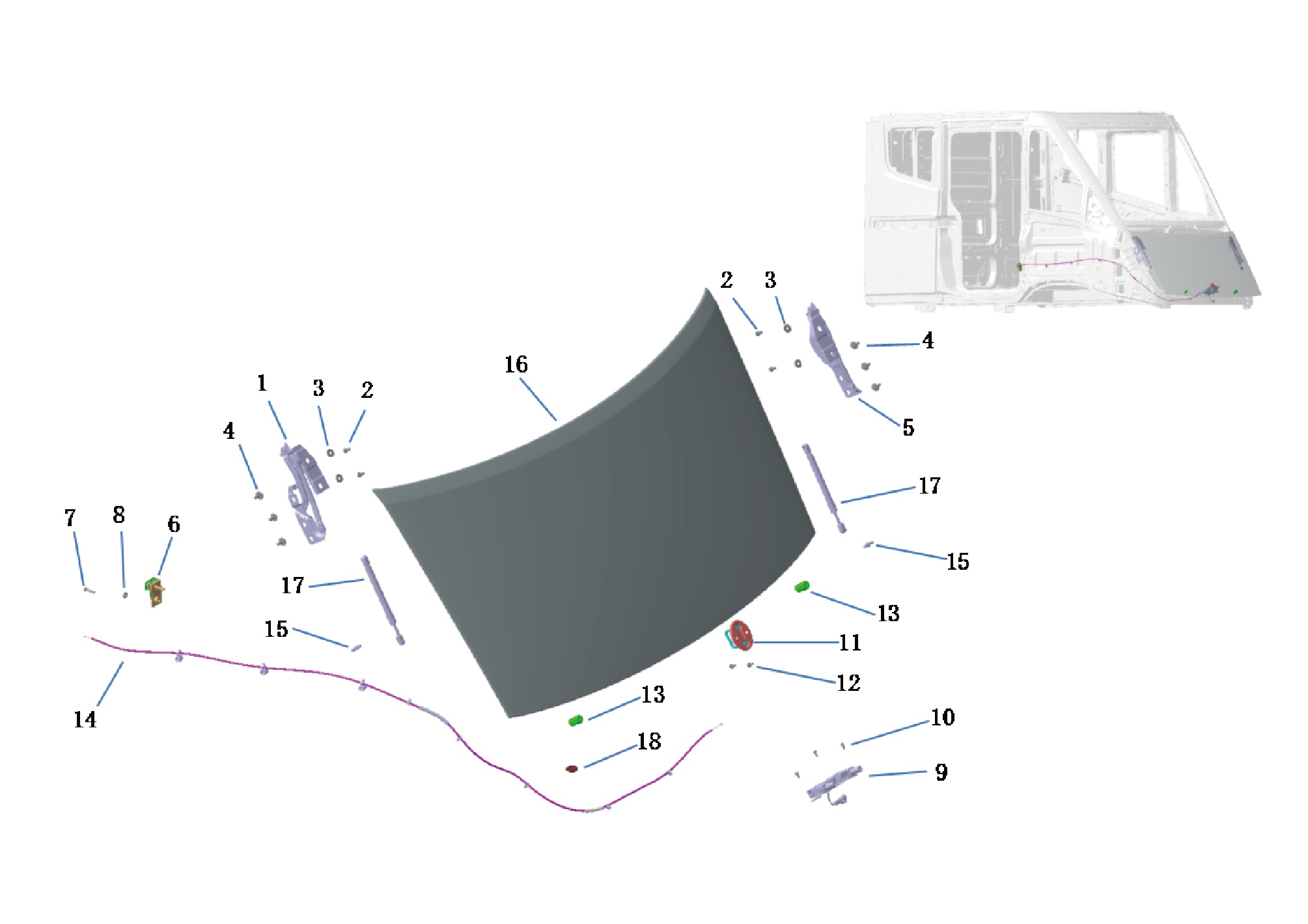

1.
Engine Hood Hinge Assy-Rh
10.
Hexagon Flange Bolt
2.
Hexagon Bolt
11.
Engine Hood Striker Assy
3.
Large Washer
12.
Hexagon Flange Bolt
4.
13.
Hexagon Head Bolt Assy
Bumper Engine Hood
5.
14.
Engine Hood Hinge Assy-Lh
Cable Hood Opening Assy
6.
15.
The Air Pole Is Installed With the Ball End
Handle Assy-Frt Cover Opening
7.
16.
Front cover assy
Hex Socket Set Screw
8.
Large Washer
17.
Air strut engine hood
9.
Engine Hood Lock Assy
18.
Plug cover
6.21.3 Dismantling and Installation
6.21.3.1 Replacement of Engine Compartment Trim Panel Body
Trim Panel Body
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3

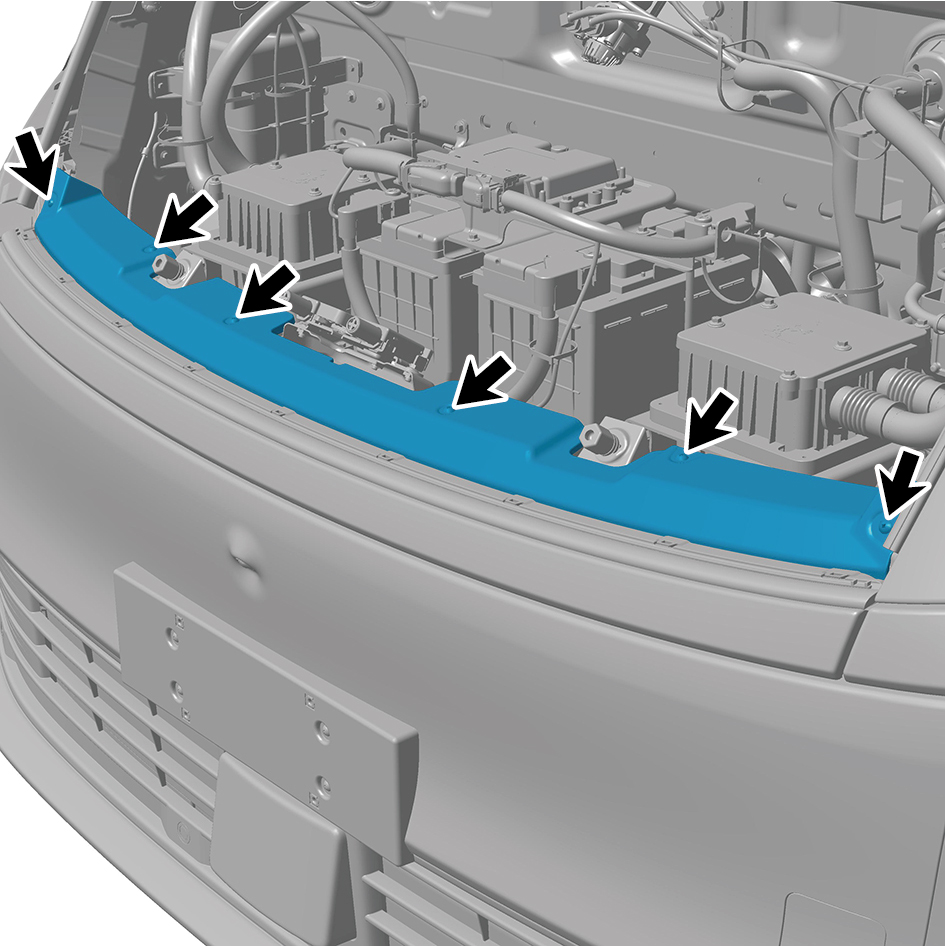

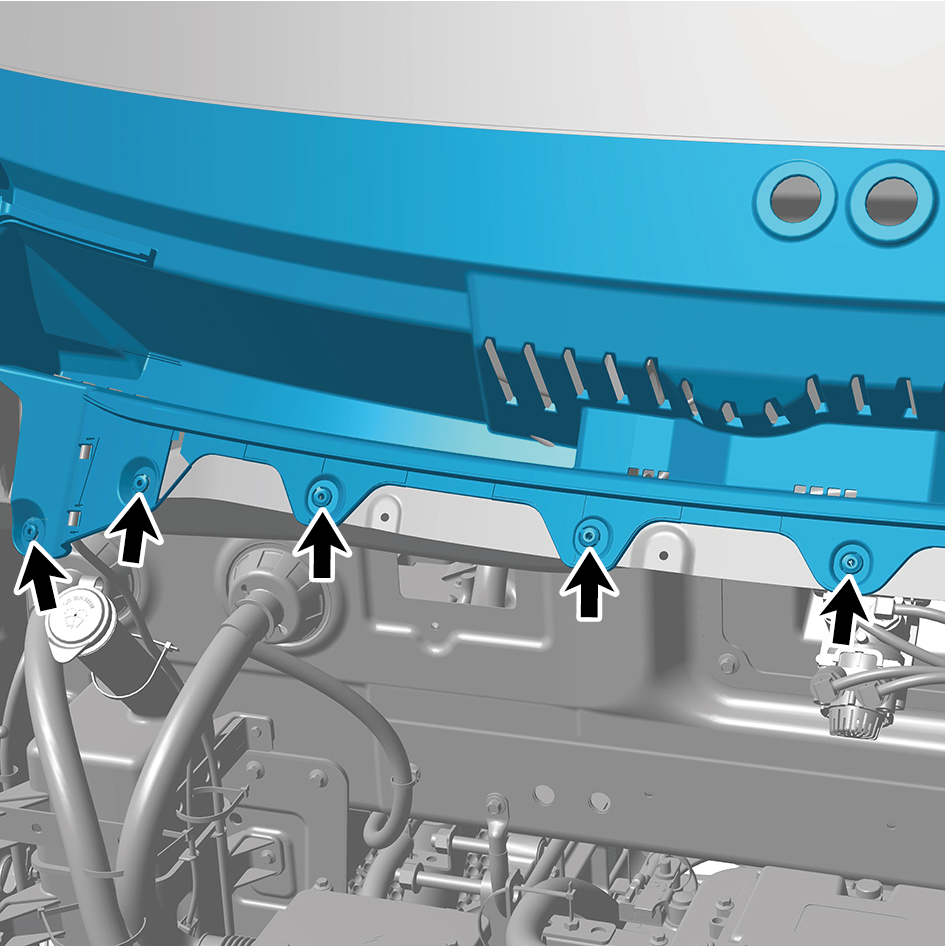

Remove 6 fixing screws of the engine compartment trim
panel body.
4
Remove the engine compartment trim panel body.
Installation Procedures
1
Move the engine compartment trim panel body to the
mounting position.
2
Install 6 fixing screws of the engine compartment trim
panel body.
3
Close the front flip cover plate.
4
Close the door.
6.21.3.2 Replacement of Front Windshield Cover Plate
Cover Plate
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Remove the primary wiper arm blade assembly (nozzle
and hose).
4
Remove the two-way joint.
5

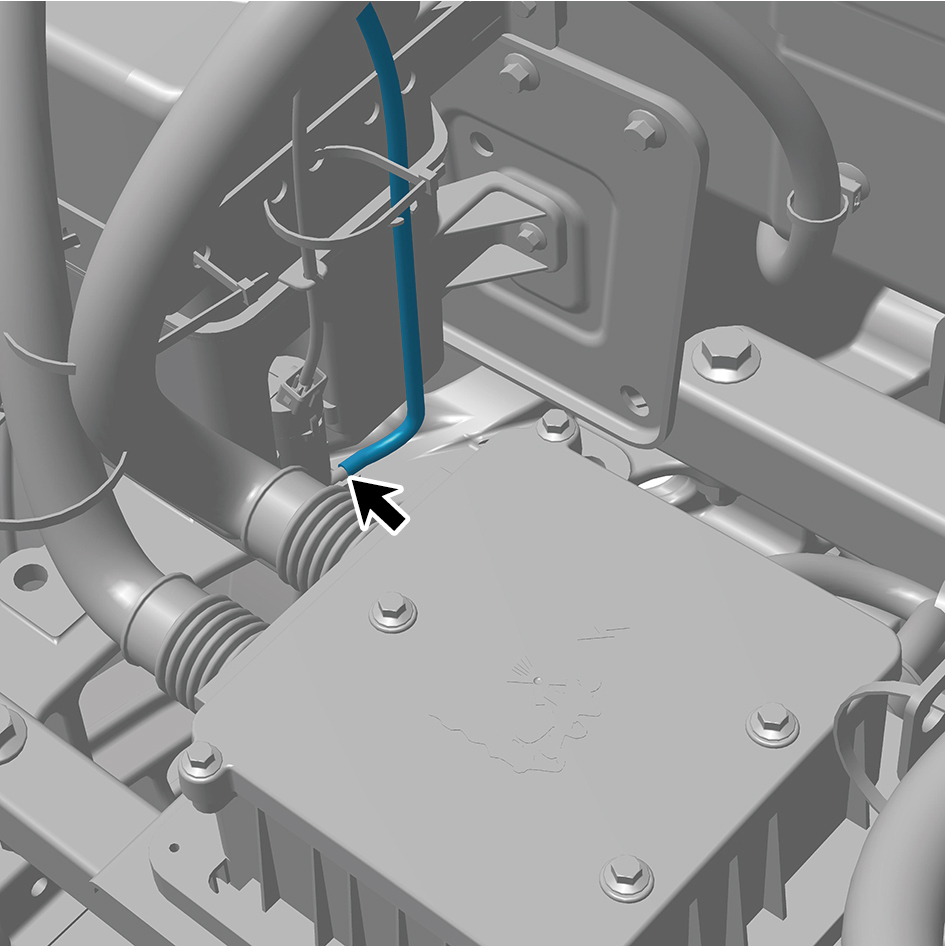

Disengage the water fluid reservoir water pipe.
caution
Use a clean container to receive the discharged
coolant.
6

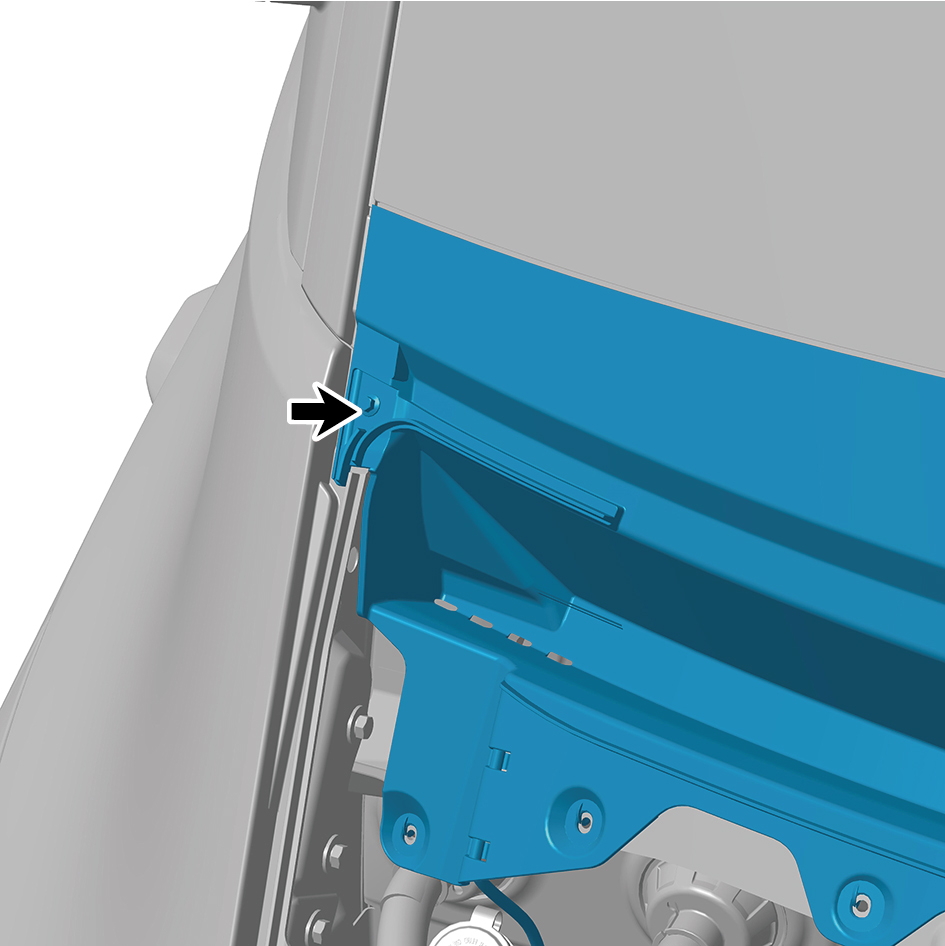

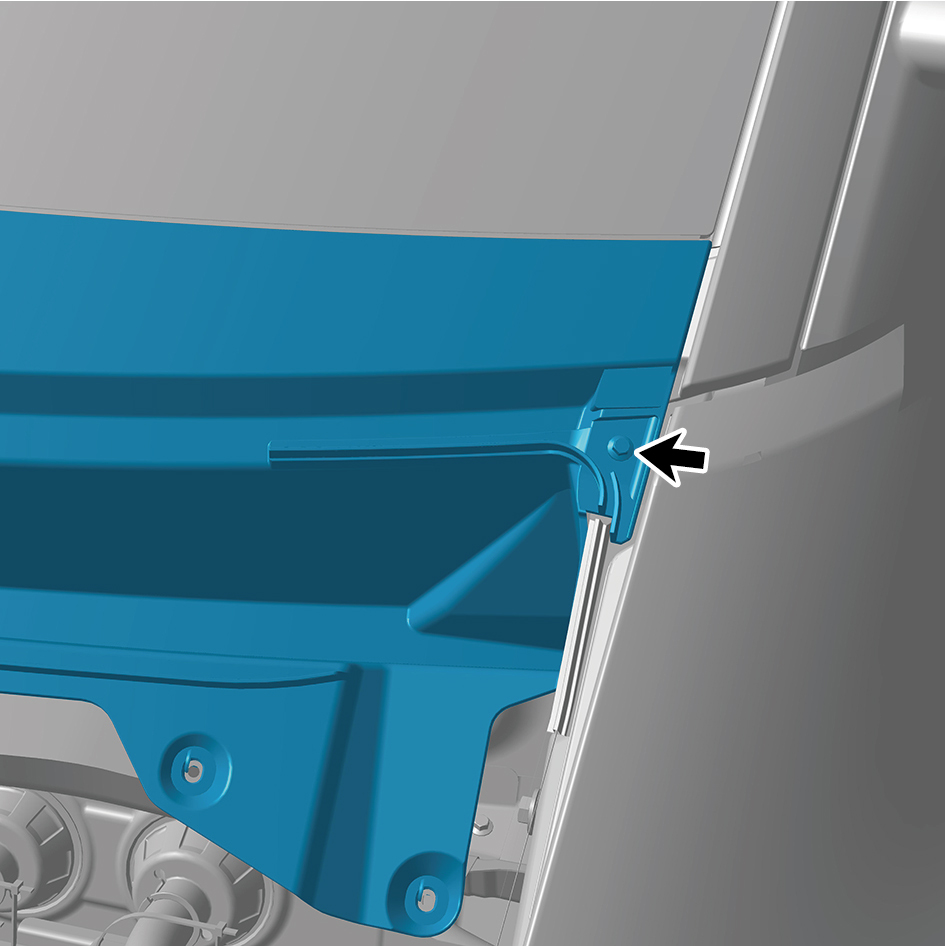

Disengage 9 clips of the front windshield cover plate.
7

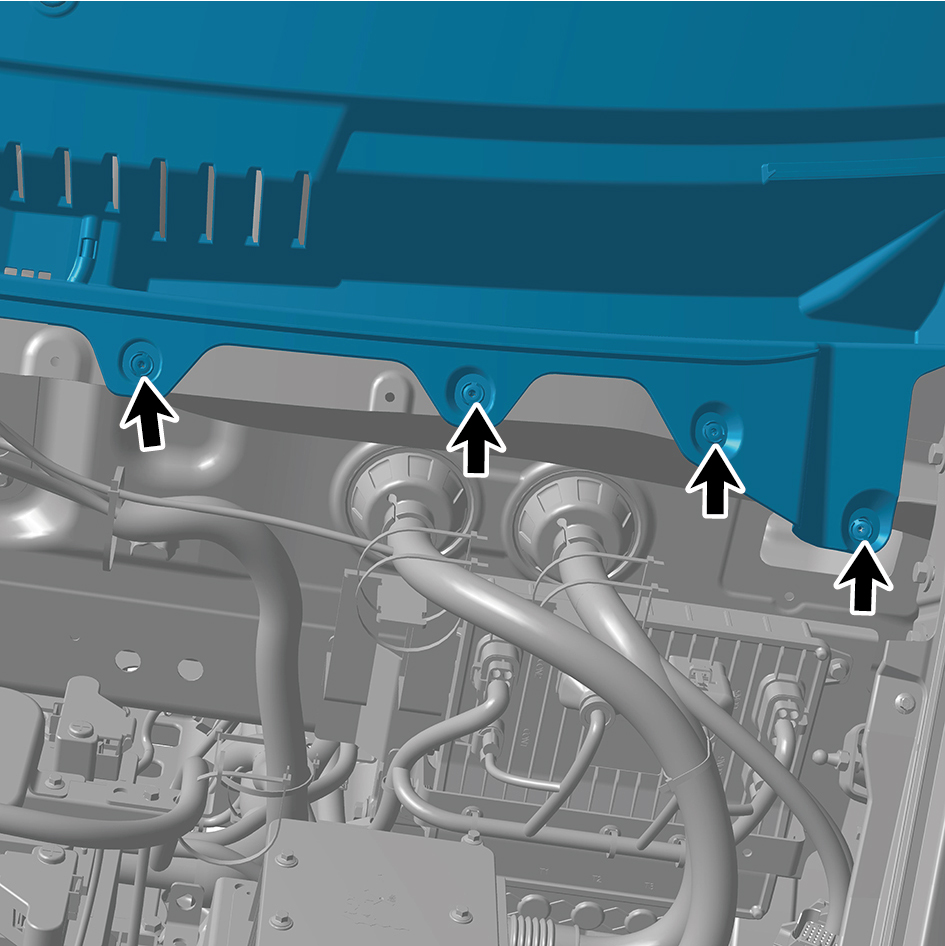

Remove 2 fixing bolts of the front windshield cover plate,
and remove the front windshield cover plate.
Installation Procedures
1
Move the front windshield cover plate to the mounting
position.
2
Install 2 fixing bolts of the front windshield cover plate.
Torque: (6.5 +/- .75) ft lbs
3
Install 9 clips of the front windshield cover plate.
4
Install the water fluid reservoir water pipe.
5
Install the two-way joint.
6
Install the primary wiper arm blade assembly (nozzle and
hose).
7
Close the front flip cover plate.
8
Close the door.
