6.22 Rear Boarding Handrail Device
6.22 Rear Boarding Handrail Device
6.22.1 Specifications
6.22.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the rear
(18.5 +/- 2) ft lbs
M8
boarding armrest to the integrated
frame

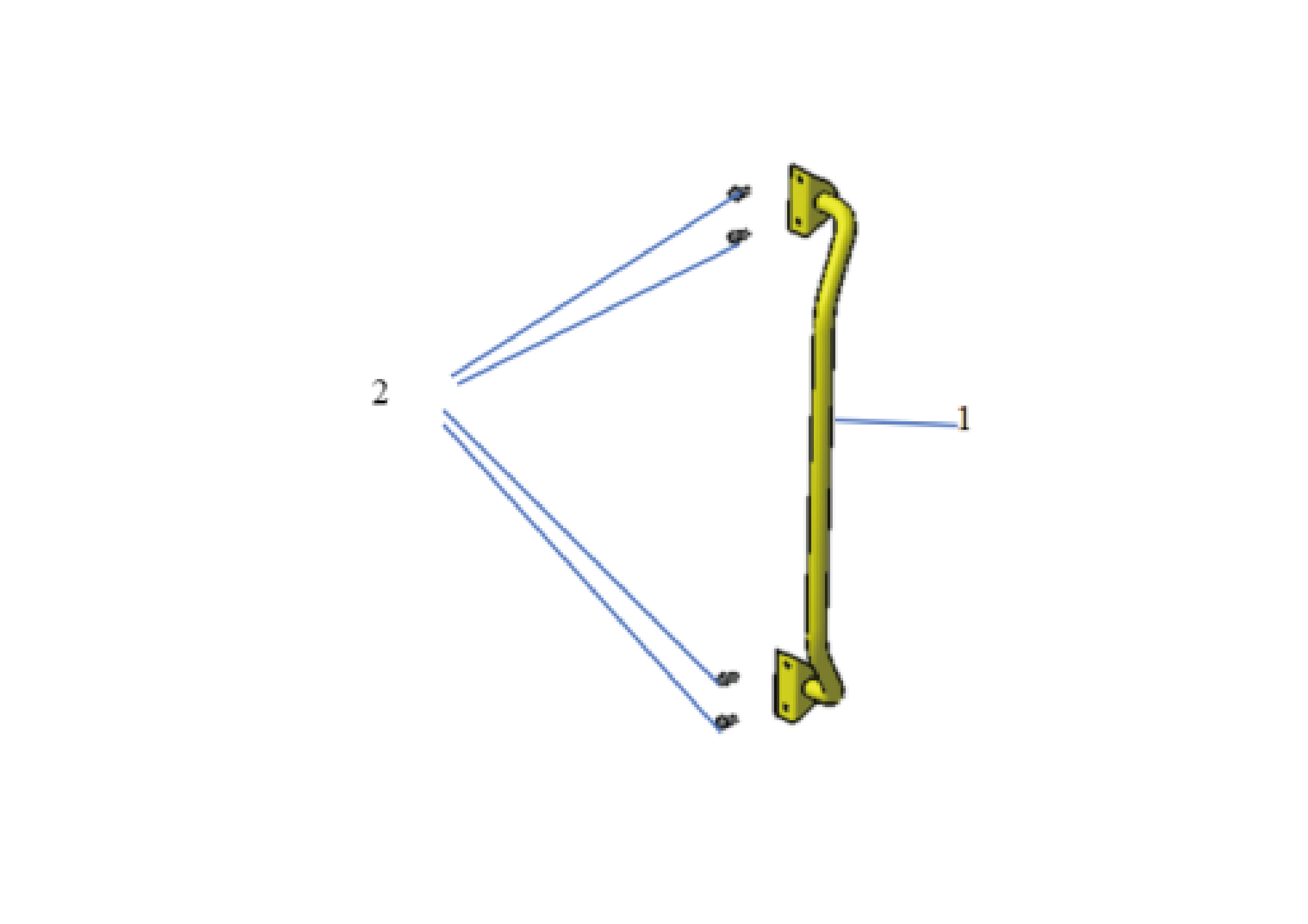

6.22.2 Decomposition Diagram
6.22.2.1 Decomposition Diagram
1.
Rear Pedal Armrest
2.
Hexagon Flange Bolt
6.22.3 Dismantling and Installation
6.22.3.1 Replacement of Rear Boarding Handrail
Handrail
Removal Procedures
1
Open the door.
2

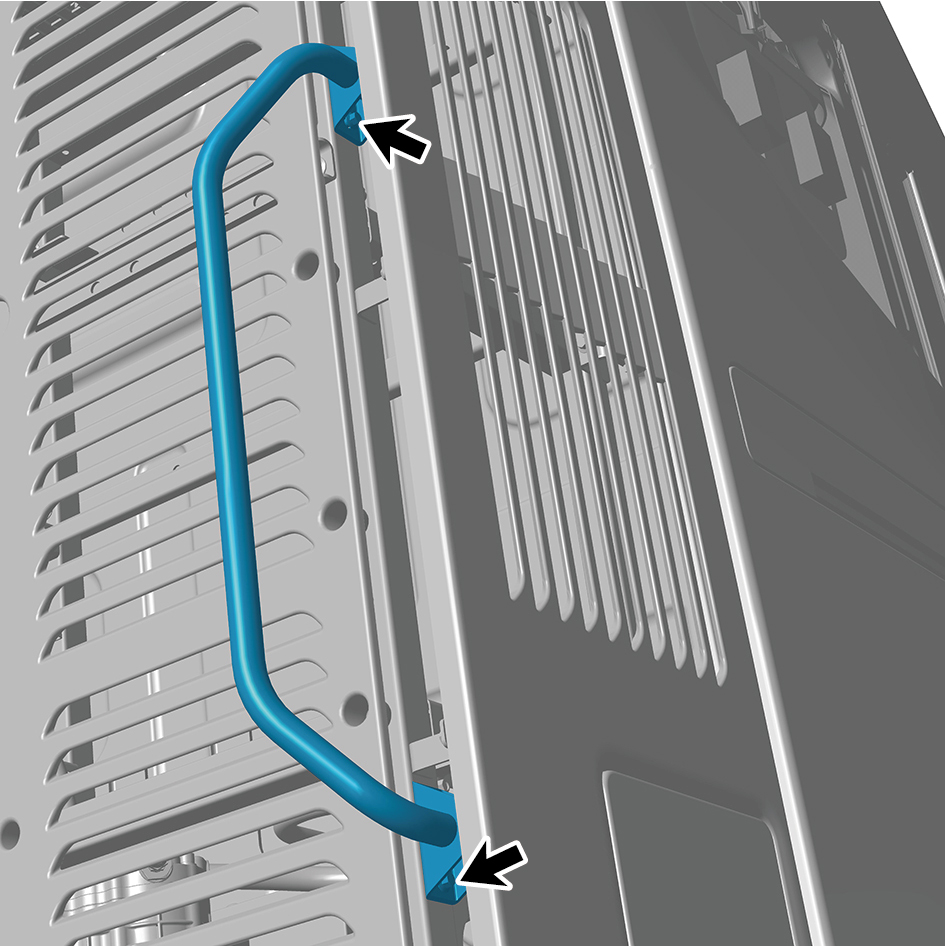

Remove 2 fixing bolts of the rear boarding handrail.
3

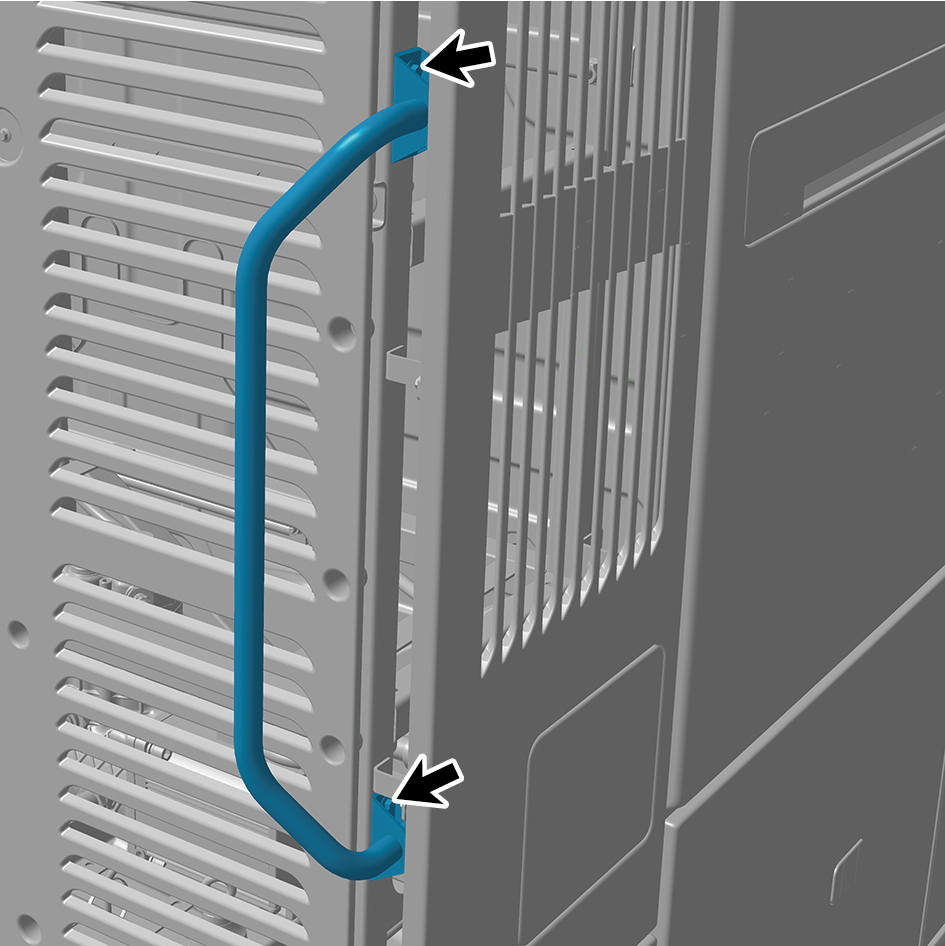

Remove 2 fixing bolts of the rear boarding handrail.
4
Remove the rear boarding handrail.
Installation Procedures
1
Move the rear boarding handrail to the mounting position.
2
Install 2 fixing bolts of the rear boarding handrail.
Torque:(18.5 +/- 2) ft lbs
3
Install 2 fixing bolts of the rear boarding handrail.
Torque: (18.5 +/- 2) ft lbs
4
Close the door.
