6.20 Door Outer Panel Device
6.20 Door Outer Panel Device

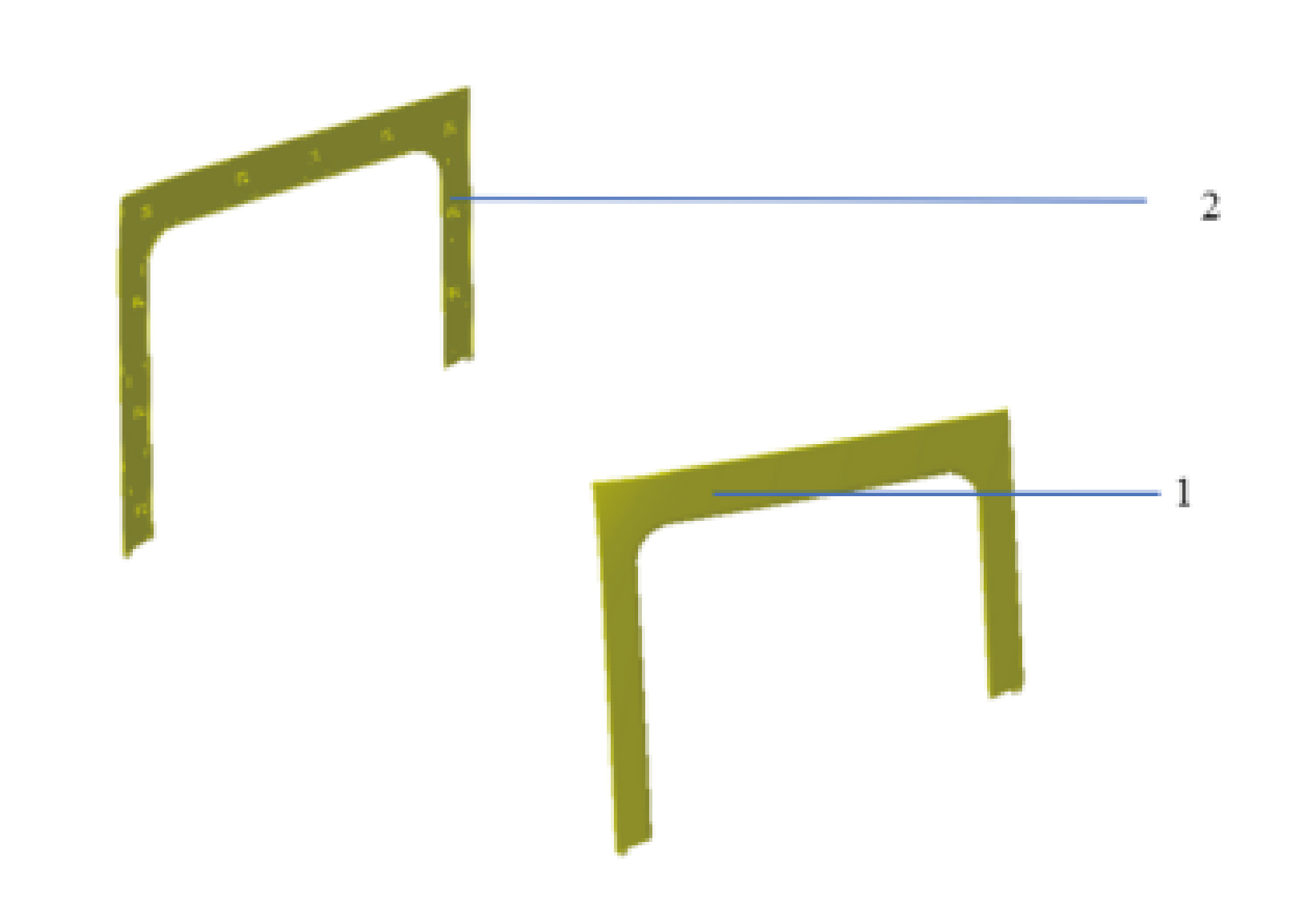

6.20.1 Decomposition Diagram
6.20.1.1 Decomposition Diagram
1.
2.
Window Cover Assy-Lh
Right Window Cover Assy
6.20.2 Dismantling and Installation
6.20.2.1 Replacement of Left Window Cover Plate Assembly
Plate Assembly
Removal Procedures
1
Open the door.
2
Lower all windows.
3
Open the front flip cover plate.
4
Remove the left outer weatherstrip assembly.
5

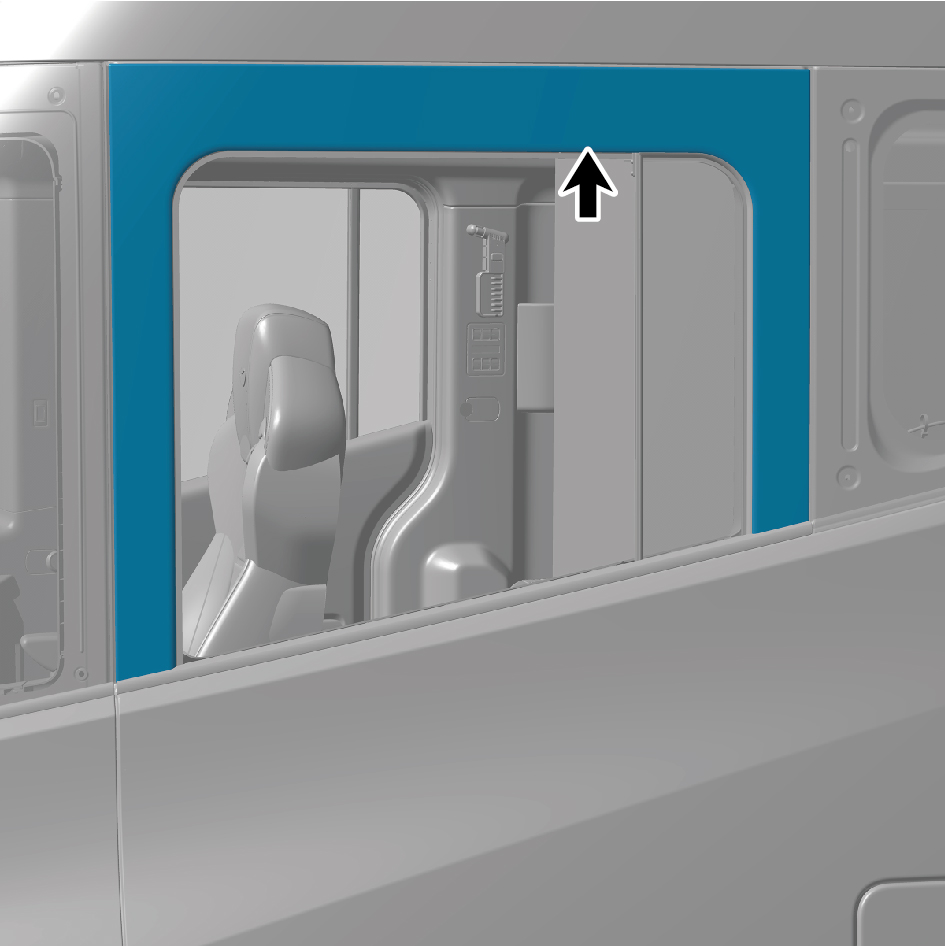

Remove the left window cover plate assembly.
Installation Procedures
1
Move the left window cover plate assembly to the
mounting position.
2
Install the left outer weatherstrip assembly.
3
Lift all windows.
4
Close the door.
6.20.2.2 Replacement of Right Window Cover Plate Assembly
Plate Assembly
Removal Procedures
1
Open the door.
2
Lower all windows.
3
Remove the right outer weatherstrip assembly.
4

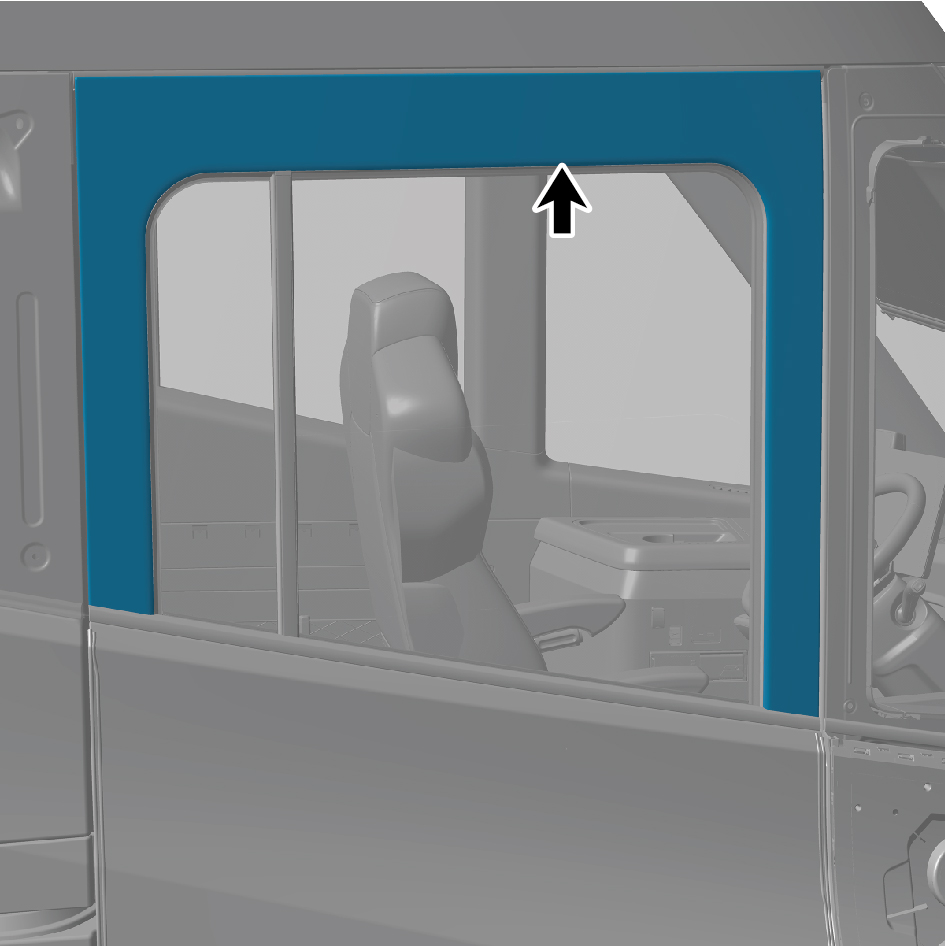

Remove the right window cover plate assembly.
Installation Procedures
1
Move the right window cover plate assembly to the
mounting position.
2
Install the right outer weatherstrip assembly.
3
Lift all windows.
4
Close the door.
