6 Vehicle Body / 6.19 Integrated Bracket Decoration Device | PDF pages 809-810
6.19 Integrated Bracket Decoration Device
6.19 Integrated Bracket Decoration Device
6.19 Integrated Bracket Decoration
Device
6.19.1 Specifications
6.19.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the side
cover plate assembly of the back
(6.5 +/- .75) ft lbs
M6
integrated bracket and the upper cover
plate of the back integrated bracket

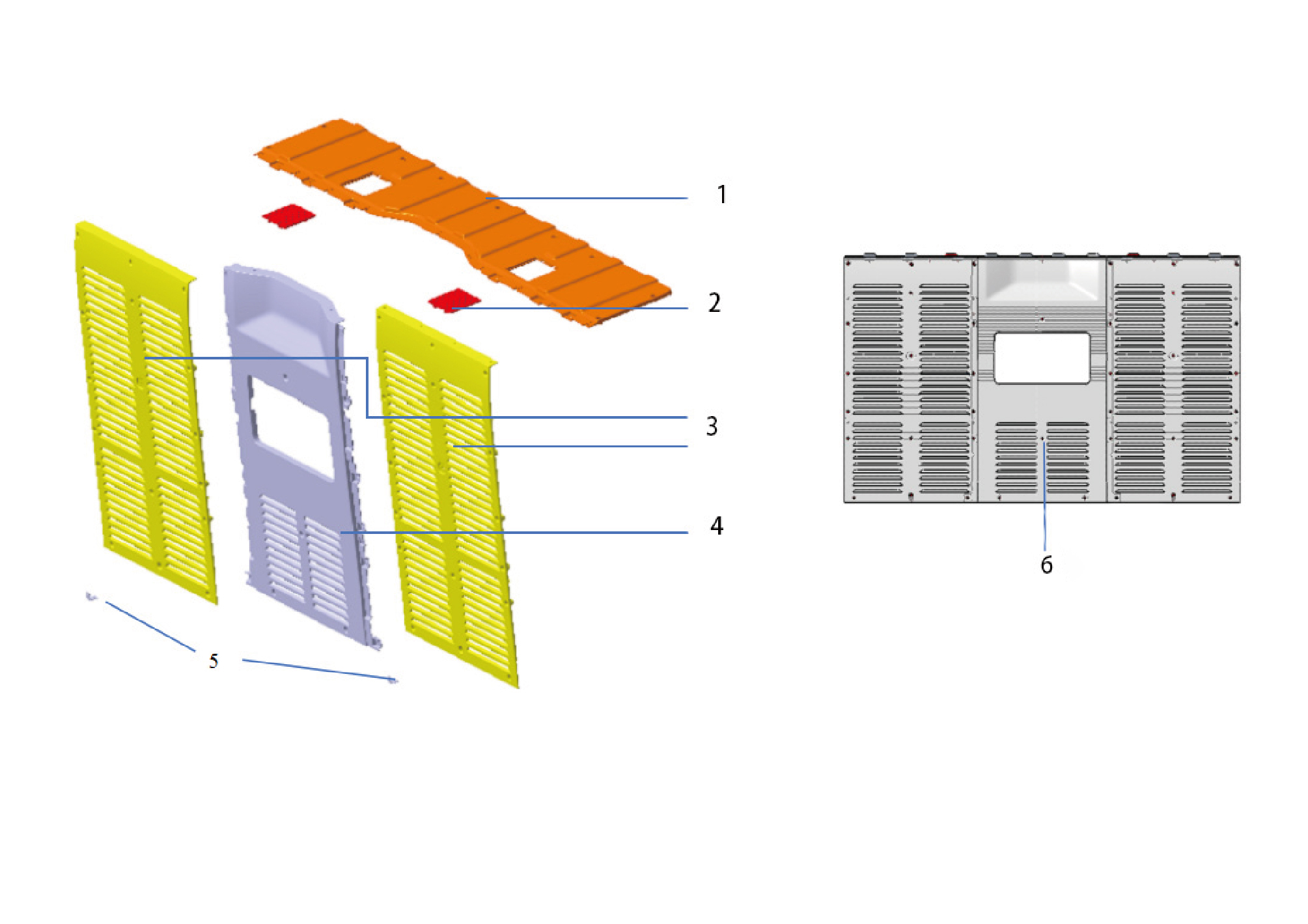

6.19.2 Decomposition Diagram
6.19.2.1 Decomposition Diagram
1.
4.
Upper Cover Plate of the Rear Integrated Bracket
Center Cover Assy-Back Integrated Bracket
5.
2.
Filler Cap-Back Integrated Frame
bracket of Center Cover
3.
6.
Hexagon Flange Bolt
Side Cover Assy-Back Integrated Bracket
