6.17 Vehicle Body Sealing Plug Device
6.17 Vehicle Body Sealing Plug Device

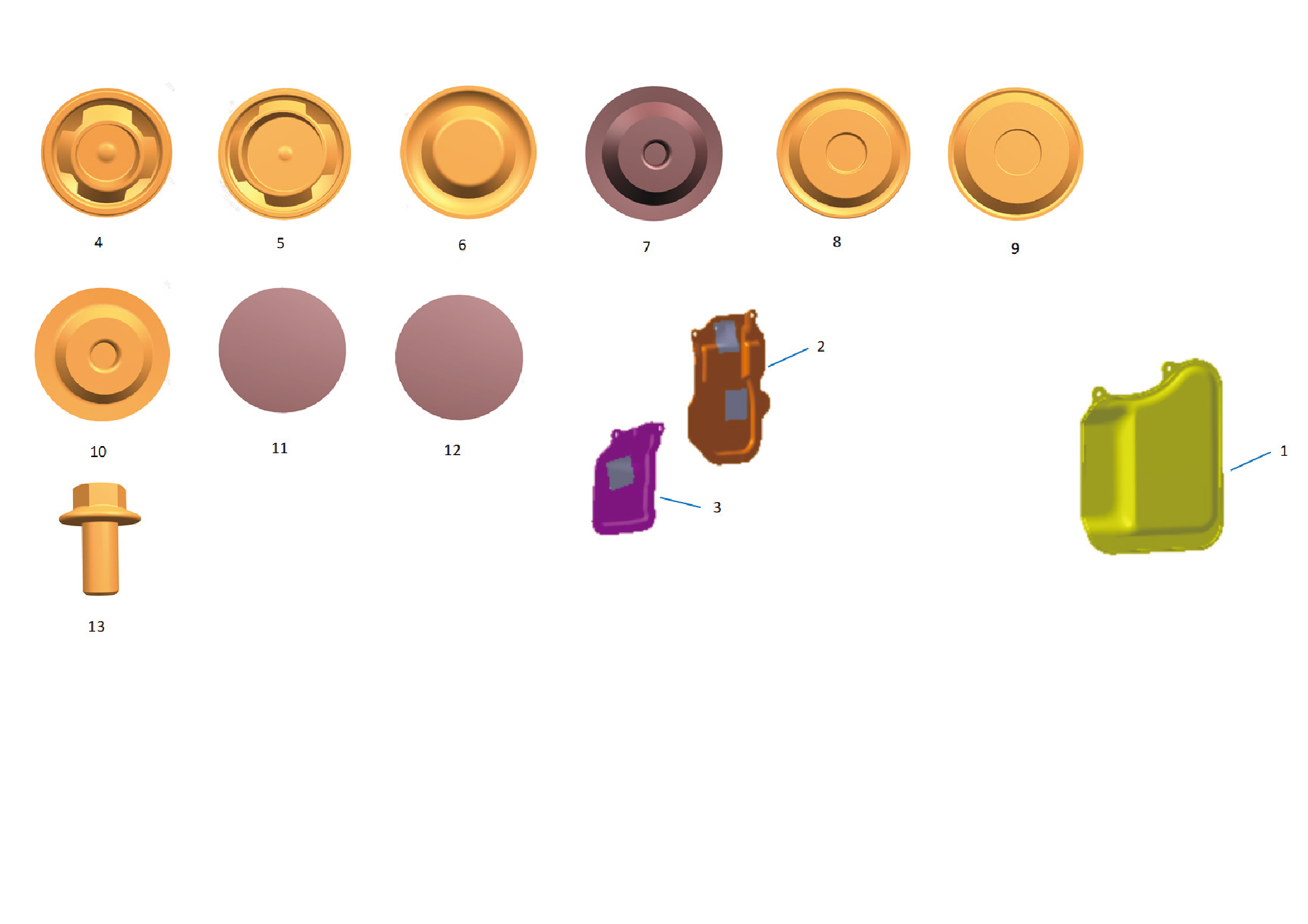

6.17.1 Decomposition Diagram
6.17.1.1 Decomposition Diagram
1.
8.
Body Waterproof Foil-Lh(1)
Plug Cover
2.
9.
Body Waterproof Foil-Rh(1)
Plug Cover
3.
10.
Body Waterproof Foil-Rh(2)
Plug Cover
4.
11.
Plug Cover
Plug Cover
5.
12.
Plug Cover
Plug Cover
6.
13.
Hexagon Flange Bolt
Plug Cover
7.
Plug Cover
