6.10 Roof Cabinet Device
6.10 Roof Cabinet Device
6.10.1 specifications
6.10.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the top
cabinet assembly and the top cover
(18.5 +/- 2) ft lbs
M8
assembly

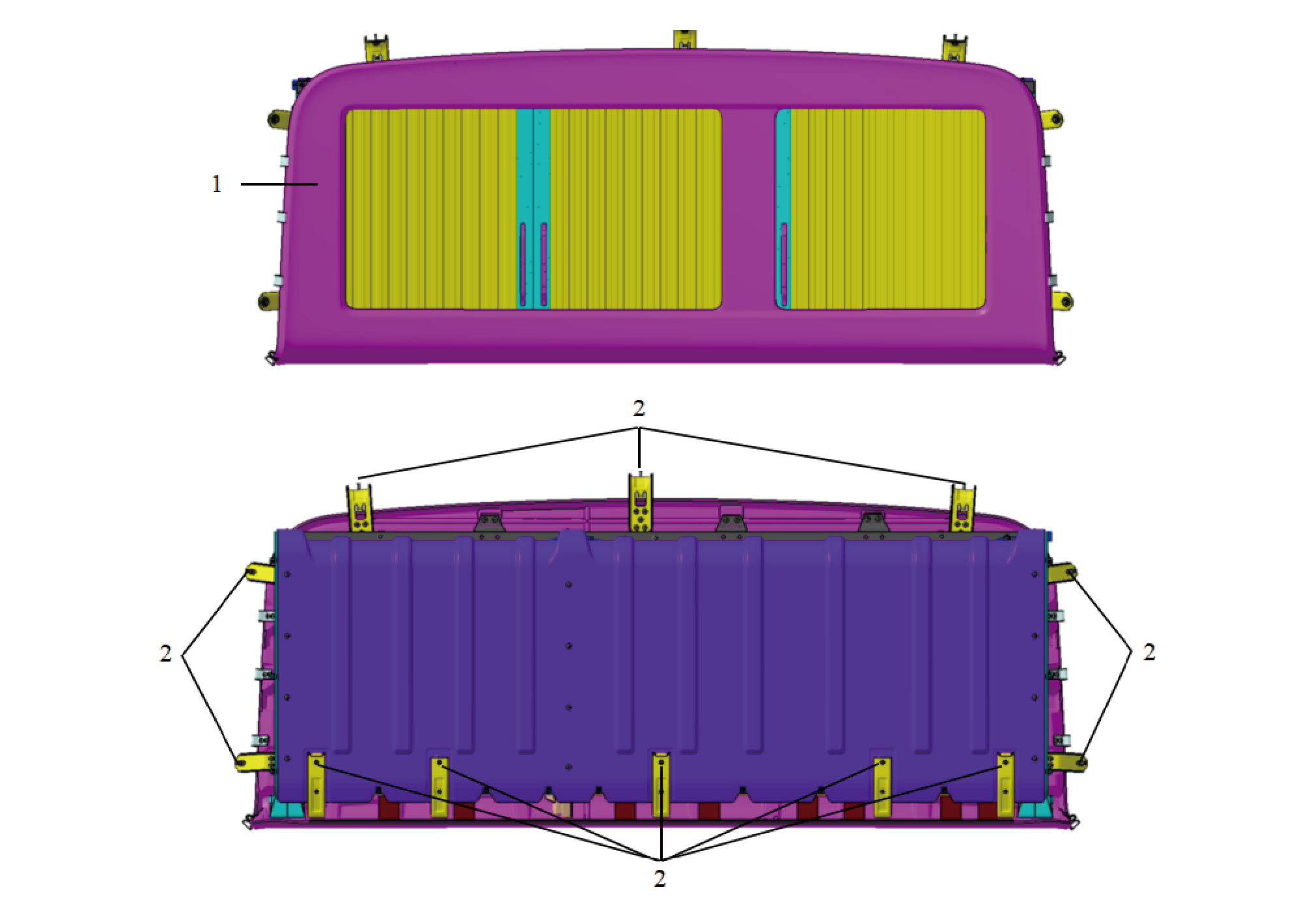

6.10.2 Decomposition Diagram
6.10.2.1 Decomposition Diagram
1.
2.
Assembly of Hexagon Head Bolts and Plain Washers
Top Cabinet Assy
6.10.3 Dismantling and Installation
6.10.3.1 Replacement of Top Cabinet Assembly
Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the left A-pillar protective plate assembly.
5
Remove the right A-pillar protective plate assembly.
6
Remove the sunshade rail assembly.
7
Remove the front camera trim cover assembly.
8
Remove the sunshade cover plate assembly.
9
Remove the left ceiling lamp.
10
Remove the right ceiling lamp.
11
Remove the curtain rail assembly.
12
Remove the middle ceiling assembly.
13
Remove the left middle side wall lower trim panel
assembly.
14
Remove the left middle side wall middle trim panel
assembly.
caution
1.First remove the break glass hammer's zipper
cover, carefully take out the break glass hammer's
pull ring and place it inside the trim panel.
2.Be careful to avoid accidentally pulling the break
glass hammer's pull ring.
15
Remove the left B-pillar upper protective plate assembly.
16
Remove the left middle side wall protective plate
assembly.
17
Remove the side wall clothes rail assembly.
18
Remove the left rear side wall protective plate assembly.
19
Remove the left speaker cover.
20
Remove the left ceiling assembly.
21
Remove the right sill molding assembly.
22
Remove the door opening sealing strip assembly.
23
Remove the safety hammer fixing bracket.
24
Remove the rear boarding handrail assembly.
25
Remove the SSM.
26
Remove the right rear side wall protective plate assembly.
27
Remove the sleeper reading lamp.
28
Remove the right speaker cover.
29
Remove the right ceiling assembly.
30
Remove the top cabinet lamp.
31

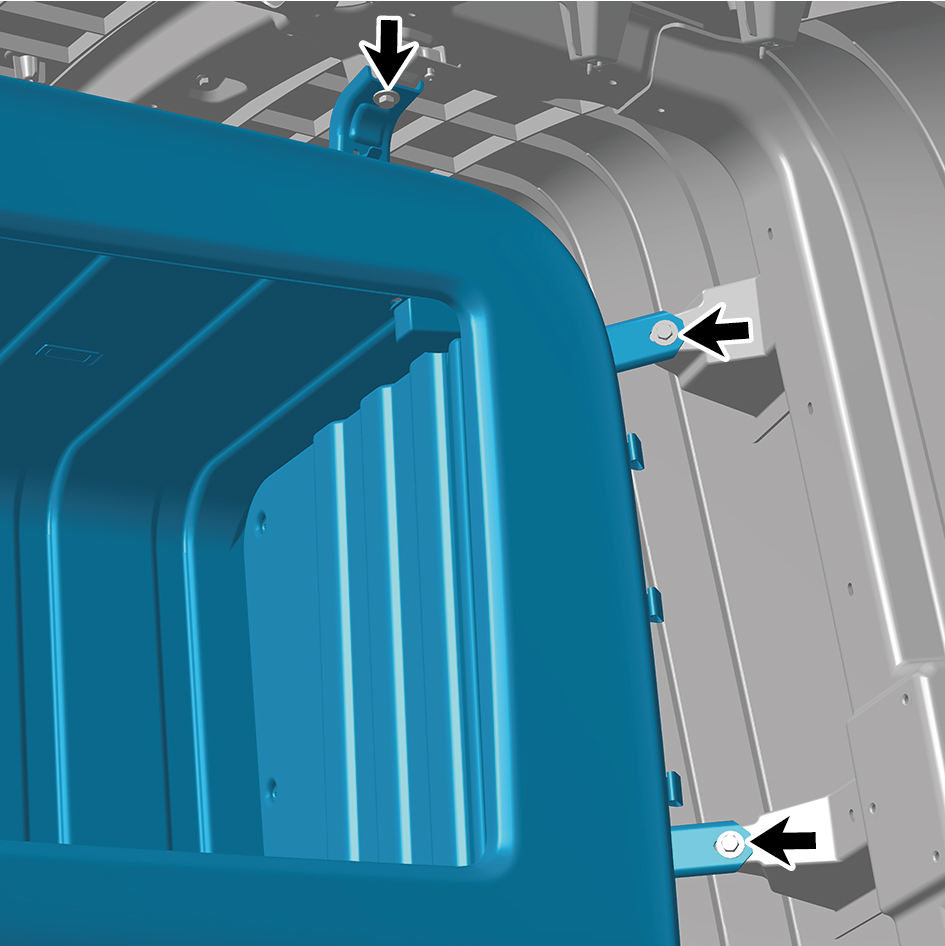

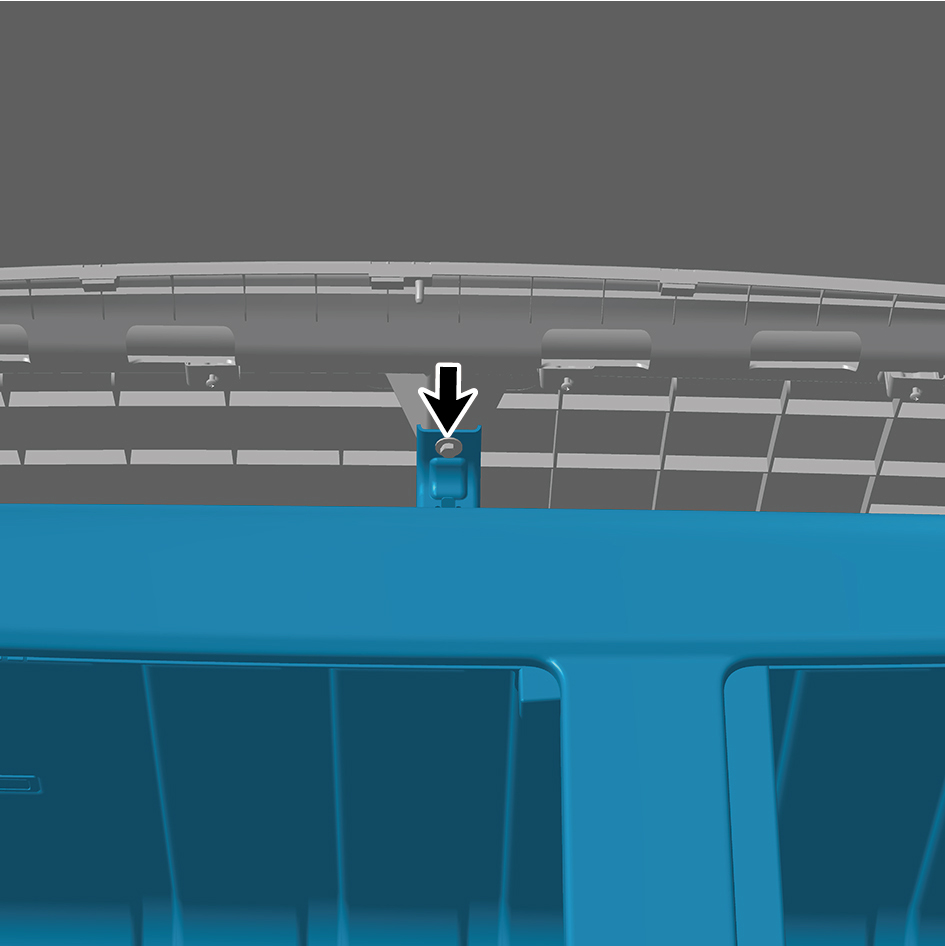

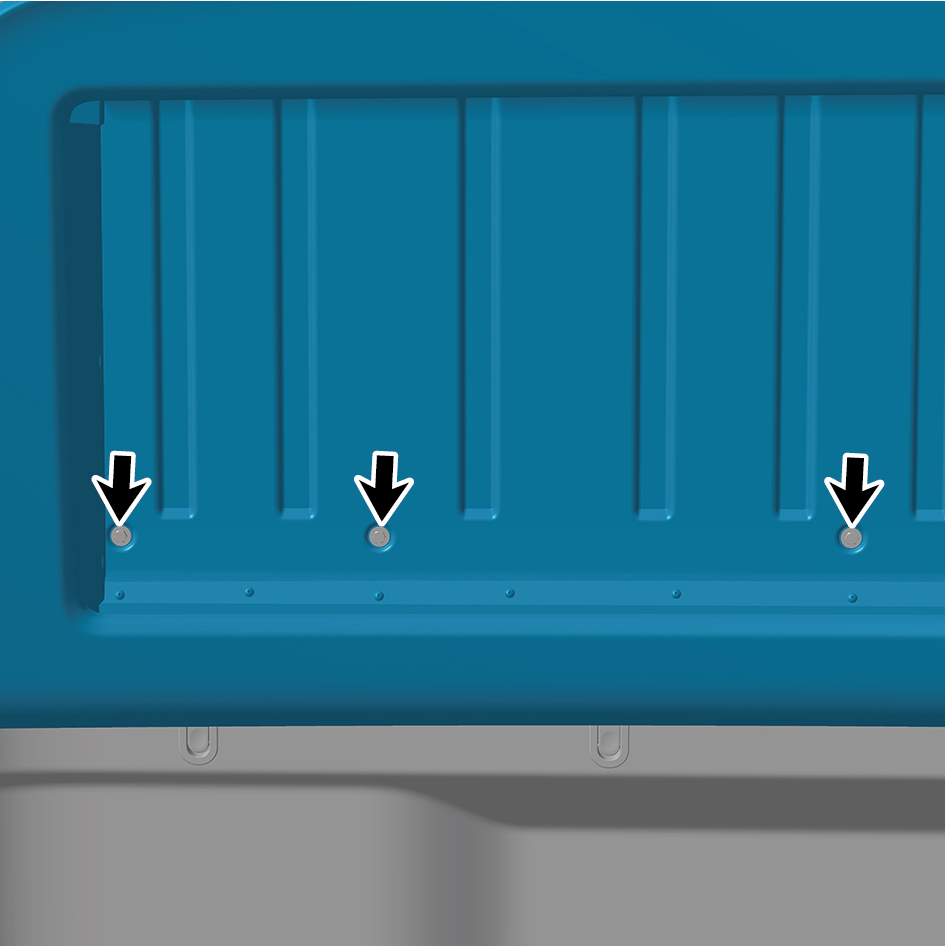

Remove 12 fixing bolts of the top cabinet assembly, and
remove the top cabinet assembly.
caution
Due to the heavy weight of the top cabinet
assembly, it shall be removed with the help of an
assistant.
Installation Procedures
1
Move the top cabinet assembly to the mounting position.
caution
Due to the heavy weight of the top cabinet
assembly, it shall be moved to the mounting position
with the help of an assistant.
2

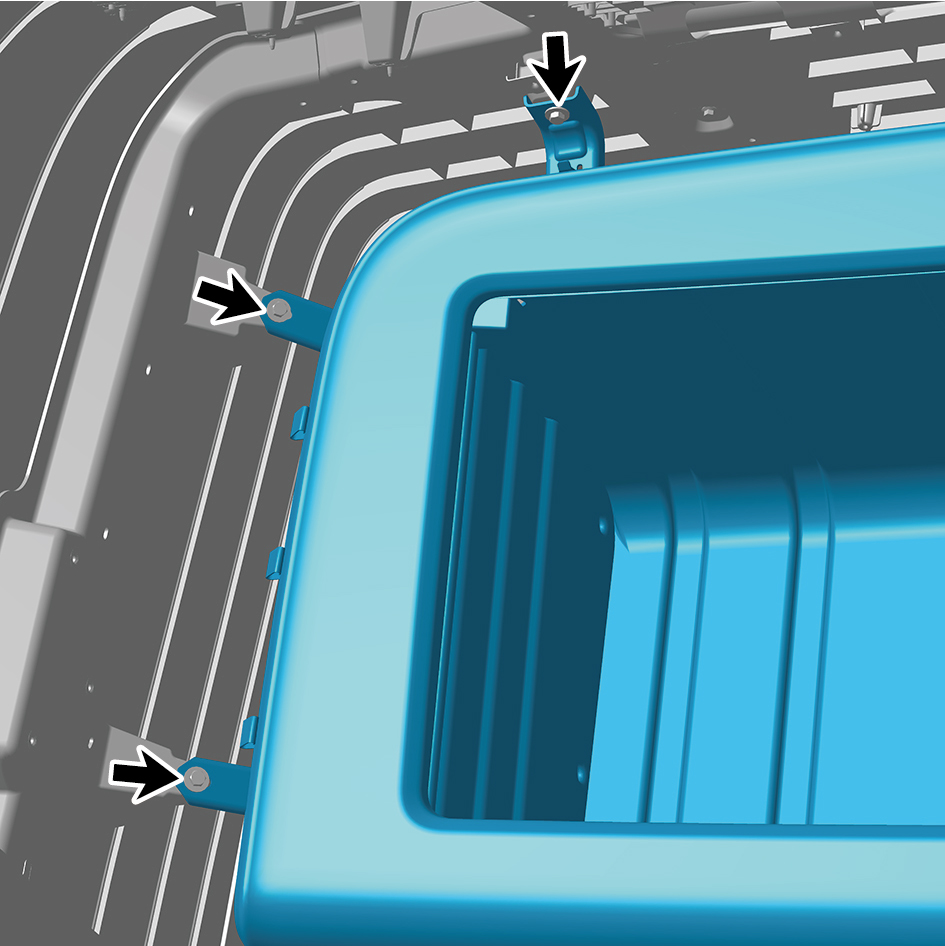

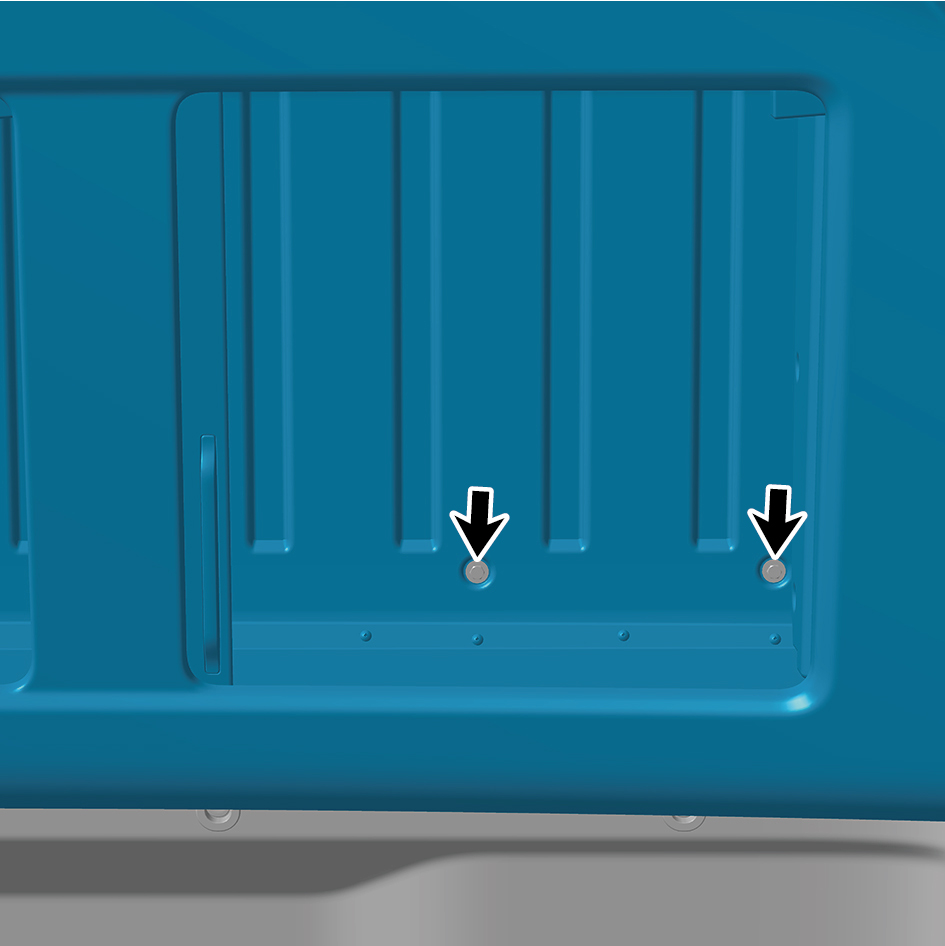

Install 12 fixing bolts of the top cabinet assembly.
Torque:(18 ft-lb +/- 2 ft-lb) ft-lb
3
Install the top cabinet lamp.
4
Install the right ceiling assembly.
5
Install the right speaker cover.
6
Install the sleeper reading lamp.
7
Install the right rear side wall protective plate assembly.
8
Install the SSM.
9
Install the rear boarding handrail assembly.
10
Install the safety hammer fixing bracket.
11
Install the door opening sealing strip assembly.
12
Install the right sill molding assembly.
13
Install the left ceiling assembly.
14
Install the left speaker cover.
15
Install the left rear side wall protective plate assembly.
16
Install the side wall clothes rail assembly.
17
Install the left middle side wall protective plate assembly.
18
Install the left B-pillar upper protective plate assembly.
19
Install the left middle side wall middle trim panel assembly.
20
Install the left middle side wall lower trim panel assembly.
21
Install the middle ceiling assembly.
22
Install the curtain rail assembly.
23
Install the right ceiling lamp.
24
Install the left ceiling lamp.
25
Install the sunshade cover plate assembly.
26
Install the front camera trim cover assembly.
27
Install the sunshade rail assembly.
28
Install the right A-pillar protective plate assembly.
29
Install the left A-pillar protective plate assembly.
30
Connect the battery negative cable.
31
Close the front flip cover plate.
32
Close the door.
