6.9 A-Pillar Exterior Trim Panel Device
6.9 A-Pillar Exterior Trim Panel Device
6.9.1 Dismantling and Installation
6.9.1.1 Replacement of Left A-pillar Outer Trim Assembly
Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the negative cable of the storage battery.
caution
power down the high-voltage system before
disconnecting the negative terminal of the storage
battery.
4
Remove the a-pillar guard assy-lh.
5
Remove the engine compartment trim panel body.
6
Remove the left physical exterior rearview mirror
assembly.
7
Remove the left front wheel housing body.
8
Remove the primary wiper arm blade assembly (nozzle
and hose).
9
Remove the front windshield cover plate assembly.
10
Remove the left fender trim strip.
11
Remove the left fender assembly.
12

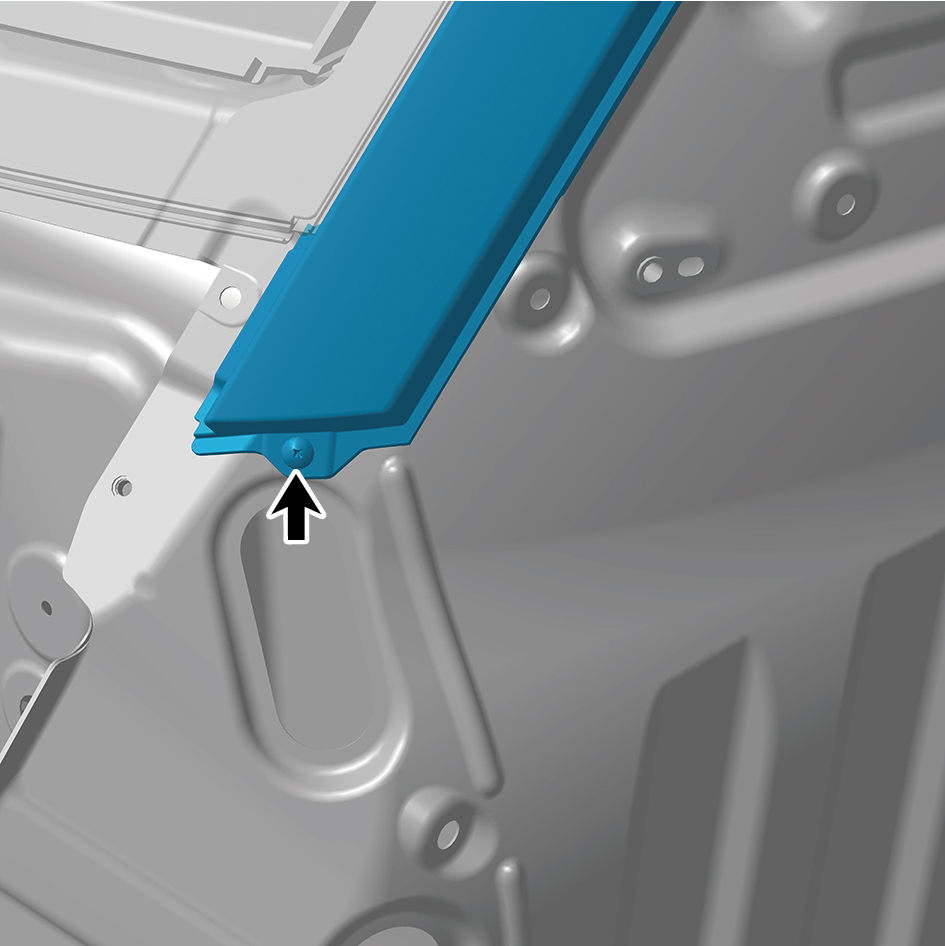

Remove 1 fixing screw of the left A-pillar outer trim
assembly.
13
Remove the left A-pillar outer trim assembly.
Installation Procedures
1
Move the left A-pillar outer trim assembly to the mounting
position.
2
Install 1 fixing screw of the left A-pillar outer trim
assembly.
3
Install the left fender assembly.
4
Install the left fender trim strip.
5
Install the front windshield cover plate assembly.
6
Install the left front wheel housing body.
7
Install the primary wiper arm blade assembly (nozzle and
hose).
8
Install the left physical exterior rearview mirror assembly.
9
Install the engine compartment trim panel body.
10
Install the a-pillar guard assy-lh.
11
Connect the negative cable of the storage battery.
12
Close the front flip cover plate.
13
Close the door.
6.9.1.2 Replacement of Right A-pillar Outer Trim Assembly
Trim Assembly
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the negative cable of the storage battery.
caution
power down the high-voltage system before
disconnecting the negative terminal of the storage
battery.
4
Remove the a-pillar guard assy-rh.
5
Remove the engine compartment trim panel body.
6
Remove the right triangular cover plate assembly.
7
Remove the right front wheel housing body.
8
Remove the primary wiper arm blade assembly (nozzle
and hose).
9
Remove the front windshield cover plate assembly.
10
Remove the right fender trim strip.
11
Remove the right fender assembly.
12

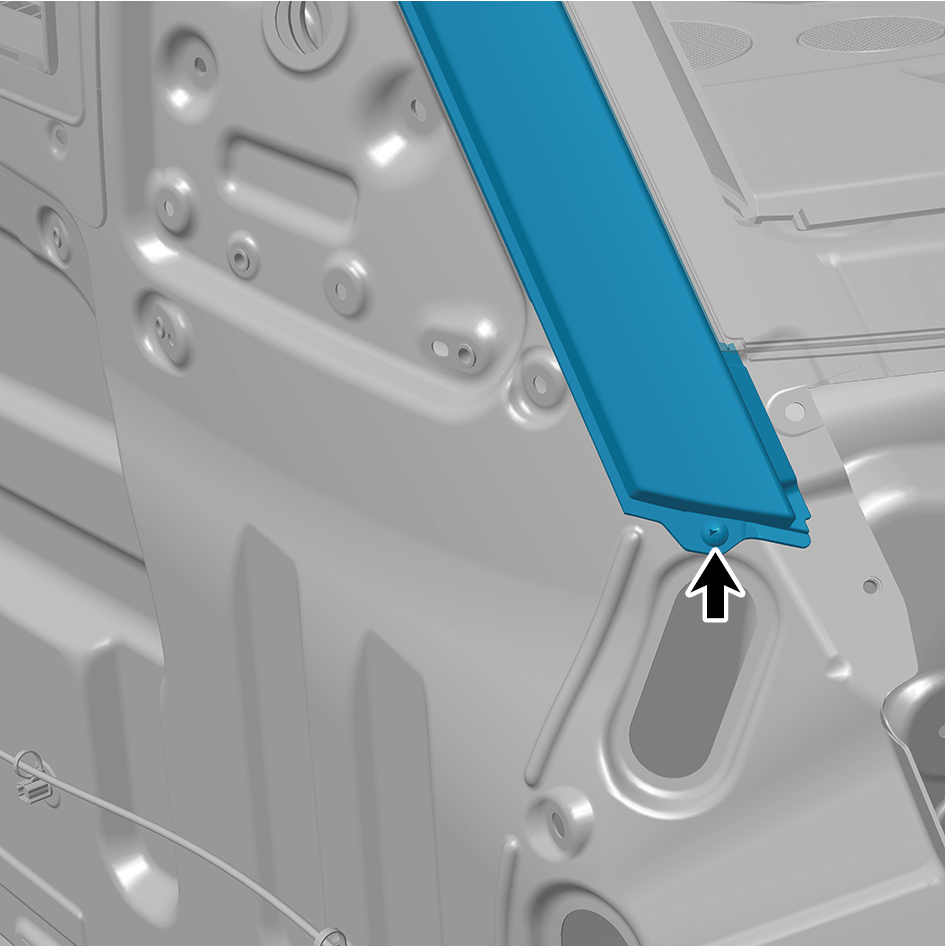

Remove 1 fixing screw of the right A-pillar outer trim
assembly.
13
Remove the right A-pillar outer trim assembly.
Installation Procedures
1
Move the right A-pillar outer trim assembly to the
mounting position.
2
Install 1 fixing screw of the right A-pillar outer trim
assembly.
3
Install the right fender assembly.
4
Install the right fender trim strip.
5
Install the front windshield cover plate assembly.
6
Install the primary wiper arm blade assembly (nozzle and
hose).
7
Install the right front wheel housing body.
8
Install the right triangular cover plate assembly.
9
Install the engine compartment trim panel body.
10
Install the a-pillar guard assy-rh.
11
Connect the negative cable of the storage battery.
12
Close the front flip cover plate.
13
Close the door.
