6.1 Vehicle Body Mounting Connection Device
6.1 Vehicle Body Mounting Connection Device
6.1 Vehicle Body Mounting Connection
Device
6.1.1 Specifications
6.1.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting suspension
M14
147 ft-lb +/- 7 ft-lb
bracket two to the frame assembly
The fixing nut connecting suspension
M14
147 ft-lb +/- 7 ft-lb
bracket two to the frame assembly
The fixing bolts connecting the
suspension bracket three to the frame
M14
147 ft-lb +/- 7 ft-lb
assembly
The fixing bolt connecting the left side of
the fourth suspension of the vehicle
M16
228.5ft-lb +/- 7 ft-lb（Kesai New 1262）
body to the integrated frame
The fixing bolt connecting the right side
of the fourth suspension of the vehicle
M16
228.5ft-lb +/- 7 ft-lb（Kesai New 1262）
body to the integrated frame
The fixing bolt connecting the fourth
suspension support rod of the vehicle
M14
147 ft-lb +/- 7 ft-lb
body to the frame assembly
The fixing bolt connecting the fourth
suspension support rod assembly of the
M14
147 ft-lb +/- 7 ft-lb
vehicle body and the fourth suspension
of the vehicle body
The fixing nut connecting the fourth
suspension support rod assembly of the
M14
147 ft-lb +/- 7 ft-lb
vehicle body and the fourth suspension
of the vehicle body

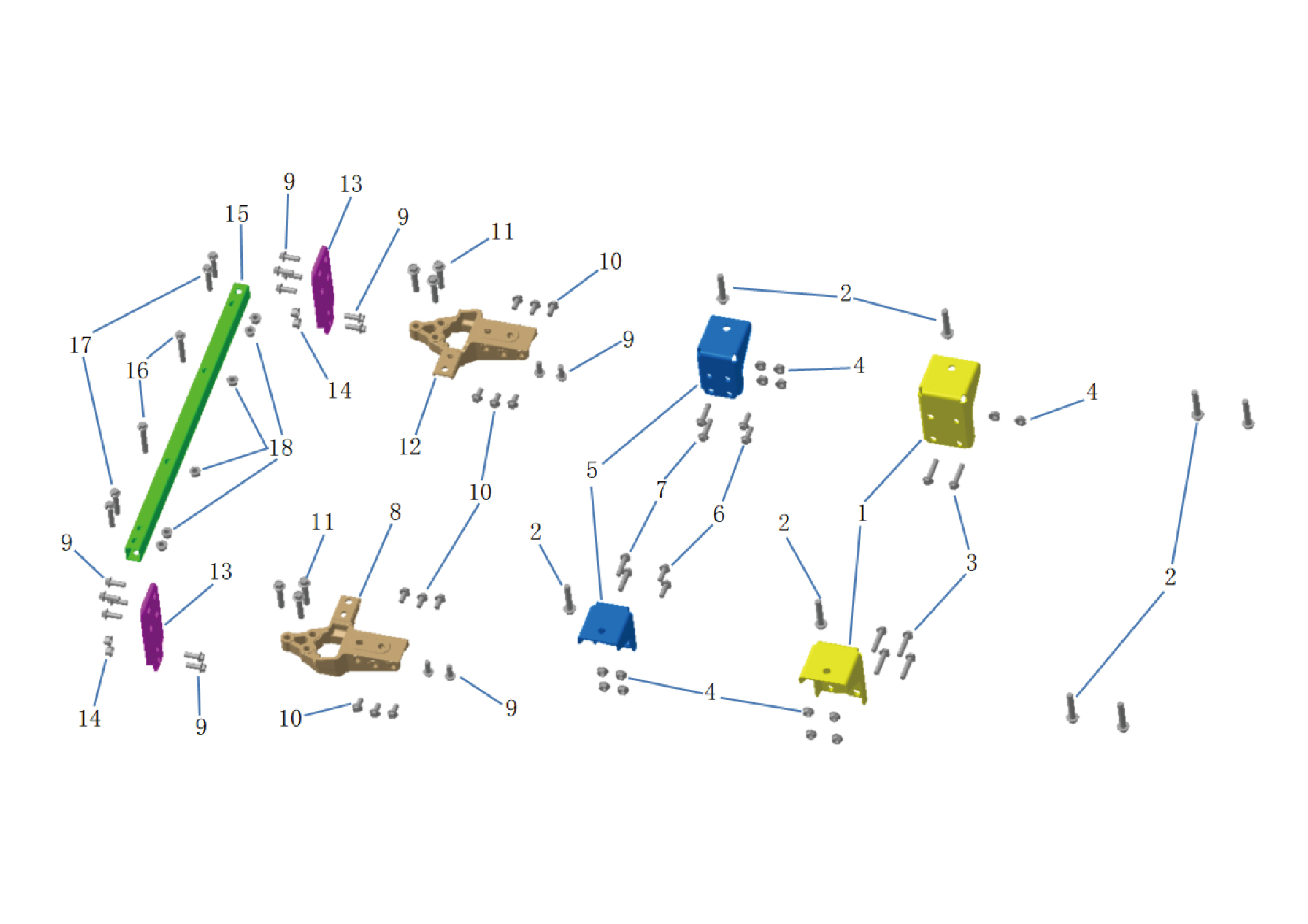

6.1.2 Decomposition Diagram
6.1.2.1 Decomposition Diagram
1.
10.
Hexagon Flange Bolt
Suspunsion Bracket Two Assy
2.
Hexagon Flange Bolt
11.
Hexagon Flange Bolt
3.
Hexagon Flange Bolt
12.
Body Fourth Suspension Lh
4.
13.
Hexagon Flange Nut
Plate Rr Wall Mounting
5.
14.
Suspunsion Bracket Three Assy
NUT M14x2(SPIRALOCK)
6.
15.
Hexagon Flange Bolt
Body Fourth Suspension Support Rod Assy
7.
16.
Hexagon Flange Bolt
Hexagon Flange Bolt
8.
17.
Body Fourth Suspension Rh
Hexagon Flange Bolt
9.
Hexagon Flange Bolt
18.
Hexagon Flange Lock Nut_all Metal
