5.2 Intelligent Cockpit Device
5.2 Intelligent Cockpit Device
5.2.1 Specifications
5.2.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Metric System（ft-lb）

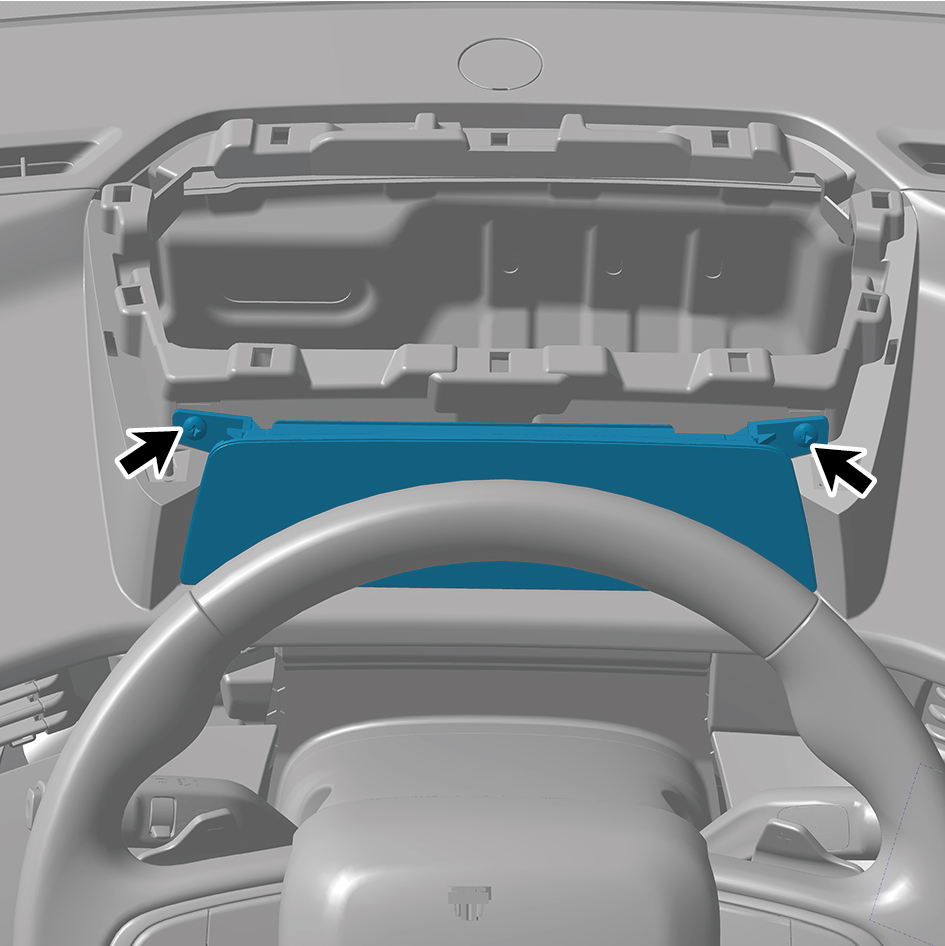

Fastening bolts for connecting ipc
M6
6.5 ft-lb +/- .75
screen to instrument panel

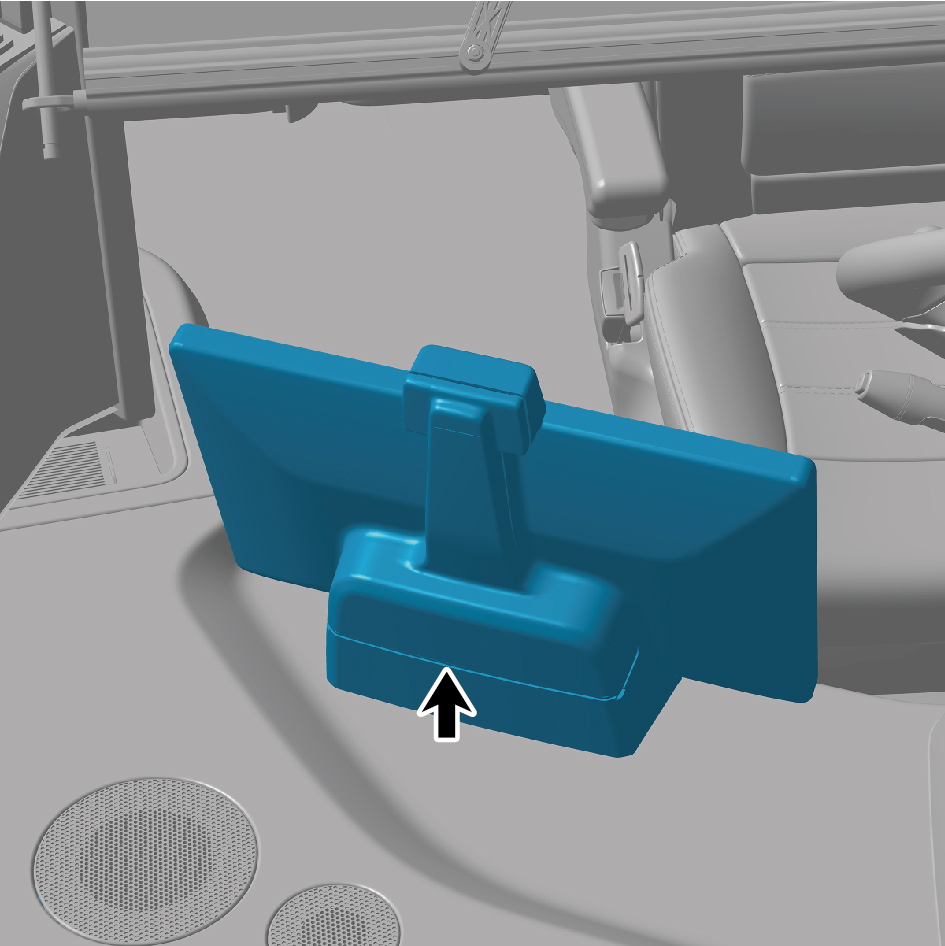

Fixed bolts connecting IVI screen
M6
6.5 ft-lb +/- .75
bracket and tube beam assembly

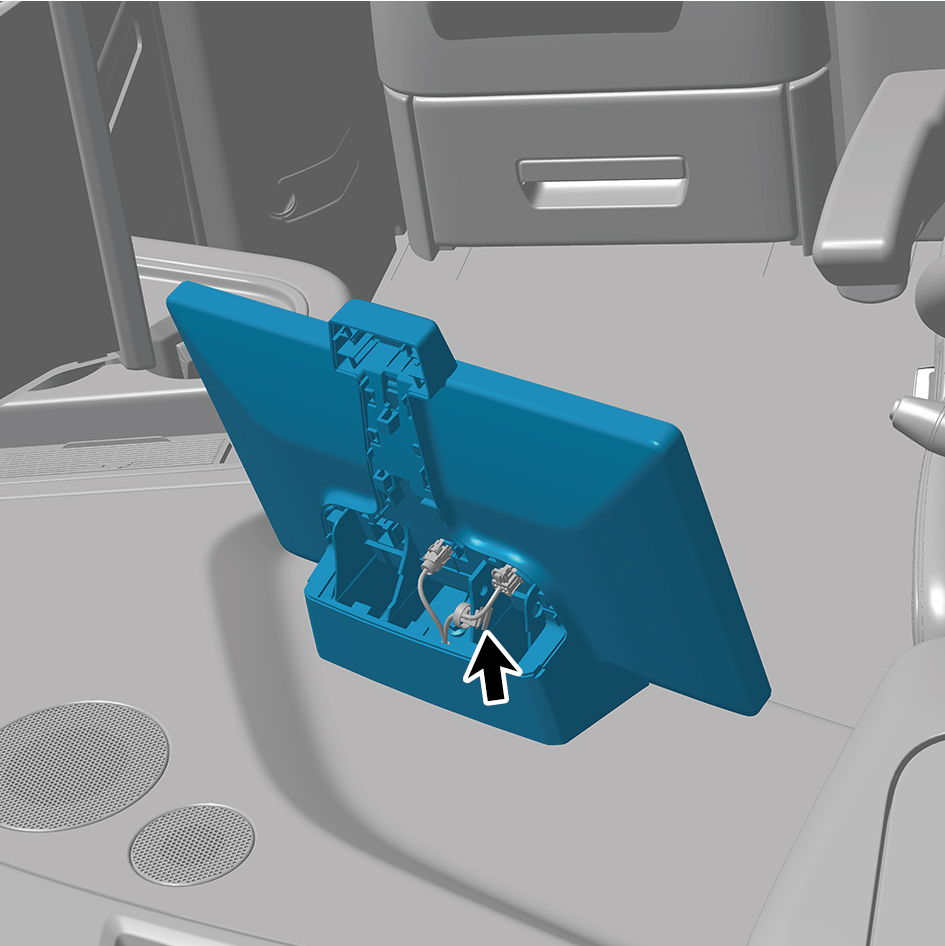

The fixing bolts connecting the CAR
screen bracket and the pipe beam
M6
6.5 ft-lb +/- .75
assembly

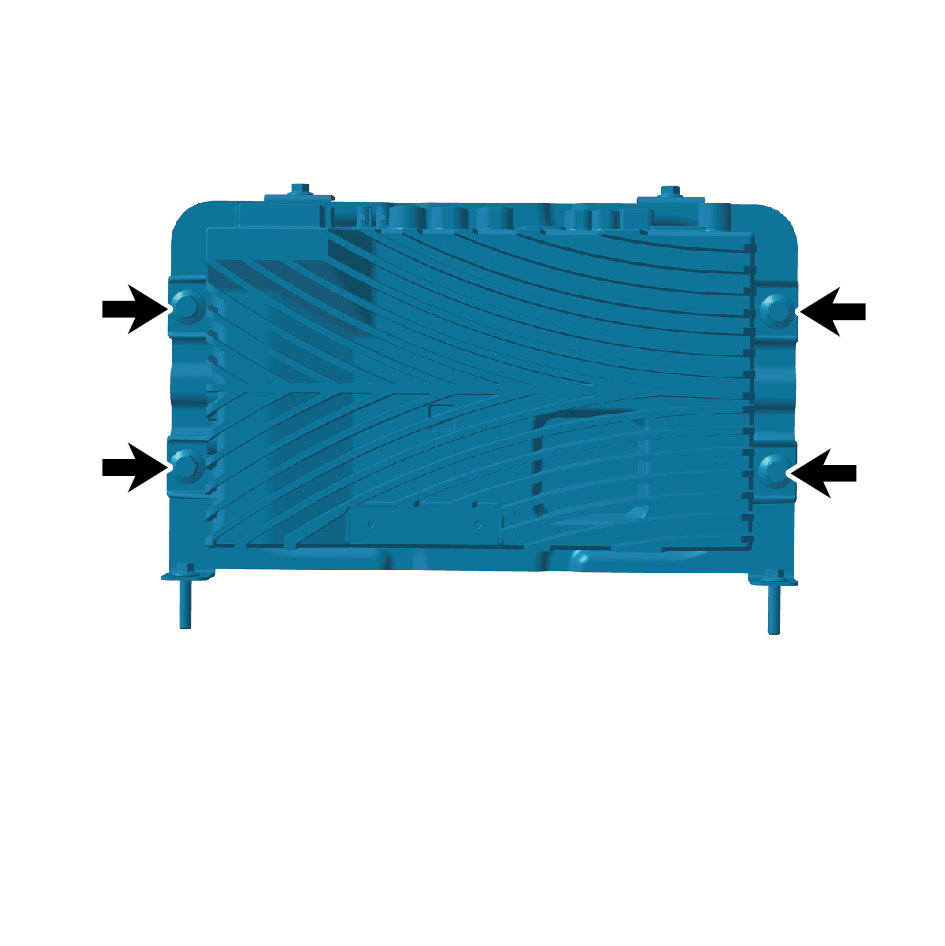

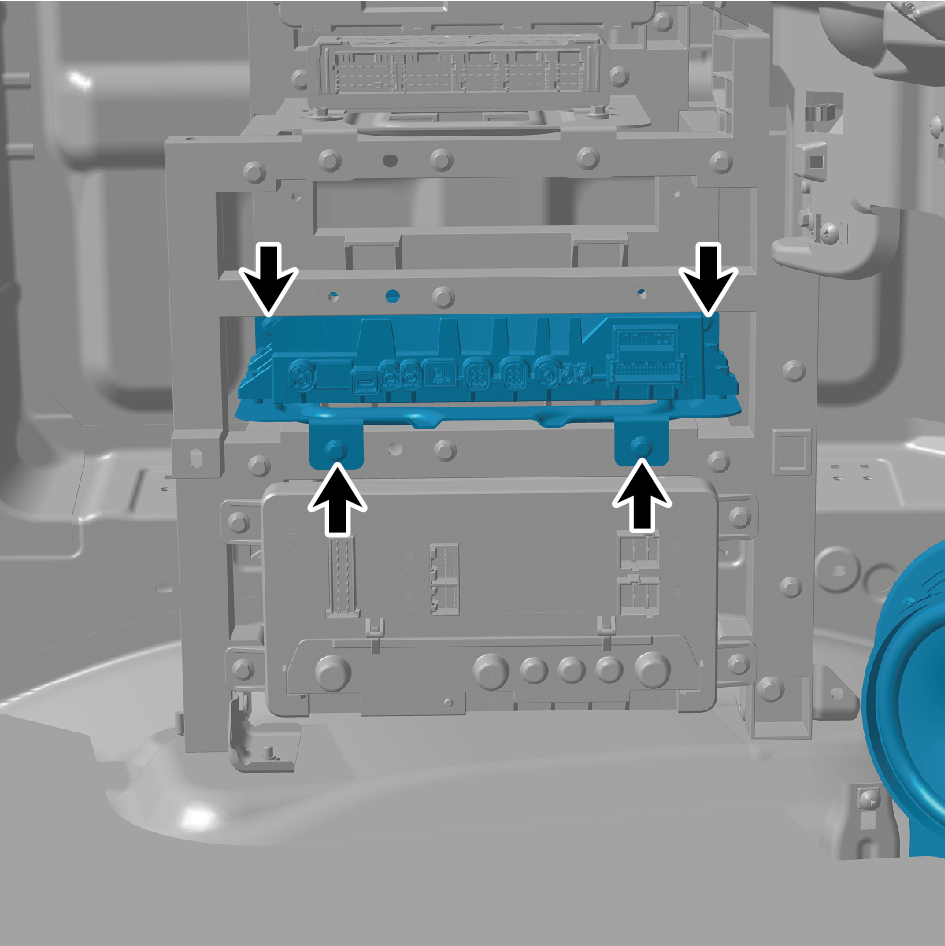

The fixing bolts connecting the cockpit
M6
6.5 ft-lb +/- .75
domain controller to the cockpit domain
controller bracket
The fixing bolt connecting the cockpit
domain controller bracket to the lower
M6
6.5 ft-lb +/- .75
left instrument panel controller bracket

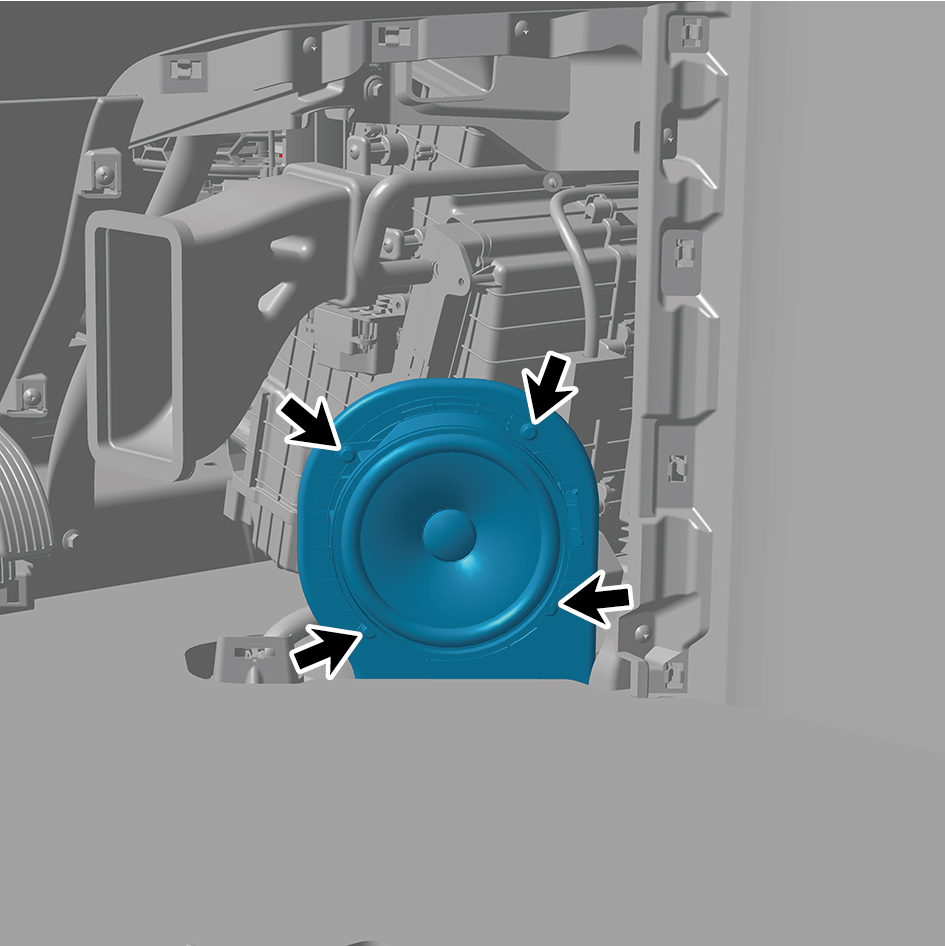

Speaker - fixing bolt for connecting bass
M5
6.5 ft-lb +/- .75
and bass speaker bracket
The fixing bolt connecting the bass
M6
6.5 ft-lb +/- .75
speaker bracket to the floor sheet metal

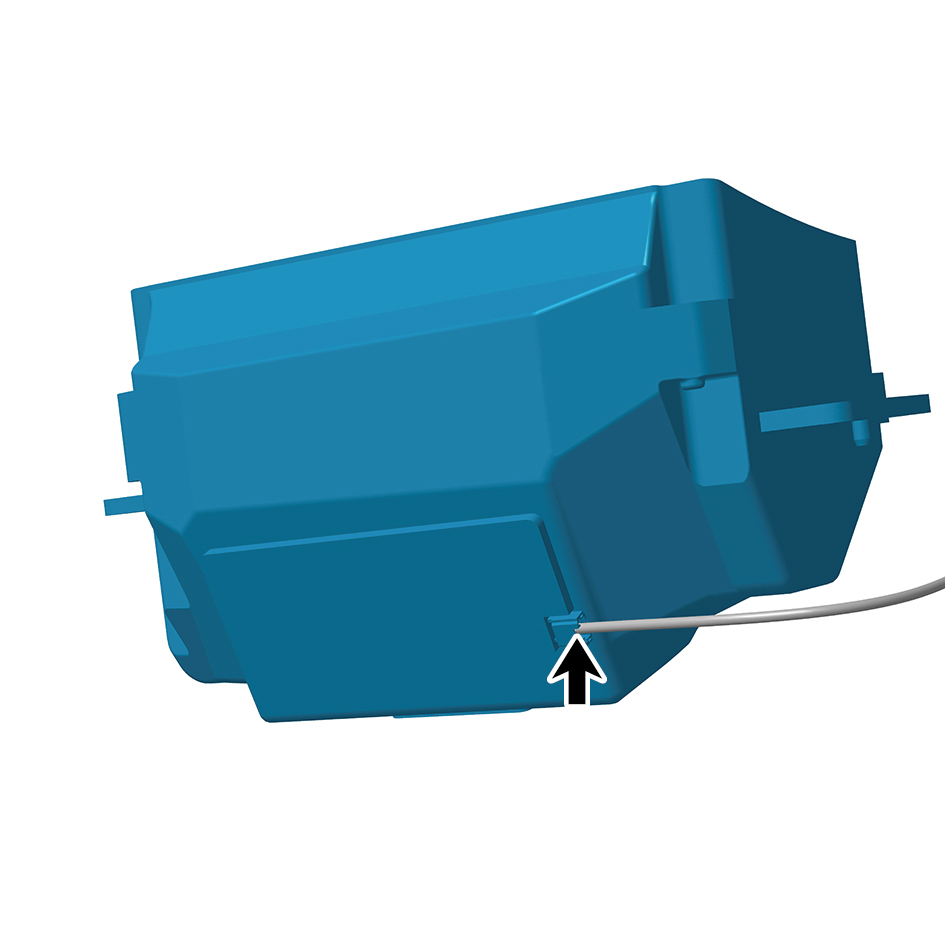

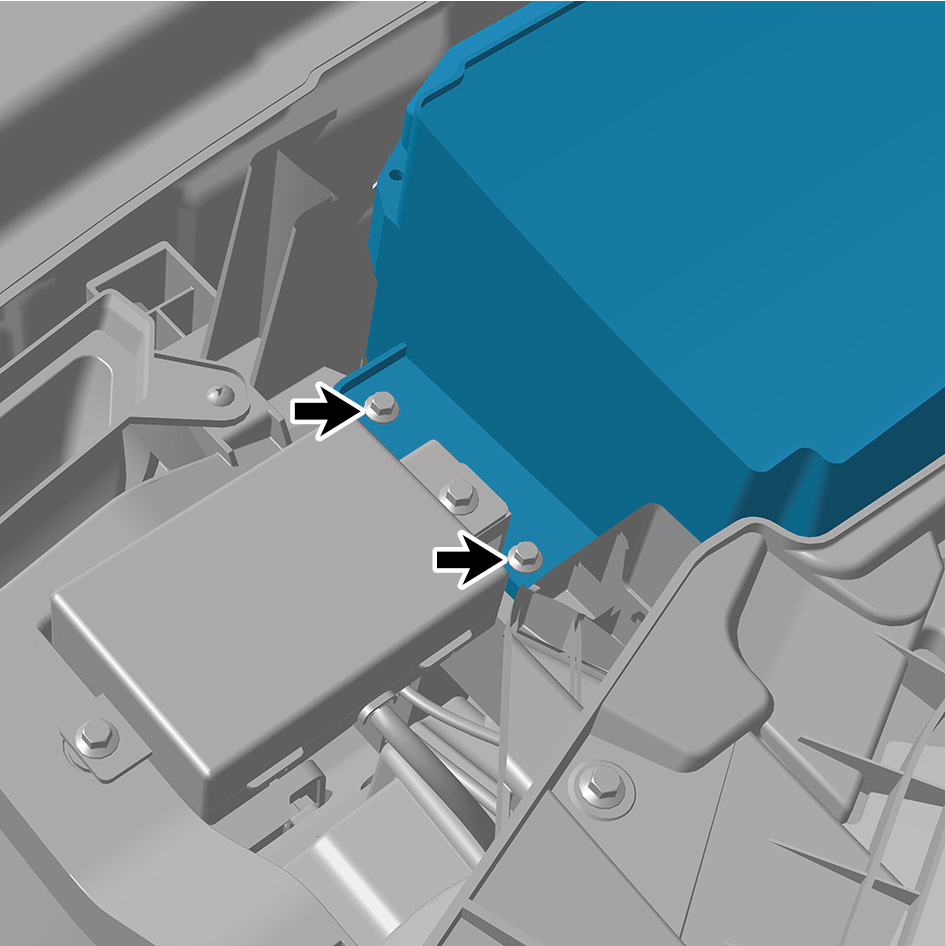

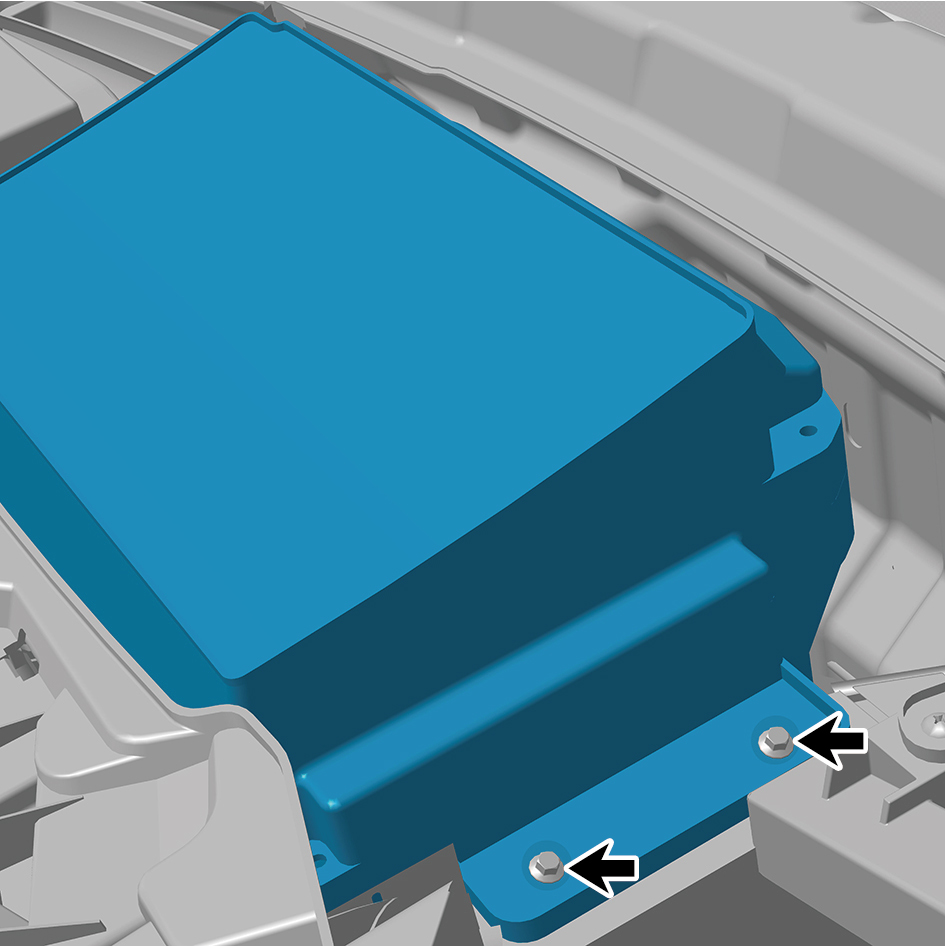

AR-HUDFixed bolts connected to the
M6
6.5 ft-lb +/- .75
pipe beam assembly
The fixing bolt connecting the glass
antenna amplifier to the inner panel
M6
6.5 ft-lb +/- .75
assembly of the front windshield
crossbeam

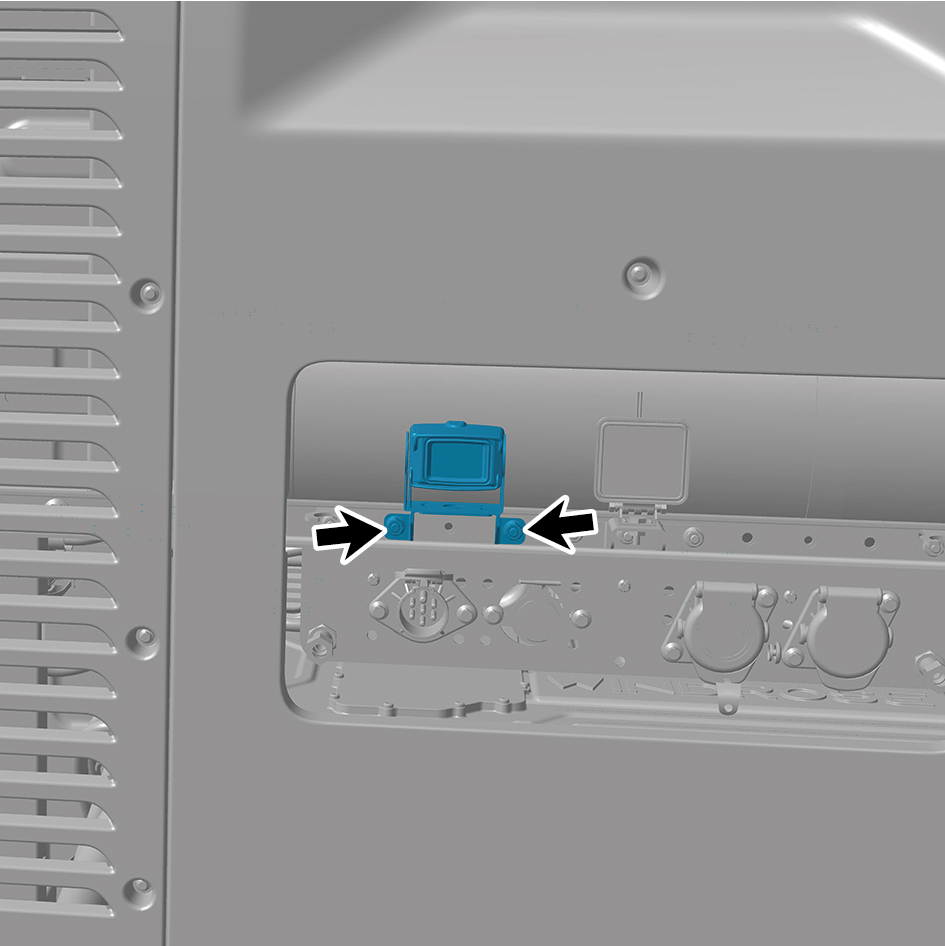

Fixed bolts connecting the reversing
M8
18 ft-lb +/- 2 ft-lb
camera to the integrated frame

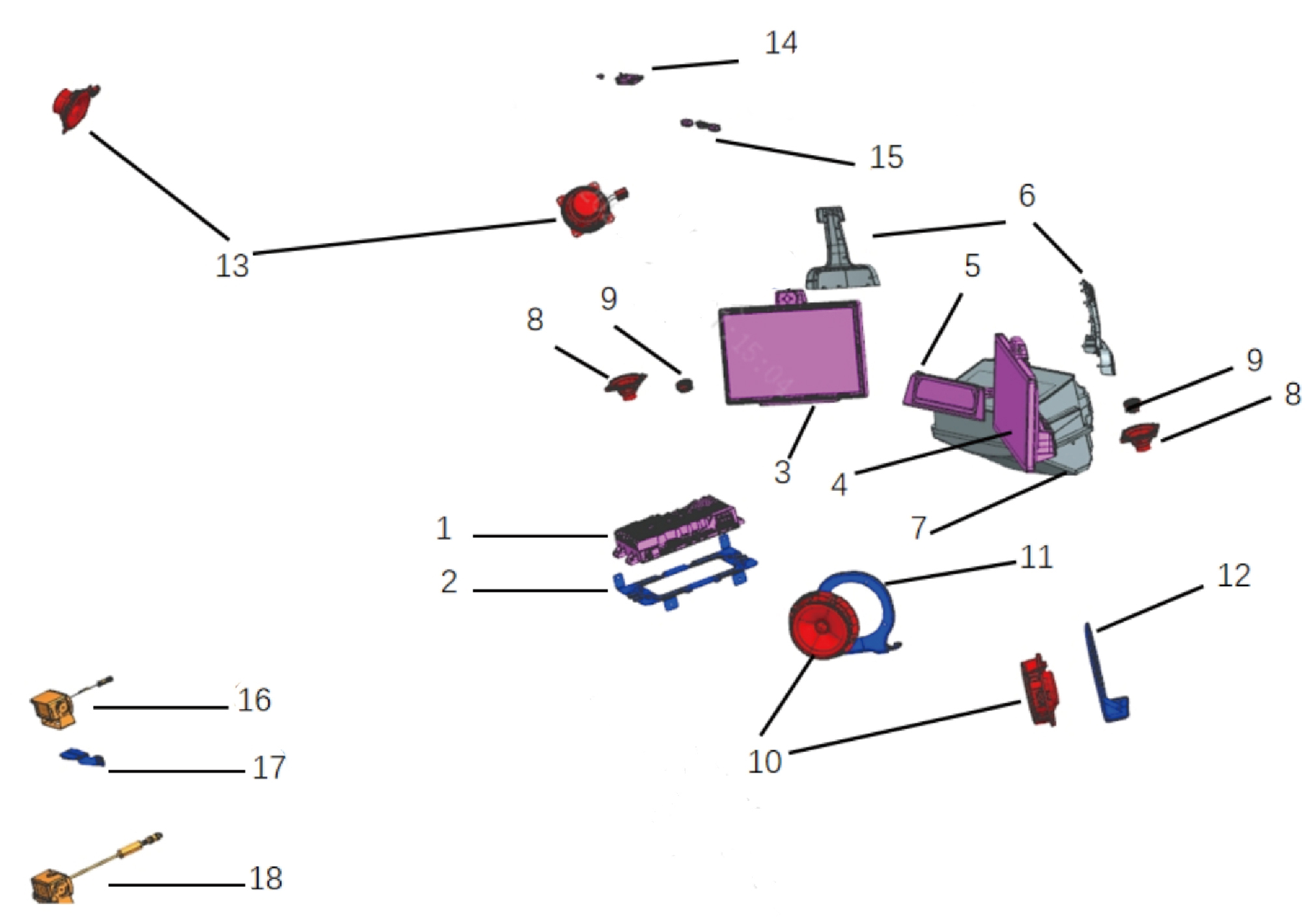

5.2.2 Decomposition Diagram
5.2.2.1 Decomposition Diagram
1.
10.
Woofer
Cockpit Domain Controller
2.
11.
Woofer Bracket Left
Cockpit Domain Controller Bracket
3.
12.
Woofer Bracket Right
IVI Screen
4.
13.
CAR Screen

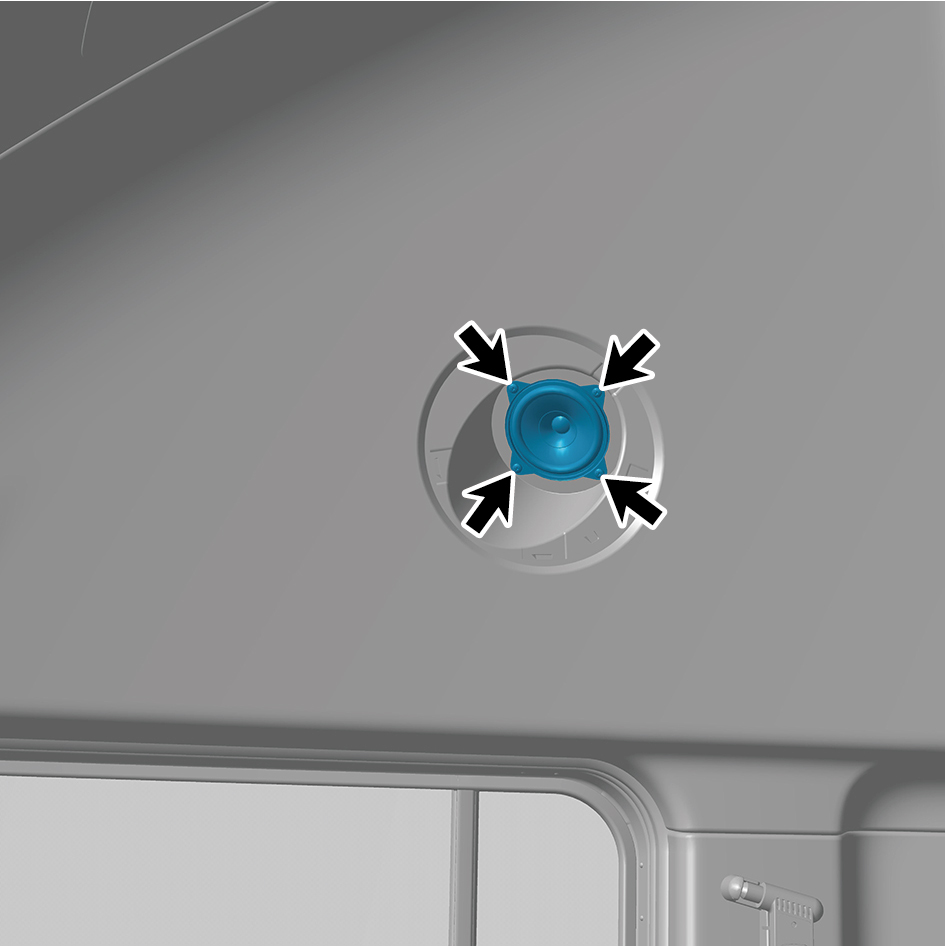

Surround-Sound Speaker
5.
14.
IPC Screen
Glass Antenna Amplifier
6.
15.
Rear Shell Plugged Cover
MIC
7.
AR-HUD
16.
Rear-View Camera
8.
17.
Squawker
Rear-View Camera Bracket
9.
Tweeter
18.
Rear View Camera
5.2.3 System Schematic Diagram
5.2.3.1 Electrical Schematic Diagram
5.2.4 Diagnostic Information and Steps
5.2.4.1 Diagnosis Description
Understanding and familiarizing oneself with the working principle of the intelligent cockpit device before diagnosing its faults,
and then starting system diagnosis, can help determine the correct fault diagnosis steps when a fault occurs, and more
importantly, it can help determine the situation described by the customer belongs to normal operation. Any fault diagnosis of
intelligent cockpit devices should start with routine inspection, guiding maintenance personnel to take the next logical step for
fault diagnosis. Understanding and correctly using the diagnostic process can shorten the diagnosis time and avoid misjudgment
of faulty parts.
5.2.4.2 Routine Inspection
• Check for aftermarket devices that may affect the operation of the intelligent cockpit device system, ensuring that these devices
do not affect the operation of the intelligent cockpit device system.
• Inspect system components that are easily accessible or visible to make sure they are not visibly damaged or have conditions
that could cause failure.
5.2.4.3 Fault Symptom Table
Symptom
Suspected Faulty Project
Measures
1. IVI screen setting mute mode
Release the mute mode.
Check the wiring harness between the
2. Speaker wiring harness fault
tweeter, subwoofer, mid-range speaker,
and CDC.
Check the high-frequency speaker, low-
frequency speaker, and mid-range
speaker, and replace them if necessary.
The speaker is silent
Refer to Replacement Of Speaker -
3. Speaker fault
Tweeter.Replacement Of Speaker -
Woofer (Left) .Replacement of Speaker
- Woofer (Right) .Replacement Of
Speaker - squawker
Replace CDC. Refer to Replacement Of
4. CDC fault
Cockpit Domain Controller
Check the IVI screen power grounding
1. IVI screen power grounding harness
harness. Refer to IVI Screen Power
fault
Supply Circuit Fault
2. IVI screen wake-up signal harness
Check the wake-up signal harness
fault
between the IVI screen and CDC.
IVI screen cannot be turned on/off or
Check the LVDS signal harness
3. IVI screen LVDS signal harness fault
displays no signal
between the IVI screen and CDC.
Replace the IVI screen. Refer to
4. IVI screen fault
Replacement Of IVI Screen
Replace CDC. Refer to Replacement Of
5. CDC fault
Cockpit Domain Controller
Check the grounding harness of the
CAR screen cannot be turned on/off or
1. CAR screen power grounding
CAR screen power supply. Refer to
displays no signal
harness fault
CAR Screen Power Supply Circuit Fault
Symptom
Suspected Faulty Project
Measures
Check the wake-up signal harness
2. CAR screen wake-up signal harness
fault
between the CAR screen and CDC.
3. CAR screen LVDS signal harness
Check the LVDS signal harness
fault
between the CAR screen and CDC.
Replace the CAR screen. Refer to
4. CAR screen fault
Replacement Of CAR Screen
Replace CDC. Refer to Replacement Of
5. CDC fault
Cockpit Domain Controller
Check the IPC screen power grounding
1. IPC screen power grounding harness
harness. Refer to IPC Screen Power
fault
Fault
2. IPC screen wake-up signal harness
Check the wake-up signal harness
fault
between the IPC screen and CDC.
IPC screen cannot turn on/off or display
Check the LVDS signal harness
3. IPC screenLVDS signal harness fault
no signal
between the IPC screen and CDC.
Replace the IPC screen. Refer to
4. IPC screen fault
Replacement Of IPC Screen
Replace CDC. Refer to Replacement Of
5. CDC fault
Cockpit Domain Controller
Check the wiring harness between the
1. Microphone voice input signal
microphone and CDC.
harness fault
Replace the microphone. Refer to
The voice assistant is not working
2. Microphone fault
Replacement Of Microphone Array MIC
Replace CDC. Refer to Replacement Of
3. CDC fault
Cockpit Domain Controller
5.2.4.4 DTC Confirmation
1.Connect the diagnostic instrument to the diagnostic interface, read and record the DTC, and then clear the DTC.
2. Restart the vehicle.
3. Read the fault code of the control system again to confirm the system has a fault code output.
– Yes:Diagnose based on the output fault code.
– No:Perform intermittent fault checks, refer to Inspection Of Intermittent Fault
5.2.4.5 List Of Diagnostic Trouble Codes (DTCs)
CDC
Fault Description
Exclusion Method
Fault Code
Low Voltage
B111716
Refer to CDC Power Fault
Over voltage
B111717
U018787
Lost communication with CMS
Lost communication with CMS_R
U018887
Refer to CDC Communication Fault
Lost communication with AR_HUD
U01B287
Fault Description
Exclusion Method
Fault Code
U014087
Lost communication with BDCU
U019987
Lost Communication with DCM
U019887
Lost Communication with T-BOX
U012287
Lost Communication with VDC
U013287
Lost Communication with ECAS
U019A87
Lost Communication with VTDR
U012887
Lost Communication with EPB
U012187
Lost Communication with EBS
Lost Communication with TPMS_F
U012787
U016487
Lost communication with A/C
U014187
Lost communication with AVAS
U015787
Lost communication with ADCU
U015788
Lost communication with CAMF
Lost communication with MMWR_L1
U026687
U026487
Lost communication with USS
U013087
Lost communication with EPS
U007788
CANFD5 BusOff
U008588
IntCANFD1 BusOff
CANFD5 network management is in a
U220400
limp home state.
U238084
SQI insufficient
Refer to Internal Fault Of CDC
The Ethernet MDIO chip is abnormal
U238208
There is no communication on the
U120487
Refer to CDC LIN Communication Fault
IntLIN1 network.
Unexpected Ethernet connection loss
U238108
Ethernet signal line short circuit
Refer to CDC Ethernet Fault
U230C12
Ethernet signal line open circuit
U230C13
IPC
Fault Description
Exclusion Method
Fault Code
IP display ICD overvoltage
B111717
Refer to IPC Screen Power Fault
IP displays ICD low voltage
B111716
U007688
CANFD4 BusOff
missing BDCU
U014087
missing VDC
U012287
Refer to IPC Screen Communication
missing CDCU
Fault
U015687
missing EBS
U012187
missing EPS
U013087
IP Display Dimming module status
B260009
Refer to IPC Screen Internal Fault
IPC Display not received backlight value
B260103
Fault Description
Exclusion Method
Fault Code
IPC Display TFT failure
B260209
IPC Display OSD failure
B260404
IPC Display video signal connect failure
Refer to IPC Screen LVDS Signal Fault
B260303
HUD
Fault Description
Exclusion Method
Fault Code
High voltage of HUD
B111717
Refer to HUD Power Fault
Low Voltage of HUD
B111716
U015687
Communication timeout with CDCU
U014087
Communication timeout with BDCU
U012287
Communication timeout with VDC
U015788
Communication timeout with CAMF
Refer to HUD Communication Fault
U019887
Communication timeout with TGW
U008588
CANFD bus closed
Communication timeout with MMWR_R
U026887
Communication timeout with MMWR_L
U026687
High temperature malfunction
B2A0001
Refer to HUD Internal Fault
5.2.4.6 CDC Power Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
Low Voltage
Voltage<16V,t>500ms
1. Main battery
B111716
2. Low voltage
charging system
3. Wiring harness
Over voltage
Voltage > 32V, t > 500ms
B111717
4. Cockpit
domain controller
2.Circuit Diagram
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check if there are any other module power fault codes besides CDC?
Check the main battery. Refer to Inspection Of The Main Battery
– Yes:
Check the low-voltage charging system. Refer to DCDC1 Low-voltage Charging System Fault
Next step
– No:
Step 4:Check the power and grounding harness of the cockpit domain controller.
Step 5:Rewrite the configuration code, reload the software, and upgrade the cockpit domain controller.
Step 6:Replace the cockpit domain controller. Refer to Replacement Of Cockpit Domain Controller
Step 7:Clear and confirm DTC.
5.2.4.7 CDC Communication Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
1. The message 0x18FF0351x sent by CMS-L cannot
be detected for 10 consecutive times on the CANFD5
Lost communication
U018787
network(10 *Cycle)(Cycle = 50ms)
with CMS
2.Within the diagnostic voltage range
1.The message 0x18FF035Cx sent by CMS-R cannot
be detected for 10 consecutive times on the CANFD5
Lost communication
U018887
network (10 *Cycle)(Cycle = 50ms)
with CMS_R
2.Within the diagnostic voltage range
1.The message 0x18FF0028x sent by AR_HUD cannot
be detected for 10 consecutive times on the CANFD1
Lost communication
U01B287
network (10 *Cycle)(Cycle = 100ms)
with AR_HUD
2.Within the diagnostic voltage range
1.Wiring harness
1.The message 0x18FF0C21x sent by BDCU cannot be
2. Cockpit
detected for 10 consecutive times on the CANFD5
Lost communication
domain controller
U014087
network (10 *Cycle)(Cycle = 200ms)
with BDCU
2.Within the diagnostic voltage range
1.The message 0x18FDA54Fx sent by DCM cannot be
detected for 10 consecutive times on the CANFD5
Lost Communication
U019987
network(10 *Cycle)(Cycle = 100ms)
with DCM
2.Within the diagnostic voltage range
No relevant node message was found.
Lost Communication
U019887
2.Within the diagnostic voltage range
with T-BOX
1.The message 0x18FE1250x sent by EPB cannot be
detected for 10 second on the CANFD5 network
Lost Communication
U012287
（Cycle = 100ms）
with VDC
2.Within the diagnostic voltage range
Description
DTC Trigger Conditions
Faulty Part
DTC Code
1.The message 0x0CFE5A2FX sent by ECAS cannot
be detected for 10 consecutive times on the CANFD5
Lost Communication
U013287
network (10 *Cycle)(Cycle = 100ms)
with ECAS
2.Within the diagnostic voltage range
No relevant node message was found.
Lost communication
U019A87
2.Within the diagnostic voltage range
with VTDR
1.The message 0x1CECFF50x sent by EPB cannot be
detected for 5 consecutive times on the CANFD5
Lost Communication
U012887
network (Cycle = 1000ms)
with EPB
2.Within the diagnostic voltage range
1.The message 0x18FE4F0Bx sent by EBS cannot be
detected for 10 consecutive times on the CANFD5
missing EBS
U012187
network (10 *Cycle)(Cycle =100ms))
2.Within the diagnostic voltage range
1.The message 0x18FEF433x sent by TPMS_f cannot
be detected for 10 consecutive times on the CANFD5
Lost communication
U012787
network (10 *Cycle)(Cycle = 500ms)
with TPMS
2.Within the diagnostic voltage range
1.The message 0x18FF0B19x sent by AC cannot be
detected for 10 consecutive times on the CANFD5
Lost communication
U016487
network(10 *Cycle)(Cycle = 100ms)
with A/C
2.Within the diagnostic voltage range
1.The message 0x18FF0E57xx sent by AVAS cannot
be detected for 10 consecutive times on the CANFD5
Lost communication
U014187
network(10 *Cycle)(Cycle = 100ms)
with AVAS
2.Within the diagnostic voltage range
1.The message 0x18FF3531x sent by ADCU cannot be
detected for 10 consecutive times on the CANFD5
Lost communication
U015787
network(10 *Cycle)(Cycle = 100ms)
with ADCU
2.Within the diagnostic voltage range
1.The message 0x18FF4B31x sent by CAMF cannot be
detected for 10 consecutive times on the CANFD5
Lost communication
U015788
network(10 *Cycle)(Cycle = 100ms)
with CAMF
2.Within the diagnostic voltage range
The message 0x18FF4361x sent by MMWR_L1 cannot
be detected for 10 consecutive times on the CANFD5
Lost communication
U026687
network（10 *Cycle）（Cycle = 100ms）
with MMWR_L1
2.Within the diagnostic voltage range
Description
DTC Trigger Conditions
Faulty Part
DTC Code
The message 0x18FF5C5Fx sent by USS cannot be
detected for 10 consecutive times on the CANFD5
Lost communication
U026487
network（10 *Cycle）（Cycle = 100ms）
with USS
2.Within the diagnostic voltage range
1.Message 0x18FF0513x sent by EPS cannot be
detected continuously for 500ms on CANFD5 network
missing EPS
U013087
(Cycle = 10ms)
2.Within the diagnostic voltage range
Detecting CANFD5 bus communication faults (with
U007788
CANFD5 BusOff
more than 5 times of busoff recovery)
Detecting communication faults on the IntCANFD1 bus
U008588
IntCANFD1 BusOff
(with more than 5 times of busoff recovery)
CANFD5 network
Detecting that CANFD5 network management is in a
management is in a
U220400
limp home state
limp home state.
2.Circuit Diagram
T-gateway A
INTCANFD
INTCANFD
B76-13
B76-6
INTCANFD1_H IH01c
INTCANFD1_H IH01b
INTCANFD1_L IL01c
INTCANFD1_L IL01a
GWCANFD5_H TH05
GWCANFD5_L TL05
INTCANFD1_H IH01a
INTCANFD1_L IL01a
B75-18
B75-19
B75-2
B75-3
120Ω
120Ω
Cockpit domain Controller
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check the IntCANFD bus communication harness. Refer to Inspection Of IntCANFD Bus Network Integrity
Step 4:Check the CANFD5 BusOff communication harness. Refer to Inspection Of CANFD5 BusOff Network Integrity
Step 5:Rewrite the configuration code, reload the software, and upgrade the cockpit domain controller.
Step 6:Replace the cockpit domain controller. Refer to Replacement Of Cockpit Domain Controller
Step 7:Clear and confirm DTC.
5.2.4.8 Internal Fault Of CDC
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
U238084
SQI insufficient
SQI below the threshold occurs 20 times within 60s
1. Cockpit
The Ethernet MDIO
Unable to read SWITCH chip register
domain controller
U238208
chip is abnormal
2. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Rewrite the configuration code, reload the software, and upgrade the cockpit domain controller.
Step 4:Replace the cockpit domain controller. Refer to Replacement Of Cockpit Domain Controller
Step 5:Clear and confirm DTC.
5.2.4.9 CDC LIN Communication Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
1.Wiring harness
There is no
2. Ambient light
Detecting LIN bus communication faults
U120487
communication on the
3. Clock spring
IntLIN1 network.
4. Cockpit
domain controller
2.Circuit Diagram
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check the LIN communication harness between the cabin domain controller and the ambient light and clock spring.
Step 4:Rewrite the configuration code, reload the software, and upgrade the cockpit domain controller.
Step 5:Replace the cockpit domain controller. Refer to Replacement Of Cockpit Domain Controller
Step 6:Clear and confirm DTC.
5.2.4.10 CDC Ethernet Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
If the current link status of the Ethernet port is not link-
Up, the counter increases by 1. If the current link status
Unexpected Ethernet
U238108
is not link-Up for 10 consecutive times, a fault is
connection loss
1.Wiring harness
reported
2. Cockpit
Ethernet signal line
-
domain controller
U230C12
short circuit
Ethernet signal line
-
U230C13
open circuit
2.Circuit Diagram
AVM-LEFT
DMS CAMERA
IVI screen
Radio antenna
Glass antenna
Camera
1080p30
1920x1080p30
amplifier
12V@200mA
12V@200mA
AVM-RIGHT
AVM-FRONT
Camera
Camera
DAB aerial
CAR screen
1920x1080p30
1920x1080p30
12V@200mA
12V@200mA
DMS camera
Left camera
Right camera
Front view camera
FM/AM antenna
Radio antenna
CAR screen
DAB aerial
IVI screen
Cockpit domain controller
ETH+
ETH-
CDC1000TGigabit network
CDC1000TGigabit network
Right Category V camera
Left Category V camera
Reverse camera
OMS camera
USB2.0
USB3
IPC
Camera_GND
Self-timer camera power
CMS_LEFT_V_Camera
Camera_PWR
CDC1000T
supply and signal
Camera_VIDEO
1920x1080p30
Gigabit network
Camera_GND
1080p30
12V@200mA
SHIELD_GND
12V@200mA
TypeC
CMS_RIGHT_V_Camera
LVDS-
USB2+
USB2_GND
LVDS+
USB2-
USB2_VBUS
1920x1080p30
SHIELD_GND
USB2_SHIELD
12V@200mA
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check the Ethernet harness of the cockpit domain controller.
Step 4:Rewrite the configuration code, reload the software, and upgrade the cockpit domain controller.
Step 5:Replace the cockpit domain controller. Refer to Replacement Of Cockpit Domain Controller
Step 6:Clear and confirm DTC.
5.2.4.11 IPC Screen Power Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
1. Main battery
IP display ICD
Voltage>32V, t > 500ms
B111717
2. Low voltage
overvoltage
charging system
IP displays ICD low
3. Wiring harness
Voltage>9V, t > 500ms
B111716
voltage
4.IPC screen
2.Circuit Diagram
Smart Junction Box - Body
Smart Junction Box - Chassis
Battery
B09-5
B01-1
IPC panel B+ P305b
B12-1
IPC panel power
Total body power
supply B+ L22
B+ P305
IPC panel B+ P305b
IIPC panel power B+ P305a
12
I1_B_IP
I1_IP_B
12
IP03-1
Ipc screen
120Ω
IP03-4
IP03-8
IP03-5
IP03-6
Ground
CDC- Wake up 12V
Z13a
power supply R230
GWCANFD4_L TL04
GWCANFD4_H TL04
Ground
Z13
G15
31
I1_IP_B
31
I1_B_IP
IIPC wakes up power
supply 12V R230
GWCANFD4
Cockpit domain controller 2
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check if there are any other module power fault codes besides IPC?
Check the main battery. Refer to Inspection Of The Main Battery
– Yes:
Check the low-voltage charging system. Refer to DCDC1 Low-voltage Charging System Fault
Next step
– No:
Step 4:Check the IPC screen power and grounding harness.
Step 5:Rewrite the configuration code, reload the software, and upgrade the IPC screen.
Step 6:Replace the IPC screen. Refer to Replacement Of IPC Screen
Step 7:Clear and confirm DTC.
5.2.4.12 IPC Screen Communication Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
U007688
CANFD4 BusOff
Bus shutdown fault
BDCU node 0x18FE4021x has been continuously lost
missing BDCU
U014087
for more than 10 cycles (Cycle<100ms, take 500ms)
VDC Node 0x18011727x has been continuously lost for
missing VDC
U012287
more than 10 cysles(1000ms)
CDCU Node 0x18FF5A41x has been continuously lost
1.Wiring harness
missing CDCU
U015687
for more than 10 cysles(2000ms)
2. IPC screen
EBS Node 0x18F0010BX has been continuously lost
missing EBS
U012187
for more than 10 cysles(1000ms)
EPS(EHPS1) Node 0x18FF0513X has been
missing EPS
continuously lost for more than 50 cysles
U013087
(Cycle<100ms, take 500ms)
2.Circuit Diagram
Smart Junction Box - Body
Smart Junction Box - Chassis
Battery
B09-5
B01-1
IPC panel B+ P305b
B12-1
IPC panel power
Total body power
supply B+ L22
B+ P305
IPC panel B+ P305b
IIPC panel power B+ P305a
12
I1_B_IP
I1_IP_B
12
IP03-1
Ipc screen
120Ω
IP03-4
IP03-8
IP03-5
IP03-6
Ground
CDC- Wake up 12V
Z13a
power supply R230
GWCANFD4_L TL04
GWCANFD4_H TL04
Ground
Z13
G15
31
I1_IP_B
31
I1_B_IP
IIPC wakes up power
supply 12V R230
GWCANFD4
Cockpit domain controller 2
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check the CANFD4 BusOff communication harness. Refer to Inspection of CANFD4 BusOff Network integrity
Step 4:Rewrite the configuration code, reload the software, and upgrade the IPC screen.
Step 5:Replace the IPC screen. Refer to Replacement Of IPC Screen
Step 6:Clear and confirm DTC.
5.2.4.13 IPC Screen Internal Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
Test dimming module short circuit, open circuit or over
IP Display Dimming
B260009
module status
current more than 150ms
IPC Display not
After power on for 10s received a value of 0
B260103
received backlight
value
1. IPC screen
IPC Display TFT
B260209
TFT fail for more than 150ms
failure
ROHM IC fail Pin fault and MCU dectect System fail
IPC Display OSD
B260404
signal Enabling for 170ms
failure
2. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Rewrite the configuration code, reload the software, and upgrade the IPC screen.
Step 4:Replace the IPC screen. Refer to Replacement Of IPC Screen
Step 5:Clear and confirm DTC.
5.2.4.14 IPC Screen LVDS Signal Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
1.Wiring harness
IPC Display video
2. Cockpit
LOCK signal connect fail more than 5000ms
B260303
signal connect failure
domain controller
3. IPC screen
2. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check the video signal harness between the cockpit domain controller and the IPC screen.
Step 4:Rewrite the configuration code, reload the software, and upgrade the IPC screen.
Step 5:Replace the IPC screen. Refer to Replacement Of IPC Screen
Step 6:Clear and confirm DTC.
5.2.4.15 HUD Power Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
High voltage of HUD
Voltage > 32V, t > 500ms
1. Main battery
B111717
2. Low voltage
charging system
Low Voltage of HUD
Voltage < 18V, t > 30s
B111716
3. Wiring harness
4.HUD
2.Circuit Diagram
Smart Junction
Smart Junction Box - Body
Box - Chassis
HUD Power KL30- Delay 15s
Battery
power off P308
B12-1
B01-1
B09-8
B12-1
KL15 Power
supply + P102
Total body power supply
B+ L22
17
I3_B_IP
30
I1_B_IP
17
I3_IP_B
30
I1_IP_B
HUD power KL30
supply + P102c
KL15 Power
P308
IP13-3
IP13-2
HUD
120Ω
IP13-1
IP13-4
IP13-5
Ground Z13d
INTCANFD1_H IL01b
INTCANFD1_H IH01b
Ground Z13
13
14
I2_IP_B
I2_IP_B
G15
13
14
I2_B_IP
I2_B_IP
INTCANFD1_H IL01a
INTCANFD1_H IH01a
B75-18
B75-2
Cockpit domain controller 2
3. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check if there are any other module power fault codes besides HUD?
Check the main battery. Refer to Inspection Of The Main Battery
– Yes:
Check the low-voltage charging system. Refer to DCDC1 Low-voltage Charging System Fault
Next step
– No:
Step 4:Check the HUD power and grounding harness.
Step 5:HUD rewrite configuration code, software reload, upgrade.
Step 6:Replace the HUD. Refer to Replacement Of AR-HUD
Step 7:Clear and confirm DTC.
5.2.4.16 HUD Communication Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
0x18FF0741x, Node continuously lost for more than 10
cycles (1s);0x18FEC1EEx node continuously lost for
Communication
more than 5000ms;0x18FF6441x, Node continuously
U015687
timeout with CDCU
lost for more than 10 cycles (2s);Any node that meets
the requirements is sufficient
0x18FE4021x Nodes are continuously lost for more
Communication
U014087
than 500ms
timeout with BDCU
0x18011727x,0x18FEF100x Nodes are continuously
Communication
U012287
lost for more than 10 cycles (1 second)
timeout with VDC
0x18FF3531x 0x18FF4031x 0x18FF4731x
0x18FF4B31x 0x18FF4131x, node continuously lost for
1.Wiring harness
more than 10 cycles (1s);
Communication
2.HUD
U015788
0x0CF02FA0x,0x0CFF552Ax, node continuously lost
timeout with CAMF
for more than 500ms, any node that meets the
requirements is sufficient
0x18FEE6EEx node continuously lost for more than
Communication
U019887
timeout with TGW
5000ms
U008588
CANFD bus closed
Record one BUS off for 8 consecutive time
0x18FF4263x, node lost continuously for more than 10
Communication
U026887
cycles (1s)
timeout with MMWR_R
0x18FF4361x, Node continuously lost for more than 10
Communication
U026687
cycles (1s))
timeout with MMWR_L
2.Circuit Diagram
Smart Junction
Smart Junction Box - Body
Box - Chassis
HUD Power KL30- Delay 15s
Battery
power off P308
B12-1
B01-1
B09-8
B12-1
KL15 Power
supply + P102
Total body power supply
B+ L22
17
I3_B_IP
30
I1_B_IP
17
I3_IP_B
30
I1_IP_B
HUD power KL30
supply + P102c
KL15 Power
P308
IP13-3
IP13-2
HUD
120Ω
IP13-1
IP13-4
IP13-5
Ground Z13d
INTCANFD1_H IL01b
INTCANFD1_H IH01b
Ground Z13
13
14
I2_IP_B
I2_IP_B
G15
13
14
I2_B_IP
I2_B_IP
INTCANFD1_H IL01a
INTCANFD1_H IH01a
B75-18
B75-2
Cockpit domain controller 2
3. Diagnostic Steps
Step 1:DTC confirmation. Refer to DTC confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Check the IntCANFD bus communication harness. Refer to Inspection Of IntCANFD Bus Network Integrity
Step 4:HUD rewrite configuration code, software reload, upgrade.
Step 5:Replace the HUD. Refer to Replacement Of AR-HUD
Step 6:Clear and confirm DTC.
5.2.4.17 HUD Internal Fault
1.DTC Monitoring Logic
Description
DTC Trigger Conditions
Faulty Part
DTC Code
The temperature protection value exceeds 102 ° C and
High temperature
B2A0001
1.HUD
lasts for more than 10 sampling cycles
malfunction
2. Diagnostic Steps
Step 1:DTC Confirmation. Refer to DTC Confirmation
Step 2:Routine Inspection. Refer to Routine Inspection
Step 3:Move the vehicle to a normal temperature environment and let it sit for a while.
Step 4:HUD rewrite configuration code, software reload, upgrade.
Step 5:Replace the HUD. Refer to Replacement Of AR-HUD
Step 6:Clear and confirm DTC.
5.2.4.18 IntInspection Of CANFD1 Bus Network Integrity
Step 1
Check the terminal resistance of IntCANFD1 bus.
A.
Perform vehicle power on operation.
B.
Do not disconnect the wiring harness connector. Use a
multimeter to measure each terminal according to the
following table:
Measuring Terminals
Standard Value
IntCANFD1 (H) and
Resistance:55 - 63 Ω
IntCANFD1 (L)
C.
Confirm the measured values meet the standards.
Up to step 6.
Yes
Step 2
Check the IntCANFD1 bus voltage.
A.
Perform vehicle power on operation.
B.
Do not disconnect the wiring harness connector. Use a
multimeter to measure each terminal according to the
following table:
Measuring Terminals
Standard Value
IntCANFD1 (H) and
Voltage:2.5 - 3.5 V
vehicle grounding
IntCANFD1 (L) and
Voltage:1.5 - 2.5 V
vehicle grounding
C.
Confirm the measured values meet the standards.
Up to step 6.
Yes
Step 3
Check the bus voltage of each module.
A.
Perform vehicle power on operation.
B.
Measure the bus voltage of each module in sequence
(do not disconnect the harness connectors).
Measuring Terminals
Standard Value
IntCANFD1 (H) and
Voltage:2.5 - 3.5 V
vehicle grounding
IntCANFD1 (L) and
Voltage:1.5 - 2.5 V
vehicle grounding
C.
Confirm the bus voltage of each module meets the
standard.
Up to step 6.
Yes
Step 4
Check the power grounding of the communication loss module.
A.
Check the power grounding of the communication loss
module.
B.
Confirm if the module power grounding is normal.
Repair or replace the wiring harness.
Yes
Step 5
Replace the communication loss module.
A.
Replace the communication loss module.
B.
Confirm if the system is functioning properly.
Yes
The system is functioning properly.
Step 6
Check the IntCANFD1 bus harness.
A.
Perform vehicle power-off operation.
B.
Disconnect all module harness connectors on the
IntCANFD1 bus.
C.
Measure the IntCANFD1 bus resistance between each
module and the cabin domain controller in sequence to
see if it is normal.
Standard resistance:less than 1 Ω
D.
Measure the resistance of IntCANFD1 bus to ground is
normal.
Standard resistance:10K Ω or higher
E.
Perform vehicle power on operation.
F.
Measure the IntCANFD1 bus is short circuited to the
power supply.
Standard voltage:0 V
G.
Confirm the measured values meet the standards.
Repair or replace the IntCANFD1 bus.
Yes
Disconnect the modules on the IntCANFD1 bus in sequence and observe the bus communication voltage/
Step 7
resistance.
Disconnect the modules on the IntCANFD1 bus in sequence
and observe the bus communication voltage/resistance
returns to normal. If it returns to normal, determine that the
disconnected module is faulty.
5.2.5 Dismantling and Installation
5.2.5.1 Replacement of IVI Screen
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4

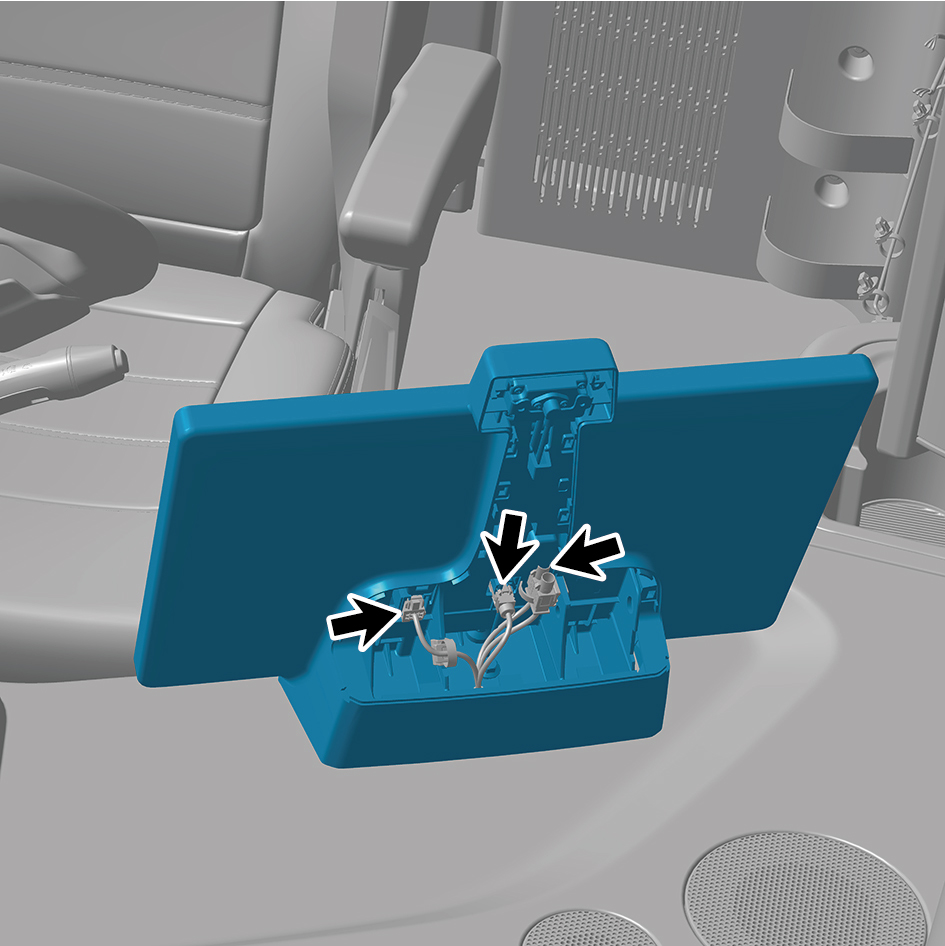

Disconnect 3 harness connectors of the IVI screen.
5

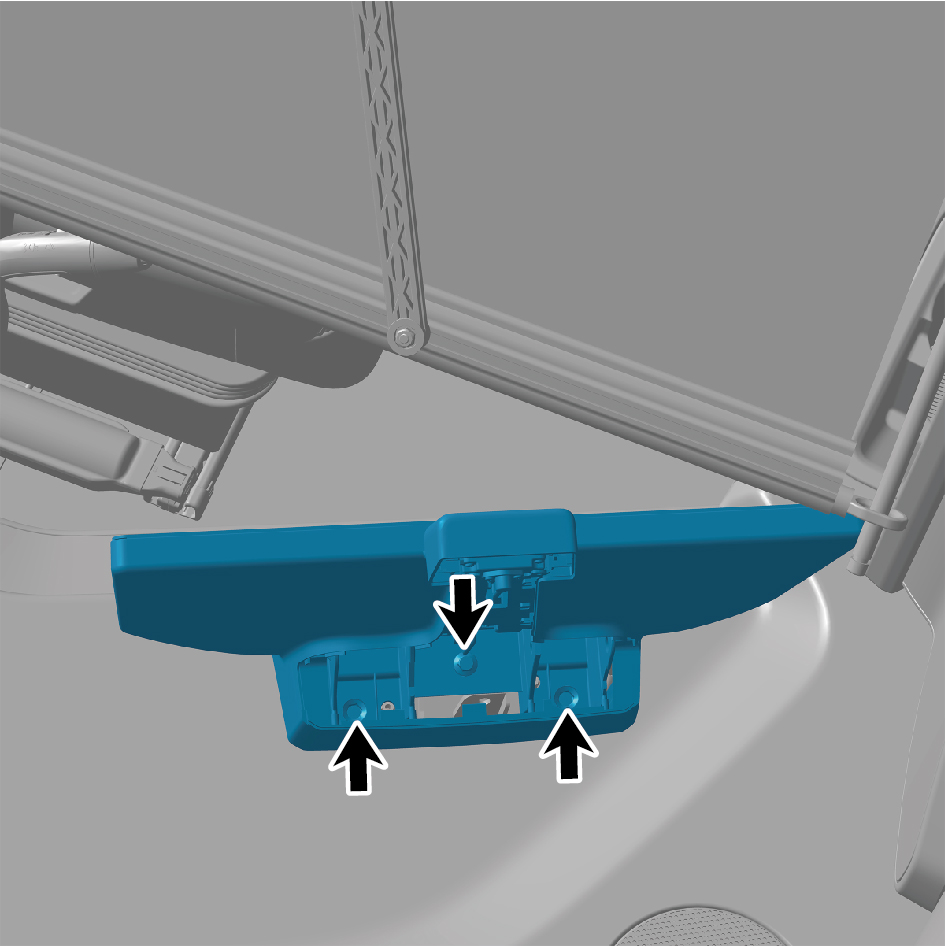

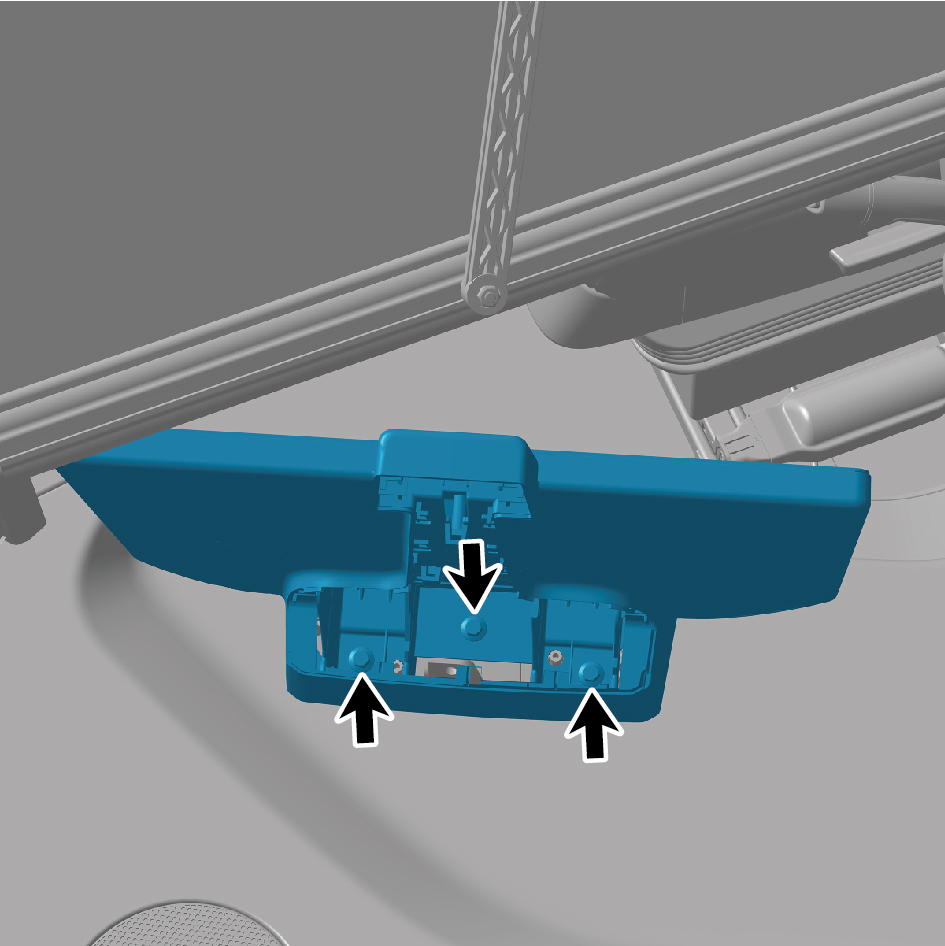

Remove 3 fixing bolt of the IVI screen.
6
Remove the IVI screen.
Installation Procedures
1
Move the IVI screen to the mounting position.
2
Install 3 fixing bolt of the IVI screen.
Torque:(6.5 ft-lb +/- .75 ft-lb) ft-lb
3
Connect 3 harness connectors of the IVI screen.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Connect the battery negative cable.
5
Close the front flip cover plate.
6
Close the door.
5.2.5.2 Replacement of IPC Screen
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP brim assembly.
5
Remove 2 fixing screws of the IPC screen.
6

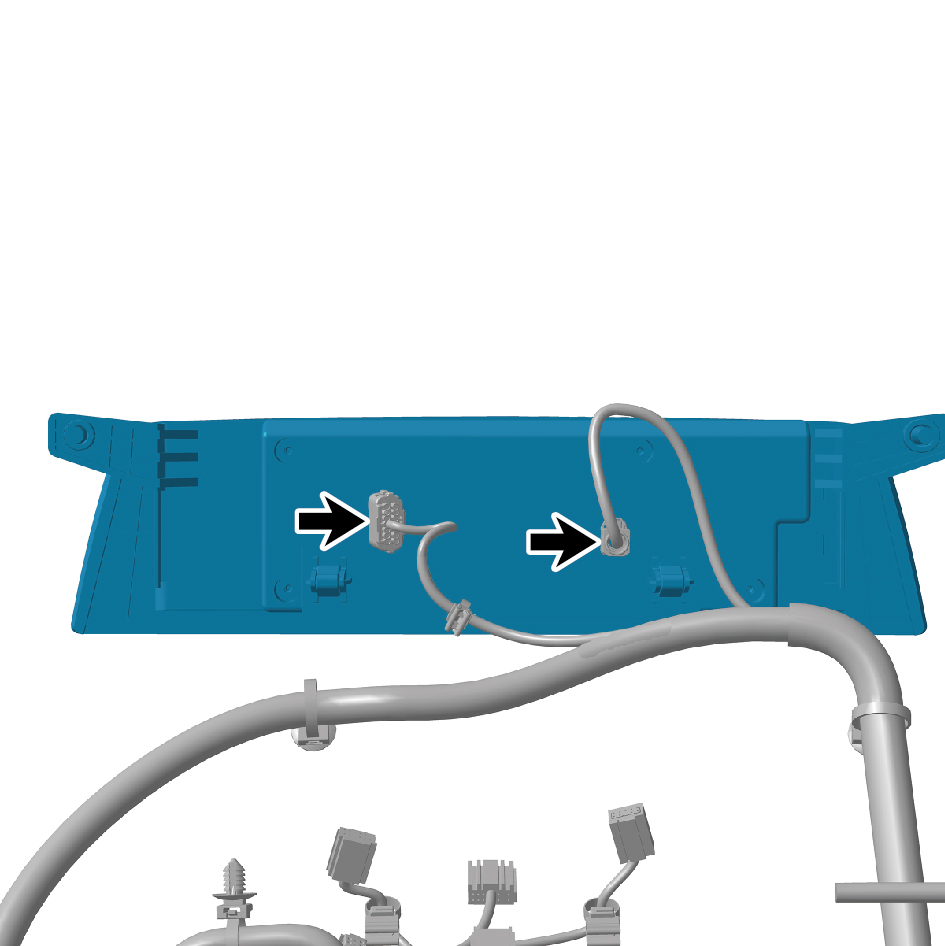

Disconnect 2 harness connectors of the IPC screen.
7
Remove the IPC screen.
Installation Procedures
1
Move the IPC screen to the mounting position.
2
Connect 2 harness connectors of the IPC screen.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
3
Install 2 fixing screws of the IPC screen.
4
Install the IP brim assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
caution
After replacing the IPC, it is necessary to connect a
scan tool for flashing.
5.2.5.3 Replacement of CAR Screen
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the plug cover on the rear shell of the CAR
screen.
5

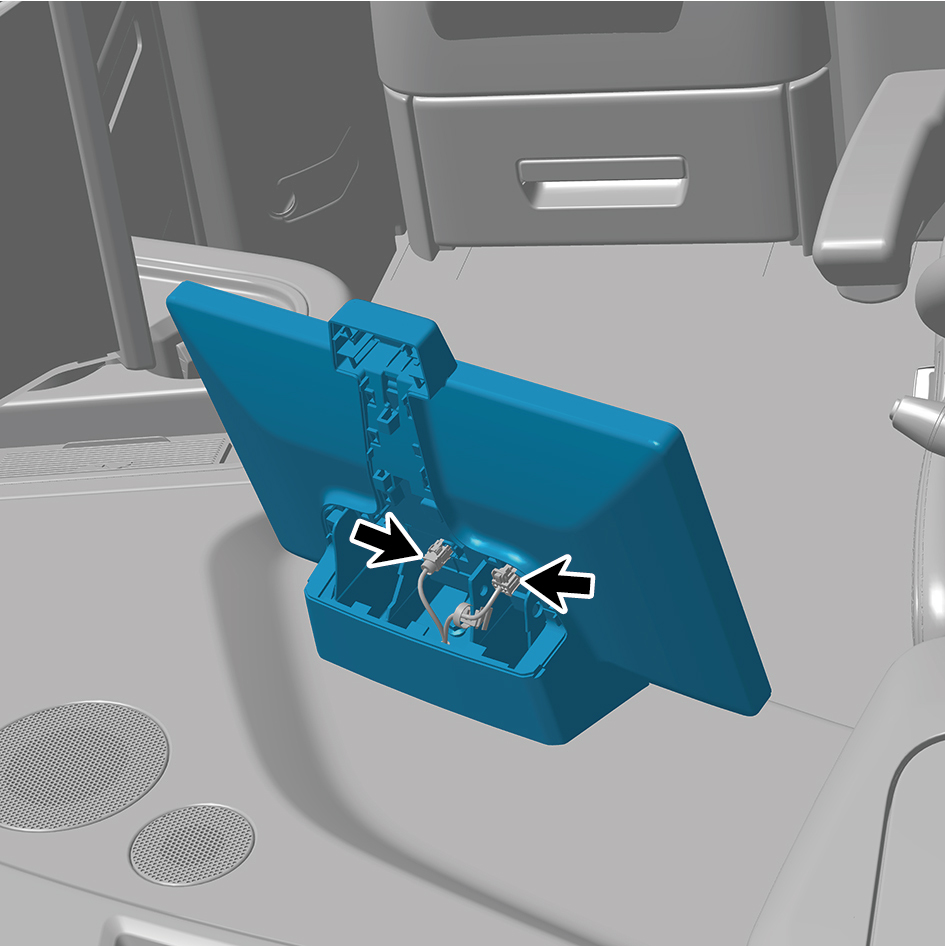

Disconnect 2 harness connectors of the CAR screen.
6
Disengage 1 clip of the IP harness.
7
Remove 1 fixing bolt of the CAR screen.
8
Remove the CAR screen.
Installation Procedures
1
Move the CAR screen to the mounting position.
2
Install 1 fixing bolt of the CAR screen.
Torque:(6.5 ft-lb +/- .75 ft-lb) ft-lb
3
Install 1 clip of the IP harness.
4
Connect 2 harness connectors of the CAR screen.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
5
Install the plug cover on the rear shell of the CAR screen.
6
Connect the battery negative cable.
7
Close the front flip cover plate.
8
Close the door.
5.2.5.4 Replacement of CDCU
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP left upper trim panel assembly.
5
Remove the front USB interface.
6
Remove the IP left access cover plate assembly.
7
Remove the left switch panel assembly.
8
Remove the left switch panel lower trim panel assembly.
9
Remove the IP left lower trim panel assembly.
10
Remove the VTDR.
11
Remove the VTDR bracket.
12
Remove the left lower fixing bracket.
13

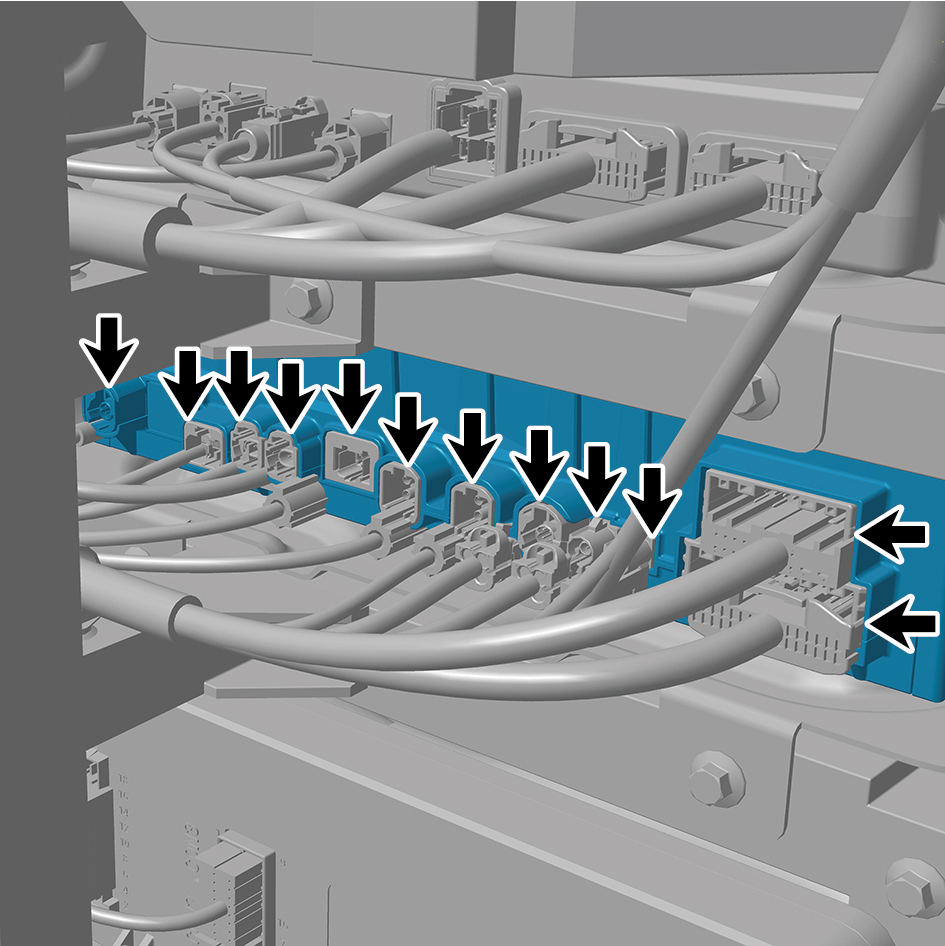

Disconnect 12 harness connectors of the CDCU.
14
Remove 4 fixing bolts of the CDCU with bracket, and
remove the CDCU with bracket.
15
Remove 4 fixing bolts of the CDCU.
16
Remove the CDCU.
Installation Procedures
1
Move the CDCU to the mounting position.
2
Install 4 fixing bolts of the CDCU.
Torque: (6.5 ft-lb +/- .75 ft-lb) ft-lb
3
Install the CDCU with bracket, and install 4 fixing bolts of
the CDCU with bracket.
4
Connect 12 harness connectors of the CDCU.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
5
Install the left lower fixing bracket.
6
Install the VTDR bracket.
7
Install the VTDR.
8
Install the IP left lower trim panel assembly.
9
Install the left switch panel lower trim panel assembly.
10
Install the left switch panel assembly.
11
Install the IP left access cover plate assembly.
12
Install the IP left upper trim panel assembly.
13
Install the front USB interface.
14
Connect the battery negative cable.
15
Close the front flip cover plate.
16
Close the door.
caution
After replacement of CDCU, it is necessary to
connect a scan tool for flashing, read and write the
VIN, vehicle model settings, and read the PN and
certificate status; If there is no certificate or if the
certificate is abnormal, read the VIN SN, UIN,
certificate request information CSR, and perform
PKI certificate flashing; After writing of the
certificate, read the certificate status and certificate
serial number (according to the latest PKI
specifications), and write the configuration word.

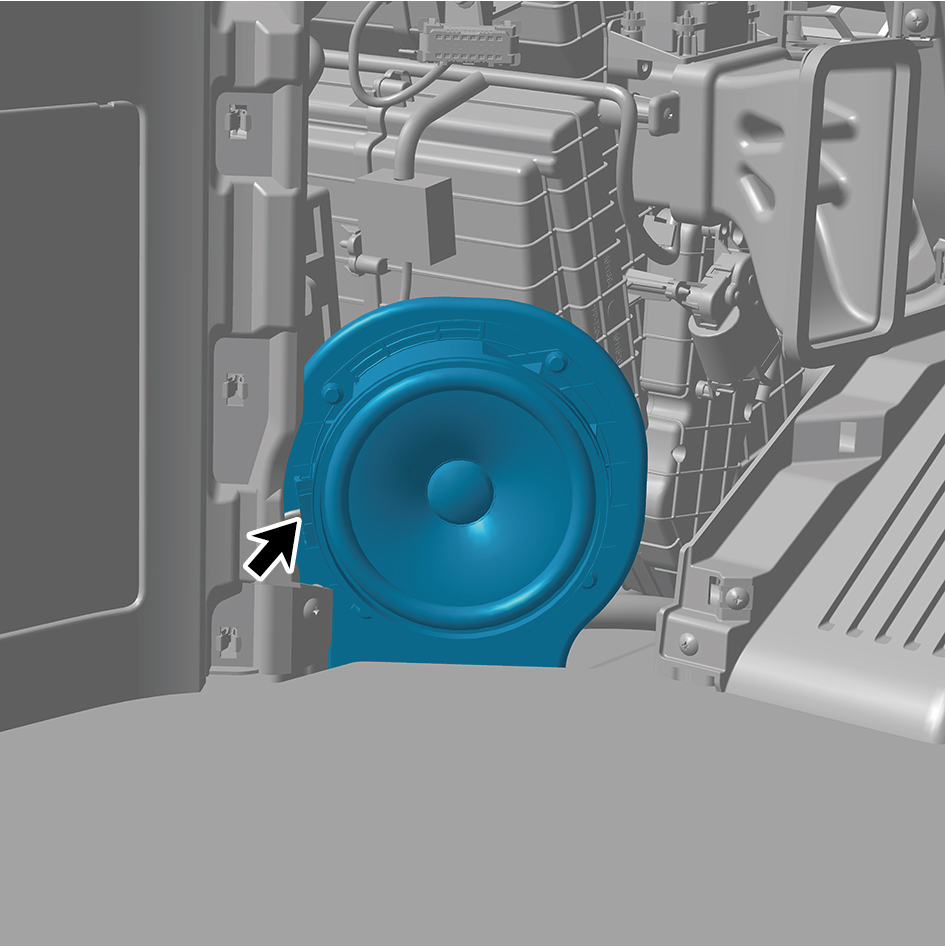

5.2.5.5 Replacement of Speaker - Low Pitch (left)
(left)
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP left access cover plate assembly.
5

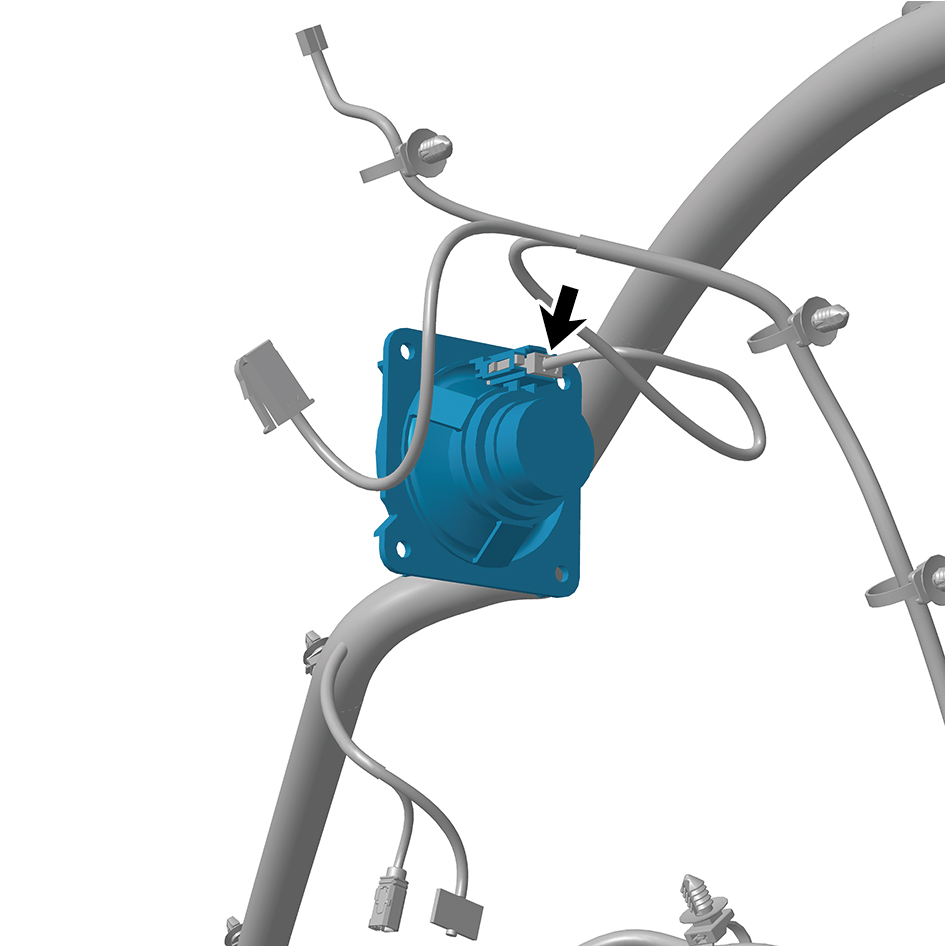

Disconnect 1 harness connector of the speaker - low pitch
(left).
6

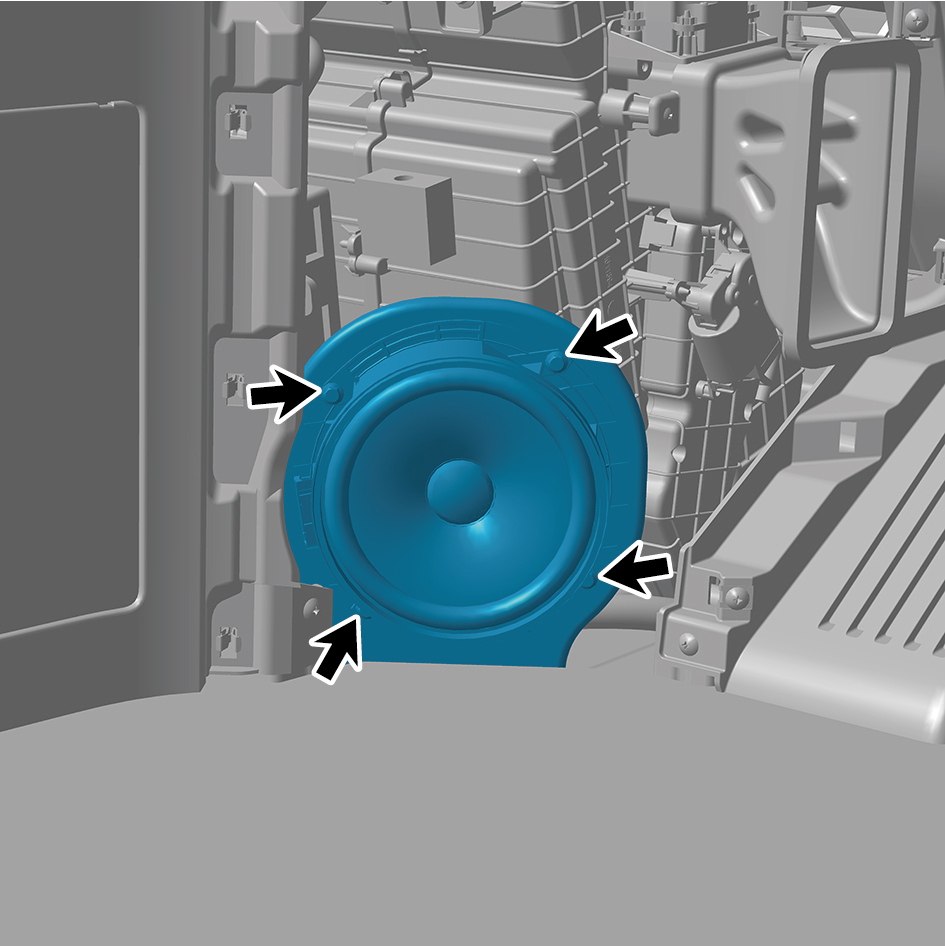

Remove 4 fixing screws of the speaker - low pitch (left).
7
Remove the speaker - low pitch (left).
Installation Procedures
1
Move the speaker - low pitch (left) to the mounting
position.
2
Install 4 fixing screws of the speaker - low pitch (left).
3
Connect 1 harness connector of the speaker - low pitch
(left).
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Install the IP left access cover plate assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
5.2.5.6 Replacement of Speaker - Low Pitch (right)
(right)
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP right access cover plate assembly.
5
Disconnect 1 harness connector of the speaker - low pitch
(right).
6
Remove 4 fixing screws of the speaker - low pitch (right).
7
Remove the speaker - low pitch (right).
Installation Procedures
1
Move the speaker - low pitch (right) to the mounting
position.
2
Install 4 fixing screws of the speaker - low pitch (right).
3
Connect 1 harness connector of the speaker - low pitch
(right).
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Install the IP right access cover plate assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.

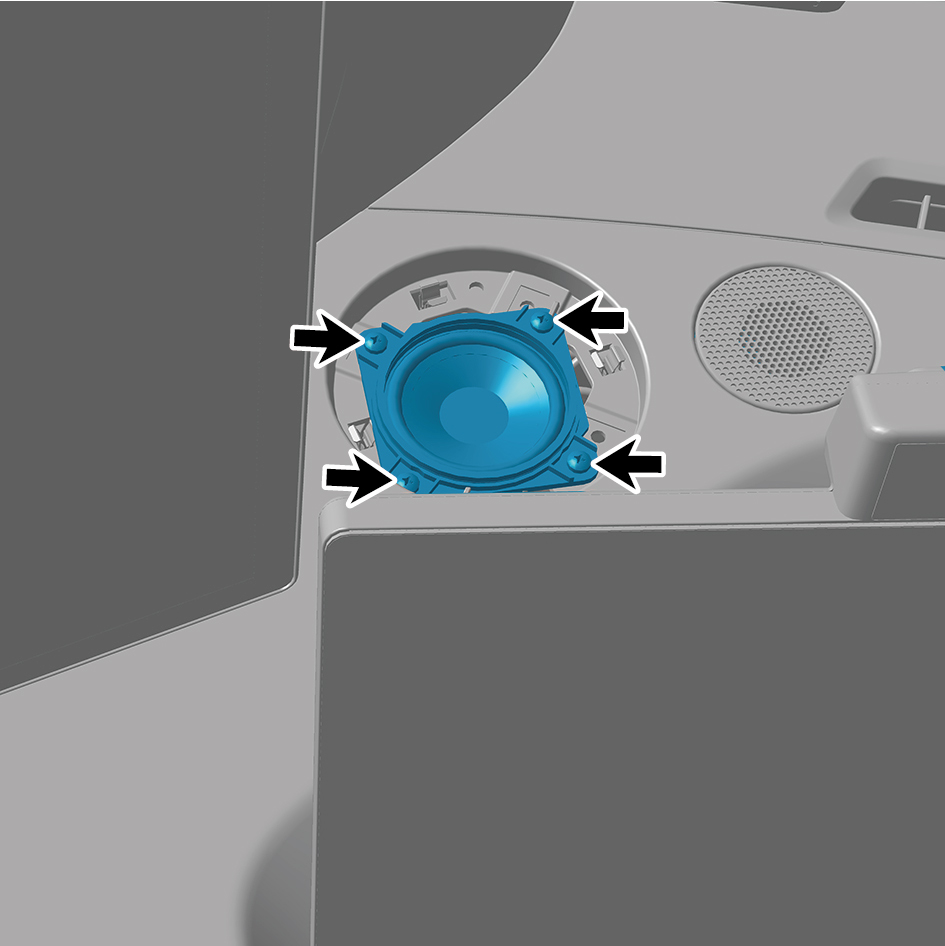

5.2.5.7 Replacement of Speaker - Medium Pitch
Pitch
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP squawker cover assembly.
5
Remove 4 fixing screws of the speaker - medium pitch.
6

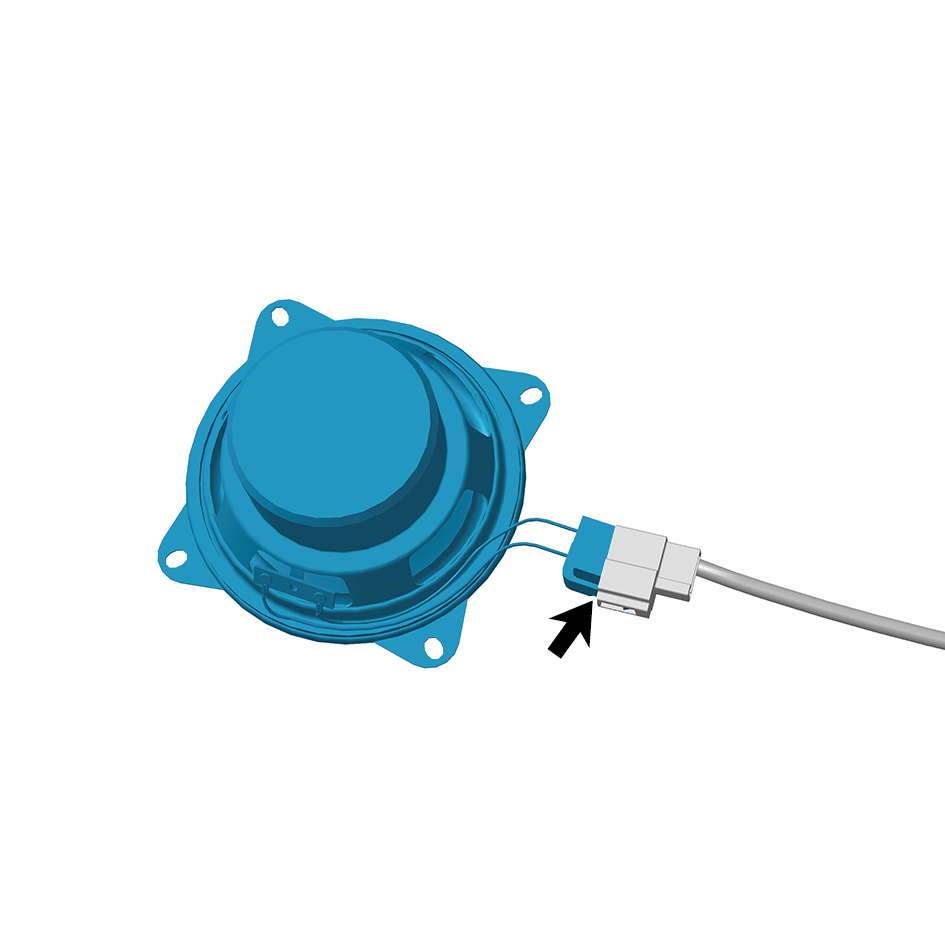

Disconnect 1 harness connector of the speaker - medium
pitch.
7
Remove the speaker - medium pitch.
Installation Procedures
1
Move the speaker - medium pitch to the mounting
position.
2
Connect 1 harness connector of the speaker - medium
pitch.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
3
Install 4 fixing screws of the speaker - medium pitch.
4
Install the IP squawker cover assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.

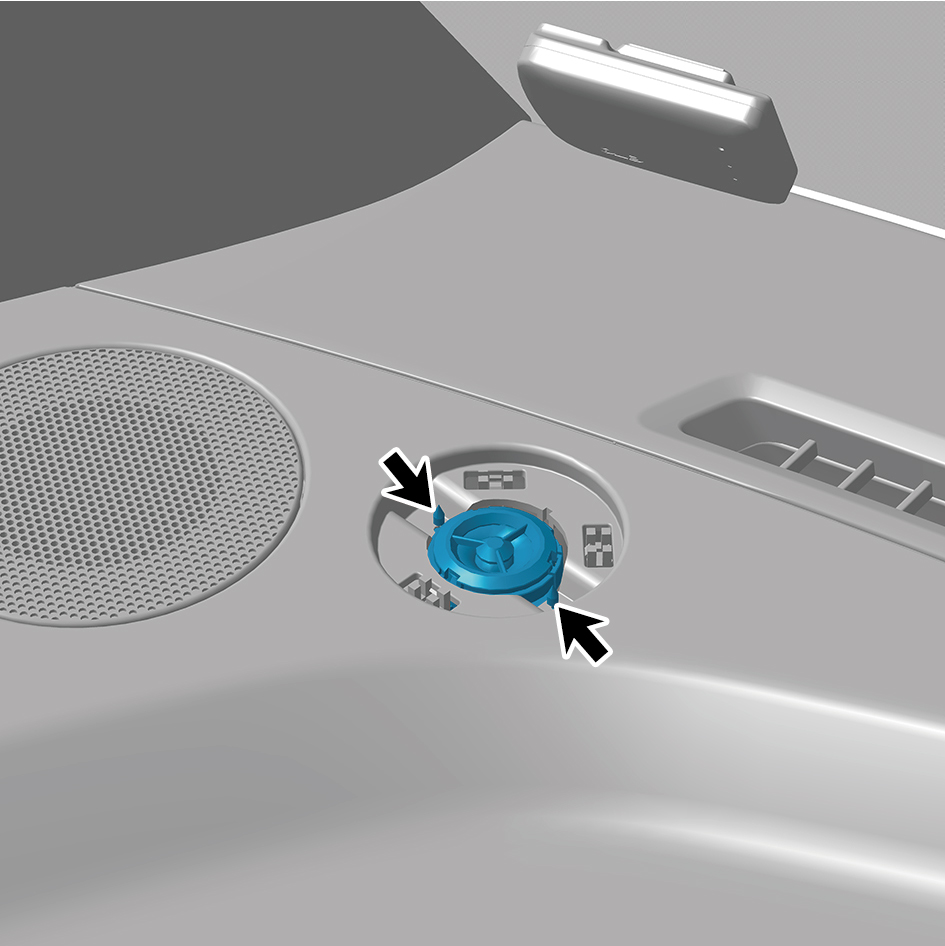

5.2.5.8 Replacement of Speaker - High Pitch
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the IP high-pitch speaker cover assembly.
5
Remove 2 fixing screws of the speaker - high pitch.
6

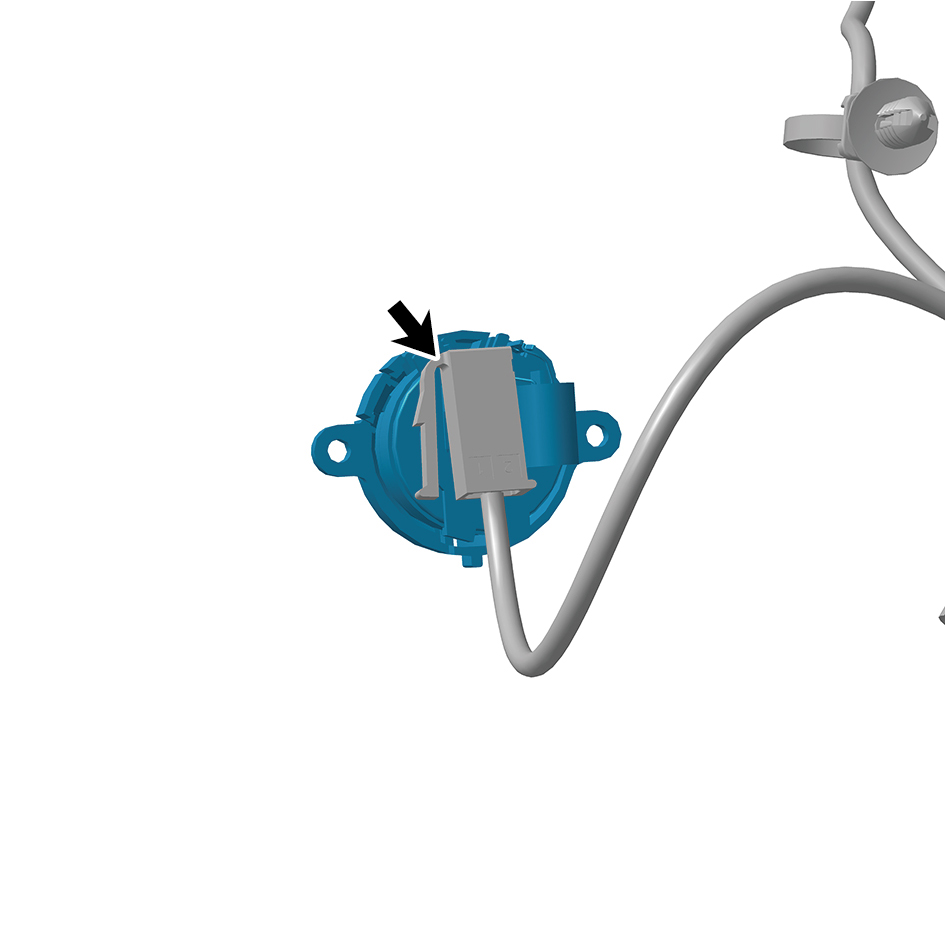

Disconnect 1 harness connector of the speaker - high
pitch.
7
Remove the speaker - high pitch.
Installation Procedures
1
Move the speaker - high pitch to the mounting position.
2
Connect 1 harness connector of the speaker - high pitch.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
3
Install 2 fixing screws of the speaker - high pitch.
4
Install the IP high-pitch speaker cover assembly.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
5.2.5.9 Replacement of Full Frequency Speaker (left)
Speaker (left)
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the left speaker cover.
5

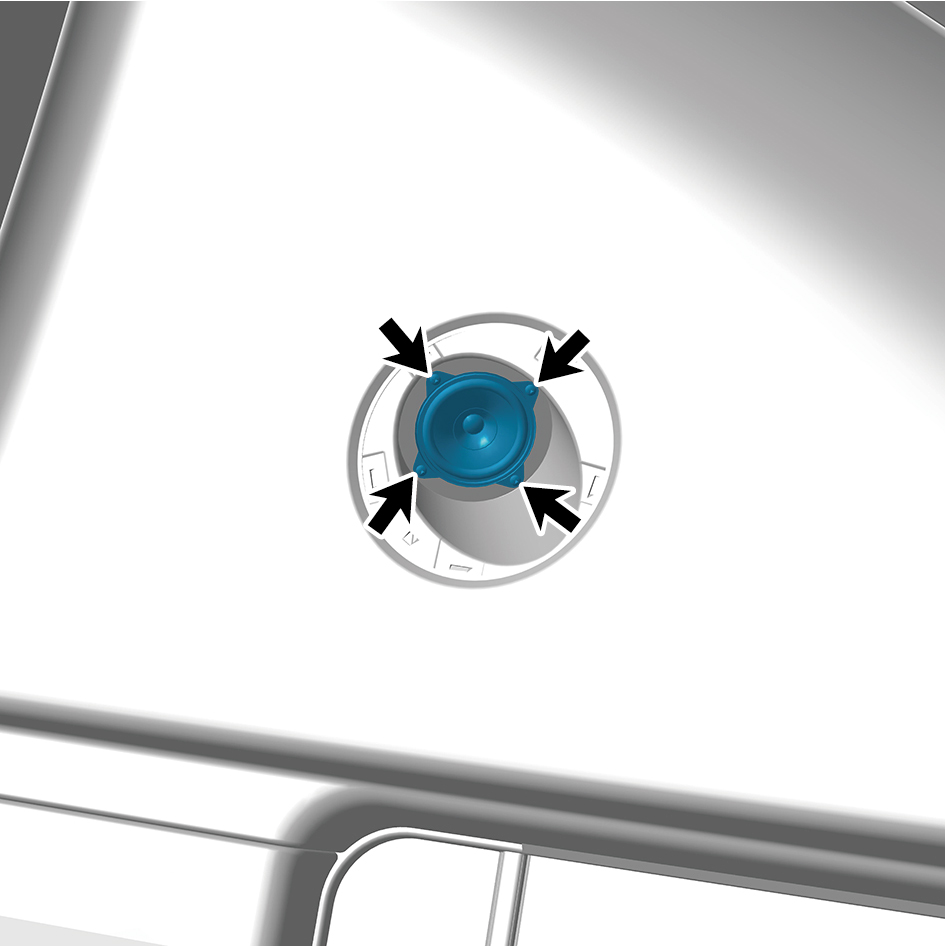

Remove 4 fixing screws of the full frequency speaker
(left).
6
Disconnect 1 harness connector of the full frequency
speaker (left).
7
Remove the full frequency speaker (left).
Installation Procedures
1
Move the full frequency speaker (left) to the mounting
position.
2
Connect 1 harness connector of the full frequency
speaker (left).
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
3
Install 4 fixing screws of the full frequency speaker (left).
4
Install the left speaker cover.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
5.2.5.10 Replacement of Full Frequency Speaker (right)
Speaker (right)
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the right speaker cover.
5
Remove 4 fixing screws of the full frequency speaker
(right).
6
Disconnect 1 harness connector of the full frequency
speaker (right).
7
Remove the full frequency speaker (right).
Installation Procedures
1
Move the full frequency speaker (right) to the mounting
position.
2
Connect 1 harness connector of the full frequency
speaker (right).
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
3
Install 4 fixing screws of the full frequency speaker (right).
4
Install the right speaker cover.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.
5.2.5.11 Replacement of Microphone Array MIC
MIC
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the left A-pillar protective plate assembly.
5
Remove the right A-pillar protective plate assembly.
6
Remove the sunshade rail assembly.
7
Remove the front camera trim cover assembly.
8
Remove the sunshade cover plate assembly.
9

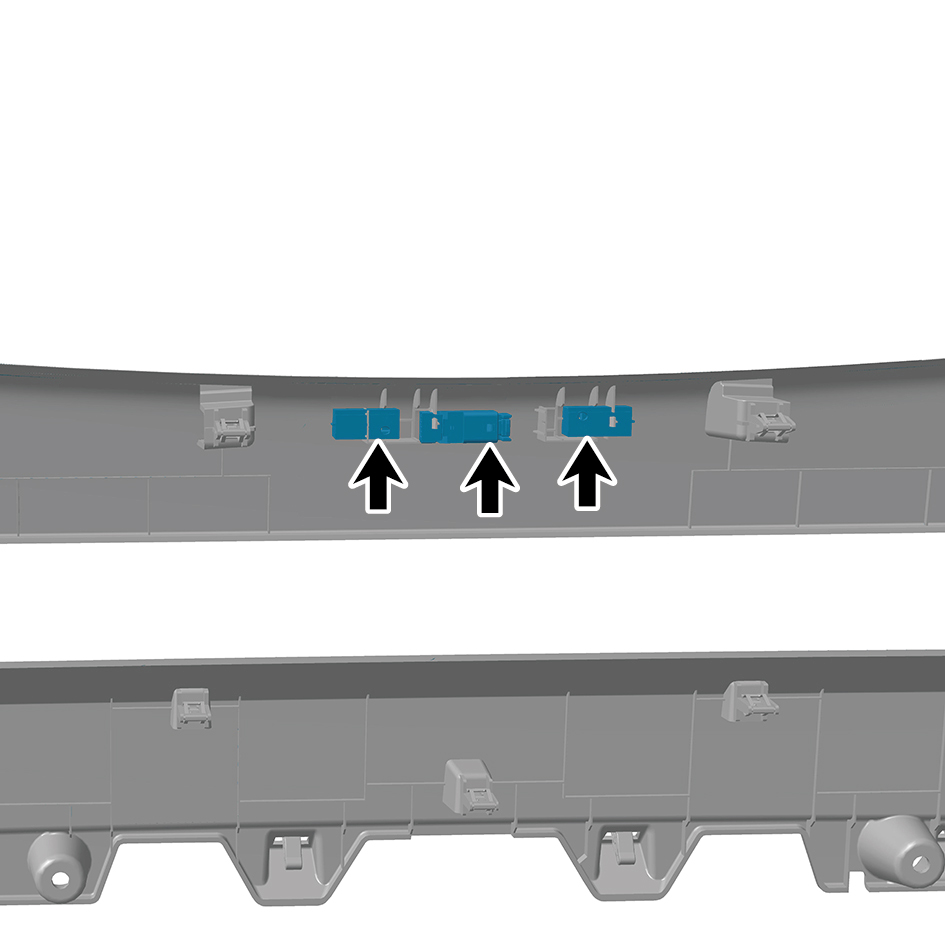

Remove the microphone array MIC.
Installation Procedures
1
Install the microphone array MIC.
2
Install the sunshade cover plate assembly.
3
Install the front camera trim cover assembly.
4
Install the sunshade rail assembly.
5
Install the right A-pillar protective plate assembly.
6
Install the left A-pillar protective plate assembly.
7
Connect the battery negative cable.
8
Close the front flip cover plate.
9
Close the door.
5.2.5.12 Replacement of AR-HUD
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4
Remove the ip brim assy.
5
Remove the ivi screen.
6
Remove the car screen.
7
Remove the ipc screen.
8
Remove the upr cover- lh camera brkt.
9
Remove the camera monitor screen.
10
Remove the base-lh display brkt.
11
Remove the upr cover- rh camera brkt.
12
Remove the camera monitor screen-rh.
13
Remove the base-rh display brkt.
14
Remove the a-pillar guard assy-lh.
15
Remove the a-pillar guard assy-rh.
16
Remove the assembly of the instrument panel trim panel
assy- lowerr lh.
17
Remove the front side enclosure assy-lh.
18
Remove the assembly of the cover assy-steering under
column guard.
19
Remove the front side enclosure assy-rh.
20
Remove the ontology assy on the dashboard.
21
Disconnect one wire harness connector of the NFC
antenna.
22
Remove 4 fixing bolts of the AR-HUD.
23

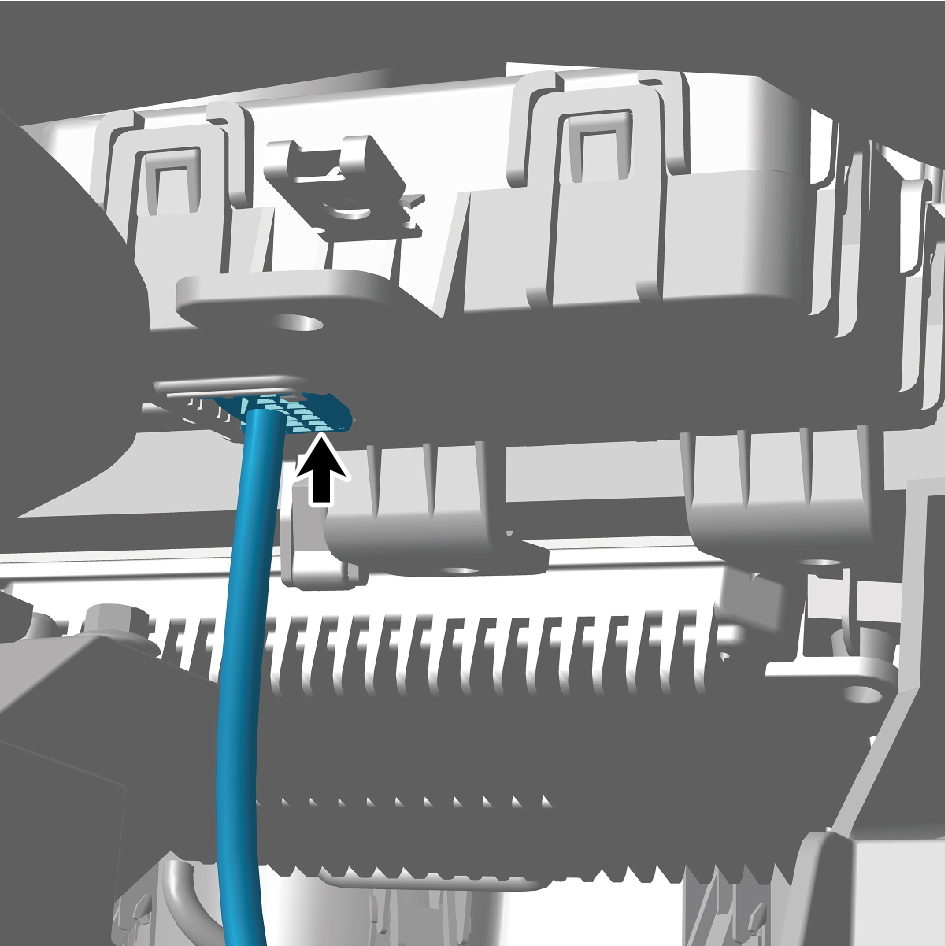

Disconnect 1 harness connector of the AR-HUD.
24
Remove the AR-HUD.
Installation Procedures
1
Move the AR-HUD to the mounting position.
2
Connect 1 harness connector of the AR-HUD.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
3
Install 4 fixing bolts of the AR-HUD.
Torque:(6.5 ft-lb +/- .75 ft-lb) ft-lb
4
Connect one wire harness connector of the NFC antenna.
5
Install the ontology assy on the dashboard.
6
Install the front side enclosure assy-rh.
7
Install the assembly of the cover assy-steering under
column guard.
8
Install the front side enclosure assy-lh.
9
Install the assembly of the instrument panel trim panel
assy- lowerr lh.
10
Install the a-pillar guard assy-rh.
11
Install the a-pillar guard assy-lh.
12
Install the base-rh display brkt.
13
Install the camera monitor screen-rh.
14
Install the upr cover- rh camera brkt.
15
Install the base-lh display brkt.
16
Install the camera monitor screen.
17
Install the upr cover- lh camera brkt.
18
Install the ipc screen.
19
Install the car screen.
20
Install the ivi screen.
21
Install the ip brim assy.
22
Connect the battery negative cable.
23
Close the front flip cover plate.
24
Close the door.
caution
After replacing the AR-HUD, it is necessary to
connect a scan tool for flashing, and write the
configuration word.
5.2.5.13 Replacement of Rear View Camera
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4

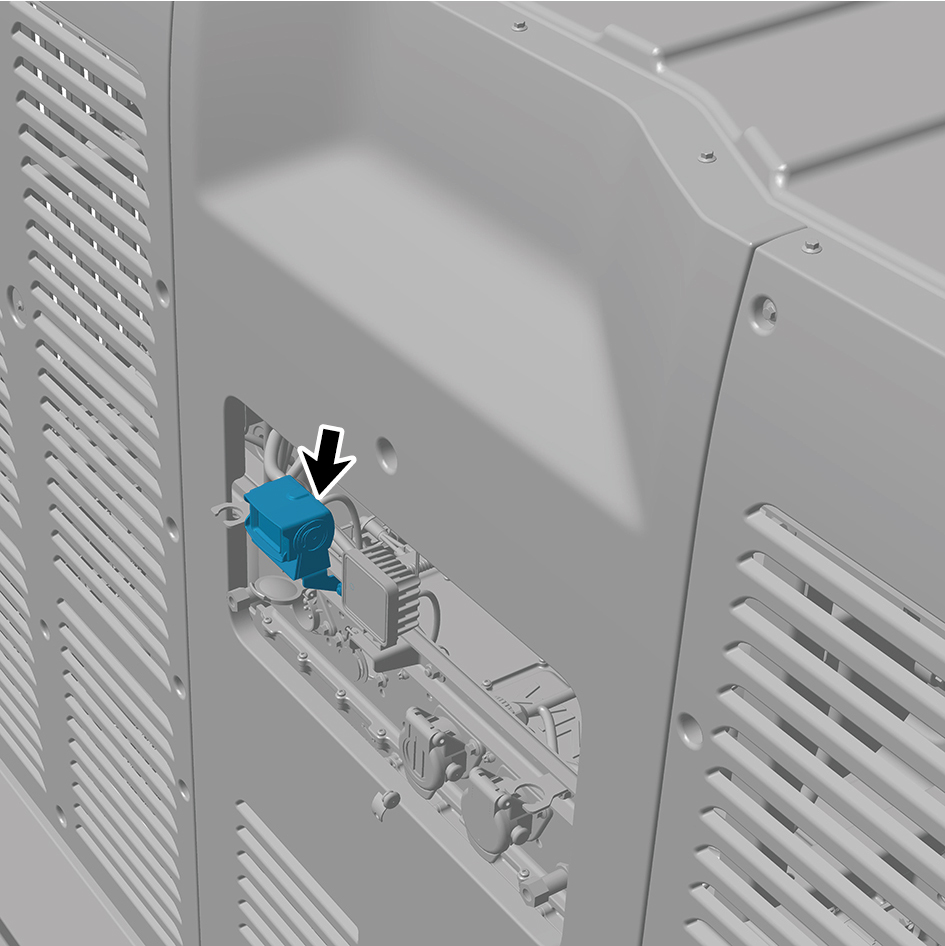

Disconnect 1 harness connector of the rear view camera.
5
Remove 2 fixing nuts of the rear view camera.
6
Remove the rear view camera.
Installation Procedures
1
Move the rear view camera to the mounting position.
2
Install 2 fixing nuts of the rear view camera.
Torque:(18 ft-lb +/- 2ft-lb) ft-lb
3
Connect 1 harness connector of the rear view camera.
caution
The harness is firmly connected following the
principal of "insert until a click is heard for
confirmation".
4
Connect the battery negative cable.
5
Close the front flip cover plate.
6
Close the door.
