1.3 Vehicle Specifications
1.3 Vehicle Specifications
1.3.1 Specifications
1.3.1.1 Vehicle Appearance Dimension and Information

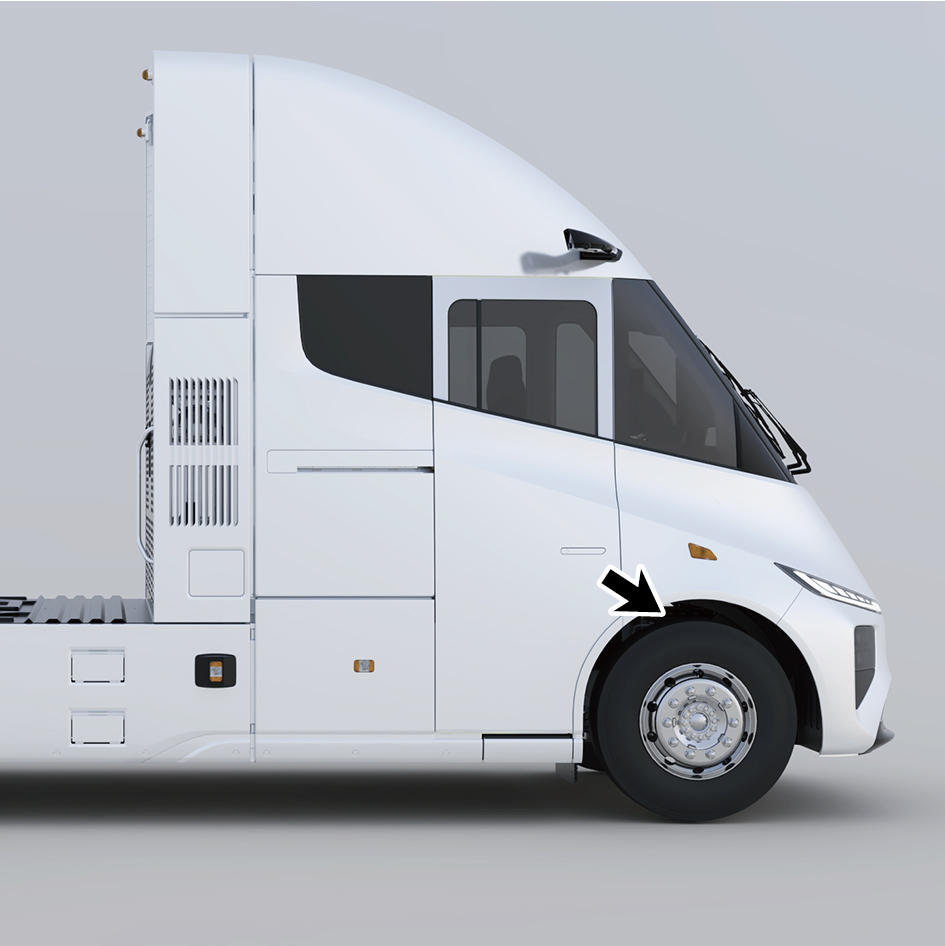

Vehicle Appearance Diagram
arameter
Parameter Name/Model
Mass of vehicle with NCM 3 motor (lbs)
23,700
Mass of vehicle with LFP 3 motor (lbs)
26,092
Gross mass of NCM 3 motor (lbs)
55,116
Gross mass of LFP 3 motor (lbs)
55,116
NCM 3 motor front/
intermediate and rear axle
11,244/12,456
(lbs)
Axle load
No load
distribution
LFP 3 motor front/
intermediate and rear axle
12,236/13,856
(lbs)
Parameter Name/Model
Parameter
NCM 3 motor front/
intermediate and rear axle
15,432/39,683
(lbs)
Full load
LFP 3 motor front/
intermediate and rear axle
15,432/39,683
(lbs)
Seating capacity (person)
2
Length (in)
318.9
Width (in)
88.39
Outline dimension
Height (in)
154.9
Wheelbase (in)
183+51
Wheel (in)
Tread
80/74/74
Minimum ground clearance (full load) (in)
9.25
Minimum turning diameter (by center of front outer wheel
64
trajectory) (ft)
Approach angle (°)
18
Vehicle passing angle (full load)
Departure angle (°)
26
Maximum speed (full load, on level, well-maintained road)
75
(mph)
Maximum gradeability (driving at constant speed on fully
3 motor 25; 4 motor 30
loaded, dry, hard road) (%)
Parking slope (full load, forward & reverse directions) (%)
12
Maximum driving range (miles)
416
Exterior noise of accelerating vehicle (dB(A))
20 mph 73.9dBA, 25 mph 73.3dBA, 30 mph 75.5dBA
