1 Introduction / 1.2 Identification Information | PDF pages 9-11
1.2 Identification Information
1.2 Identification Information
1.2.1 Vehicle Identification Number
1.2.1.1 Vehicle Identification

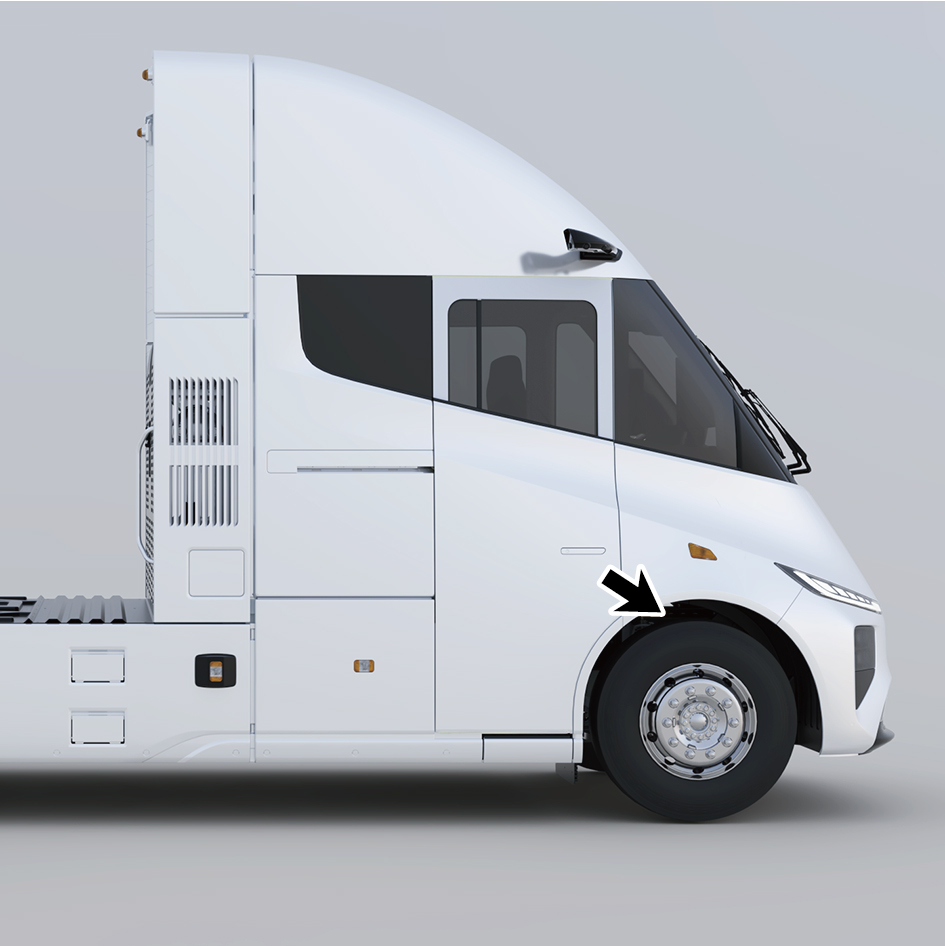

Printing position of vehicle identification number (VIN)
The vehicle identification number (VIN) is engraved near the
centerline of the front axle at the outer side of the frame right
side member.
1.2.1.2 VIN Deciphering
Composition of Vehicle VIN Deciphering:
The VIN deciphering is made up of World Manufacturer Identifier（WMI）、Vehicle Description Section（VDS）、Check
Digit（CD）and the Vehicle Indicator Section（VIS）is composed of four parts (17 digits in total).
Taking the Vehicle Identification Number 1W94RBCD8RR698001 as an example, the meaning represented by each digit is
shown in the following table:
Explain
Position
Definition
Character
Windrose Technology
Inc
1-3
World Manufacturer Identifier
1W9
Vehicle
Configuration
Vehicle Description
Section
4-8
4RBCD
Check
Digit
Check
Digit
9
8
10
Model Year
The Year 2024
Windrose Technology
Inc
11
Plant of Manufacture
Assigned by
SAE
698
12-14
WMI
Sequentially
Assigned
15-17
001
Serial Number
1st~3rd Digit- World Manufacturer Identifier（WMI）
The first section (1st-3rd digit) of the vehicle identification number, where:
1W9——Windrose Technology Inc.
4st~8rd Digit- Vehicle Description Section
There are three types in total,Respectively4RBCD、4RBCF、4RACC,The explanations are as shown in the following table:
Positions 4 -8
4RBCD
4RBCF
4RACC
Windrose T
echnology
Windrose Technology
Windrose Technology
Make
Line or model
Tractor
Tractor
Tractor
Positions 4 -8
4RBCD
4RBCF
4RACC
series
5325
5325
5325
Engine Type
780kW，peak power
1040kW，peak power
520kW，peak power
8
8
8
GVWR Class
8=Greater than 14968 kg. (33,001 lbs. and over)
Chassis
3 Axles
3 Axles
2 Axles
Cab Type
Sleeper Cab
Sleeper Cab
Sleeper Cab
Brake System
Air braking system
Air braking system
Air braking system
9th Digit - Check Digit
This digit is calculated by the manufacturer based on the remaining 16-digit code via a certain formula; It may be a number from 0
to 9 or letter "X",to verify the authenticity of the VIN, so as to ensure the uniqueness and validity of the VIN.
10th Digit- Model Year
Indicate the year.
Year
Code
Year
Code
Year
Code
Year
Code
2005
5
2014
2023
2032
2
2006
6
2015
2024
2033
3
2007
7
2016
2025
2034
4
2008
8
2017
2026
2035
5
2009
9
2018
2027
2036
6
2010
2019
2028
2037
7
2011
2020
2029
2038
8
2012
2021
2030
2039
9
2013
2022
2031
1
11th Digit- Plant of Manufacture
Indicate the assembly plant.
Assembly Plant
Code
Windrose Technology Inc
12st~14rd Digit- WMI
698,Assigned by SAE。
15st~17rd Digit- Sequentially Assigned
A 3-digit number to indicate the production sequence number of the vehicle.

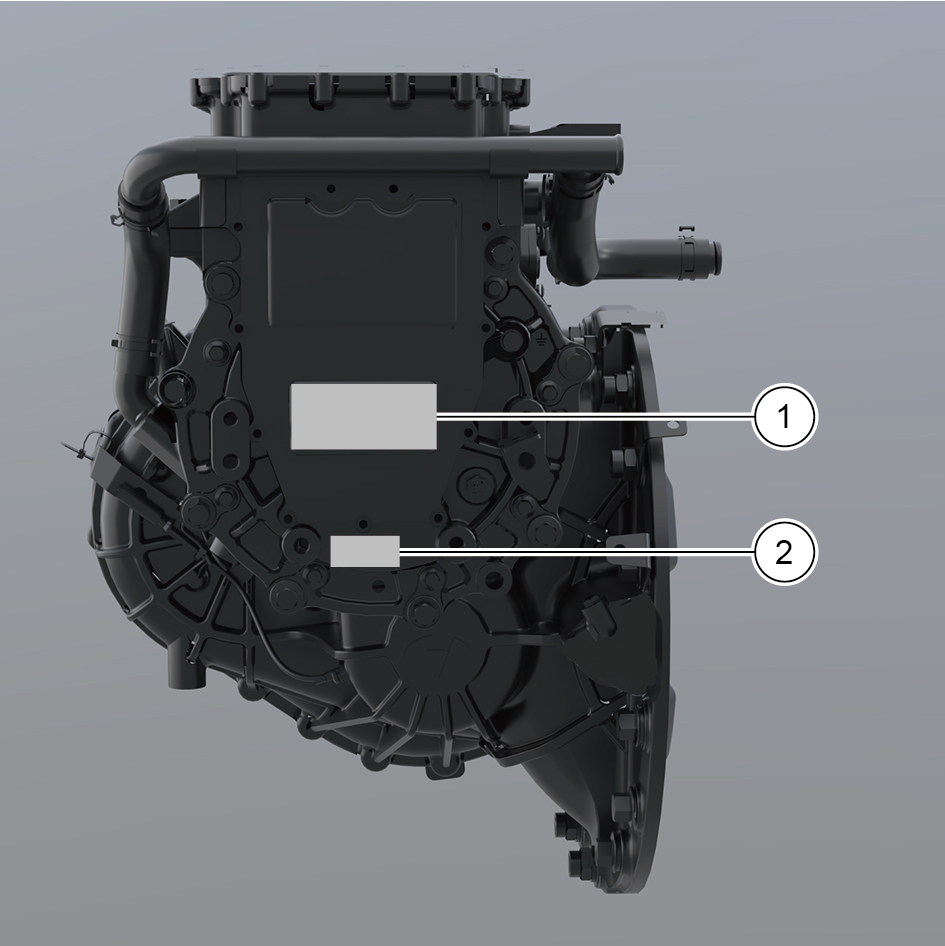

1.2.1.3 Motor Nameplate Identification
Nameplate Location and Content
1.The vehicle emission control information (VECI) label is
located on the right sliding door frame of the vehicle.
1. Location of motor nameplate
2. Location of motor SN

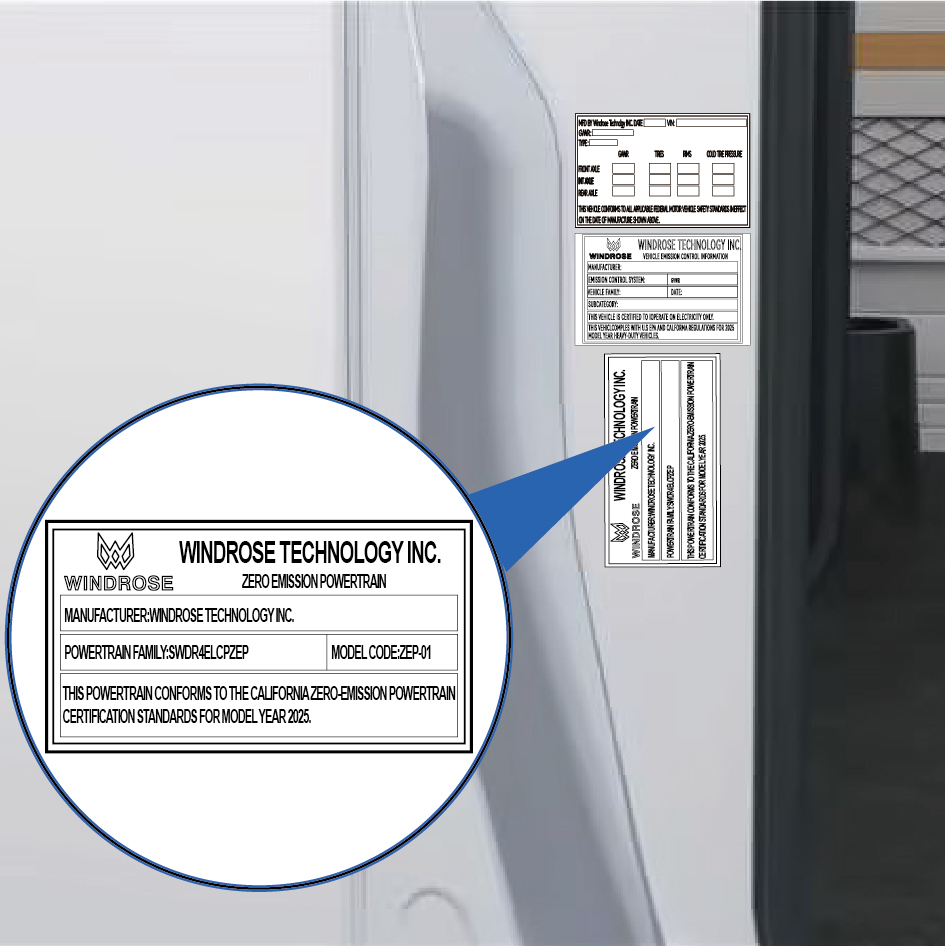

Zero-emission Power label
1.2.1.4 Vehicle Environmental Sign, Nameplate and VIN
Nameplate and VIN
1. The zero-emission power label is located on the right
sliding door frame (C-pillar) of the vehicle.

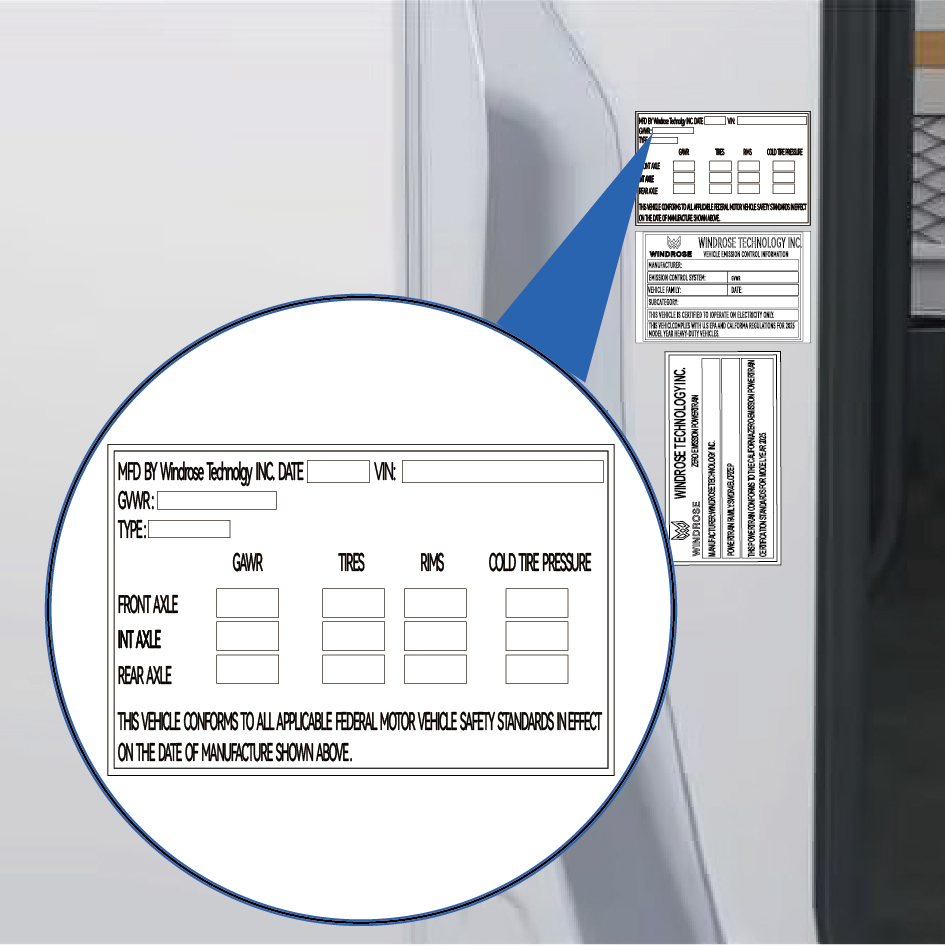

Vehicle Nameplate
2. The zero-emission power label includes the title, name of
1. The nameplate is located on the right sliding door frame (C-
manufacturer, trademark, date of manufacture, powertrain
pillar) of the vehicle.
family name, model code and statement.
2. The nameplate bears the full name of the manufacturer, the
date of manufacture, the vehicle identification number (VIN),
the maximum allowable gross mass of the fully loaded
vehicle, the vehicle type, the axle load, the tire model, the rim
size, the tire pressure, and the statement.

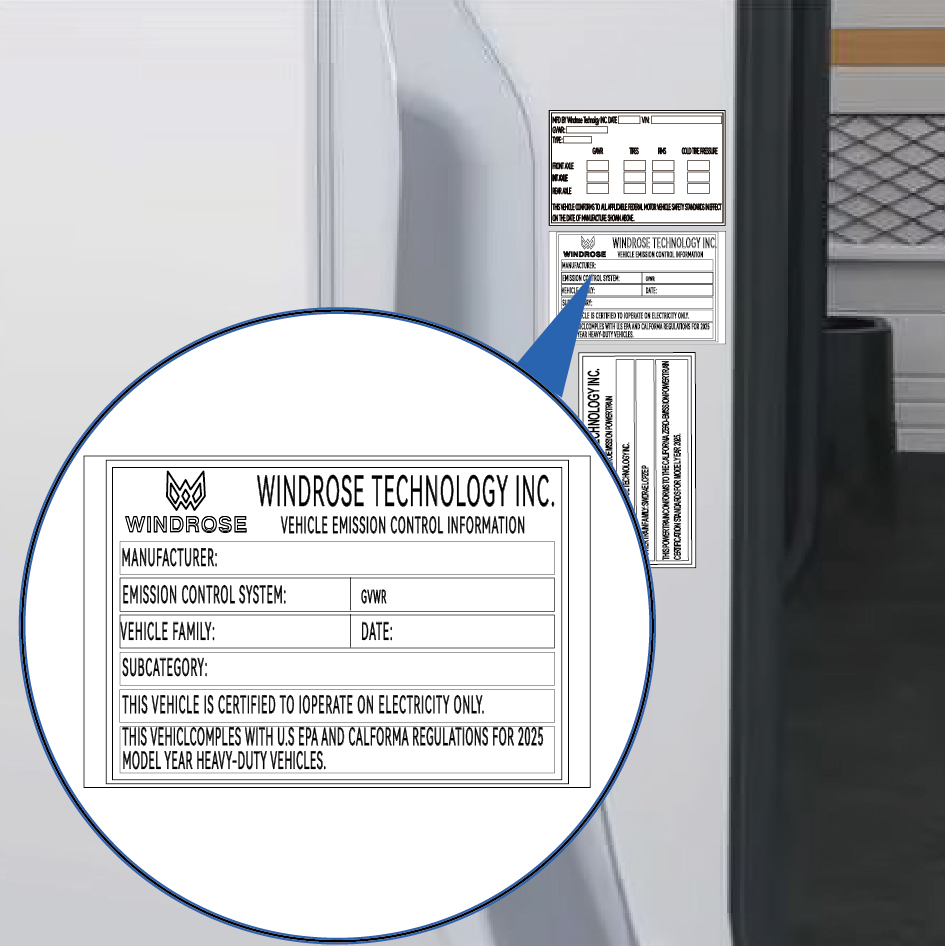

Vehicle Emission Control Information (VECI) Label
