6.25 Roof Panel Device
6.25 Roof Panel Device
6.25.1 Specifications
6.25.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolts connecting the top cover
assembly and the white body assembly
(18.5 +/- 2) ft lbs
M8
assembly
The fixing bolt connecting the laser
radar cover bracket and the top cover
(6.5 +/- .75) ft lbs
M6
assembly

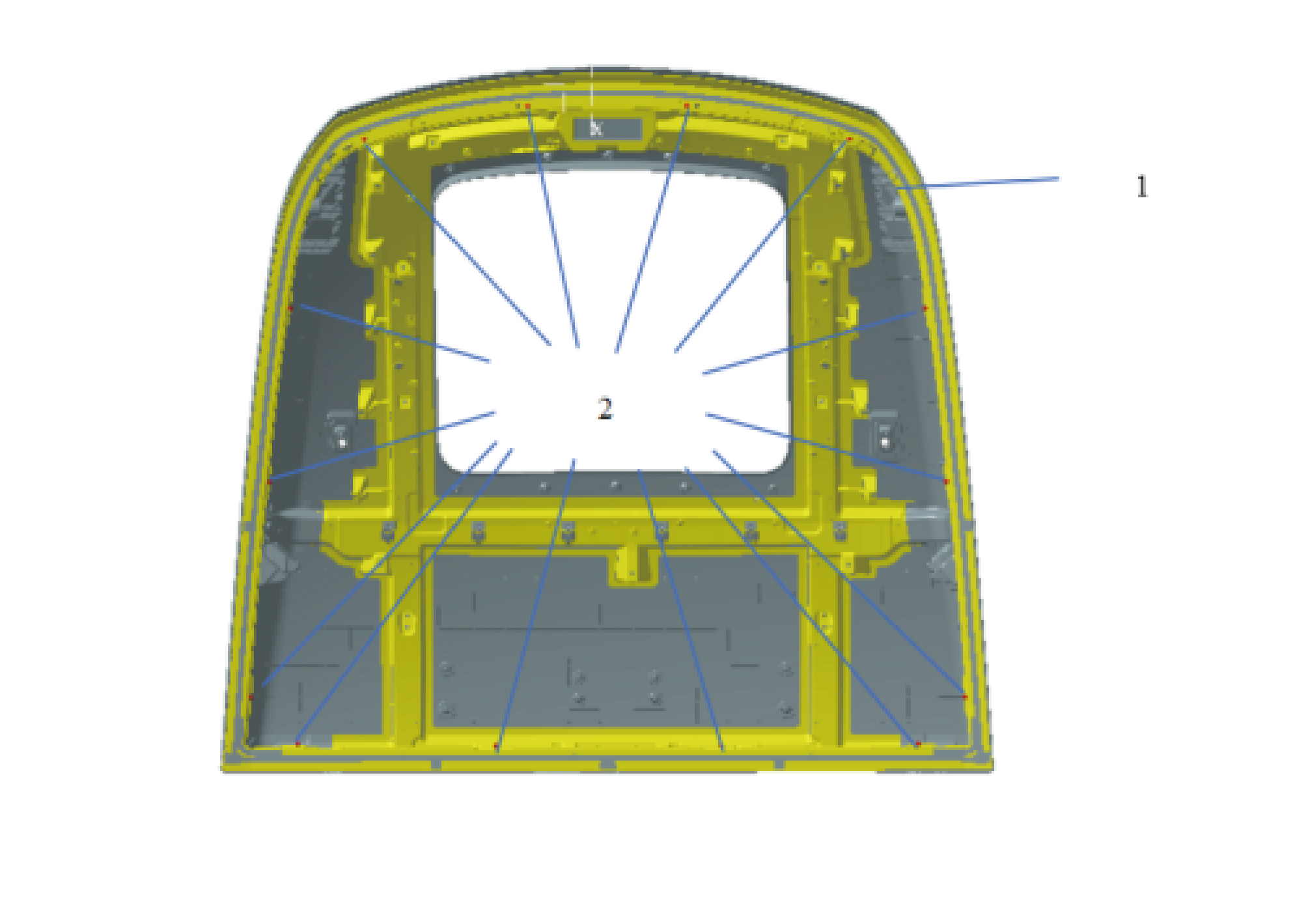

6.25.2 Decomposition Diagram
6.25.2.1 Decomposition Diagram
1.
2.
Hexagon Flange Bolt
Top Cover Assy
