6.24 Deflector Shield Device
6.24 Deflector Shield Device
6.24.1 Specifications
6.24.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the front
windshield cover plate and the white
(18.5 +/- 2) ft lbs
M8
body assembly of the installation
bracket for the air guide cover
The fixing bolt connecting the lower
body of the left side guide vane and the
(14.75 - 19) ft lbs
M6
integrated frame
The fixing bolt connecting the front
windshield cover plate and the white
(18.5 +/- 2) ft lbs
M8
body assembly of the installation
bracket for the air guide cover
The fixing bolt connecting the top guide
cover body and the left guide cover
(18.5 +/- 2) ft lbs
M8
upper body
The fixing bolt connecting the top flow
guide cover body and the upper body of
(18.5 +/- 2) ft lbs
M8
the right flow guide
The fixing bolt connecting the upper
body of the left flow guide cover to the
(18.5 +/- 2) ft lbs
M8
installation bracket of the flow guide
cover
The fixing bolt connecting the lower
body of the right deflector and the
(14.75 - 19) ft lbs
M6
integrated frame

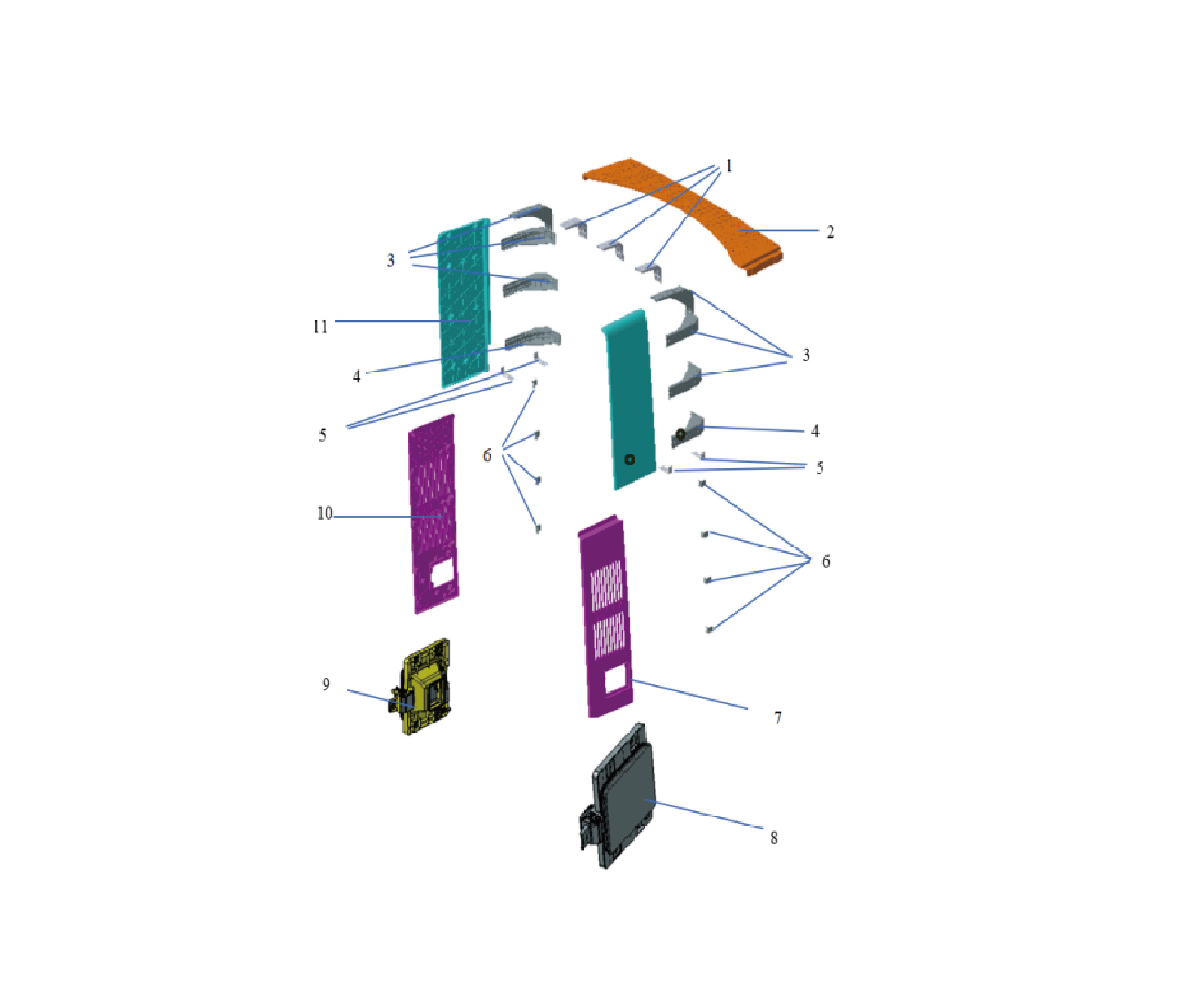

6.24.2 Decomposition Diagram
6.24.2.1 Decomposition Diagram
7.
1.
Mid Brkt-Cover-Diversion-Upr
Lor Cover-Diversion-Rh
2.
8.
Cover-Diversion-Upr
Charging Port Cover Assy-Rh/Cover Assy - Rh
3.
9.
Mounting Brkt-Guide Hood
Charging Port Cover Assy
4.
10.
Mounting Brkt-Upr Guide Hood
Lor Cover-Diversion-Lh
5.
11.
Lower Metal Brkt 1-Shroud
Upr Cover-Diversion-Lh
6.
Lower Metal Brkt 2-Shroud
6.24.3 Dismantling and Installation
6.24.3.1 Replacement of Roof Deflector Body
Removal Procedures
1
Open the door.
2
Open the front flip cover plate.
3
Disconnect the battery negative cable.
caution
power down the high-voltage system before
disconnecting the negative pole of the storage
battery.
4

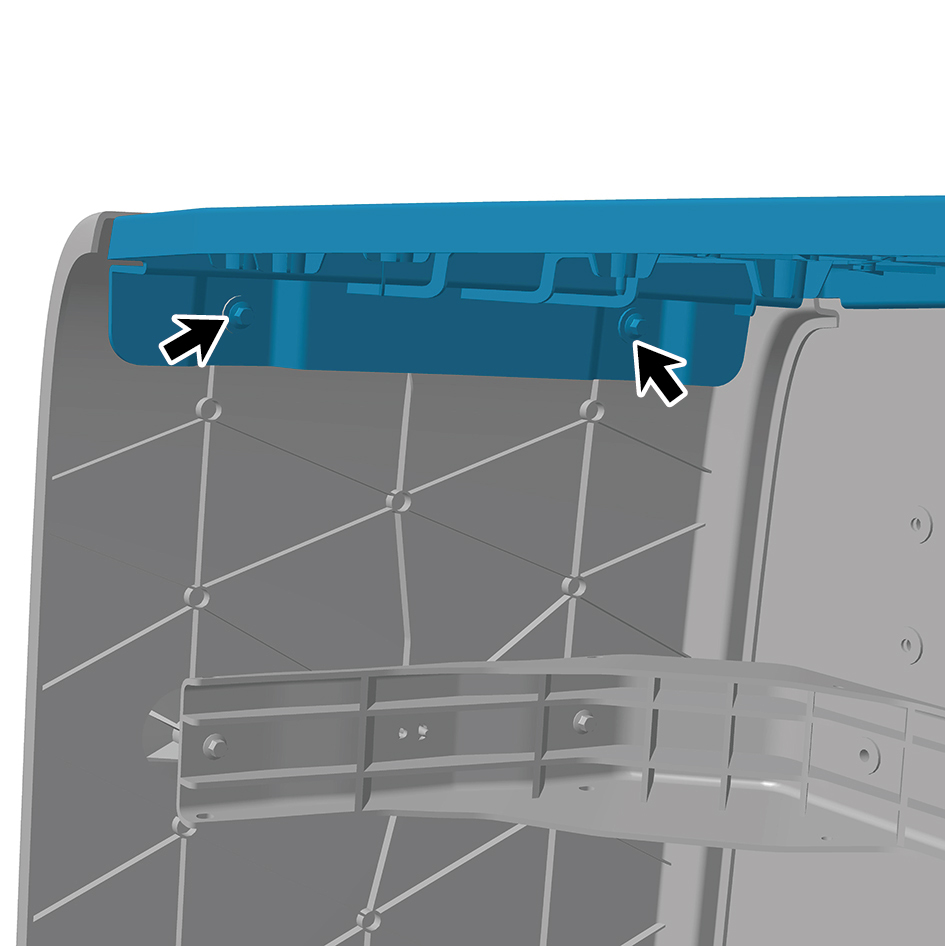

Remove the roof deflector middle bracket.
5

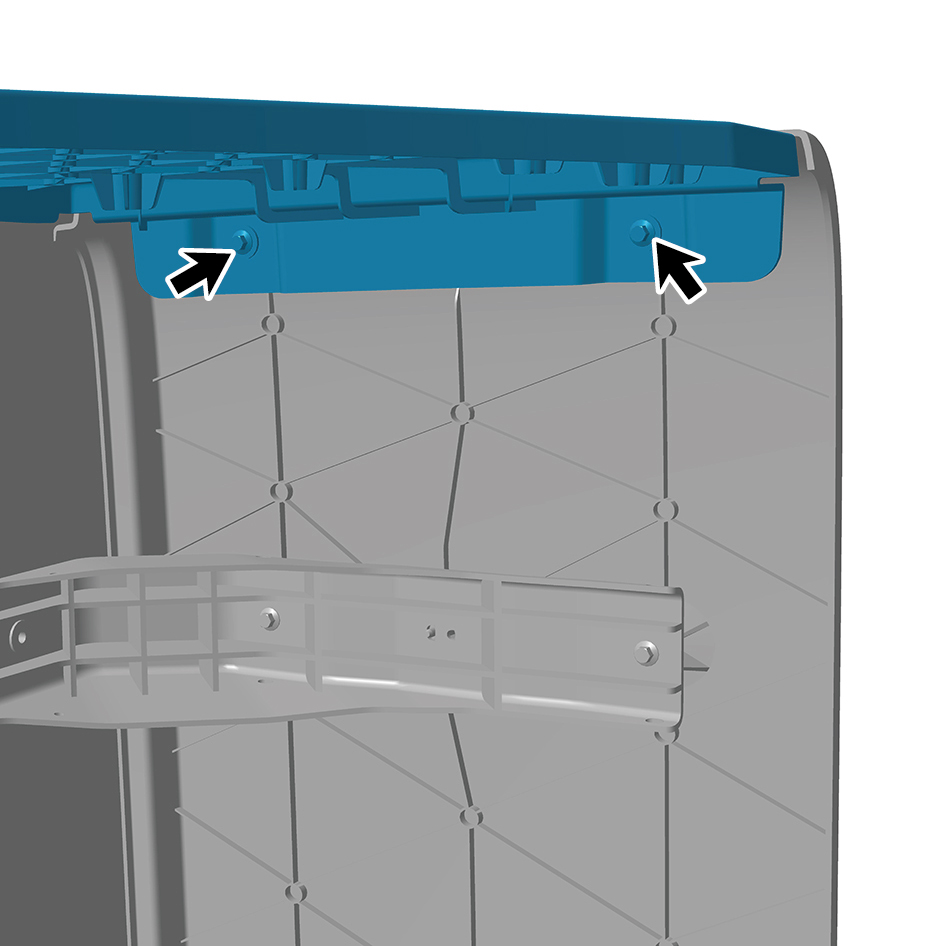

Remove the roof deflector mounting bracket.
6
Remove 4 fixing bolts of the roof deflector body, and
remove the roof deflector body.
Installation Procedures
1
Move the roof deflector body to the mounting position.
2
Install 4 fixing bolts of the roof deflector body.
Torque:(14.75 +/- 19) ft lbs
3
Install the deflector mounting bracket.
4
Install the roof deflector middle bracket.
5
Connect the battery negative cable.
6
Close the front flip cover plate.
7
Close the door.

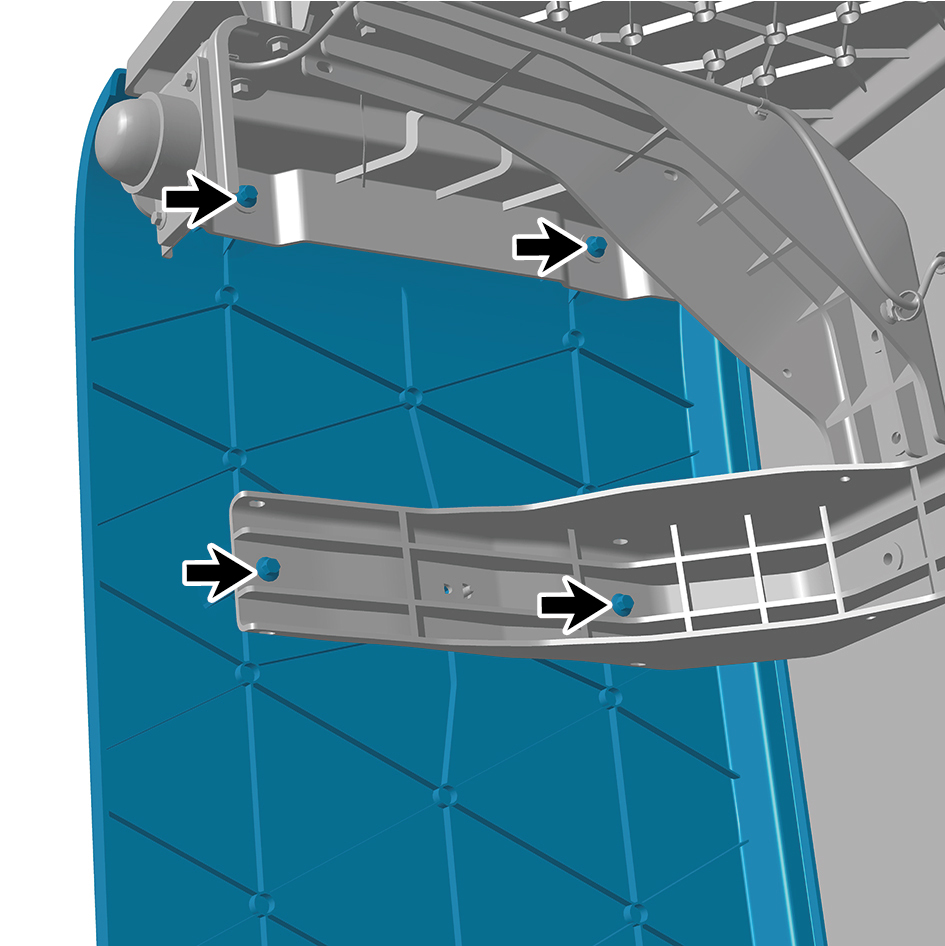

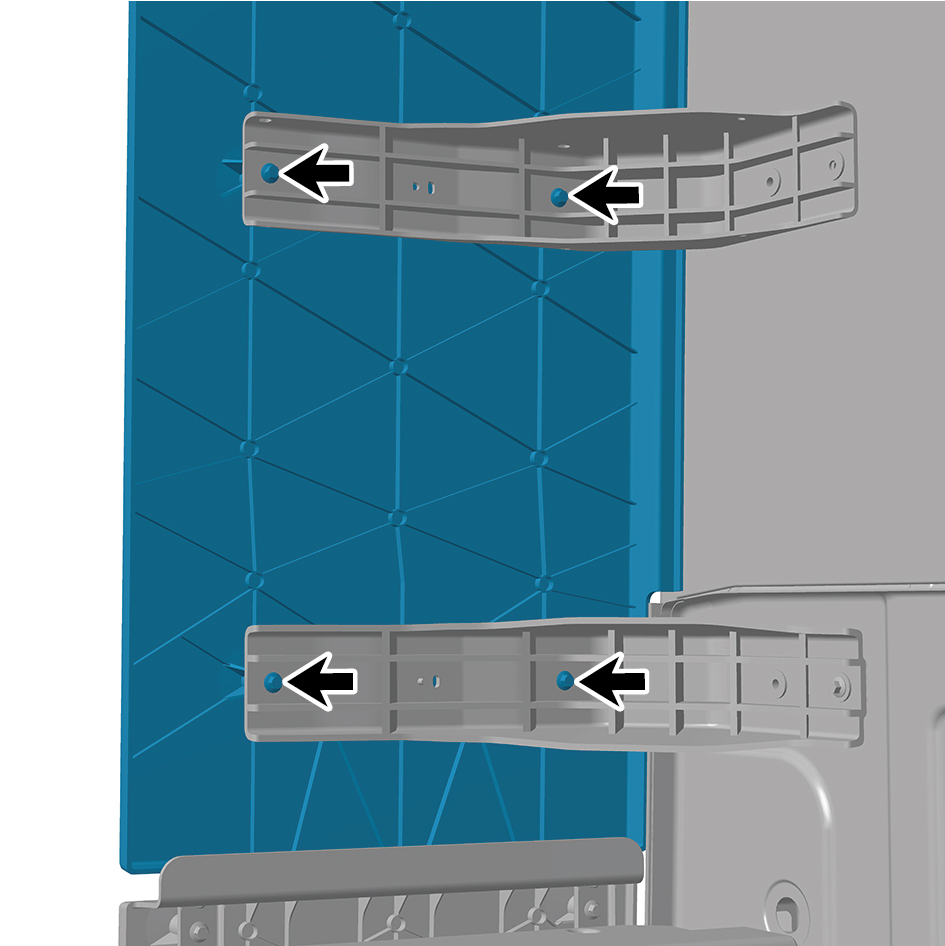

6.24.3.2 Replacement Of Left Deflector Upper Body
Body
Removal Procedures
1
Remove 8 fixing bolts of the left deflector upper body, and
remove the left deflector upper body.
Installation Procedures
1
Move the left deflector upper body to the mounting
position.
2
Install 8 fixing bolts of the left deflector upper body.
Torque:(14.75 - 19) ft lbs

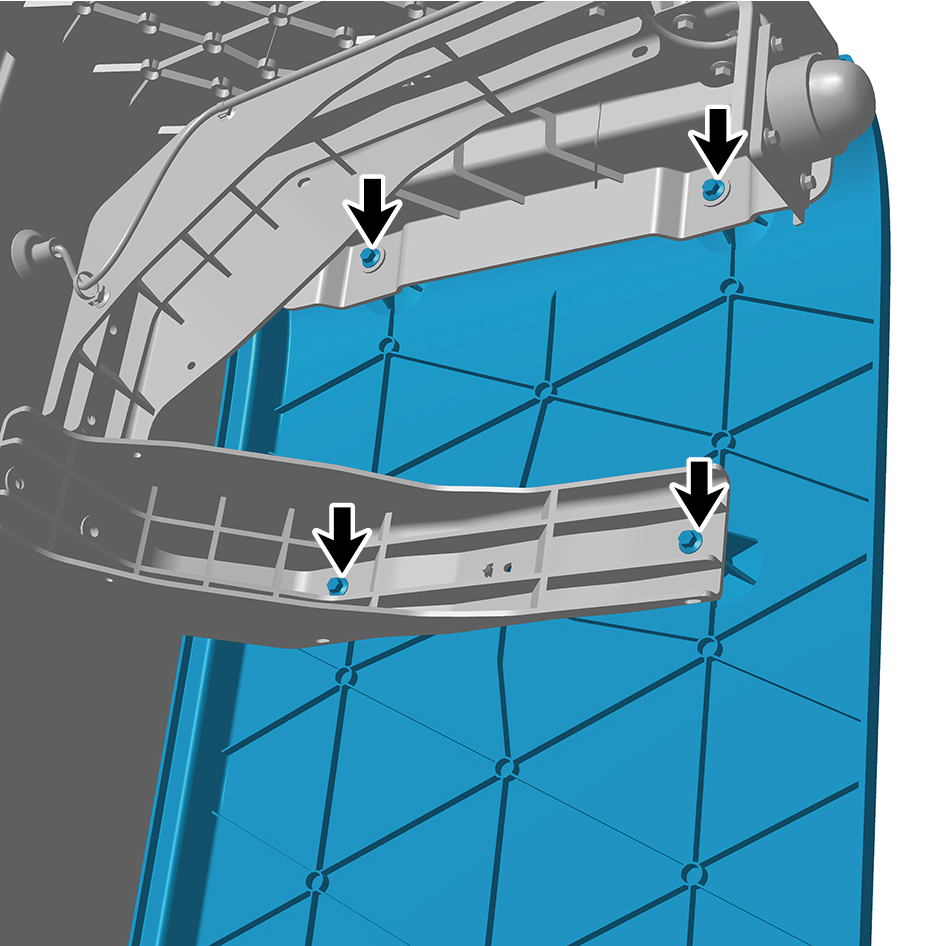

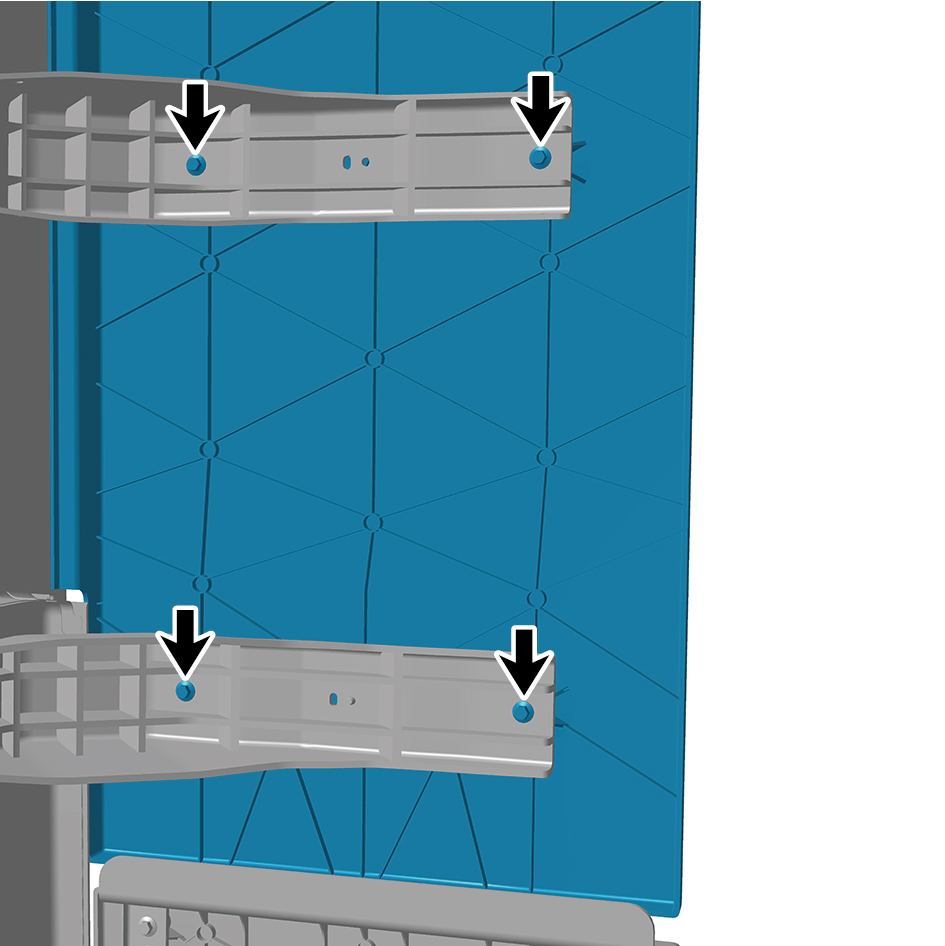

6.24.3.3 Replacement of Right Deflector Upper Body
Body
Removal Procedures
1
Remove 8 fixing bolts of the right deflector upper body,
and remove the right deflector upper body.
Installation Procedures
1
Move the right deflector upper body to the mounting
position.
2
Install 8 fixing bolts of the right deflector upper body.
Torque: (14.75 - 19) ft lbs

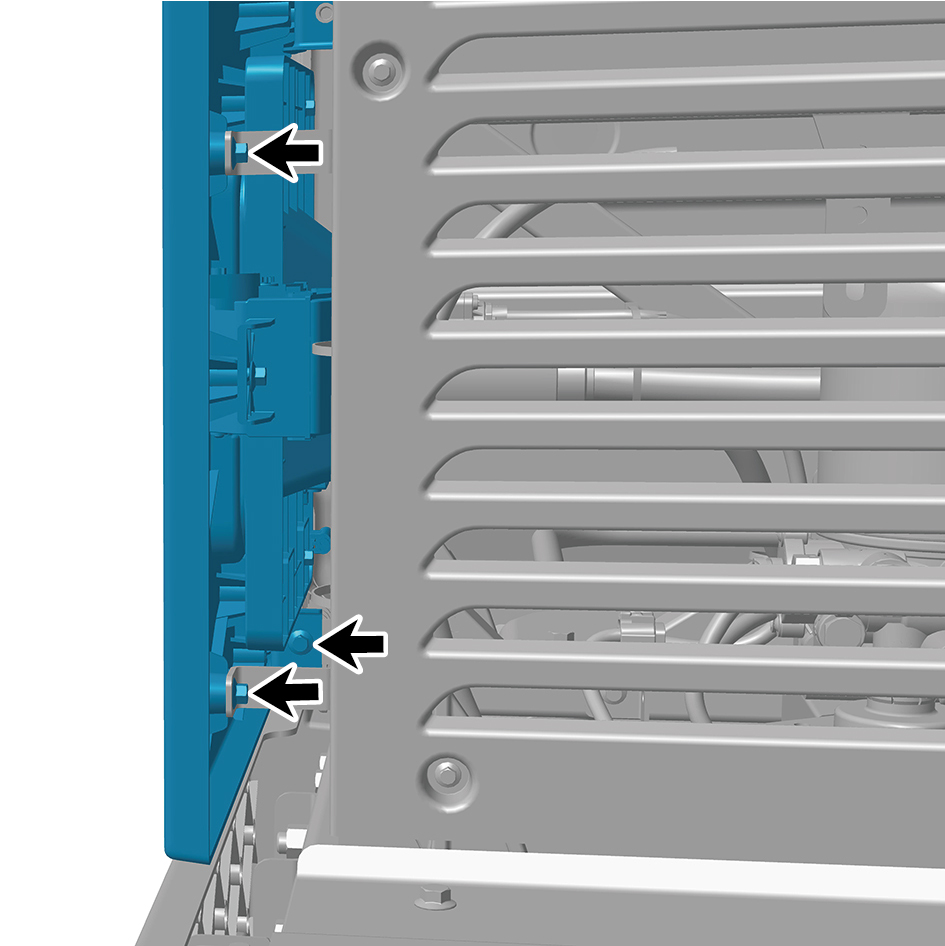

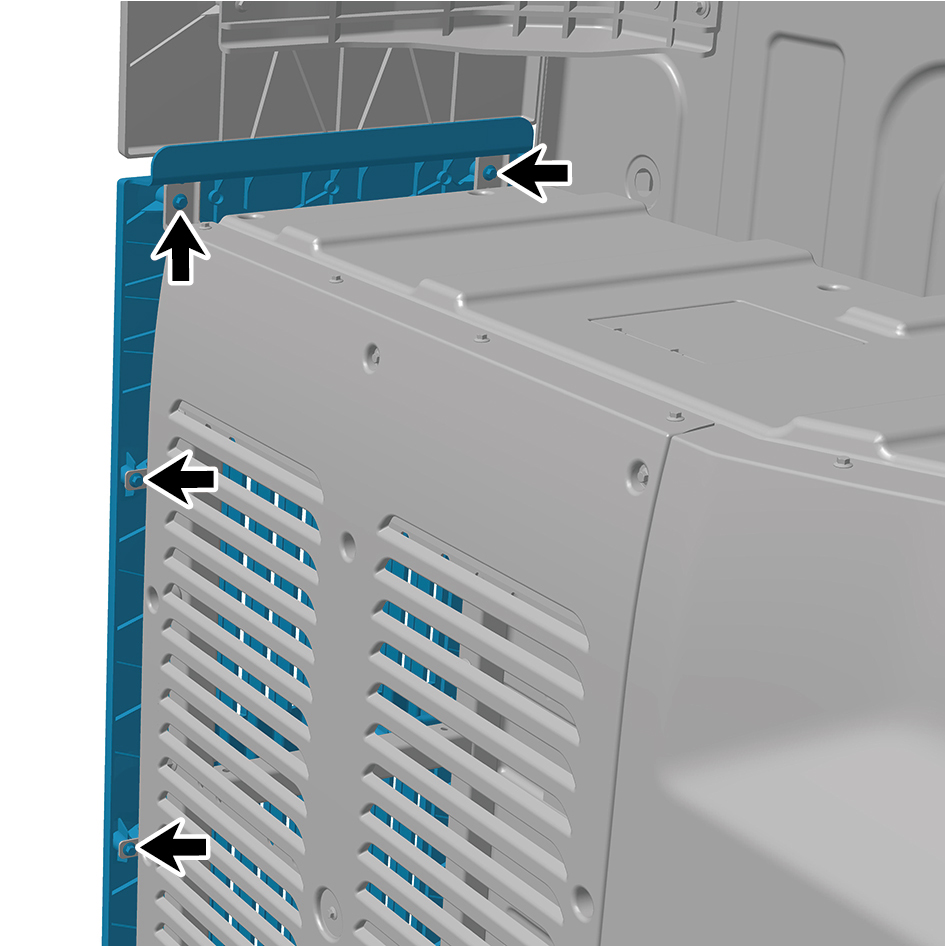

6.24.3.4 Replacement of Left Deflector Lower Body
Body
Removal Procedures
1

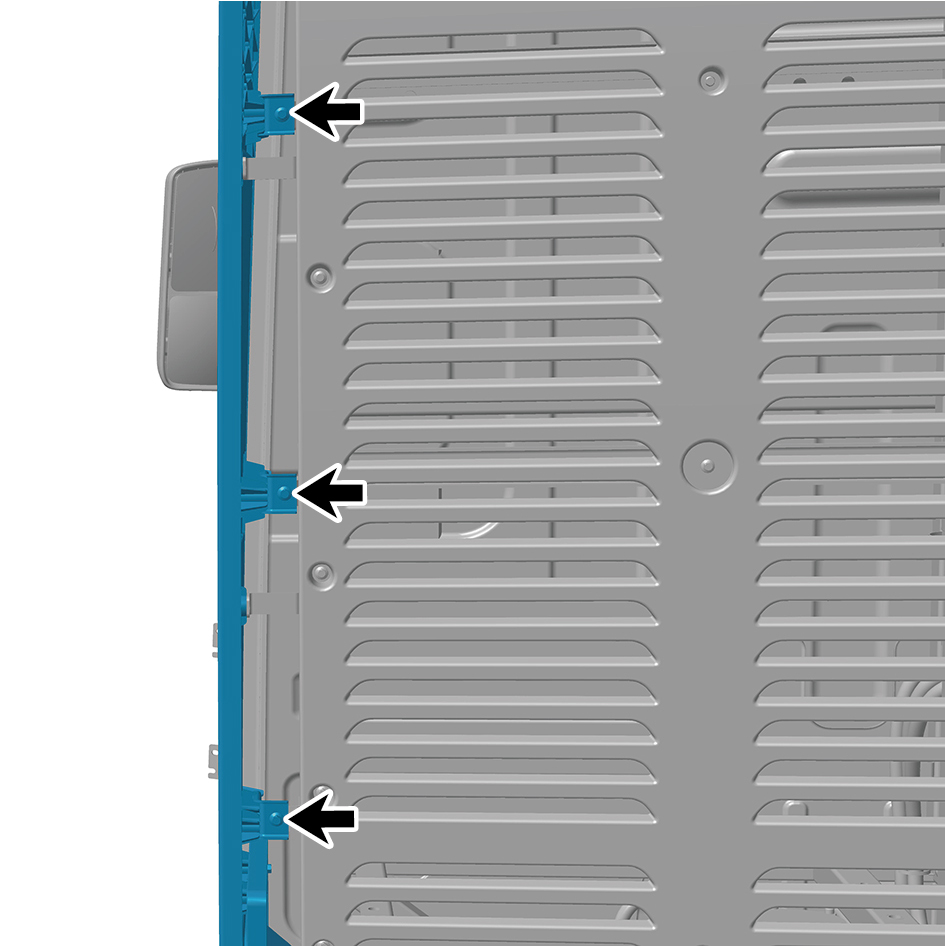

Remove 10 fixing bolts of the left deflector lower body, and
remove the left deflector lower body.
Installation Procedures
1
Move the left deflector lower body to the mounting
position.
2
Install 10 fixing bolts of the left deflector lower body.
Torque:(14.75 - 19) ft lbs

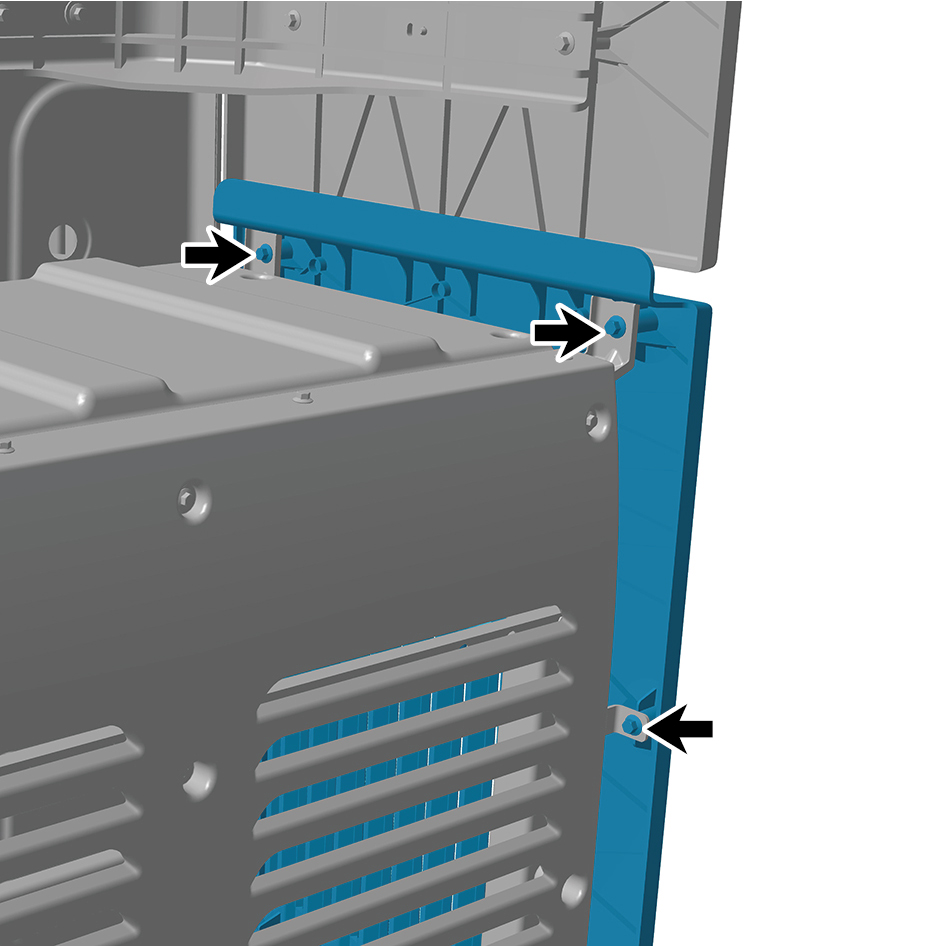

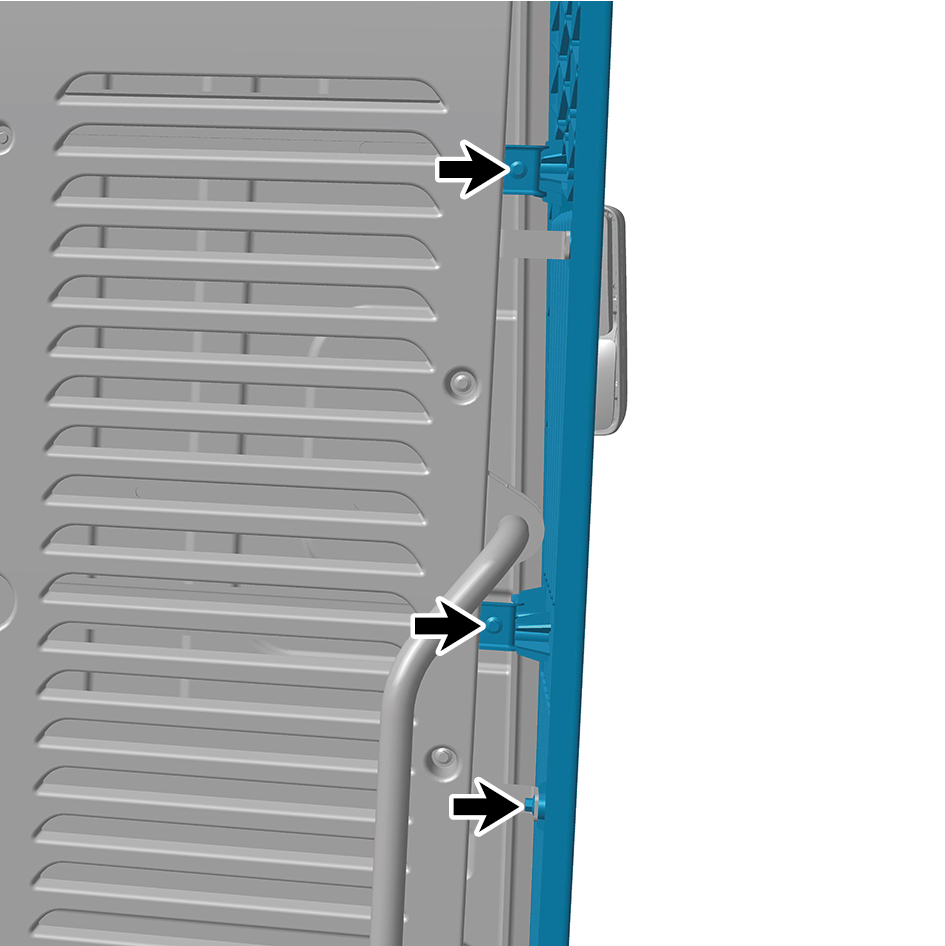

6.24.3.5 Replacement of Right Deflector Lower Body
Body
Removal Procedures
1

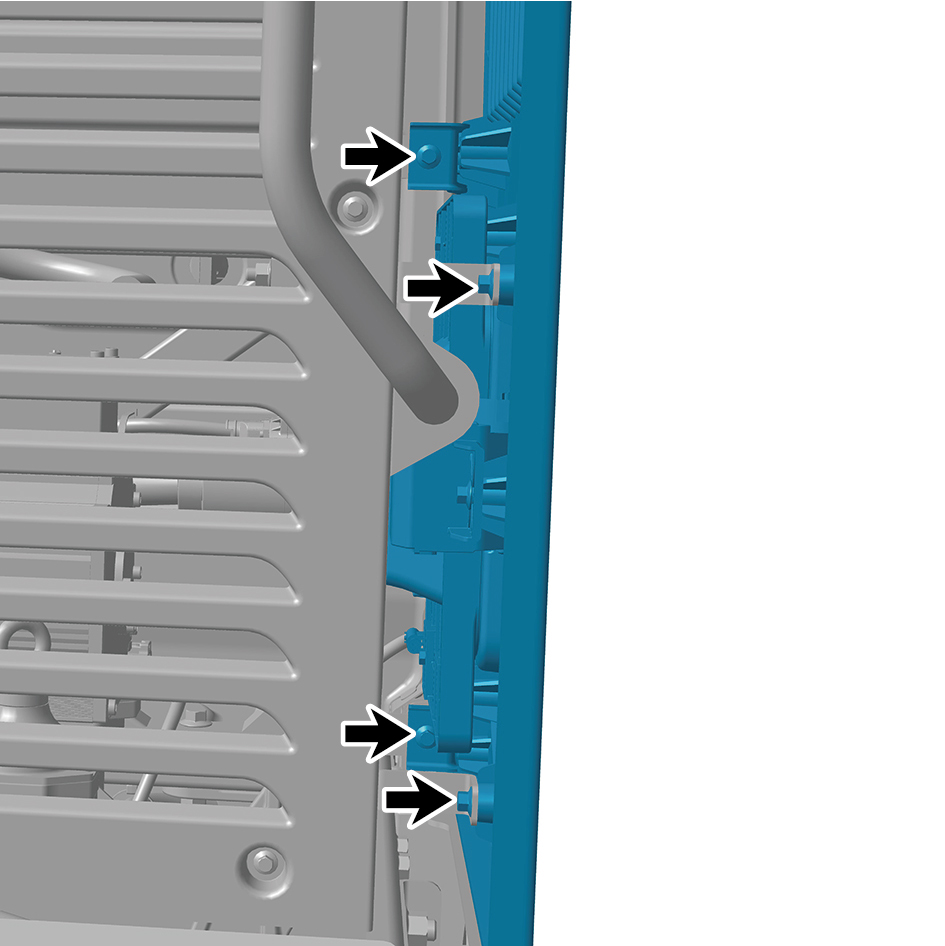

Remove 10 fixing bolts of the right deflector lower body,
and remove the right deflector lower body.
Installation Procedures
1
Move the right deflector lower body to the mounting
position.
2
Install 10 fixing bolts of the right deflector lower body.
Torque: (14.75 - 19) ft lbs
