6.13 Threshold Molding Device
6.13 Threshold Molding Device

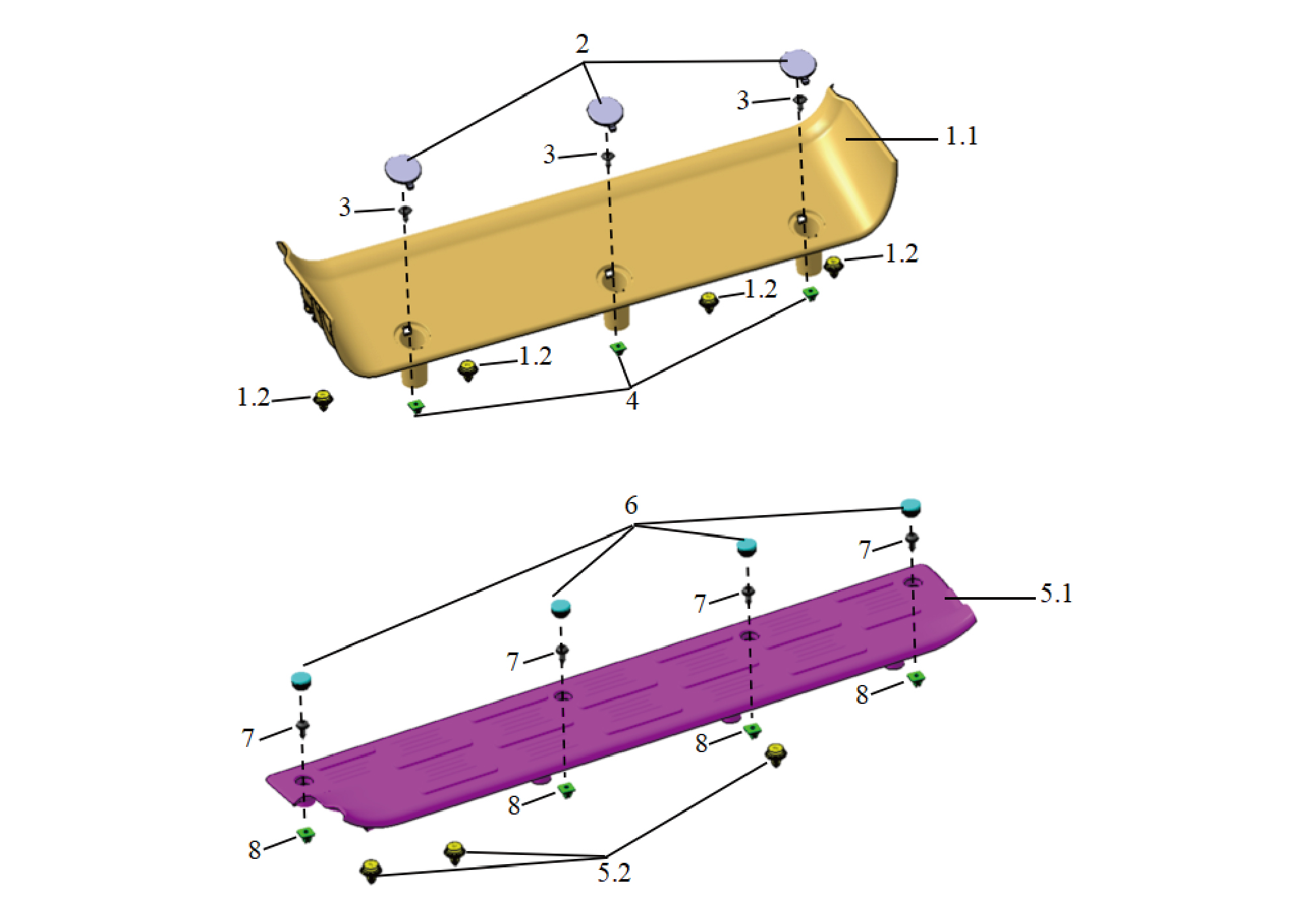

6.13.1 Decomposition Diagram
6.13.1.1 Decomposition Diagram
1.1.
5.1.
Main Body of the Toolbox Threshold Pressing Strip
Main Body of the Right Threshold Pressing Strip
1.2.
Plastic Buckle
5.2.
Plastic Buckle
2.
6.
Toolbox Threshold Plug Cover
Cover-Sill Guard Rh
7.
3.
Self-Tapping Screw
Self-Tapping Screw Assy
4.
8.
Plastic Nut Seat
Plastic Nut Seat
