4.8 High-Voltage Cable and Connector Device
4.8 High-Voltage Cable and Connector Device
4.8 High-Voltage Cable and Connector
Device
4.8.1 Specifications
4.8.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Metric System（ft-lb）
The fixing bolt connecting the air
conditioning compressor assembly to
M5
4 ft-lb +/- .75 ft-lb
the high-voltage cable
The fixing bolt connecting the electric oil
M6
6 ft-lb +/- .75 ft-lb
pump and the high-voltage cable
The fixing bolt for connecting the
M8
17 ft-lb +/- 2 ft-lb
grounding terminal and the vehicle
frame.

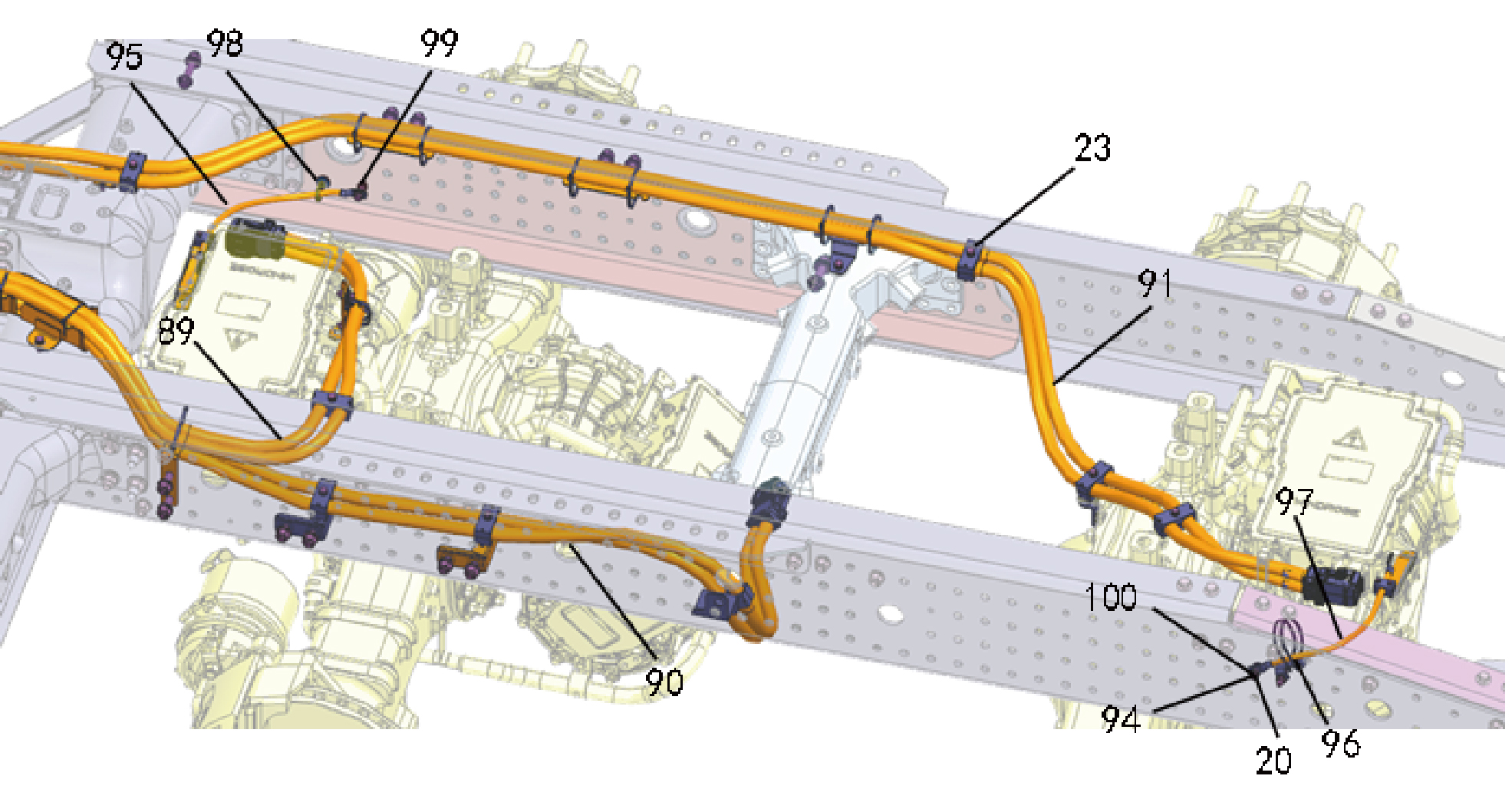

4.8.2 Decomposition Diagram
4.8.2.1 Decomposition Diagram
20.
95.
Hexagon Flange Nut
Electric Drive axle Harness 1
23.
96.
High-Voltage Wire Harness Fixing Bracket Assembly
Fixed Clamp for the Highvoltage Wire Harness Ⅶ
T33
89.
97.
Electric Drive axle Harness 4
Motor Power Cable Assembly Ⅰ
90.
98.
Mountable Head Ties
Motor Power Cable Assembly Ⅱ
91.
99.
Hexagon Head Bolt Assy
Motor Power Cable Assembly Ⅳ
94.
10-
Tapered Locking Washer
Hexagon Head Bolt Assy
0.
