Cab Assembly — Dimensions & Weight

Reference envelope and mass of the complete Windrose cab assembly, as built at the cab shop and handled for logistics, lifting, and line-side installation.

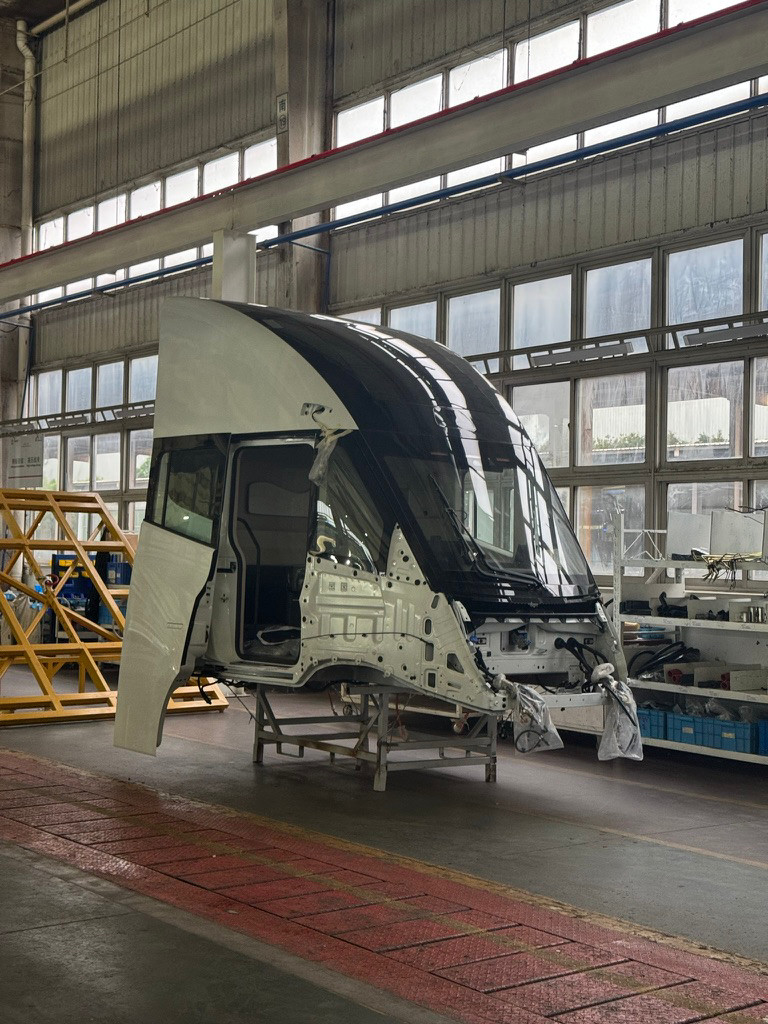

Windrose cab assembly on a transport stand in the cab shop
Windrose cab assembly on its transport stand — painted body with glazed panoramic windshield, prior to trim and chassis marriage.
Length
3617 MM
142.4 in
Width
2538 MM
99.9 in
Height
3170 MM
124.8 in
Weight
1035 KG
2,282 lb
Dimension Reference
L 3617 mm H 3170 mm W 2538 FRONT SIDE
Figures apply to the complete cab assembly as lifted from the transport stand: painted body-in-white with closures, glazing, and panoramic roof. Use these values for crate sizing, container planning, crane/hoist selection, and US inland freight declarations. For full-vehicle dimensions, see the vehicle specifications.
