6 Vehicle Body / 6.40 Boarding Handrail Device | PDF pages 1015-1020
6.40 Boarding Handrail Device
6.40 Boarding Handrail Device
6.40.1 Specifications
6.40.1.1 Fastener Specifications
Range Of Torque
Fastener Specifications
Specifications
Foot Pounds of Torque (ft lbs)
The fixing bolt connecting the front
(18.5 +/- 2) ft lbs
M8
boarding armrest assembly to the body
The fixing bolts connecting the rear
boarding armrest assembly to the
(18.5 +/- 2) ft lbs
M8
integrated frame

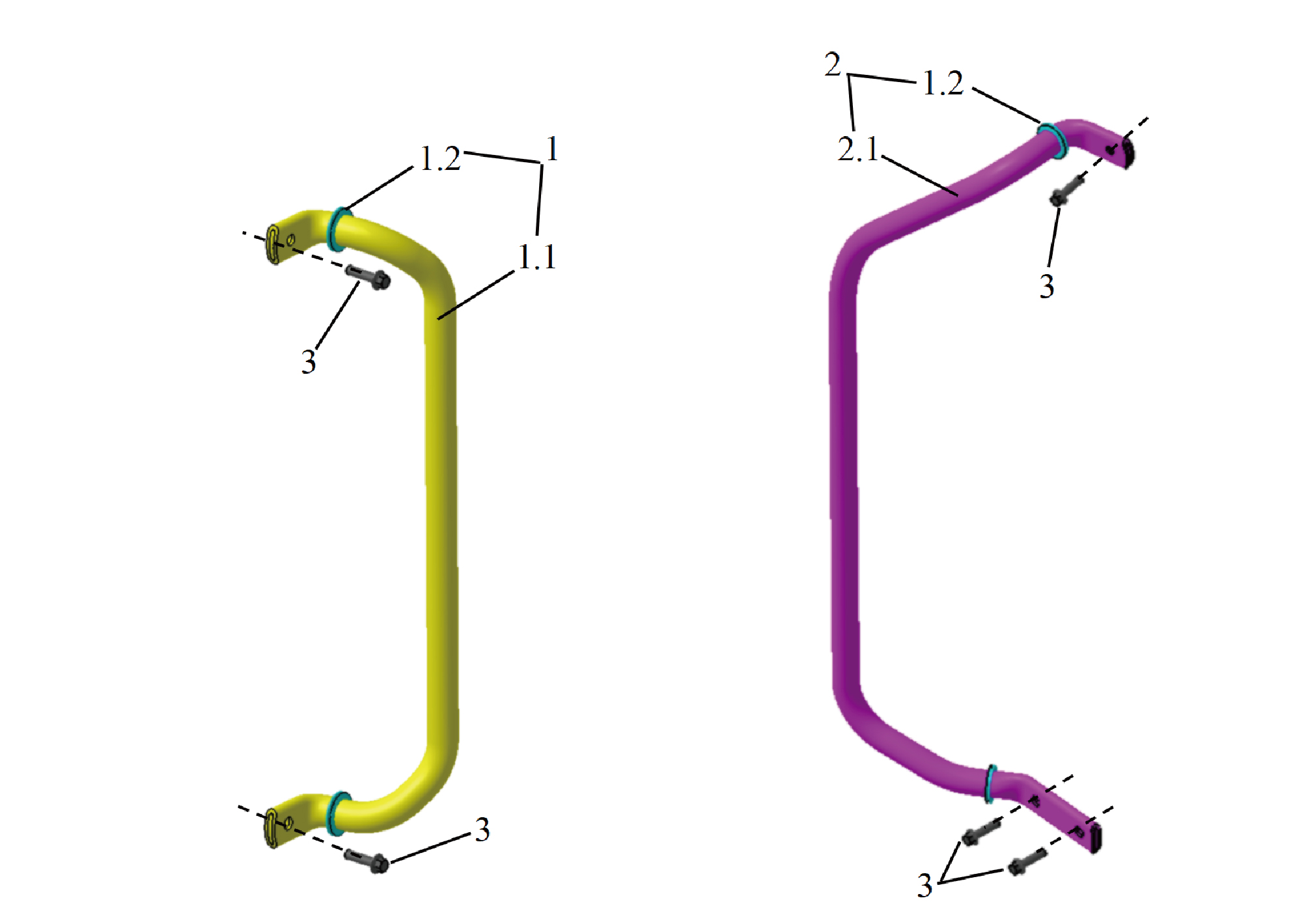

6.40.2 Decomposition Diagram
6.40.2.1 Decomposition Diagram
1.
Boarding Handrail Assy-Frt
2.
Boarding Handrail Assy-Frt
1.1.
Front Boarding Handrail Body
2.1.
Front Boarding Handrail Body
1.2.
3.
Hexagon Flange Bolt
Handrail Sealing Ring
6.40.3 Dismantling and Installation
6.40.3.1 Replacement of Front Boarding Handrail Assembly
Handrail Assembly
Removal Procedures
1
Open the door.
2

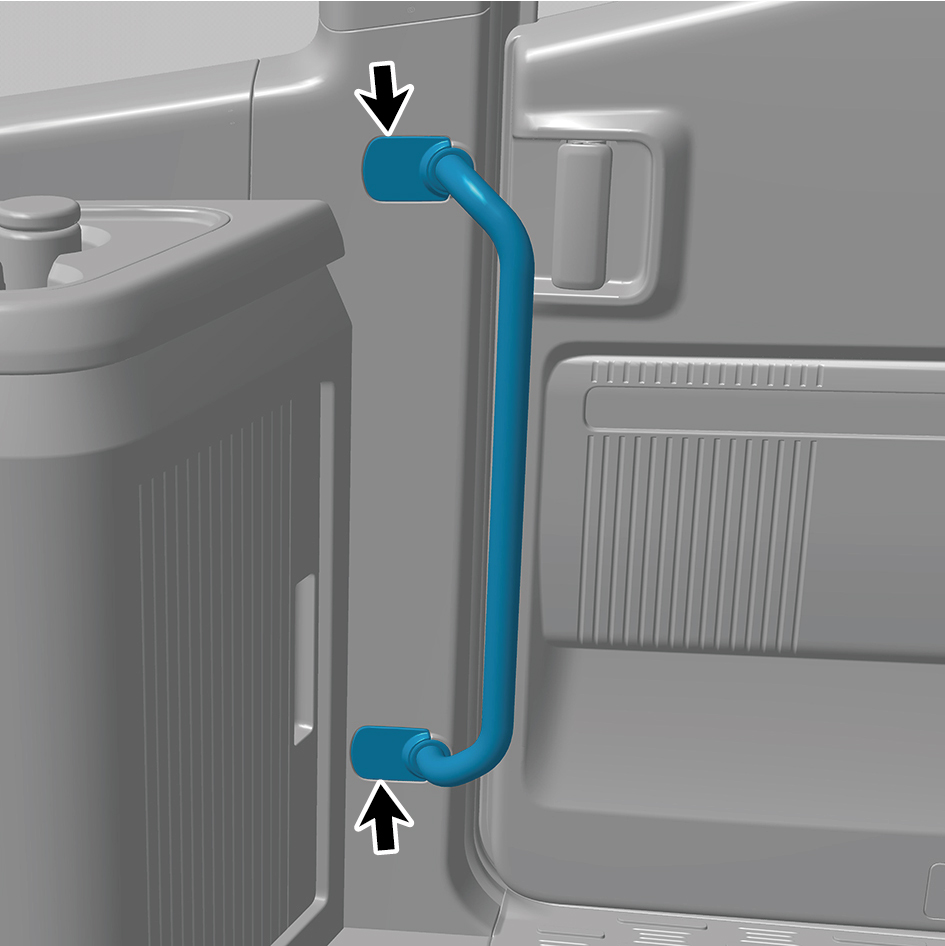

Remove the plug cap.
3

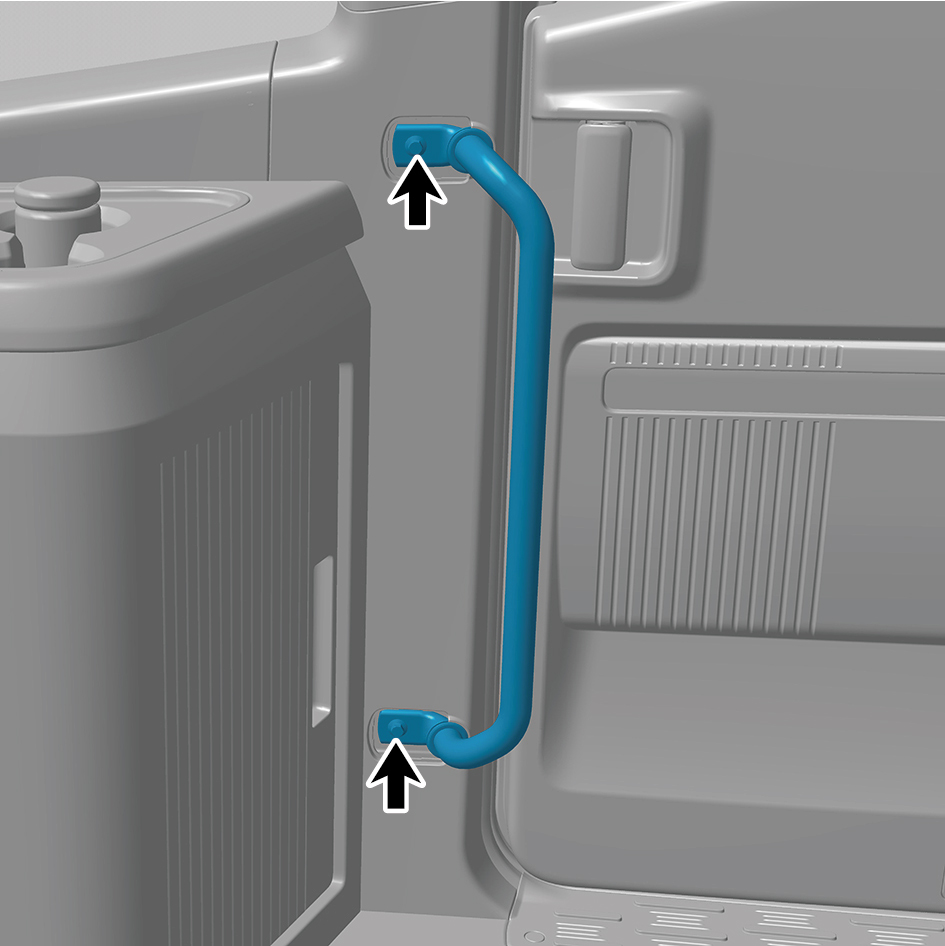

Remove 2 fixing bolts of the front boarding Handrail
assembly.
4
Remove the front boarding Handrail assembly.
Installation Procedures
1
Move the front boarding Handrail assembly to the
mounting position.
2
Install 2 fixing bolts of the front boarding Handrail
assembly.
Torque:(18.5 +/- 2) ft lbs
3
Install the plug cap.
4
Close the door.
6.40.3.2 Replacement of Rear Boarding Handrail Assembly
Handrail Assembly
Removal Procedures
1
Open the door.
2
Remove the plug cap.
3

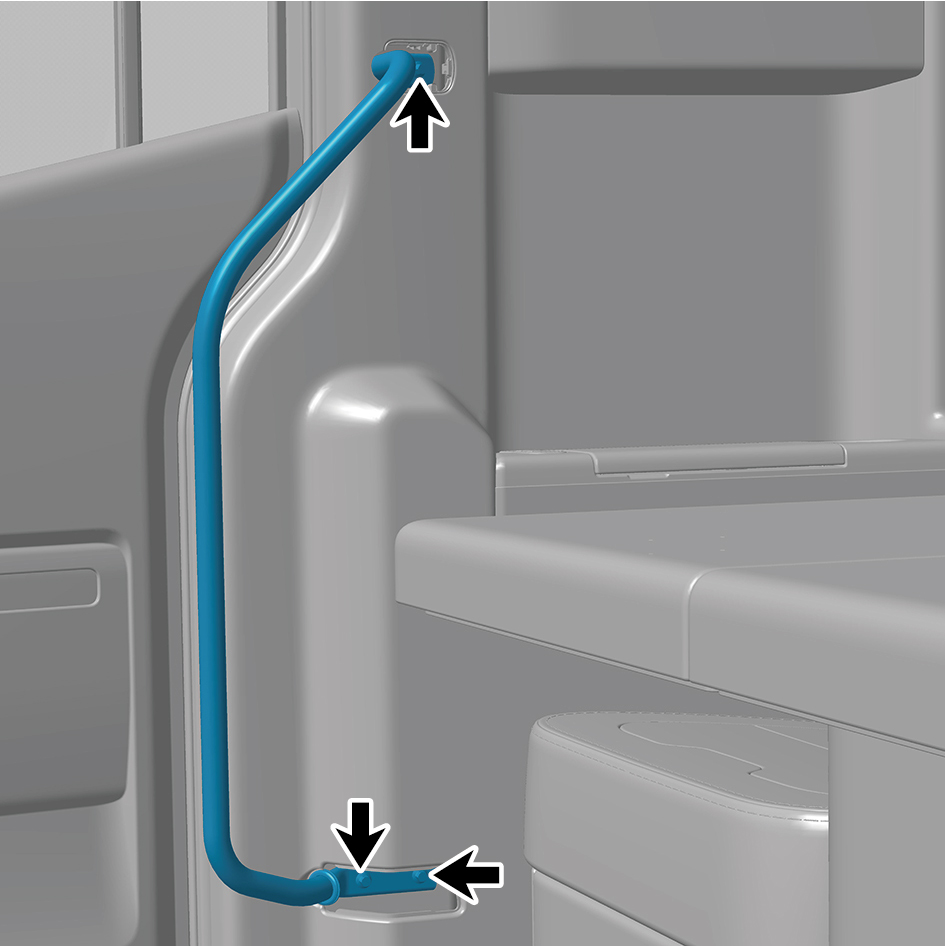

Remove 3 fixing bolts of the rear boarding Handrail
assembly.
4

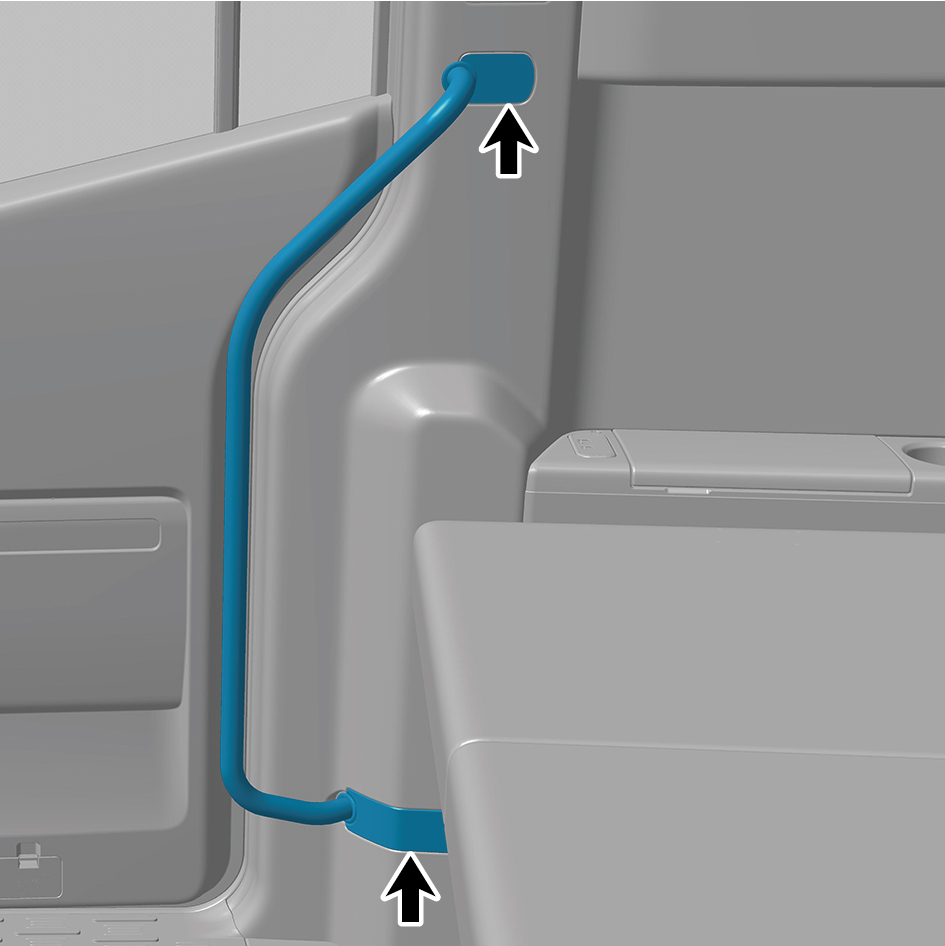

Remove the rear boarding Handrail assembly.
Installation Procedures
1
Move the rear boarding Handrail assembly to the
mounting position.
2
Install 3 fixing bolts of the rear boarding Handrail
assembly.
Torque:(18.5 +/- 2) ft lbs
3
Install the plug cap.
4
Close the door.
