CDCU 7912120

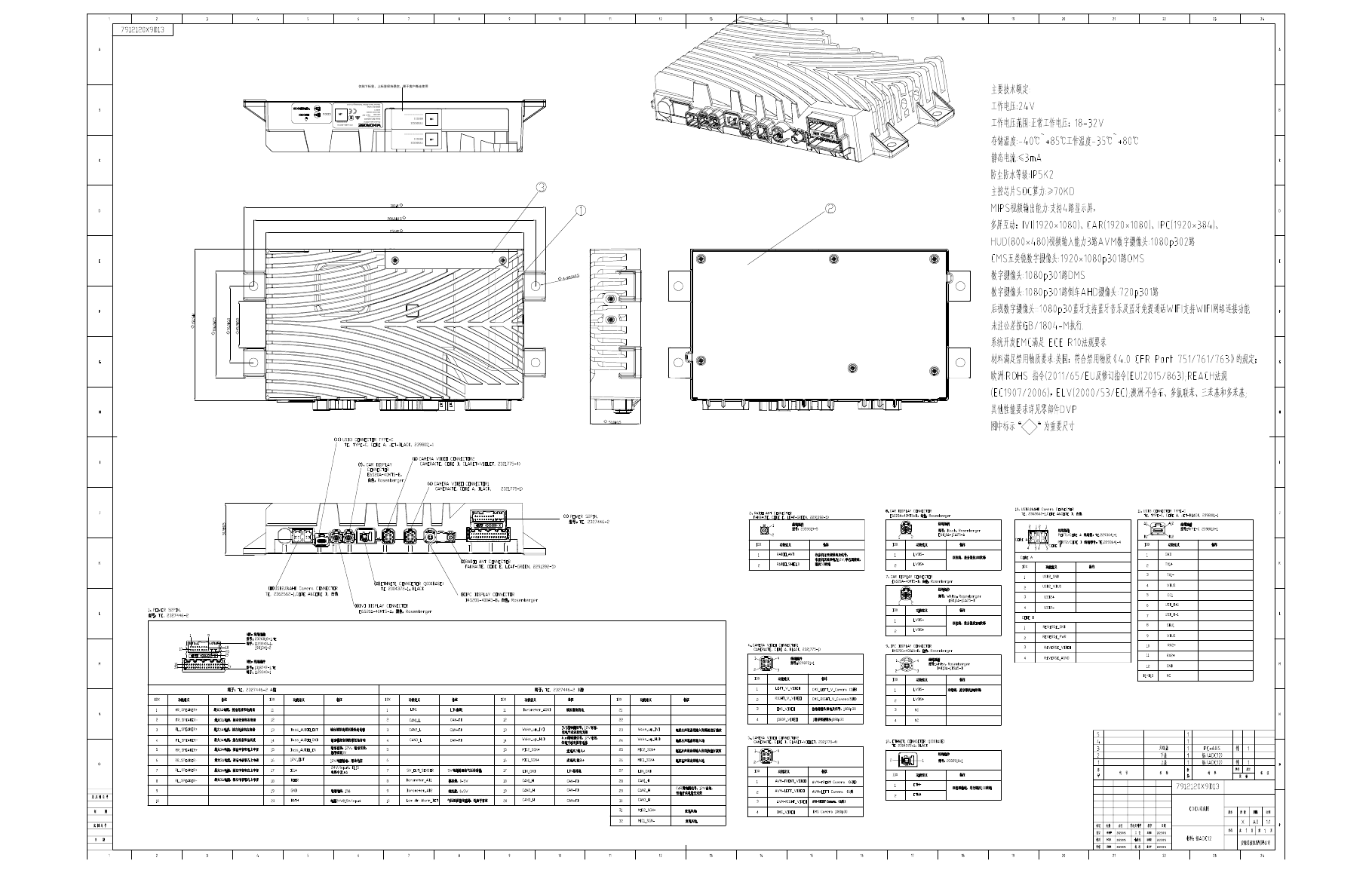

Yaxon cockpit domain controller. Drawings V1.1: X9D01 CN / X9D05 US / X9D13 EU. Drag to orbit, slider to explode screens off the box.
Assembled: CDCU seated in bracket 7912121.
Assembled
Clear trim
Release harness
Remove fasteners
Lift CDCU
Assembled: displays and bracket obstruct access to the CDCU.
Harness movement is a schematic access step; verify routing, clips and fastener torque in the vehicle service manual.
CDCU box (CAD, keep details)
Bracket 7912121
IVI left screen
IPC cluster
CAR right screen
PDFs: X9D13 EU · X9D05 US · X9D01 CN · Ports gallery: left-bay · 口长什么样

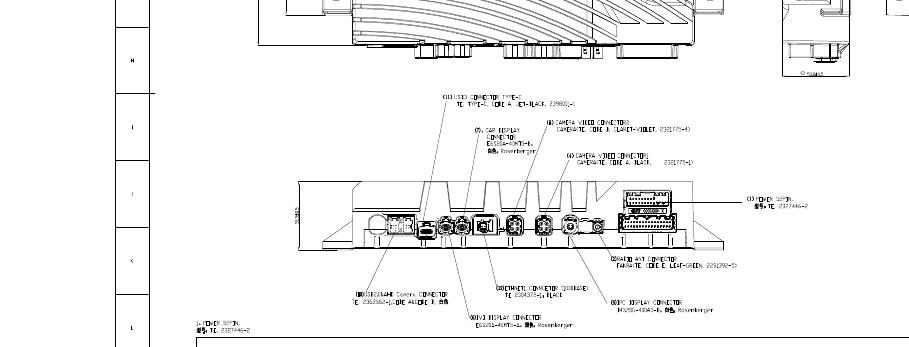

Plug row (L→R, facing plugs): USB3/CAM · USB-C · CAR · CamB · CamA · ETH→TGW · IVI · Radio FAKRA · IPC · J1 power 32P. #8 is radio, not UART. MCU/MPU serial is inside the heatsink (DBG). · 插口矩阵 · 内部串口
